Kampung Admiralty社区综合体Kampung Admiralty社区综合体

2020-02-28 发布

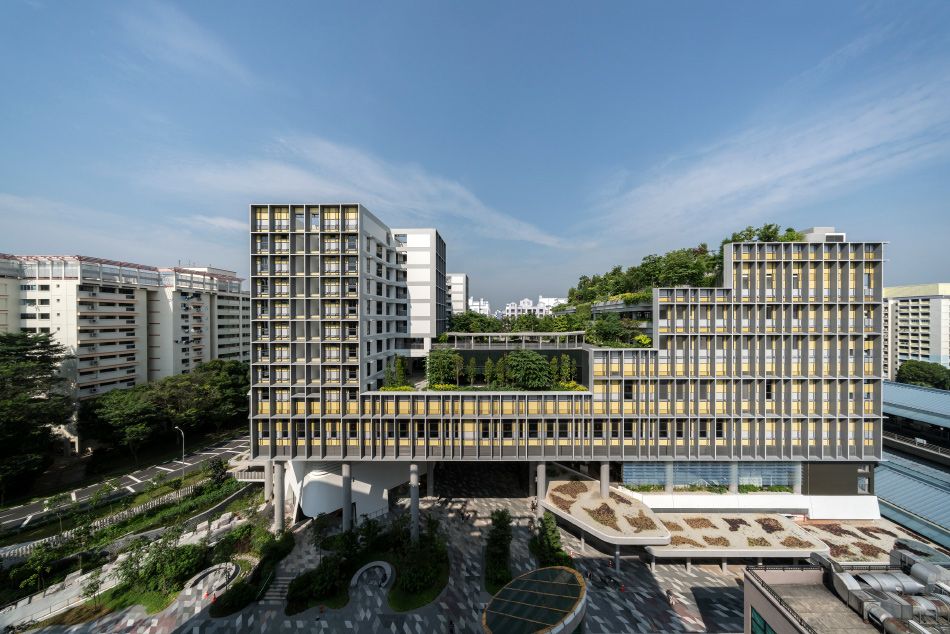

WOHA在新加坡完成了一个混合用途开发项目——Kampung Admiralty社区综合体,将大量公共设施集中在一栋建筑内。建筑师解释说:“传统方法是让每个政府机构分割出他们自己的土地,从而形成几个独立的建筑,另一方面,这个一站式的综合综合体最大限度地利用土地,是满足新加坡老龄化人口需求的模型范本。”
In singapore, WOHA has completed ‘kampung admiralty’, an integrated mixed-use development that unites a wealth of public facilities beneath one roof._ ‘the traditional approach is for each government agency to carve out their own plot of land, resulting in several standalone buildings,’_ explain the architects._ ‘this one-stop integrated complex, on the other hand, maximizes land use, and is a prototype for meeting the needs of singapore’s ageing population.’_











由于场地紧张,高度限制仅为45米(148英尺),WOHA设计了一个由三个“地层”组成的多样化的垂直村庄。被设想为“总会三明治”,下层可容纳一个社区广场,上面有一个医疗中心。最上面的楼层设有一个社区公园,为老年人提供住宿。设计团队解释说,“他们与医疗、社会、商业和其他便利设施的紧密联系,支持代际联系并促进积极老龄化。”
As the site is tight, with a height limit of just 45 meters (148 ft), WOHA devised a diverse vertical village comprised of three ‘strata’. conceived as a ‘club sandwich’, the lower level accommodates a community plaza, with a medical center housed above. the uppermost storey features a community park with living accommodation for senior citizens. _‘the close proximity to healthcare, social, commercial and other amenities support inter-generational bonding and promote active ageing in place,’_ the design team explains.








作为社区客厅,底层广场能够举办各种活动和节目。这个室外空间被上面的楼层遮盖着,这意味着无论天气情况如何,都可以在这里进行活动。由于中央庭院的设置,二楼的医疗中心充满了自然光。同时,周边窗户还确保了待在室内的老年患者可以与大自然和其他人保持联系。
Designed as a community living room, the ground floor plaza is capable of hosting a variety of events and programming. this outdoor space is shaded and sheltered by the storey above, meaning that activities can take place regardless of the weather or climatic conditions. on the second level, the medical center is filled with natural daylight thanks to the central courtyard. meanwhile, perimeter windows also ensure that senior patients — who are able to remain on site — feel connected to nature and to other people.




屋顶公园的规模很小,可以让居民聚在一起锻炼、聊天或照料社区农场。托儿所和自带老年人护理服务的老年人活动中心等附属功能空间并排设置,将年轻人和老年人聚集在一起。综合体内共设有104间老年公寓,分布在两个11层的街区内,供老年单身人士或夫妻入住。共享入口处的“共享长椅”则鼓励老年人走出家门,与邻居互动。
The intimately scaled rooftop park allows residents to come together to exercise, chat, or tend community farms. complementary programs such as childcare and an active aging hub (including senior care) are located side by side, bringing together citizens of different ages. a total of 104 apartments are provided in two 11-storey blocks for elderly singles or couples. strategically positioned at shared entrances, ‘buddy benches’ encourage seniors to come out of their homes and interact with their neighbors.

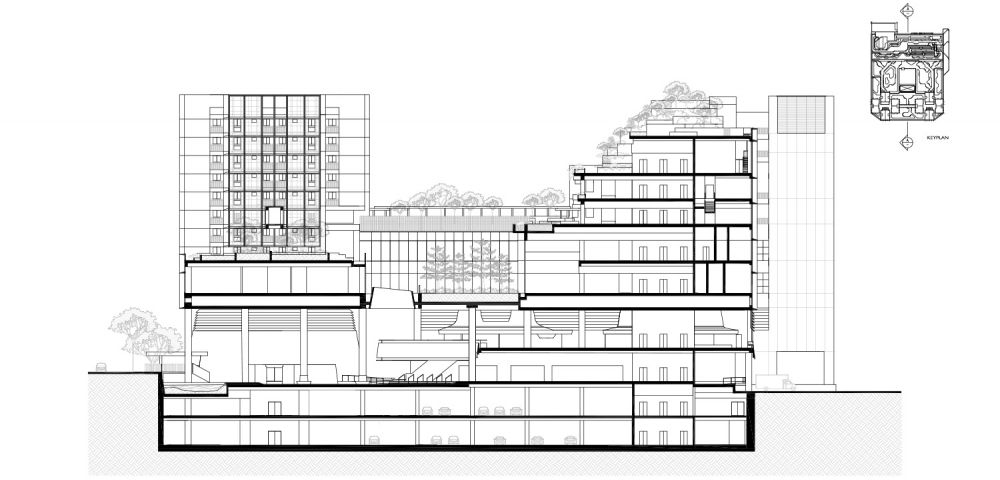

项目图纸:



项目概况:
项目名称:Kampung Admiralty社区综合体
位置:新加坡,伍德兰大道71号
占地面积:8,981平方米
容积率:3.60
建筑与室内设计:WOHA
项目组:wong mun summ, richard hassell, pearl chee, goh soon kim, phua hong wei, richard kuppusamy, jonathan hopper, yang han , lau wannie, gillian hatch, kwong lay lay, zhou yubai
室内设计:sofwan,john paul r gonzales
业主:住房和发展委员会
土木及结构工程师:ronnie & koh consultants pte. ltd
机电工程师:AECOM pte. ltd.
工料测量师:davis langdon KPK (singapore) pte. ltd.
景观顾问:ramboll studio dreiseitl singapore pte. ltd.
绿色标志顾问:AECOM pte. ltd.
主承包商:lum chang building contractors pte ltd
project info:
title: kampung admiralty
location: woodlands drive 71, singapore
design inception: march 2013
piling: april 4, 2014 – october 7, 2014
start of construction: october 31, 2014
completion: 3rd quarter 2017
TOP: may 8, 2017
site area: 8,981 sqm
build-up area: 53,066.49 sqm
gross floor area: 32,331.60 sqm
plot ratio: 3.60
community space: 10,030.39 sqm
community plot ratio: 1.12
architect and interior design: WOHA
project team: wong mun summ, richard hassell, pearl chee, goh soon kim, phua hong wei, richard kuppusamy, jonathan hopper, yang han , lau wannie, gillian hatch, kwong lay lay, zhou yubai
interior design: sofwan, john paul r gonzales
client: housing and development board
civil and structural engineer: ronnie & koh consultants pte. ltd
mechanical & electrical engineer: AECOM pte. ltd.
quantity surveyors: davis langdon KPK (singapore) pte. ltd.
landscape consultant: ramboll studio dreiseitl singapore pte. ltd.
greenmark consultant: AECOM pte. ltd.
main contractor: lum chang building contractors pte ltd
