2020-03-20 发布
DIALOG和B+H Architects一起合作，以学生为首要推进要素，设计了一座全新的、可持续的AMS Nest中心。AMS Nest中心的占地约25万平方英尺，学生们返回UBC学校的时候，也将迎来这所LEED白金级学生会大楼的开幕式。
DIALOG and B+H Architects collaboratively translate student-driven design ideas into AMS Nest, setting the benchmark for publicly engaged design with this new, sustainable center. The return of students to UBC coincides with the highly anticipated opening of the AMS Nest – a new 250,000 square foot, LEED Platinum student union building.
这栋楼共有五层，耗资1.07亿美元，由于其中75%的资金都来自学生，所以它形成了一个独特的设计流程，学生会充当客户的角色，而学生的参与是项目构建过程中的驱动因素。这个高度协作的过程的结果是一个可持续的、民主的中心和校园中心，它是学生生活和参与的见证，同时为当代的制度设计确立了新的标准。
The five-storey, $107M student union building designed by DIALOG and B+H Architects received 75% of its funding from the students, resulting in a unique design process where the union took on the role of client, and student engagement became the driving factor from proponent selection through to construction. The outcome of this heavily collaborative process is a sustainable, democratic hub and campus centerpiece that serves as a testament to student life and engagement while establishing a new standard for contemporary, institutional design.
DIALOG和B+H联合的领导Joost Bakker解释说：“在英属哥伦比亚大学中有来自世界各地的学生。对我们来说，将建筑构建得有意义而又舒适是非常重要的。这个空间将会为学生带来一种地方感，并通过设计来提升校园生活的质量。”
B+H Architects的主管Kevin Stelzer补充道：“我们对项目的建筑设计感到非常自豪。这是一个当代的作品，学生们喜欢它。我们希望AMS Nest能够成为革新合作项目的基准。”
“Students from all over the world attend UBC. It was incredibly important for us that the built space be meaningful and comfortable; a space that would create a sense of place for the students and improve the quality of life on campus through design,” explains Joost Bakker, leader of the joint DIALOG and B+H efforts.
“We’re incredibly proud of the architectural design. It is a contemporary solution and the students love it. Our hope is that the AMS Nest becomes a benchmark for what can be achieved through innovative collaboration,” adds Kevin Stelzer, principal at B+H Architects.
通过一个独立于大学的学生驱动设计竞赛，DIALOG和B+H建筑师被选为获胜团队，他们的集体经验提供了以社区为中心的设计。通过社交媒体、YouTube和海报活动与学生进行互动，积极探索设计过程，这一做法对于全面获取学生们的意见至关重要。
Through a student-driven design competition, independent from the university, DIALOG and B+H Architects were selected as the winning team based on their collective experience delivering community-centred designs. Engaging with students via a social-media, YouTube and poster campaign actively exploring the design process was necessary to fully capture student voices.
此外，DIALOG和B + H举办了18个合作研讨会，为学生提供了一个持续的平台，以表达他们对选址的看法和共同愿望。得益于透明的参与设计过程，在旧的学生会大楼内竖起了一个弹出式玻璃隔间，即“设计立方体”，而这大大促进了为期四年的设计建造过程中开发式交流和学生共识得到进一步发展。
In addition, DIALOG and B+H hosted eighteen collaborative workshops to provide an ongoing platform for students to express their goals and collective vision for the site. Fostering a transparent and engaging process, a pop-up glass cubicle, the “Design Cube”, was erected in the old student union building, allowing open communication and student consensus during the 4-year process.
可持续建筑的特点包括高性能的覆层系统和三层玻璃，以确保低能耗，从而使次使用的能源是传统建筑的一小部分。一个高性能的太阳能屋顶可以产生能量和热量，当然也包括冷却技术。

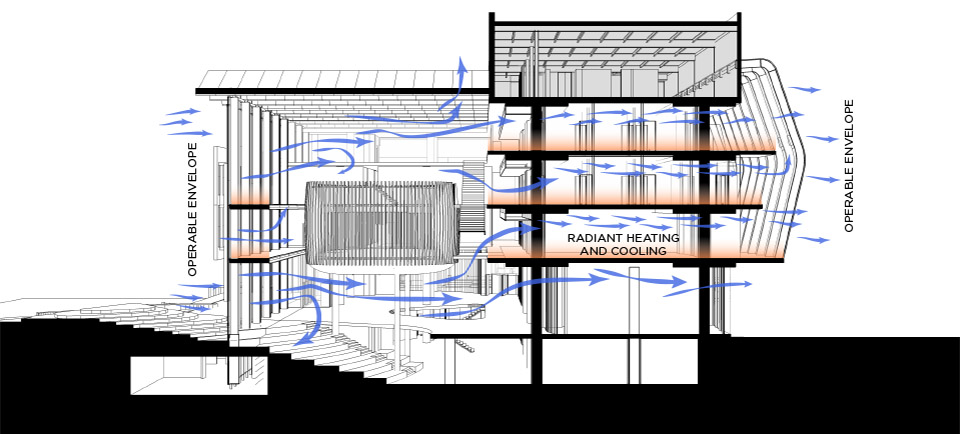

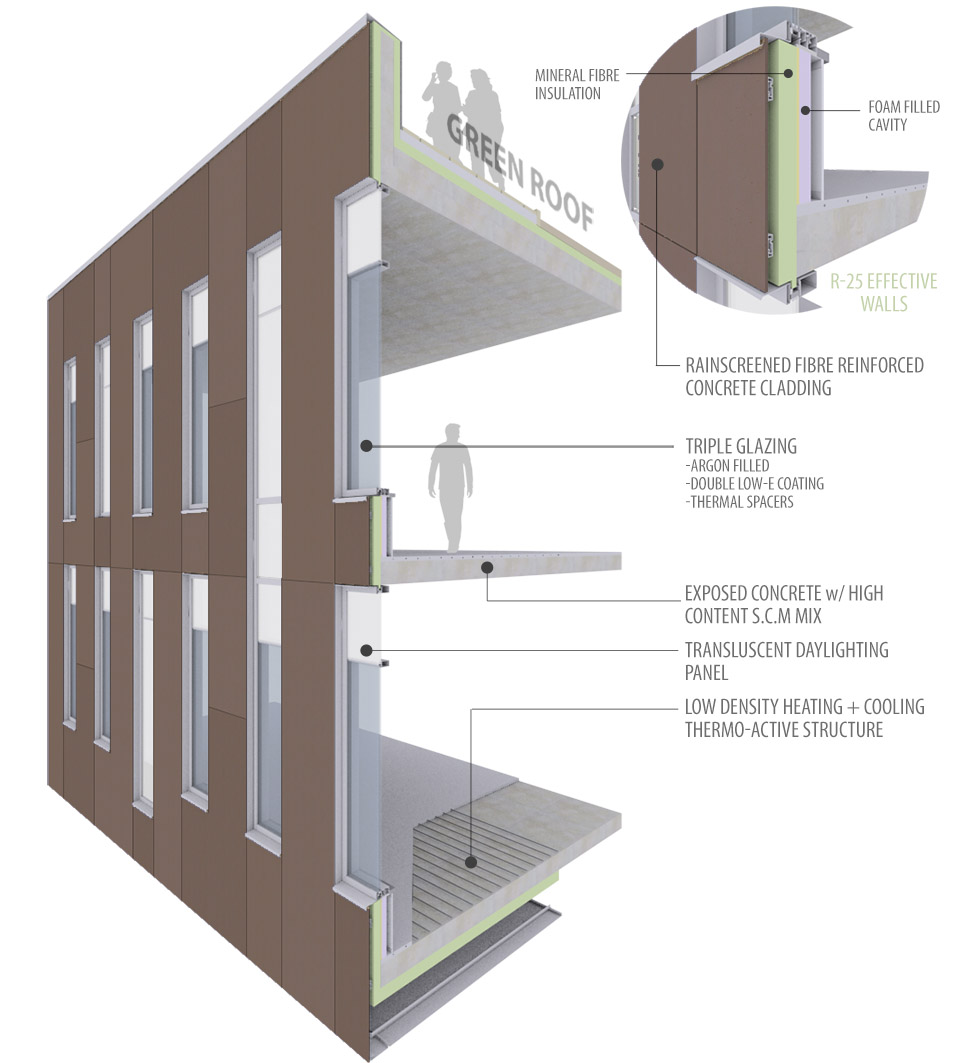

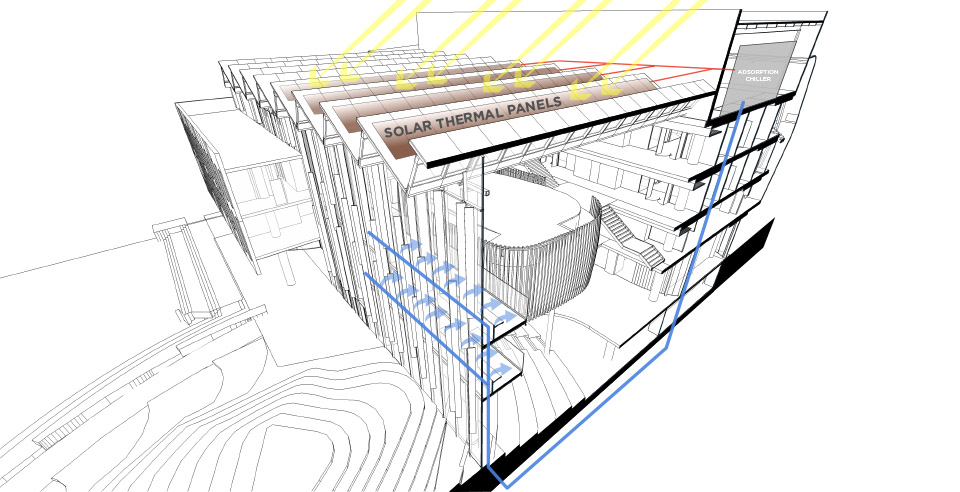

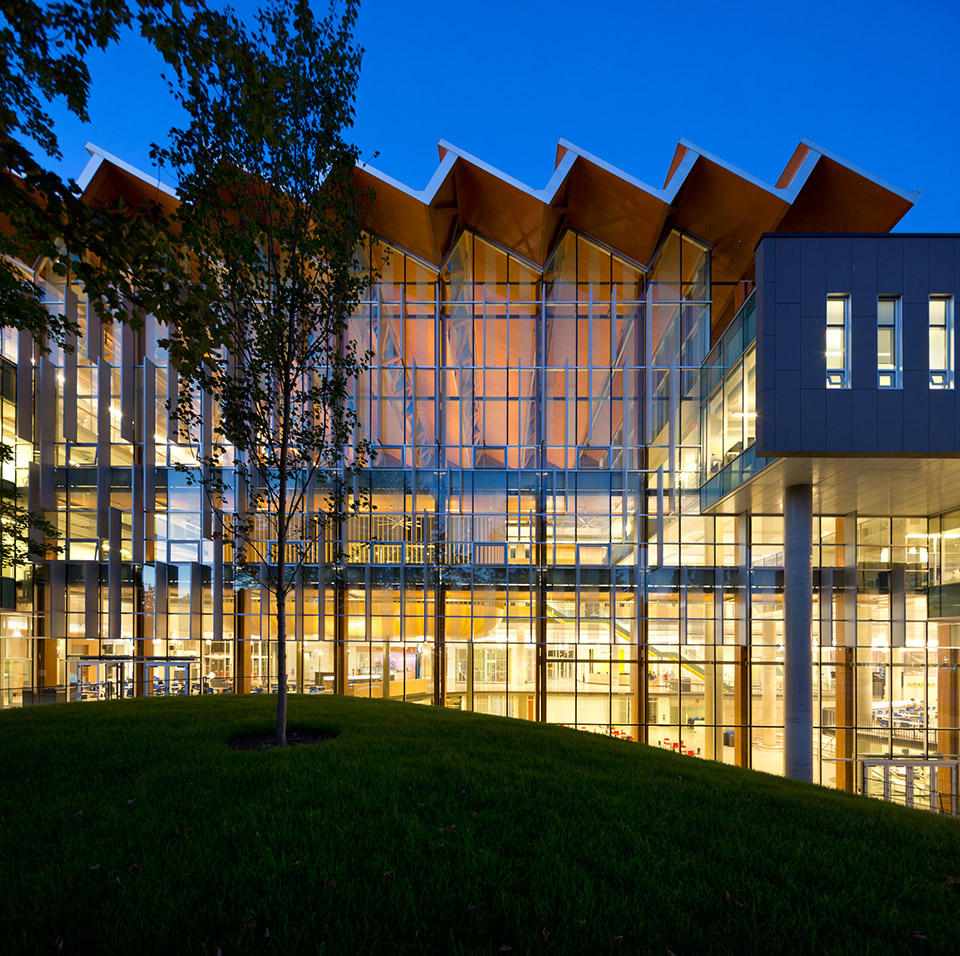

Sustainable building features include a high-performance cladding system and triple glazing to ensure low energy consumption, resulting in the SUB using a fraction of the energy of a conventional building. A high-performance solar roof produces energy and heat, as well as cooling.
为了促进经济的可持续发展，多功能场所具有众多功能，包括学生俱乐部房间，食品和饮料，零售，日托，会议室，三层室内攀岩墙和多功能活动空间。学生会经营的酒吧和餐馆计划是工会的主要收入来源之一，甚至利用了直接在建筑物的绿色屋顶上种植的产品。

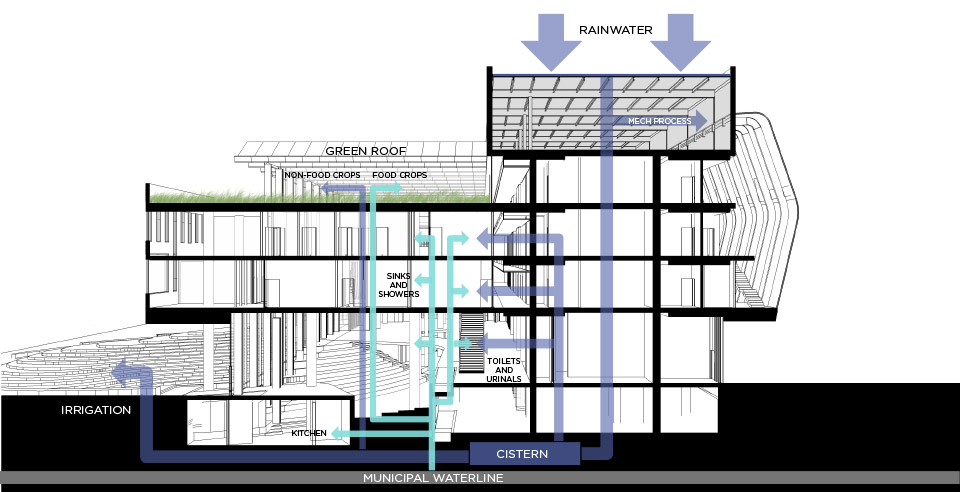

To nurture economic sustainability, the multi-purpose site houses a myriad of functions from student club rooms, food and beverage, retail, daycare, meeting rooms, a 3-storey indoor climbing wall and a multi-purpose event space. The student-run pub and eatery program, one of the union’s main revenue drivers, even utilizes products grown directly on the building’s green roof.
为了确保它能经得起未来考验是一个优先事项，设计的许多方面都是可移动、可重构、可拆卸/可重构的系统，以便灵活应对短期变化（小时、天、月等）。耐用的材料和非规定性元素允许适应发生在更长的时间尺度。两者的巧妙结合提供了一种强大而灵活的能力，以应对为未知未来设计的挑战。
Ensuring it would remain future-proof was a priority and many aspects of the design are moveable, reconfigurable, de/reconstructible systems to allow flexibility to respond to short-term changes (hours, days, months, etc). Durable materials and non-prescriptive elements allow for adaptation to occur over longer timescales. The skillful combination of the two provides a robust and nimble capacity to respond to the challenges of designing for unknowable futures.
在社会可持续性和建立独特的地方感方面，AMS Nest的选址经过战略规划，以响应校园总体规划，并根据UBC校园现有的和标志性的青草“小丘”进行定制。丰富的森林和温暖的材料定义了室内品味，而布局上致力于实现传统的“集市”功能，以向建筑物的民主设计过程致意。

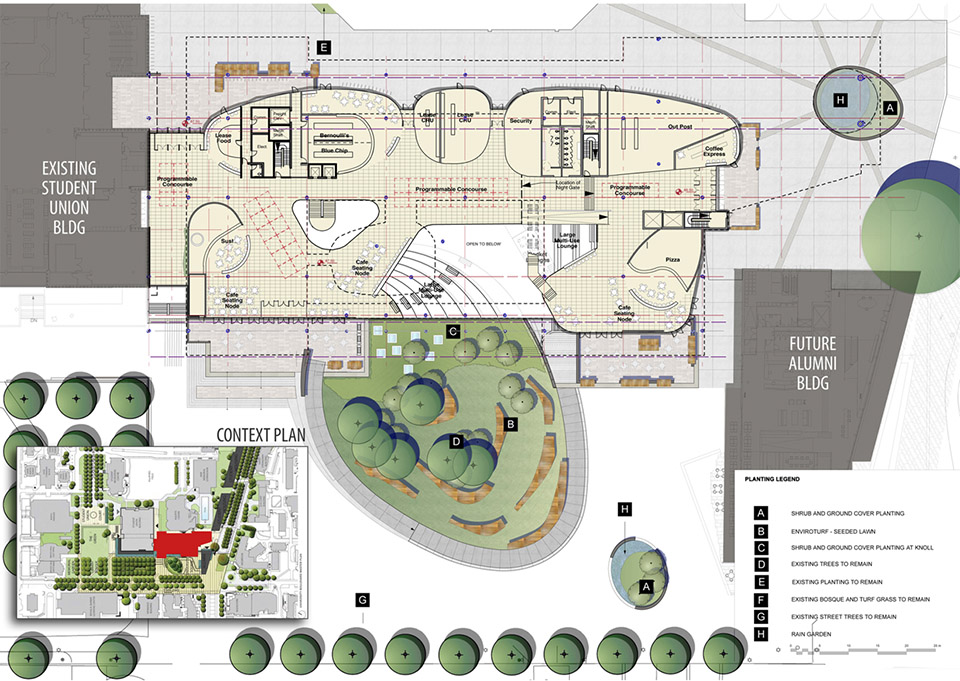

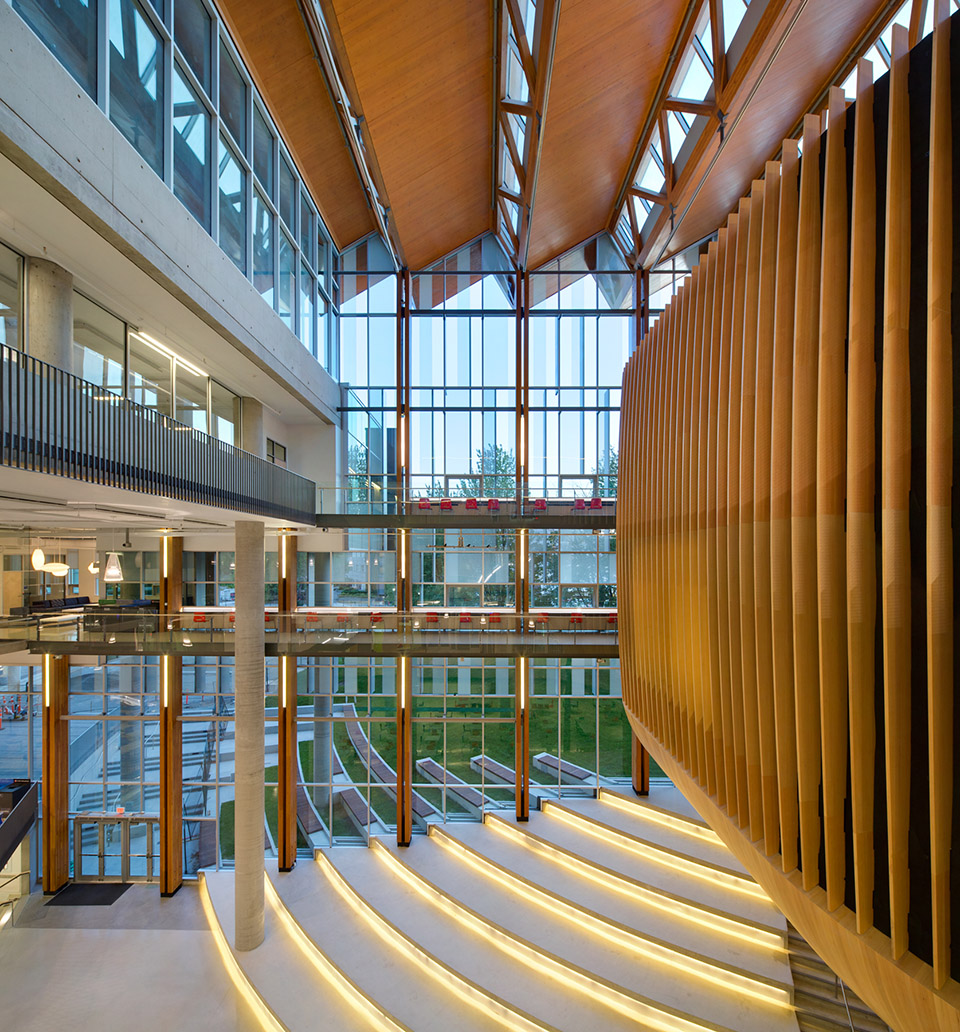

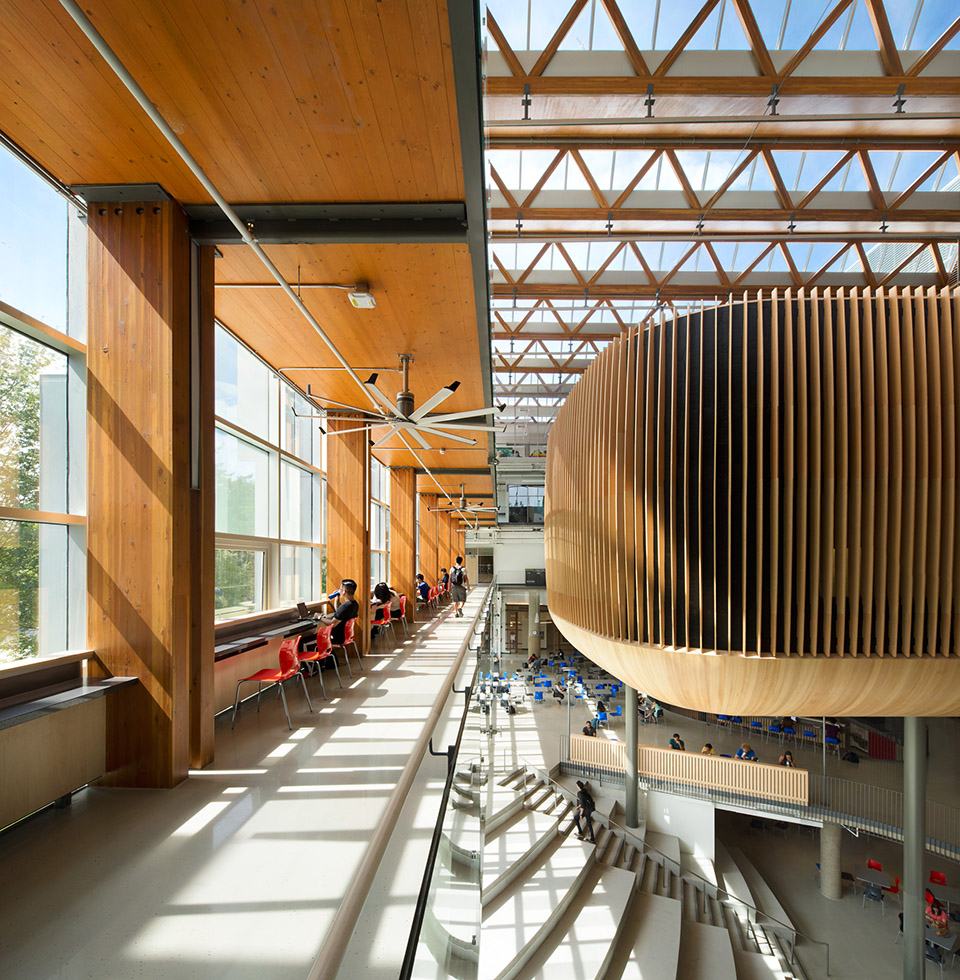

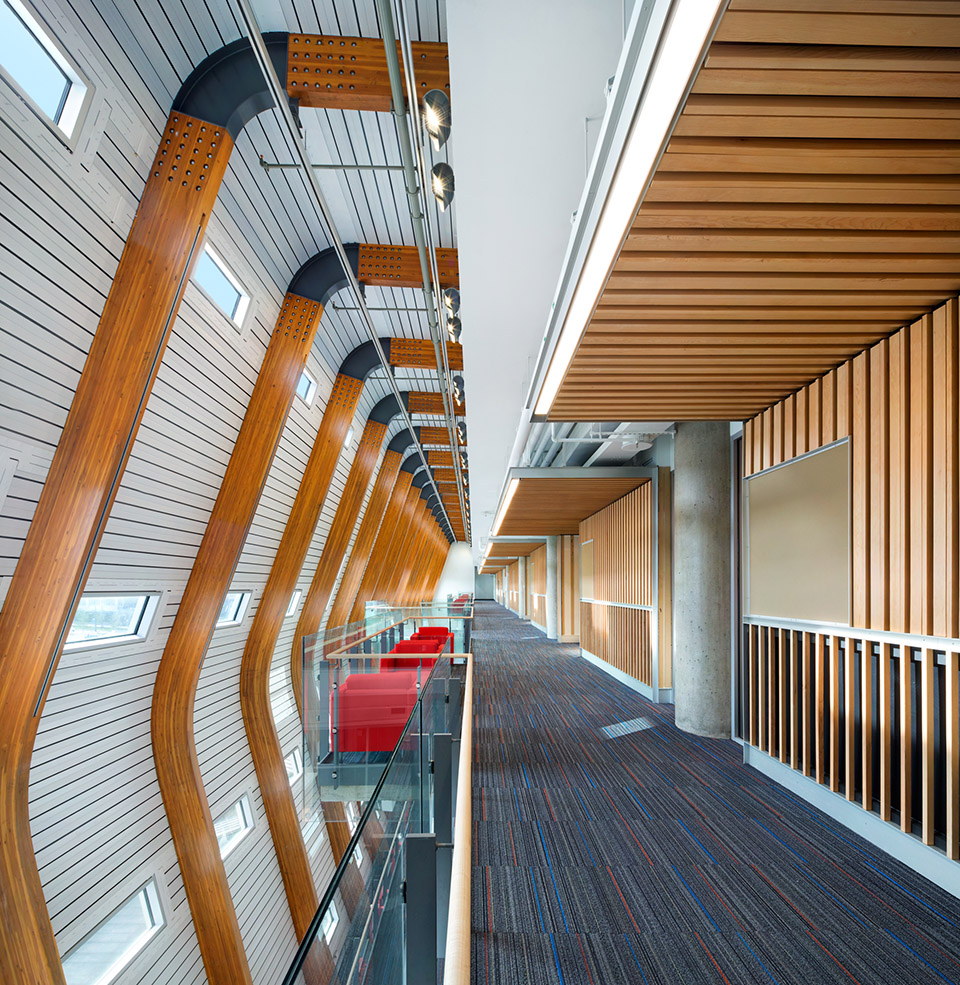

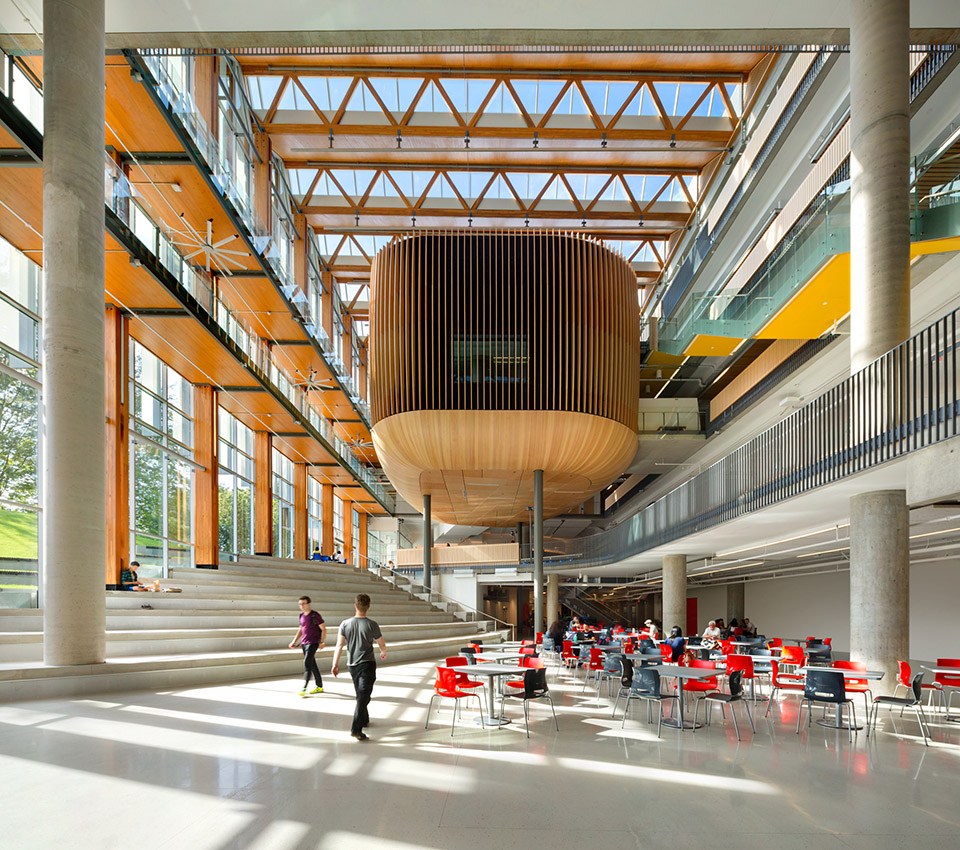

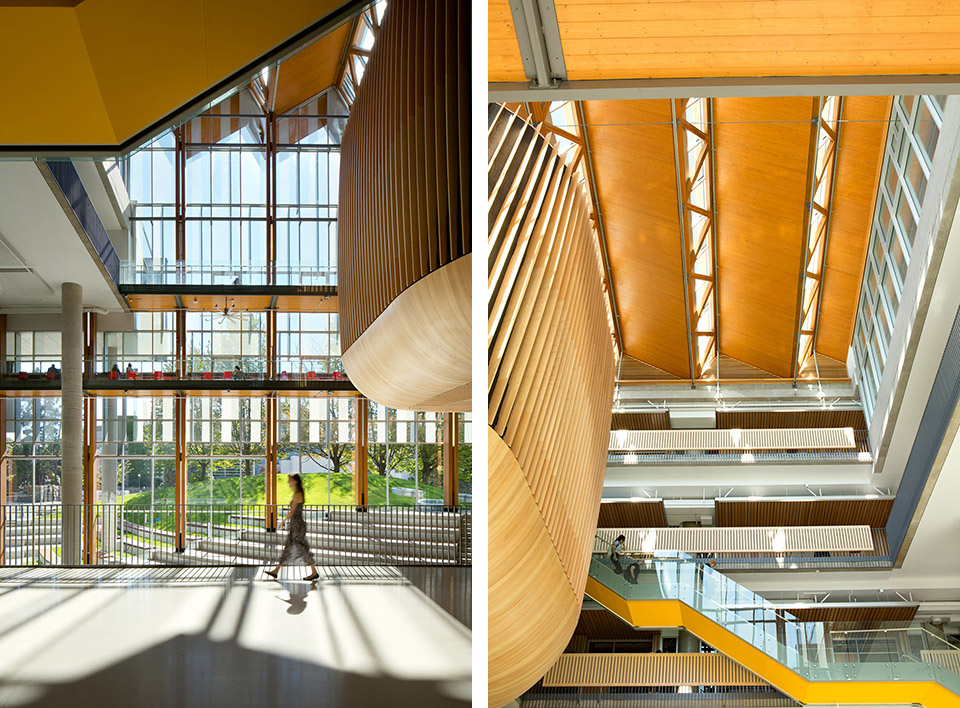

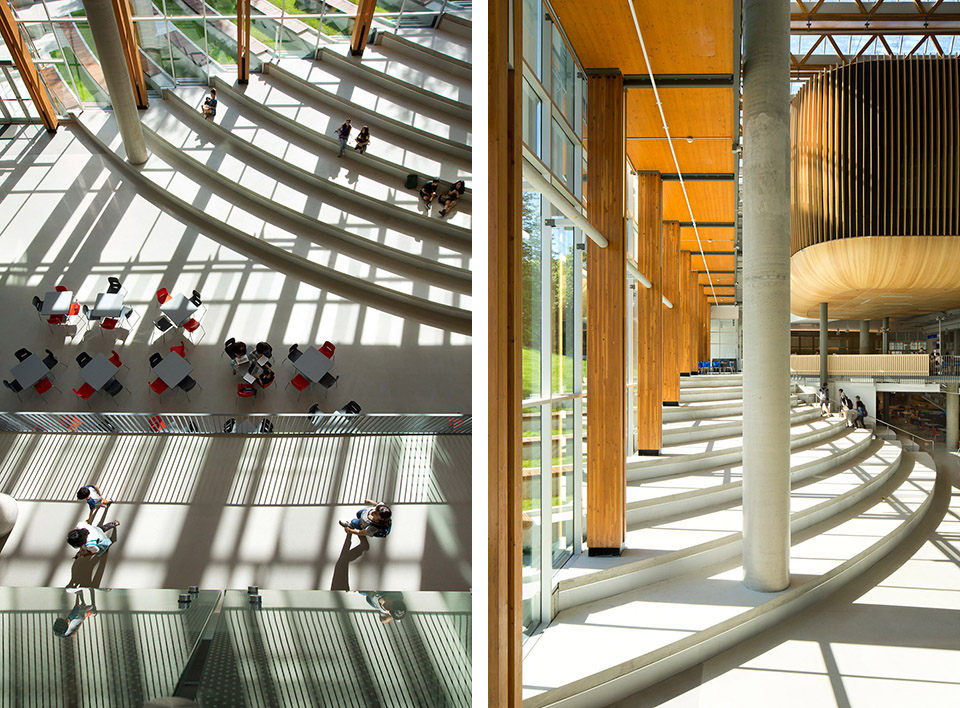

In terms of social sustainability and establishing a distinct sense of place, the AMS Nest’s site is strategically programmed to respond to the campus mater plan, and tailored to integrate the existing and iconic grassy “knoll” on UBC’s campus. Rich woods, and warm materials define the interior palate, while the layout is centered on a classical “agora” as a nod to the building’s democratic design process.
项目图纸：
项目信息： 建筑设计：B+H Architects, DIALOG
室内设计：B+H Architects + DIALOG
面积：11700.0平方米
年份：2015
摄影：Ema Peter
制造商：TAKTL
Architects: B+H Architects, DIALOG ; Interiors designers: B+H Architects + DIALOG
Area: 11700.0 m²
Year: 2015
Photographs: Ema Peter
Manufacturers: TAKTL
|
|
|
|
|
|
|
|
|
