感谢 noa* 予国际设计分享以下内容 Appreciation towards noa* for providing the following description ©AlexFilz
在南蒂罗尔田园诗般的Völser Weiher湖边，noa*将现代设计理念与人们所喜爱的传统融合在一起，创造了一个与自然和谐相处的建筑。
It was the famed jump into the deep end: at the idyllic Völser Weiher lake in South Tyrol,noa* merged a modern design concept with well-loved tradition to deliver architecture that works in harmony with nature.
©AlexFilz
©AlexFilz

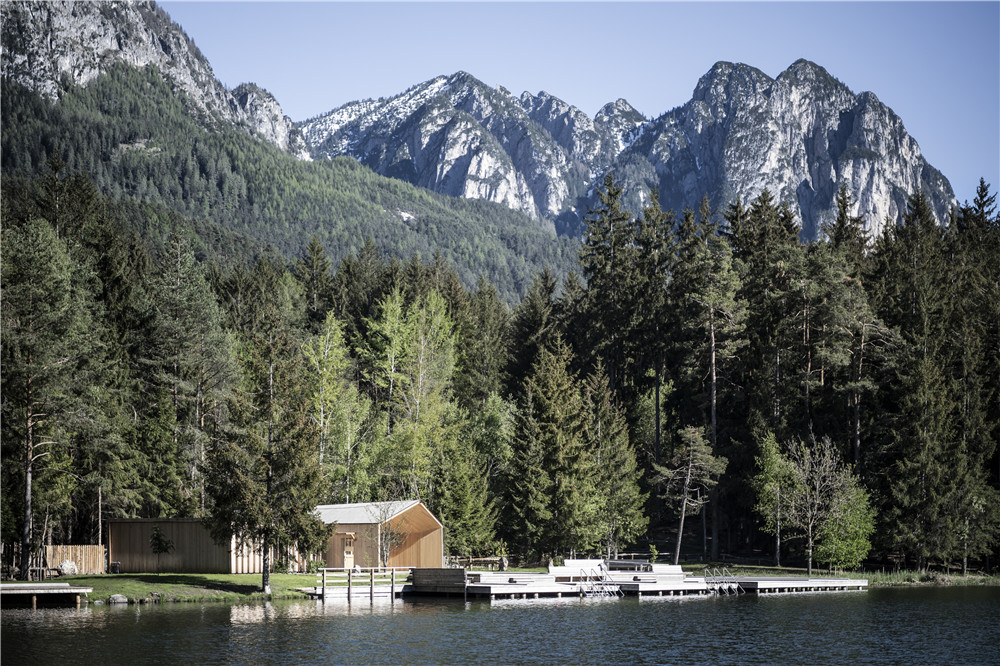

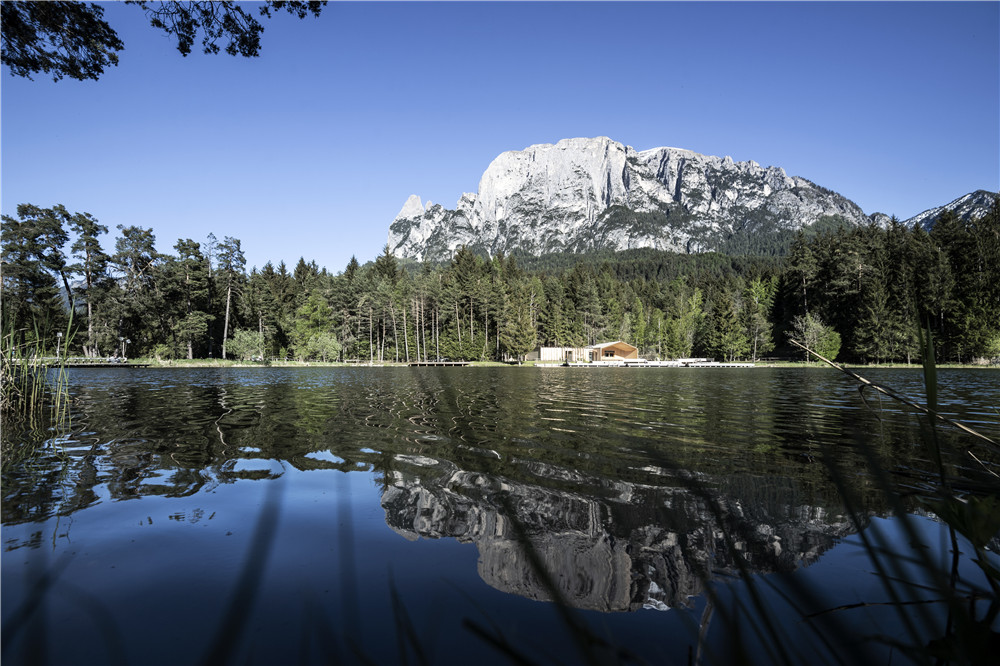

Völser Weiher湖位于海拔1000米以上，山峦叠嶂，松林葱郁，景色壮丽。这里的田园风光触手可及：这是一个风景优美的自然保护区，全年为游客提供放松和休闲的空间。noa *受Völs市政当局委托，建造了一个小巧而迷人的游泳小屋，并设有公共更衣室和卫生设施，与风景相得益彰。

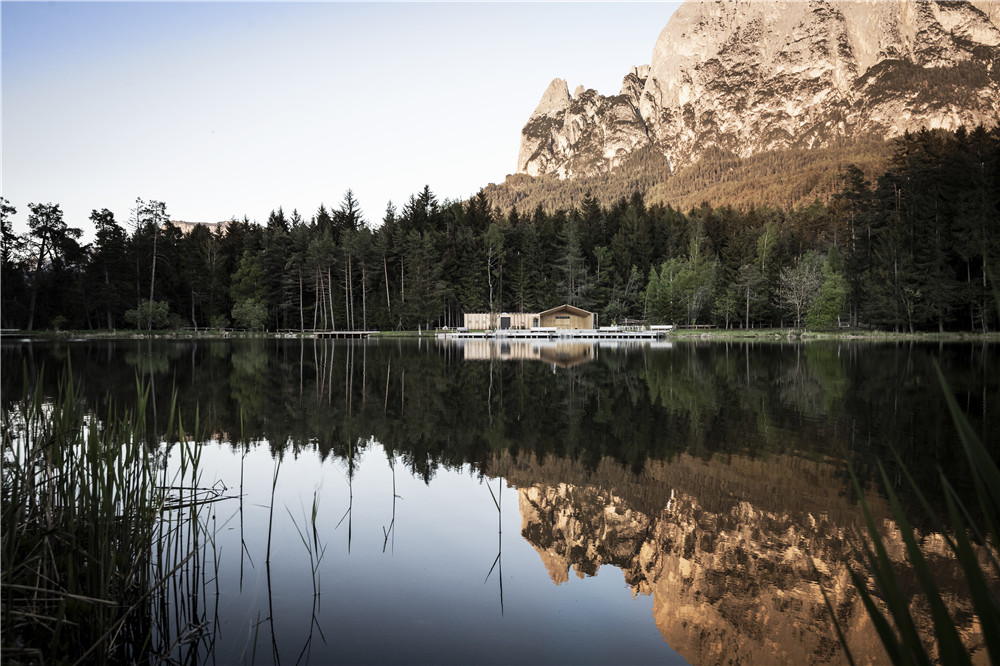

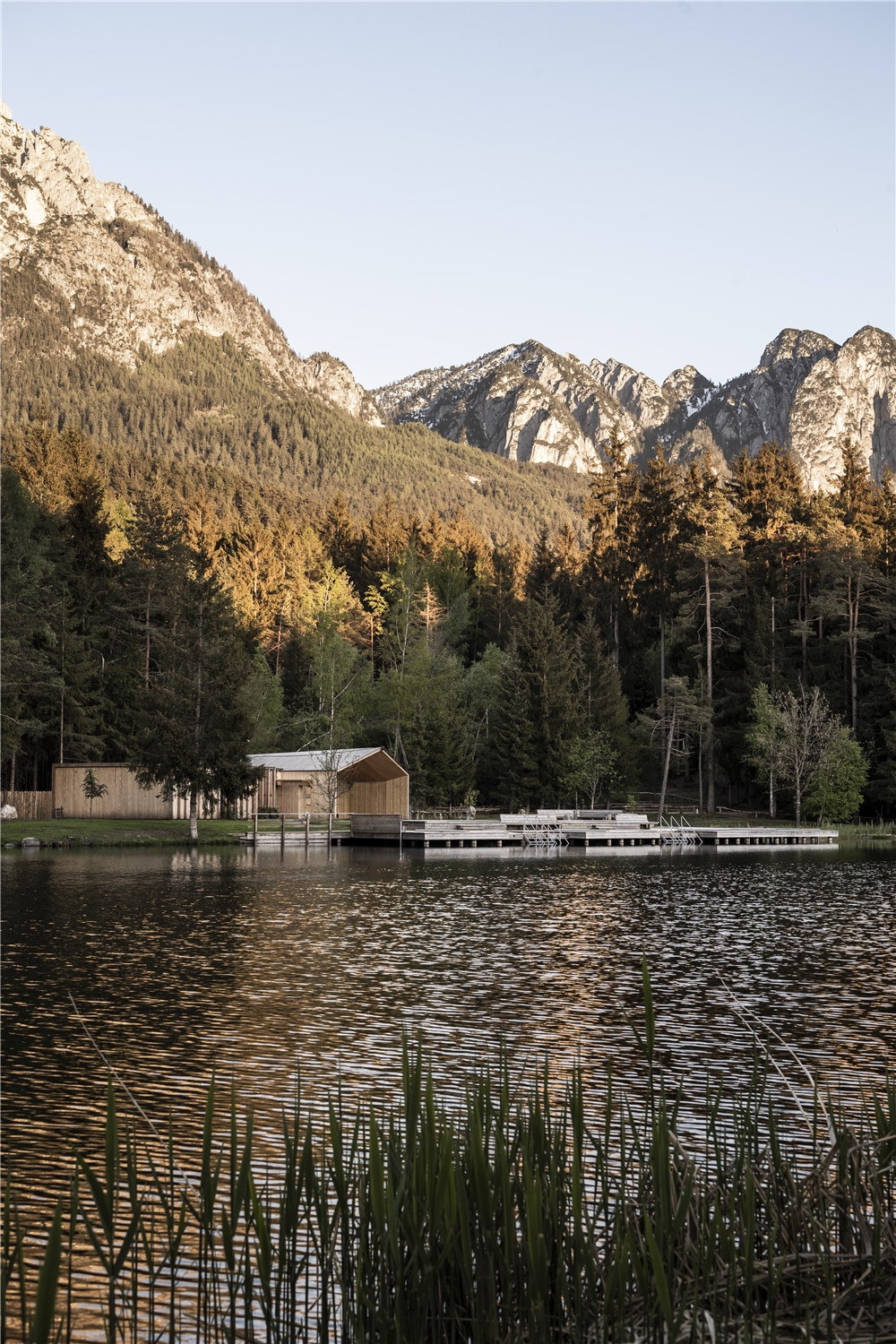

Amid a spectacular mountain backdrop lined with lush green pine forests, the Völser Weiher lake lies over 1,000 meters above sea level. The idyll here is palpable: a scenic nature reserve that offers year-round visitors space for relaxation and leisure. noa* was commissioned by the municipality of Völs to build a small, attractive swimming hut with attached public changing rooms and sanitary facilities that would complement the scenic setting.
©AlexFilz
©AlexFilz
©AlexFilz
原有的旧报亭太小、太过时了，所以无法适应其他用途，并且缺少适合残疾人士使用的便利设施。无论是在夏天游泳或是在冬天滑冰，Völser Weiher湖都是人们户外旅行的热门地点，尤其对当地人来说，这里需要一个全新的、现代的面貌。这座旧建筑随后被拆除，为一座与周围环境完美匹配的建筑腾出了空间。
Too small and no longer fit for purpose, the existing old kiosk was getting on in years and was lacking proper accessible facilities for the disabled. The popular destination for outdoor excursions, particularly amongst the locals, whether a refreshing swim in summer or ice skating in winter, was to be given a fresh, contemporary makeover. The old facility was demolished to create space for a new chapter in which architecture could combine with its surroundings in a harmonious whole.
©AlexFilz
©AlexFilz
一个热情洋溢的建筑 EXTENDING A WARM WELCOME

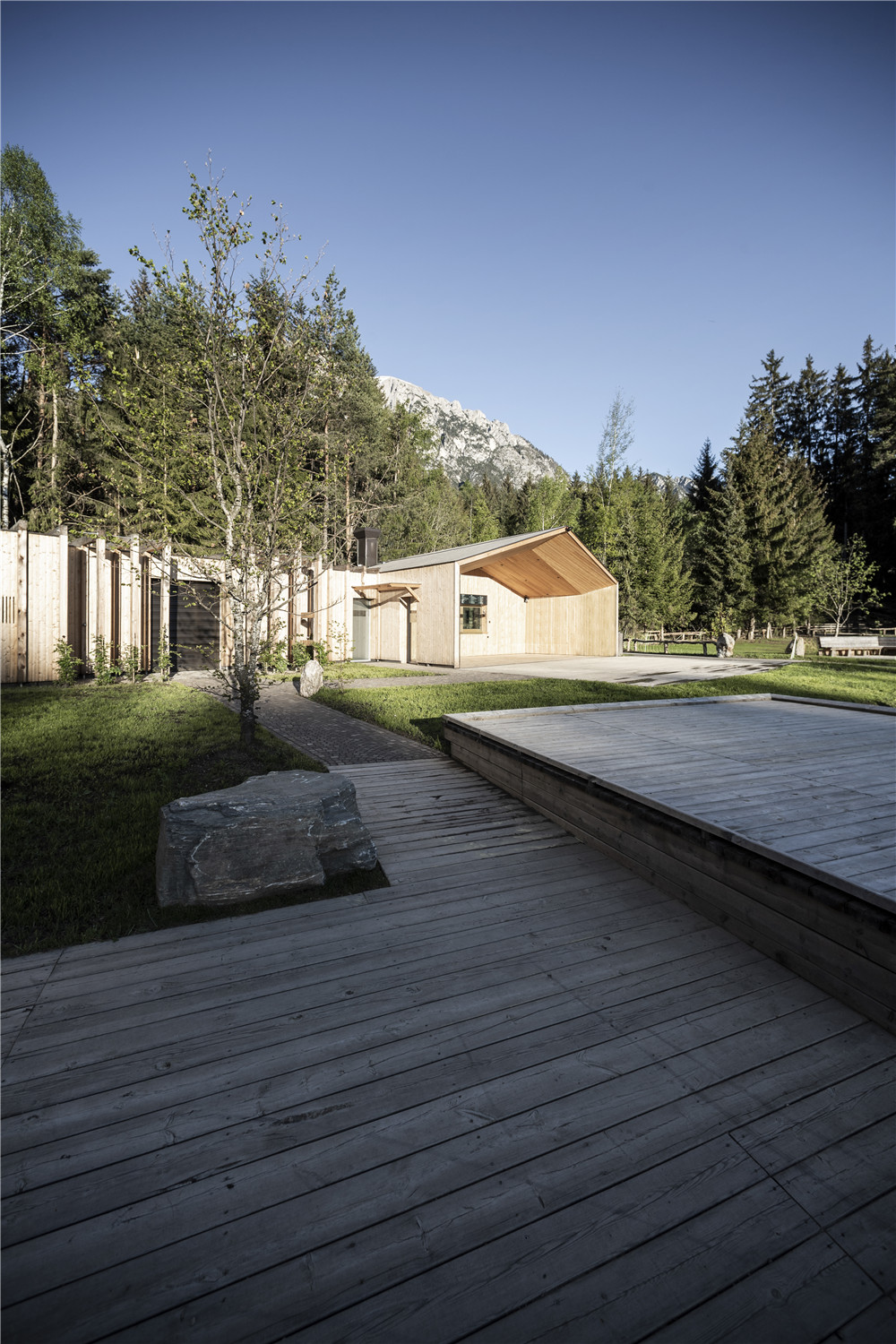

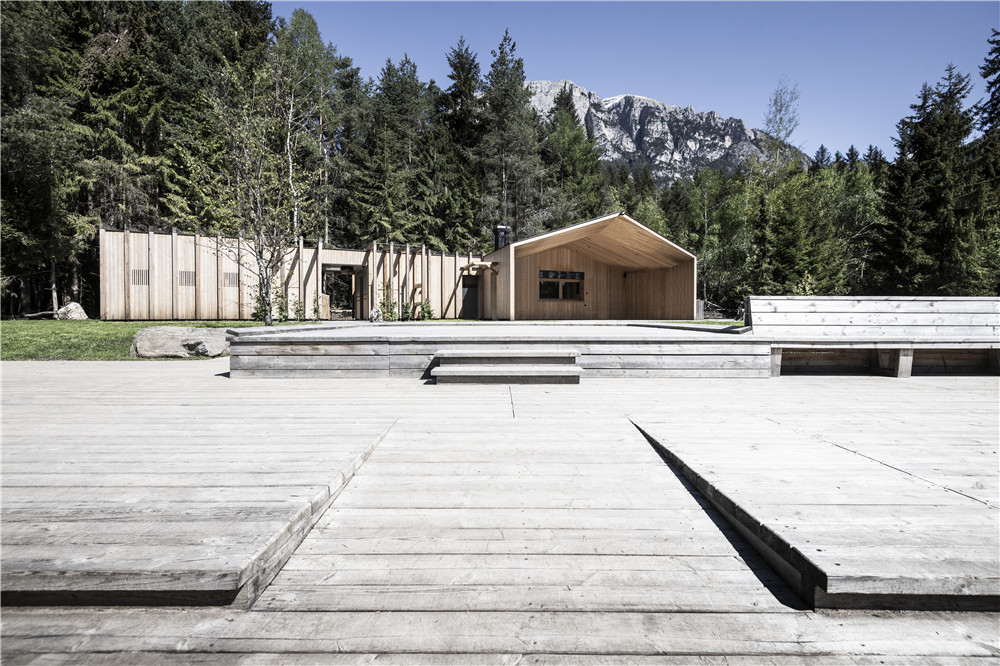

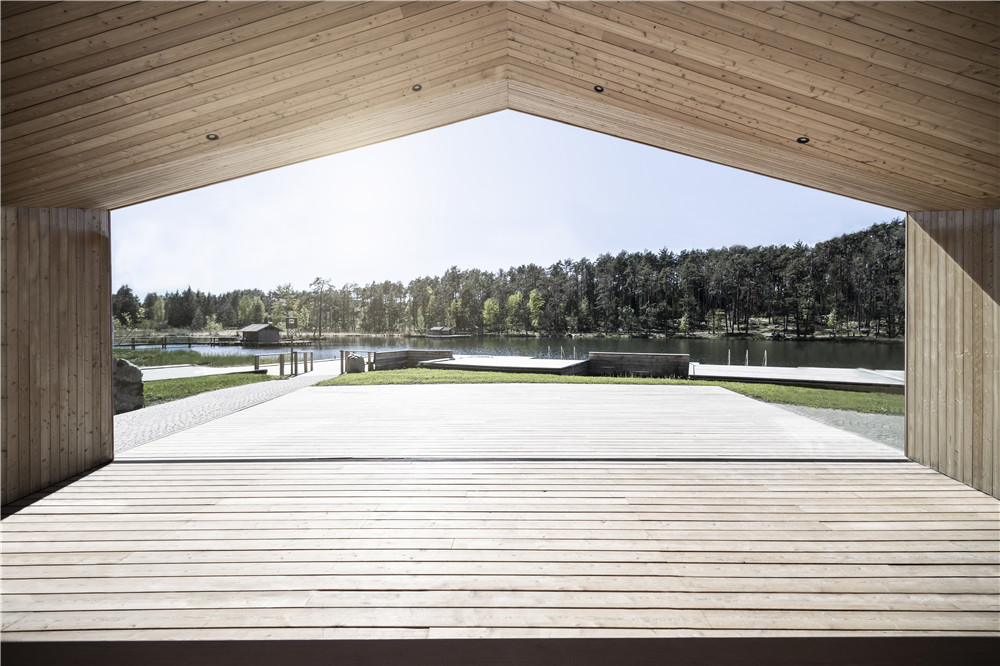

为了使设备的规模保持细致和小巧，以便与特殊的环境融为一体，noa *设计了两个紧凑的结构，并通过横轴连接。主楼是一家新的小吃店，有一个经典的马鞍屋顶，其中包括一个半开放的厨房和一个提供食物和饮料的柜台。建筑向外延伸，扩展出一个开放的凉廊和露台，可以俯瞰湖面和新设计的浴场。
To keep the facility’s scale discreet and small in order to blend in with its special surroundings, noa* designed two compact structures with a restrained cubature that are connected along a transverse axis. The main building, a new snack-bar with a classic saddle roof, contains a part closed, part open kitchen and counter where food and drinks are served. It expands into an open loggia and terrace, with sweeping views over the lake and newly designed bathing area.
©AlexFilz
©AlexFilz
©AlexFilz
©AlexFilz

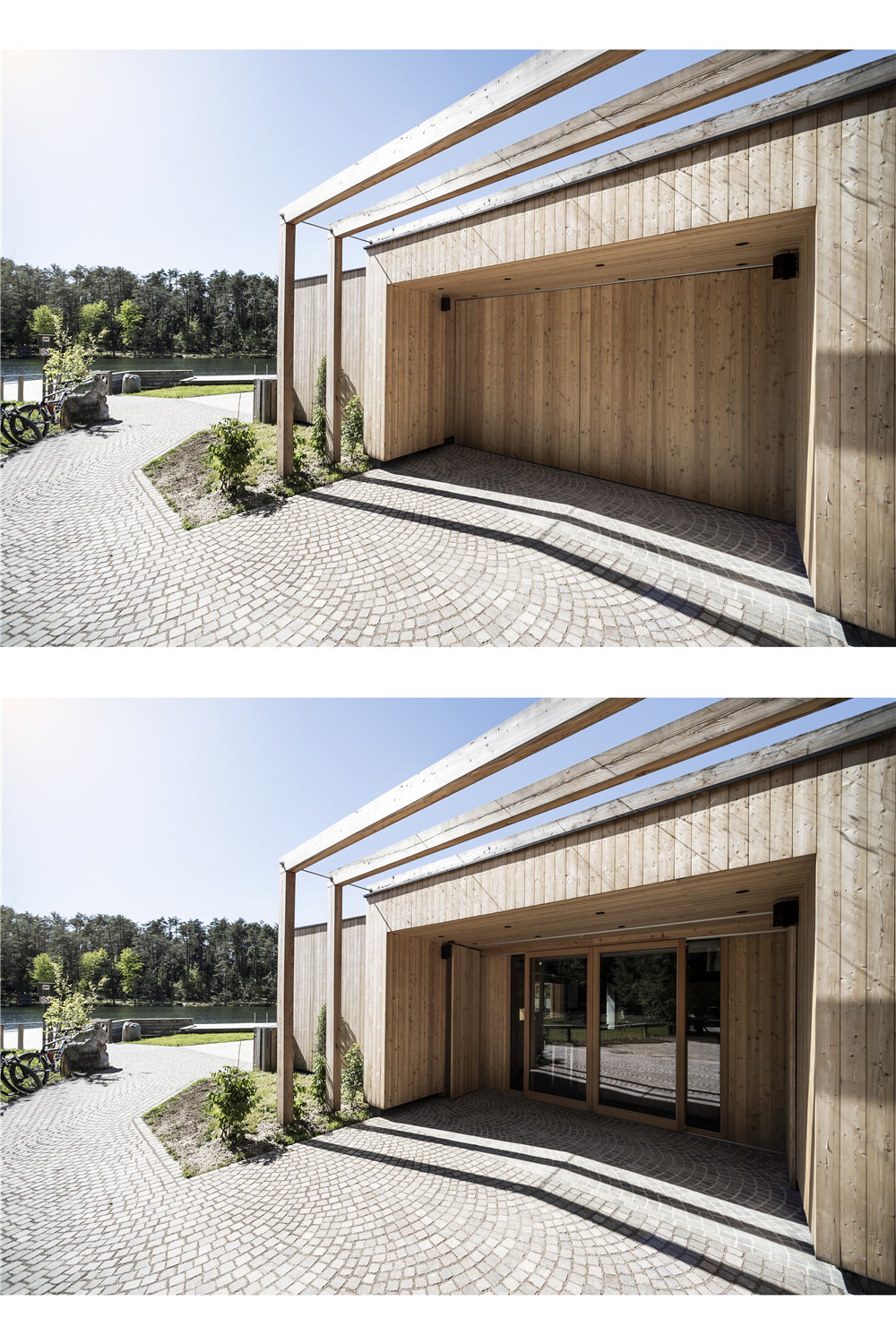

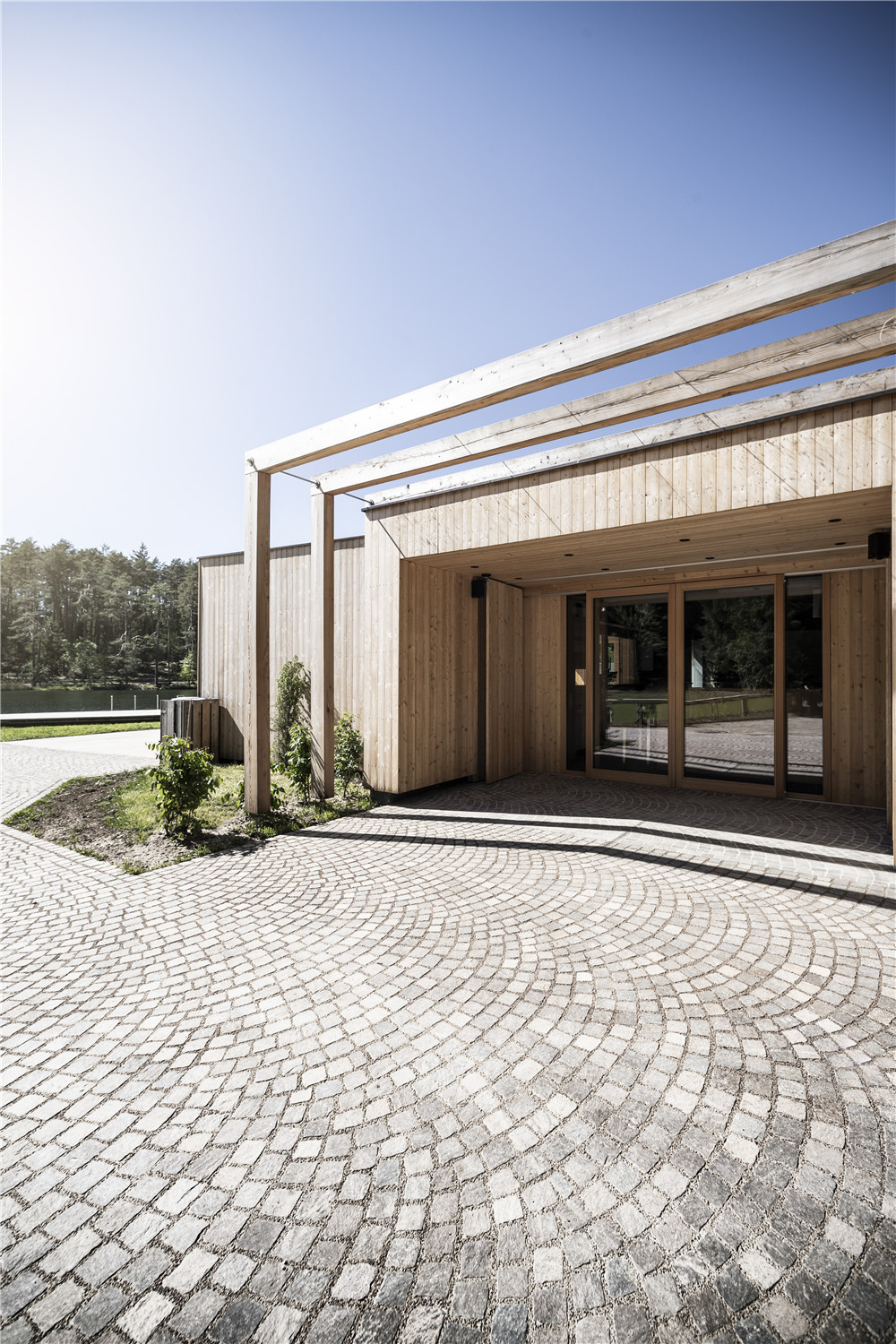

连接两栋建筑的横轴由一个带有木制折叠件的开放式凹口限定。休息室起着第二个柜台的作用，沐浴者、行人和骑自行车的人可以在这里购买点心、冰淇淋和食物。休息室被巧妙地隔断既保持了门廊和露台区域的安静，又为客人的自助服务提供了便利。
The transverse axis that connects the two buildings is defined by an open recess with a wooden folding element. The recess functions as second counter where bathers, pedestrians, and cyclists can purchase small refreshments, ice cream, and food. The recess also acts a clever partition, so the loggia and terrace area can be kept comfortably quiet, while simultaneously enabling quick and easy self-service for guests.
©AlexFilz
©AlexFilz
一个紧密的空间 CREATING PLACES
第二个建筑是一个单独的立方体，与小吃店相连，与主楼一起在建筑和功能上形成了紧密的整体。
The second building structure is a separate cube connected to the snack-bar, which is dedicated to its public function and together with the main building forms a tight ensemble both architecturally and functionally.

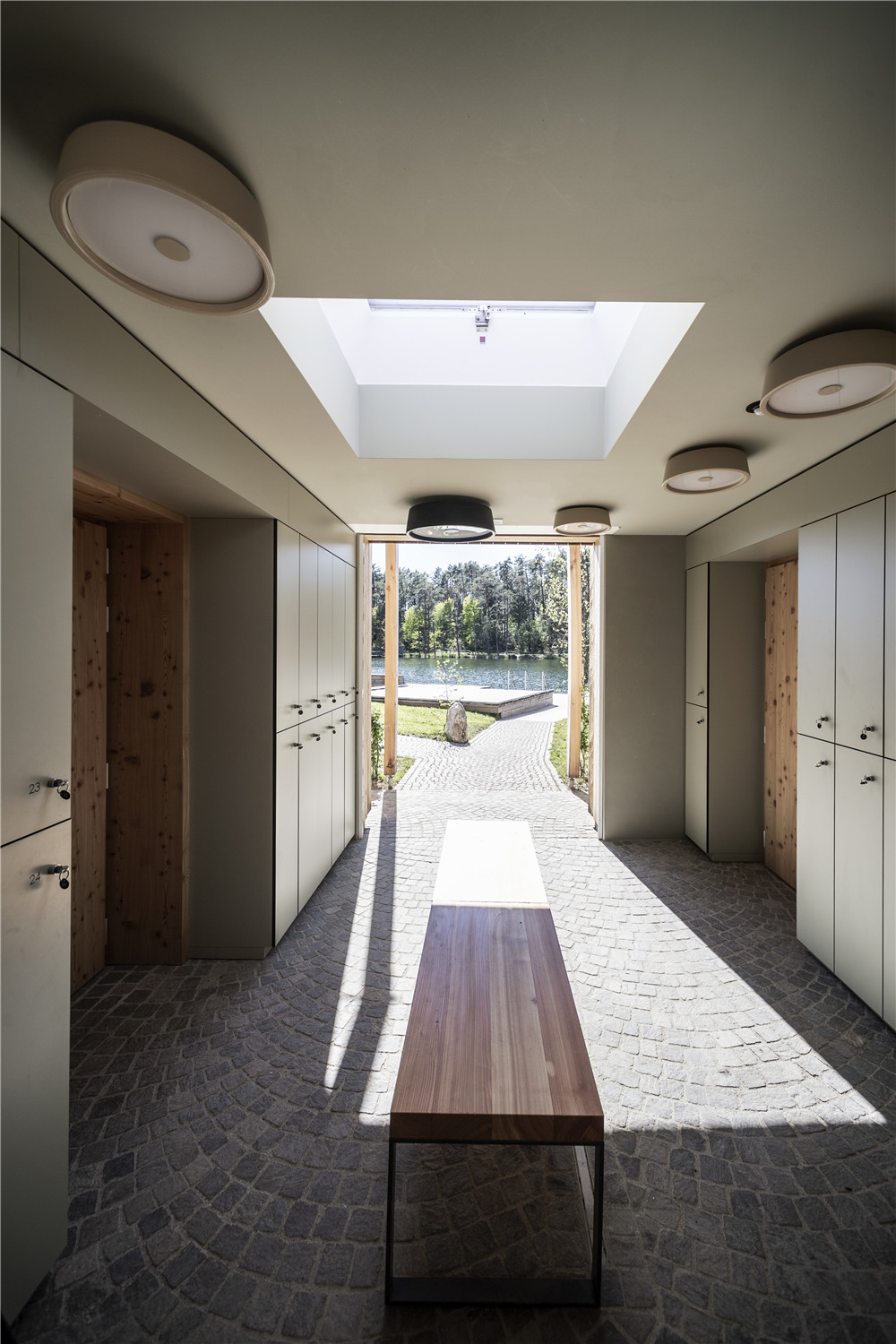

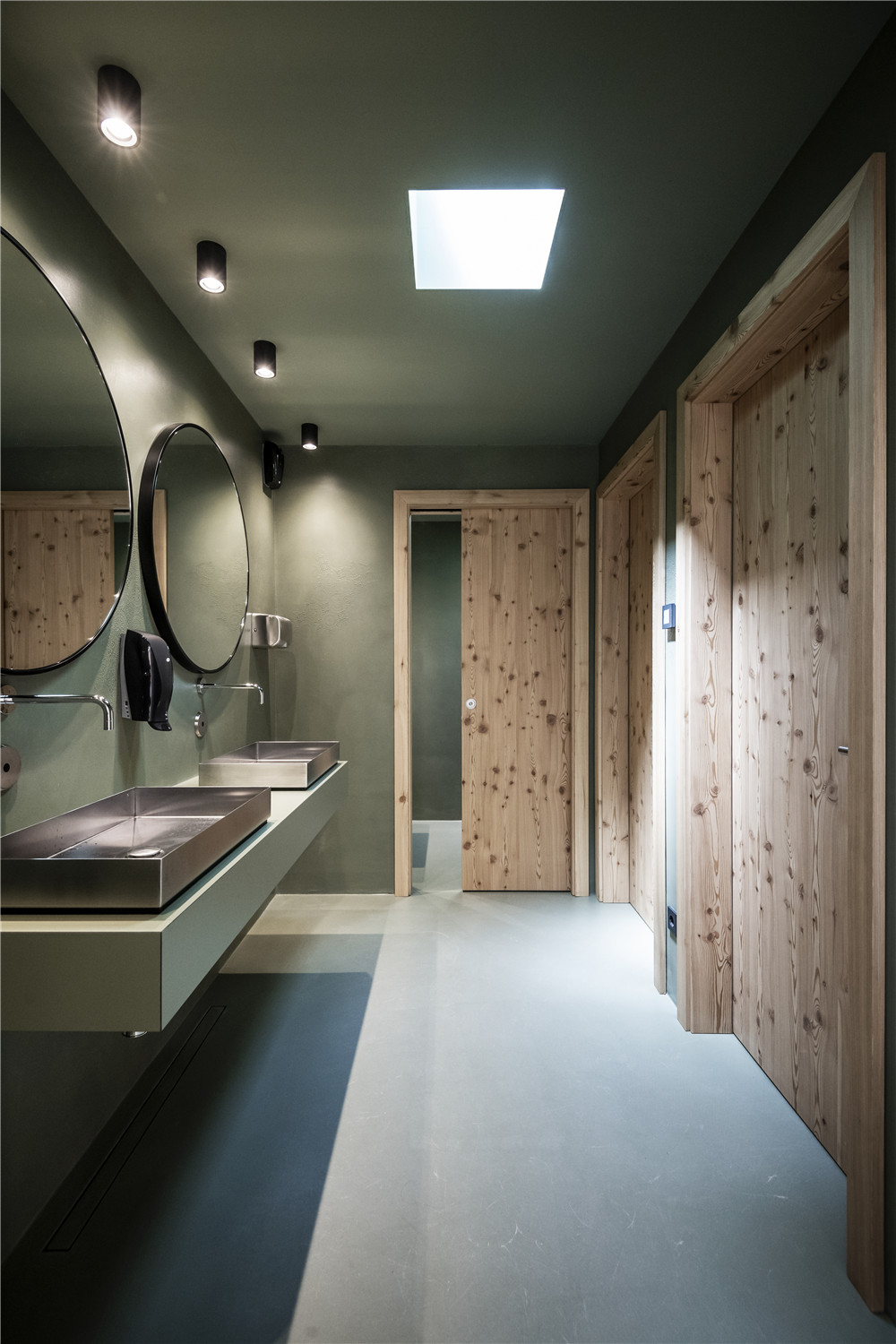

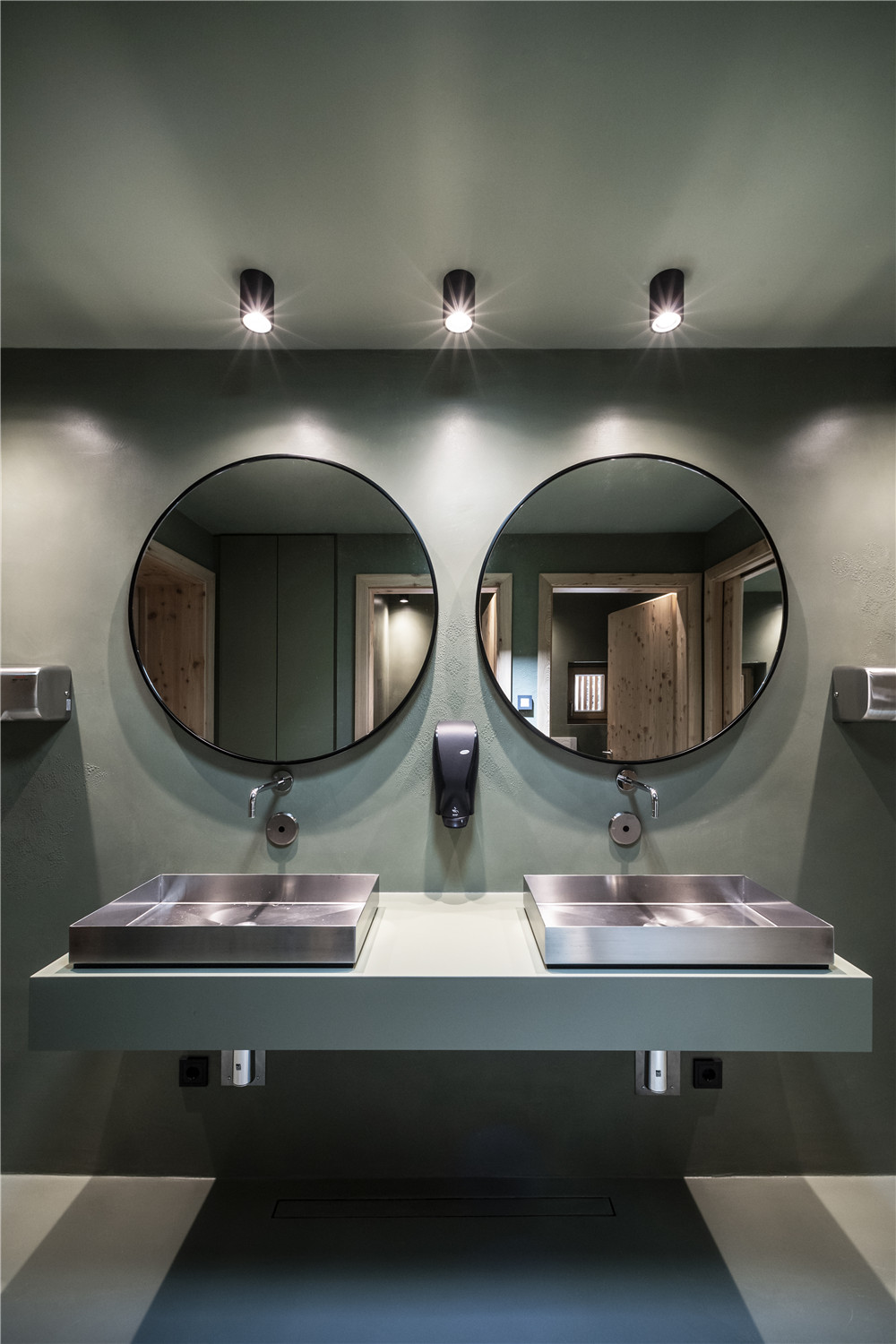

这里的卫生设施可以满足无障碍的要求，并能为热情的休闲爱好者（如游泳者或溜冰者）提供更衣室。沿着中轴线有一个小的开放式中庭，内有储物柜和更衣室供客人使用，由当地的工匠艺人专门设计制作。中庭可以看到天际线，以表示对游泳者和徒步旅行者的热烈欢迎。在这些公共场所中，设计师选择了一种坚固的树脂抹子技术，既可以承受冰鞋的磨损，又可以确保在湿地板上的安全。为了与自然环境融为一体，室内设计注重室内和室外之间强烈的视觉协调。绿色是地板、墙壁和天花板的底色，不同的色调有助于创造一种自然流动的延续氛围。
It is here that the sanitary facilities meet accessibility requirements and provide changing rooms for enthusiastic leisure athletes such as swimmers or ice skaters. In the facilities’ centre, there is a small open atrium with changing rooms for guests and lockers specially made by local craft businesses. The atrium offers a glimpse of the skyline to signal an inviting welcome for bathers and hikers. In these public accessible premises, a robust resin trowel technology was selected that can both withstand the wear and tear of skates as well as ensure safety on a wet floor. To blend in with the natural environment, the architects’ interior design focuses on a strong visual harmonization between the indoors and outdoors. Green was chosen as the base colour for the floor, walls and ceiling, with different shades helping to create an ambience of flowing continuation of nature.
©AlexFilz
©AlexFilz
©AlexFilz
一劳永逸的设计 BECOMING ONE
地板和垂直表面为湖边设施增添了另一个特点：为了使站立的位置更加坚固，noa*在树脂填料中融入了传统的南蒂罗尔花边图案。这些图案被短暂地压入潮湿的树脂中，然后迅速去除，形成不规则的三维效果。这些3D图案，时而明显，时而不明显，在这种情况下，不同的绿色阴影可以与自然形成流畅的联系。

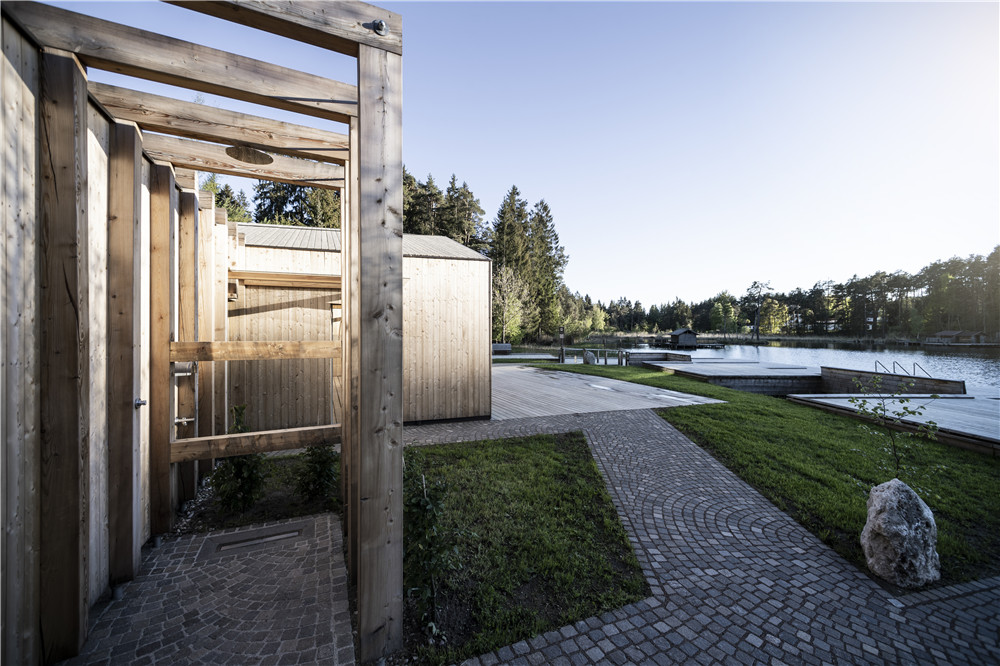

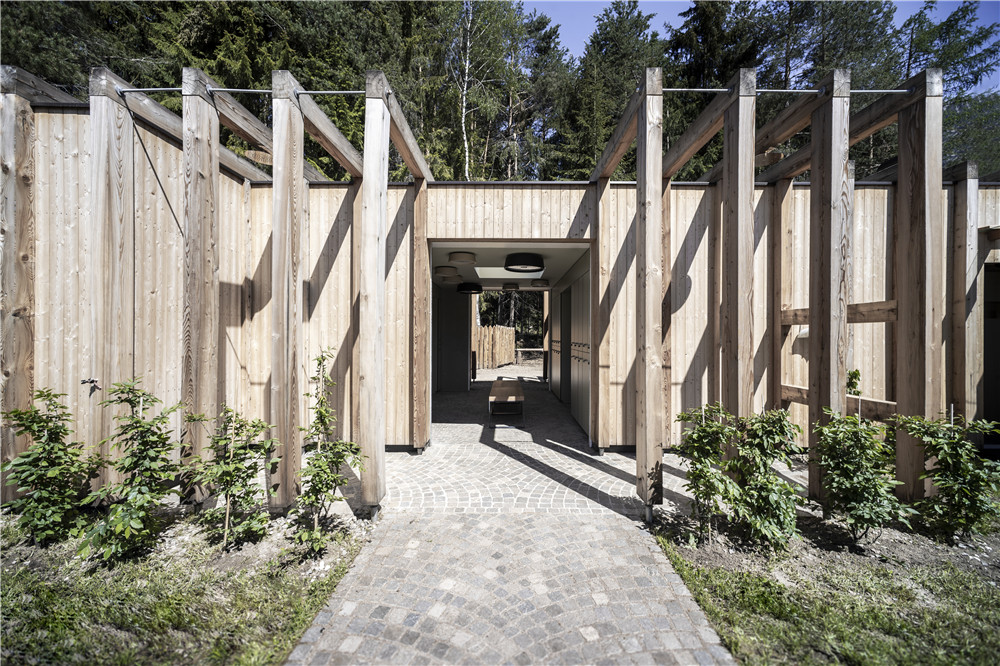

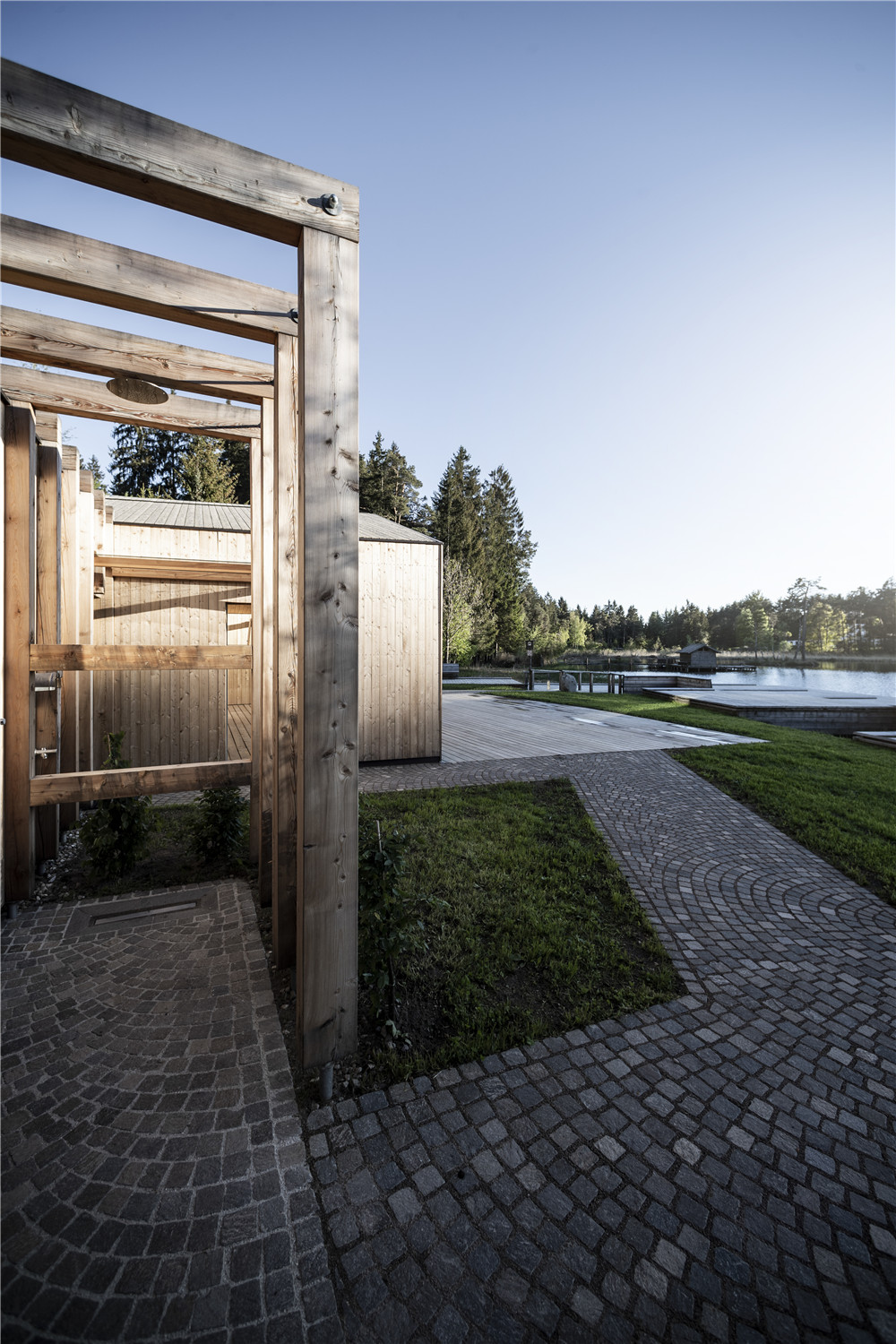

While the main building exudes a characteristic presence and is roughly equal in size to the old structure, noa* created a concept in which the other volume takes a back seat optically. The wooden frame construction along the transverse axis, which connects the two facility buildings, also acts as a support structure for climbing plants. Within a few months, the planned fast-growing jasmine will envelop the changing rooms in natural, green foliage. When viewed from the lake, the greenery will make the building disappear into its’ surroundings.
©AlexFilz
虽然主楼散发出一种独特的存在感，在大小上与老建筑大致相当，但noa*创造了一个概念，在这个概念中，第二座建筑在视觉背景上很突出。木制框架系统沿横轴发展，充当攀爬植物的围栏。几个月后，快速生长的茉莉花会和绿色的树叶一起将建筑包围，从湖边望去，建筑仿佛消失在了周围环境中。

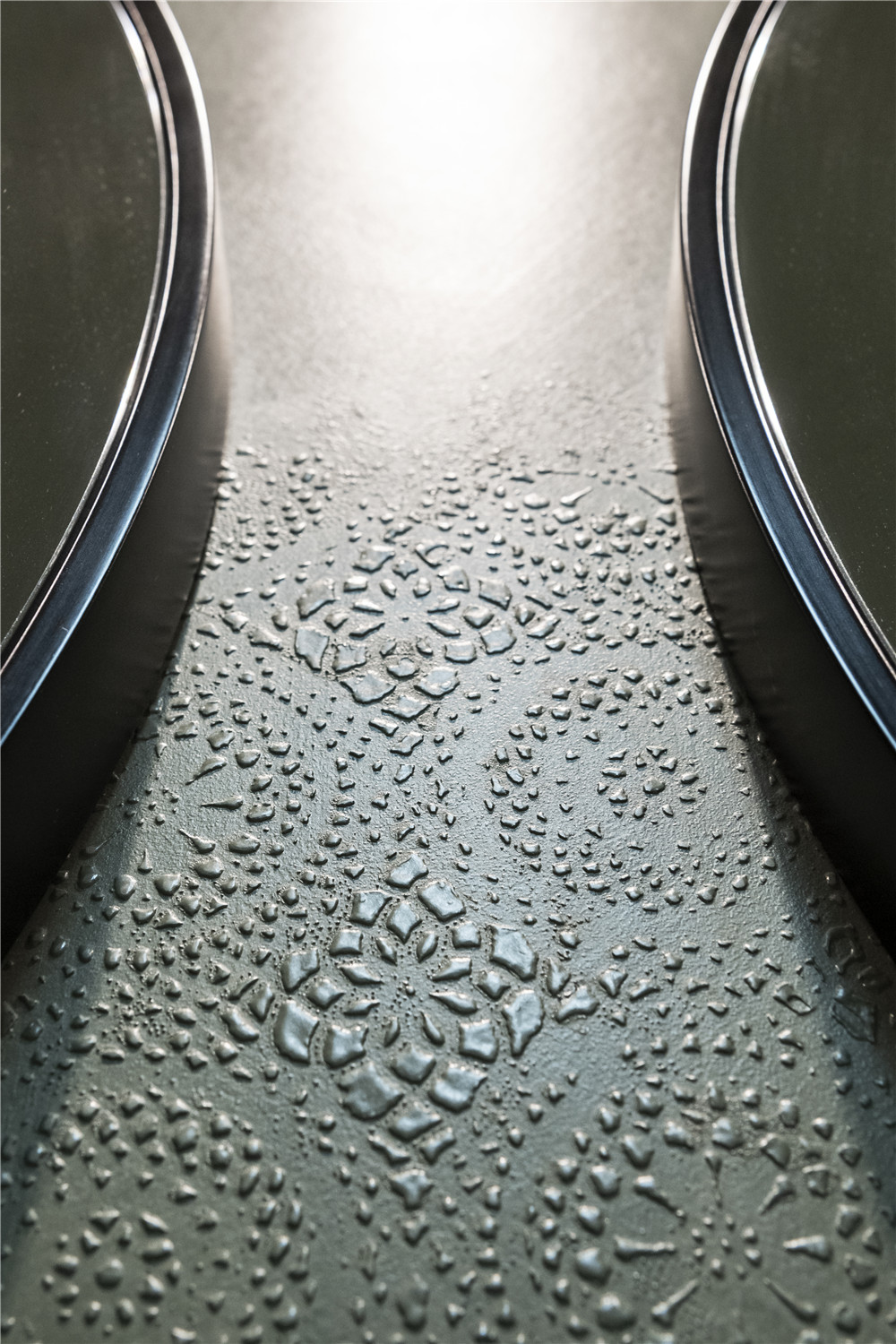

The floor and vertical surfaces add another unique feature to the lakeside facility: to plant the architecture firmly within its’ location, noa* incorporated a traditional South Tyrolean lace pattern into the resin filler. The motifs were briefly pressed into the damp resin and quickly removed to create an irregular, three-dimensional effect. These 3D patterns, sometimes more, and sometimes less readily apparent, add a special visual flair and a touch of spontaneity.
©AlexFilz
一个可参与的场所 PARTICIPATE

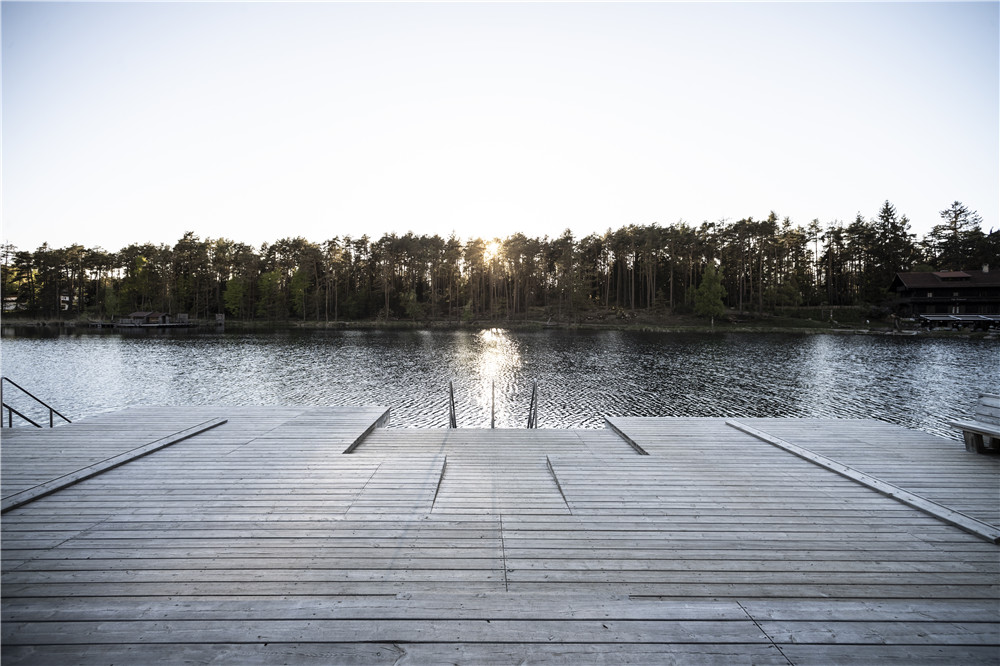

建筑与独特的自然景观紧密相连，从这里可以看到湖景、森林、山脉以及周围的景色。在这种背景下，落叶松木的立面被有意无意地抛弃，“听任其自然命运摆布”，随着时间的推移和天气的变化，它将慢慢改变。朴实无华的建筑明显退居次要地位，它为植被提供了更多的空间，并与植被巧妙地结合在一起。新建的浴池用周围森林的木头建造，它们分叉并溶入湖中，引导游客从建筑物进入水中。项目中的每一个元素都显示了noa *的谨慎和负责心，他们坚守于建筑标准并实现了对管理敏感环境的承诺。在芦苇丛和儿童新天地之间，现代设计为热爱自然的人们创造了一个空间，让他们在与自然的会合中享受宁静。

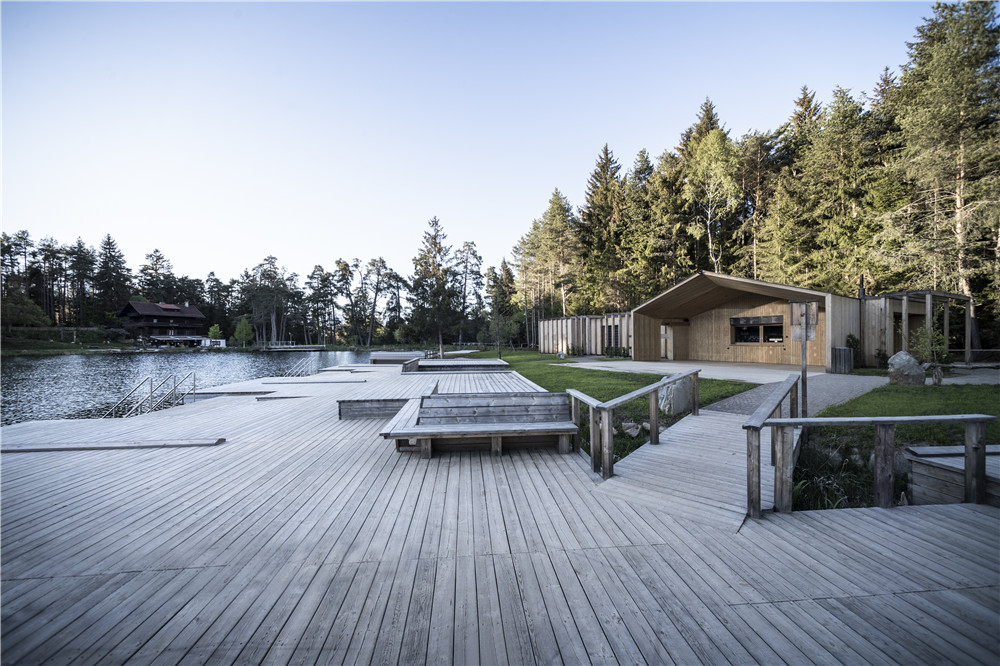

The ensemble lies in a unique natural landscape and offers beautifully framed perspectives of views of the lake, forest and mountain. The specially selected, untreated larch wood facade will be left to its natural fate - slowly changing as it’s exposed to the elements over time. The newly built bathing jetties, made with wood from the surrounding forests, branch out and dissolve into the lake, guiding visitors from the buildings into the water. Meanwhile, the less-than-conspicuous architecture highlights the flora, giving it space to gently insert itself. Every element of the project demonstrates noa’s* commitment to handling natural environments responsibly and with care while remaining true to their architectural standards. Between the freshly laid rows of reed and the new area for children, the contemporary design creates space for nature lovers to soak up the serenity in a rendezvous with nature.
©AlexFilz
项目图纸 Plans & Sitemaps

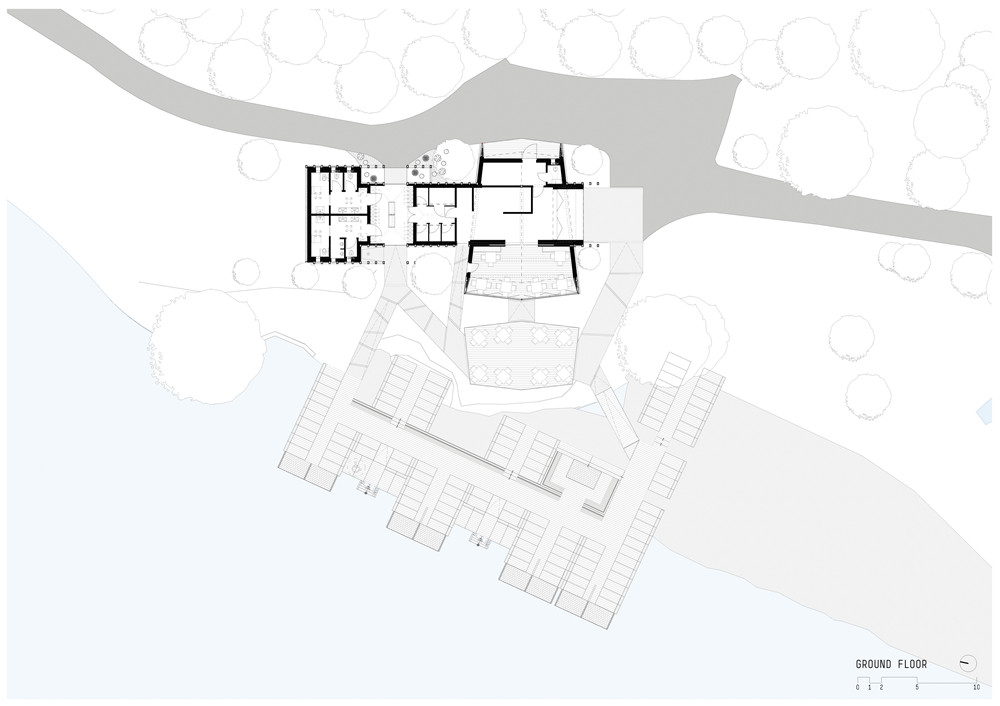

一层平面图 ground floor

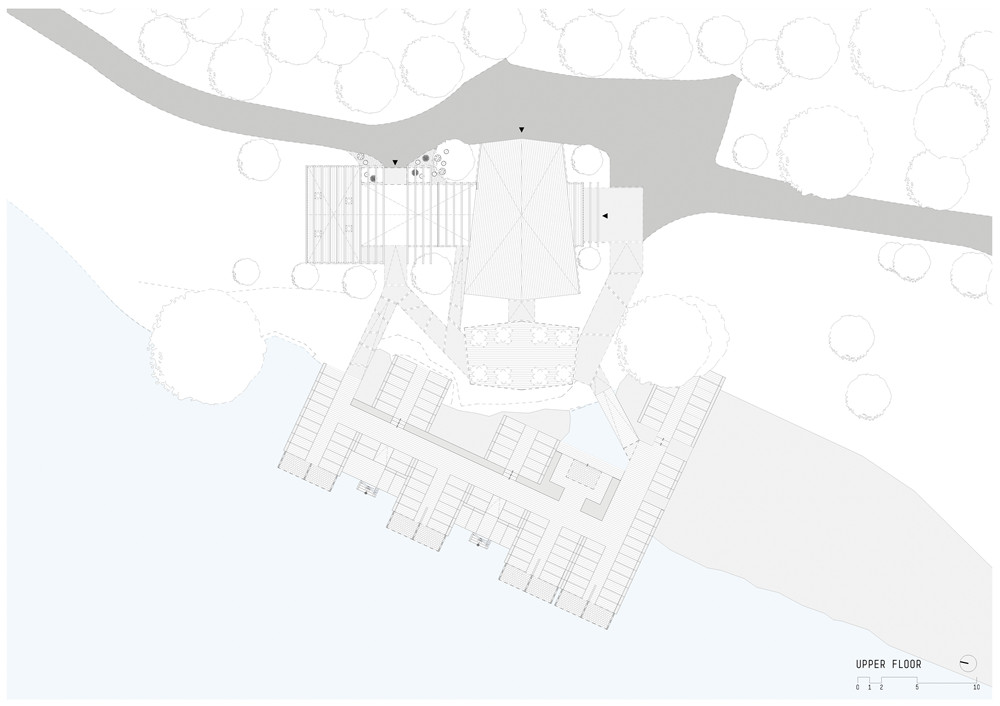

高层平面图 upper floor

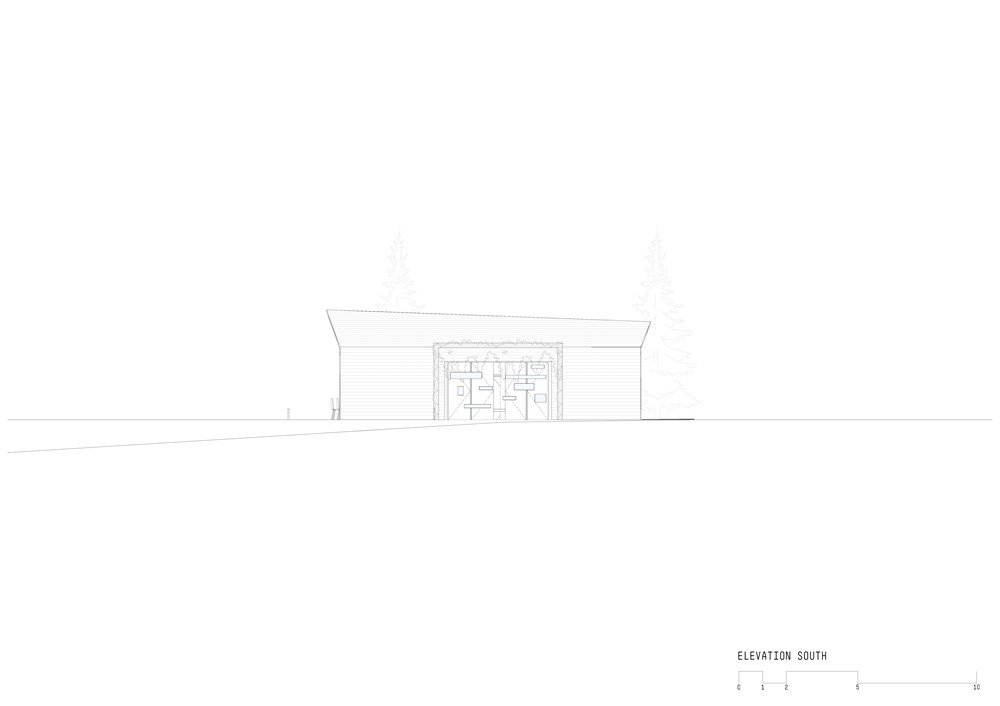

南立面图 elevation south

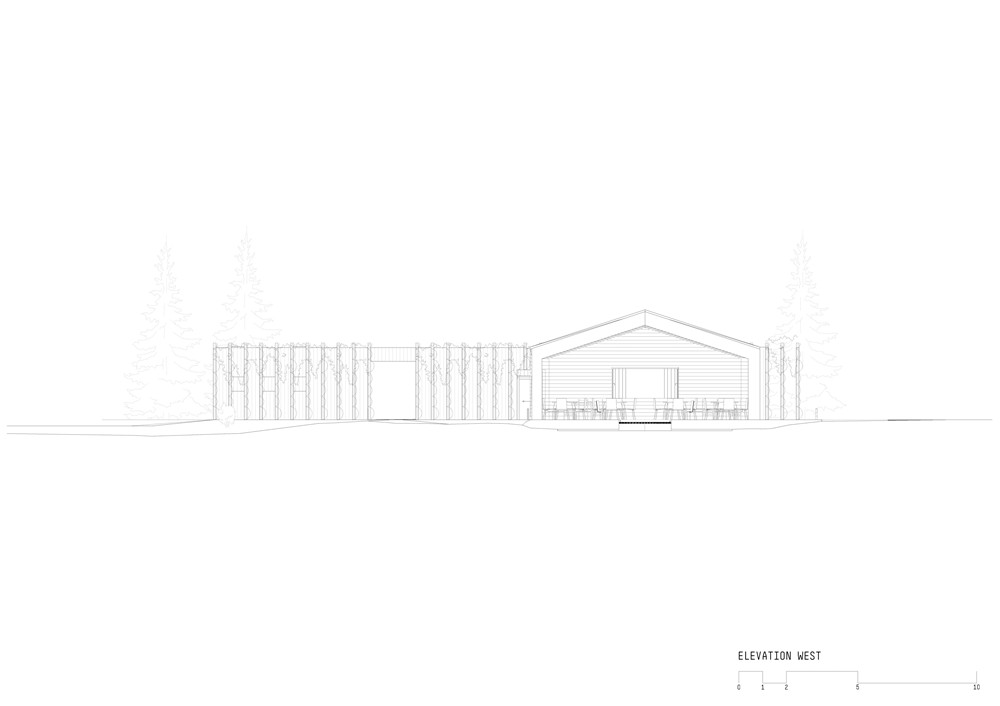

西立面图 elevation west
项目信息
项目名称：Lake House Völs
地点：Fièallo Sciliar，南蒂罗尔（意大利）
客户：Municipality of Fiè
建筑设计：noa* network of architecture
室内设计：noa* network of architecture
施工：2019年4月~2019年8月
容积：330m³
面积：120㎡
照片版权：亚历克斯·菲尔兹（Alex Filz）
Project name：Lake House Völs
Typology ：Lake hut, recreational facility
Location ：Fiè allo Sciliar, South Tyrol (Italy)
Client： Municipality of Fiè
Architecture： noa* network of architecture
Interior Design： noa* network of architecture
Construction start： April 2019
Completion ：August 2019
Intervention： Demolition and new construction
Volume： 330 m³
Surface area ：120 ㎡
Text (DE) ：Barbara Jahn-Rösel
Translations (EN) ：Marianne Lehnis
Photographs： Alex Filz
|
