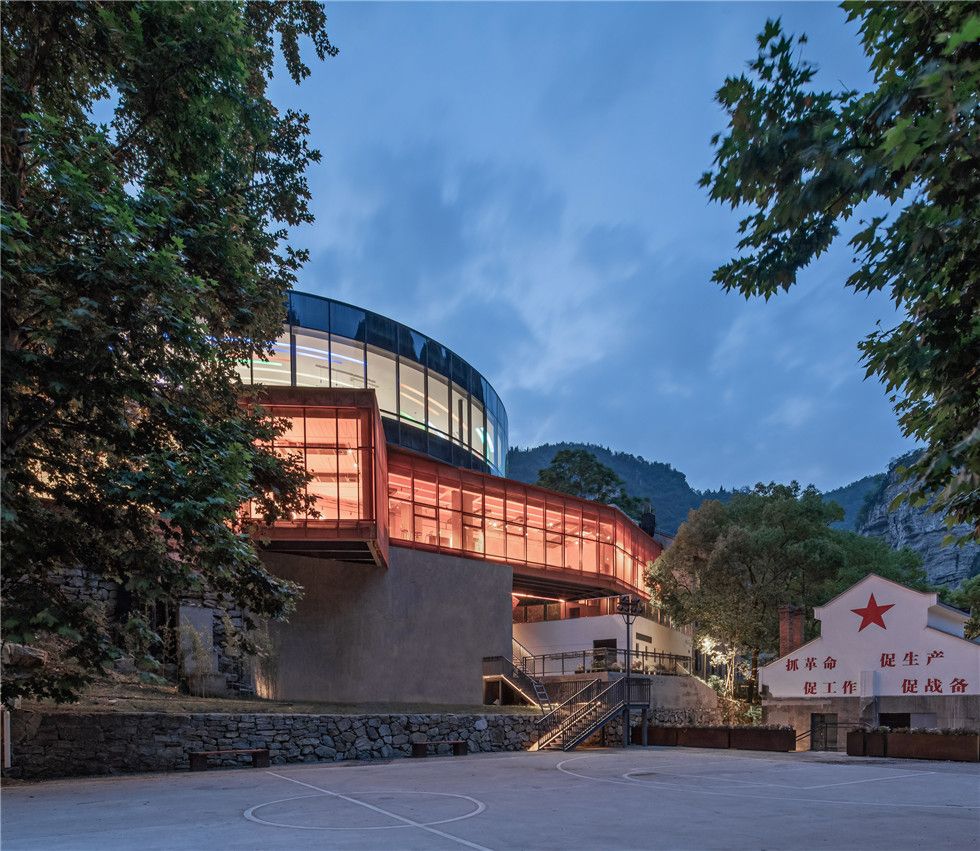

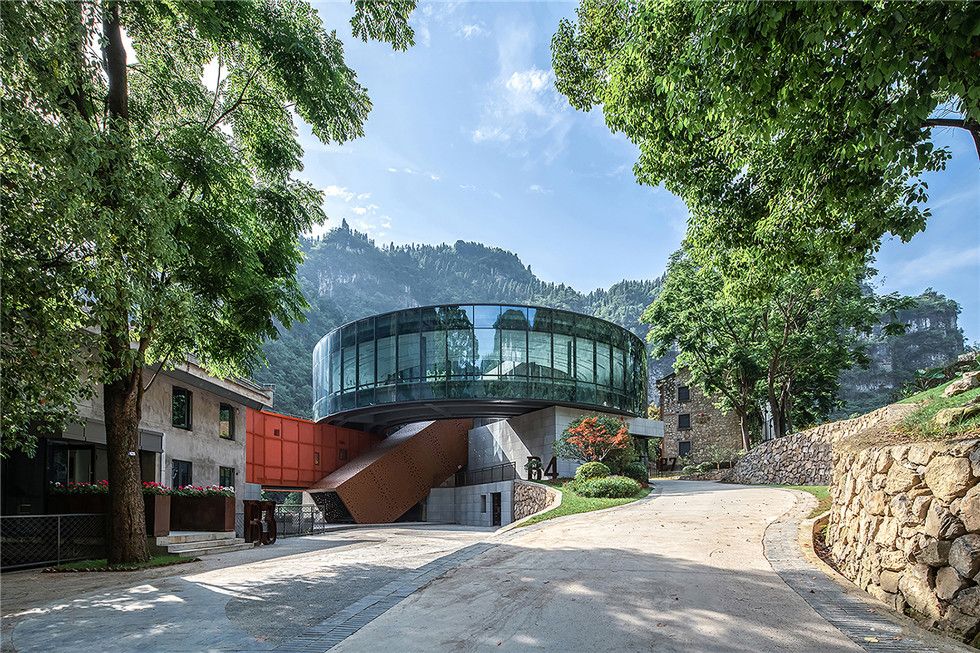

▽从篮球场看新建大堂、环形展厅和橙色酒廊©此间建筑/New-built lobby, circular exhibition gallery and orange passage to breakfast field©arch-inbetween
1.背景和原貌：废弃多时，但潜力巨大 1.Background and original appearance:abandoned for a long time, but with great potential
809工厂位于中国湖北省宜昌市郊的下牢溪中，距离市区约30分钟车程，曾经是老三线兵工厂，1990年代逐渐停产并废弃。项目用地面积约3公顷，建筑面积约1.3万平米，新功能为度假酒店和亲子活动中心。项目旨在通过对这个废弃工厂的改造和再利用，在保护和展现建筑原始面貌的同时，形成新的使用功能，使废弃工业设施复活，进入当代生活。 The 809 factory is located in Xialao Creek,the suburb of Yichang City, Hubei Province, China, which is about 30 minutes’drive from downtown. Once a military factory, it was gradually shut down andabandoned in the 1990s. The project covers an area of about 3 hectares and aconstruction area of about 13000 square meters. The new function is a resorthotel and parent-child activity center. The purpose of the project is toprotect and show the original appearance of the buildings and form a new usefunction through the transformation and reuse of the abandoned factory, so asto revive the abandoned industrial facilities and help those enter the contemporarylife.

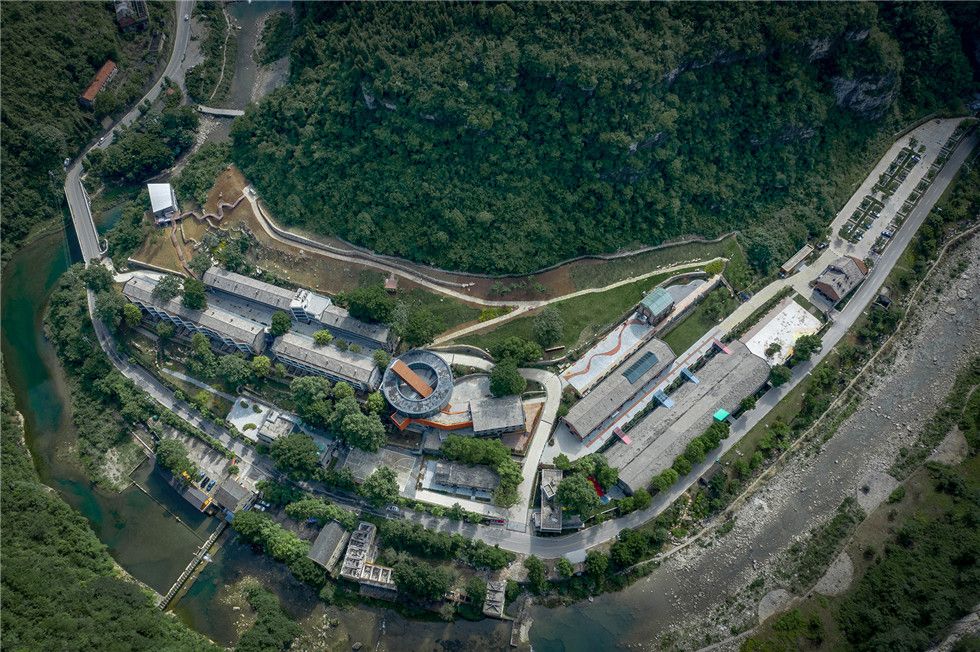

▽809厂区鸟瞰©宋金戈/Bird's-eye view of 809 factory area©Jinge Song
809厂位于一个峡谷中，喀斯特地貌，场地高差大，地质条件复杂。峡谷名为下牢溪，环境优美、舒适，是宜昌市民夏季避暑的首选地之一。峡谷中有溪流，常年有水，且水质优良，适合游泳和休闲。改造前，该区域已经有大量的农家乐和小型度假游乐场。809厂位于下牢溪中段，与溪流关系紧密，具备很好的自然环境和产业基础。 The 809 factory is located in a canyon withkarst landform, large site height difference and complex geological conditions.The canyon is named Xialao Creek, with beautiful and comfortable environment.It is one of the best summer resorts for Yichang citizens. There are streams inthe canyon, with water flowing all year round, and the water quality isexcellent, suitable for swimming and leisure. Before the renovation, there hadbeen a large number of farmhouses and small resorts in the area. The 809factory is located in the middle part of Xialao Creek, which is closely relatedto the stream and has a good natural environment and industrial foundation.

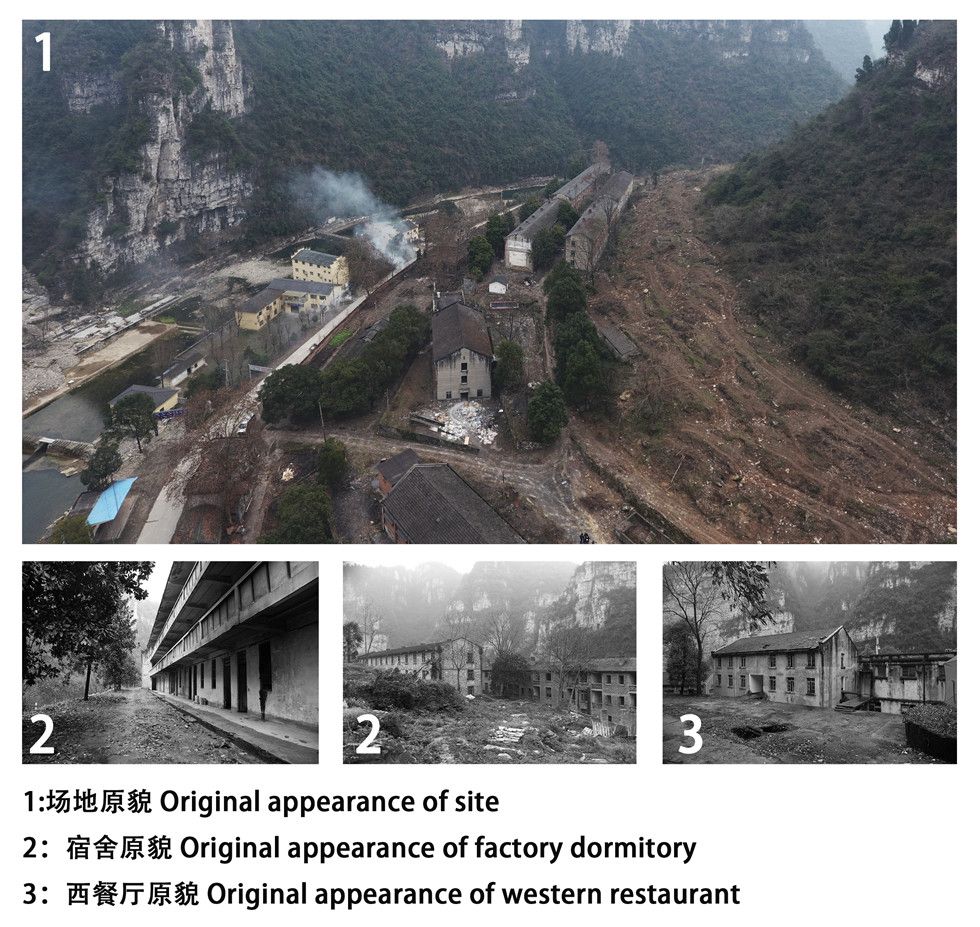

▽场地原貌/Original appearance of site
809厂曾是西部地区重要的兵工厂，以生产防毒面具为主。改造前，工厂已经停产多时，期间也曾出租给民营企业。厂房中的机械已经全部被移除，整个厂区只留下建筑本体。调研中，建筑师发现现存建筑主要分为三类：空间跨度大的厂房，中等尺度的设备用房，如锅炉房等，及空间尺度小的宿舍和办公建筑。原建筑建设时期跨域1950-70年代，主要为砖混预制楼板结构形式，建造工艺包括毛石砌筑，砖墙，预制混凝土楼板，大多数已经不符合当下的建筑法规，需要进行结构加固和再处理。但另一方面，正是这些不同时期的建造痕迹产生了极大的文化价值，反映了那个时期老三线工厂的历史记忆和建筑文化价值。设计需要保留原有建筑的大部分外立面，同时又要满足新的使用和法规要求，这给设计带来了很大的困难。 The 809 factory used to be an importantmilitary factory in the western region, mainly producing gas masks. Before thetransformation, the factory had been shut down for a long time, during which itwas also rented to private enterprises. All the machinery in the plant has beenremoved, leaving only the building itself. In the survey, architects found thatthe existing buildings are mainly divided into three categories: workshops withlarge space span, equipment rooms with medium scale, such as boiler house, anddormitories and office buildings with small space scale. The original buildingconstruction period is from 1950s to 1970s, mainly in the form of brickconcrete precast floor structure. The construction technology includes rubblemasonry, brick wall, precast concrete floor. Most of them are not in line withthe current building laws and regulations, and need to be strengthened andreprocessed. But on the other hand, it is these construction traces indifferent periods that produce great cultural value, reflecting the historicalmemory and architectural cultural value of the old third line factory in thatperiod. The design needs to retain most of the facade of the original building,but also to meet the new use and regulatory requirements, which brings greatdifficulties to the design.
2.设计原则和思路 2.Design principles and ideas
设计希望通过对老三线工厂遗址的改造，赋予空间新的生命，使之从废弃状态重新复活。在新的功能业态，及新空间的双重作用下，业主和建筑师希望重构一个新809厂。改造后，它将成为宜昌人短期度假的首选，并为城市提供一处具有品味和调性的精致生活场所。 Through the reconstruction of the oldthird-front factory site, the design hopes to give new life to the space andrevive it from the abandoned state. Under the dual function of new businessform and new space, the owners and architects hope to reconstruct a new 809factory. After reconstruction, it will become the first choice of Yichangcitizens for short-term vacation, and provide a delicate living place withtaste and tonality for the city.
▽新建大堂©此间建筑/New-built lobby©arch-inbetween
设计从场地规划开始，将建筑、室内、景观、照明一体化考虑，最大限度的保留原建筑的工业特征和历史信息，并进行改造再利用。设计首先对工业遗产进行保护，通过结构加固等措施，保留建筑外观原貌。之后，选择性的利用原建筑空间植入新功能，如原宿舍改为酒店客房，原锅炉房改为礼堂，原办公楼和设备用房改为餐厅、接待中心等。在此基础上，在场地重要节点位置设置新公共建筑，形成空间和视觉上的锚点，如酒店大堂，区域入口处的书吧，崖顶的茶吧等。新建筑与老建筑在形式和材料上刻意进行了区分，形成戏剧性的对话关系，也清晰的标明了两个不同历史阶段的空间特点和建筑语言。 The design starts from the site planning,considers the integration of architecture, interior, landscape and lighting,retains the industrial characteristics and historical information of theoriginal building to the maximum extent, and carries out transformation andreuse. First of all, the design protected the industrial heritages andpreserved the original appearance of the buildings through structuralreinforcement and other measures. After that, the original building spaces wereselectively used to implant new functions, incl. changing the originaldormitory into hotel rooms, the original boiler-house into auditorium, theoriginal office building and equipment rooms into restaurant, reception center,etc. On this basis, new public buildings are set up at important nodes of thesite to form space and visual anchor points, such as hotel lobby, book bar atthe entrance of the area, tea bar at the top of the cliff, and so on. The newbuilding and the old building are deliberately distinguished in form andmaterial, forming a dramatic dialogue relationship, and clearly indicating thespatial characteristics and architectural language of the two differenthistorical stages.

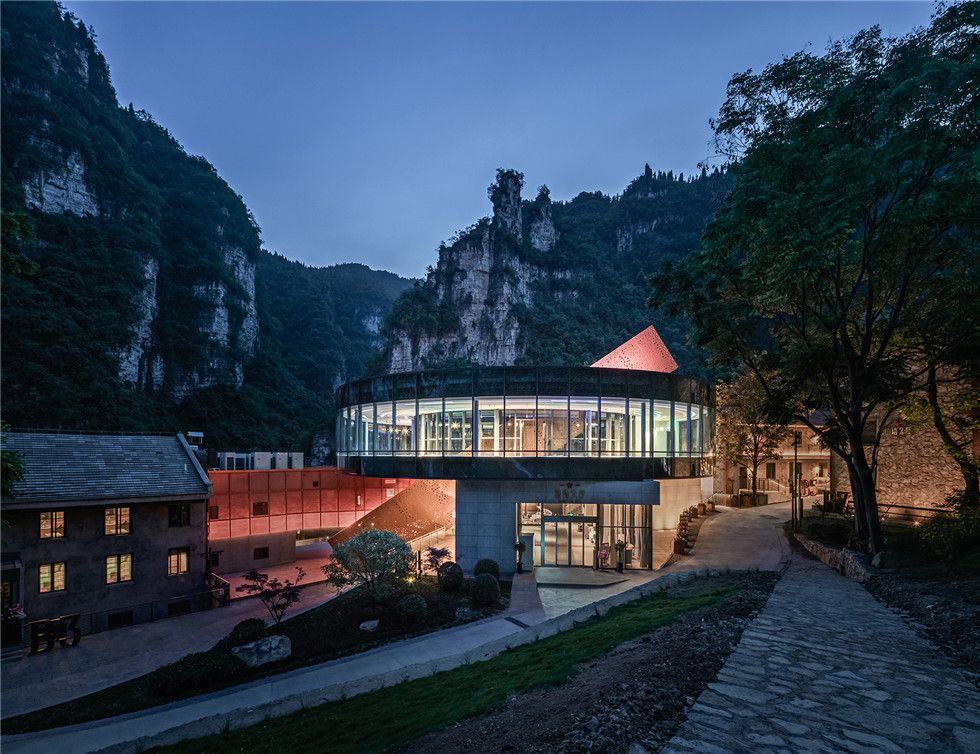

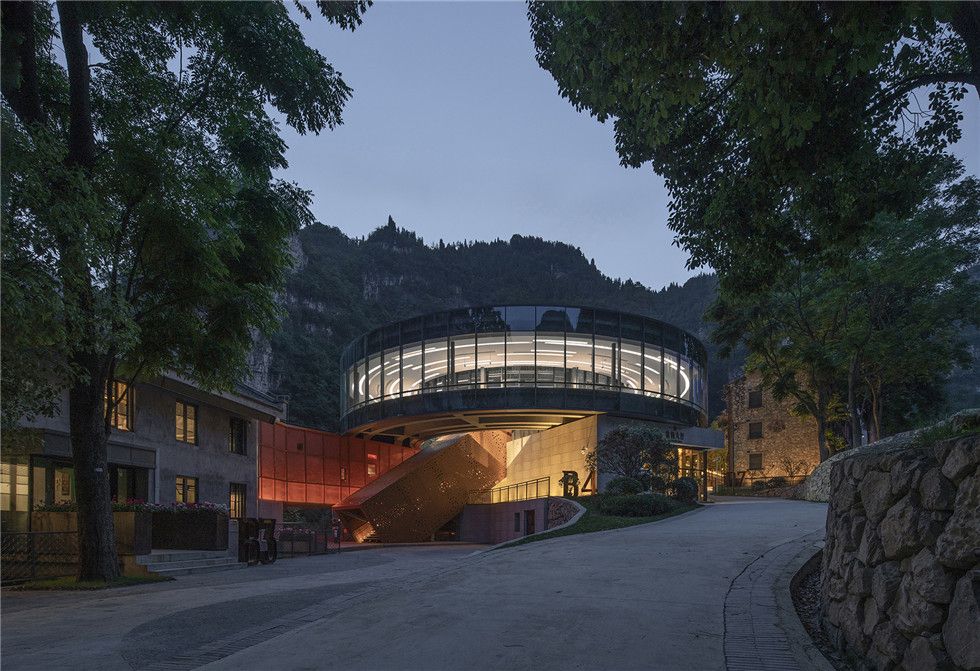

▽新建大堂插入老建筑和环境中©此间建筑/New-built lobby embedded into environment and old buildings©arch-inbetween

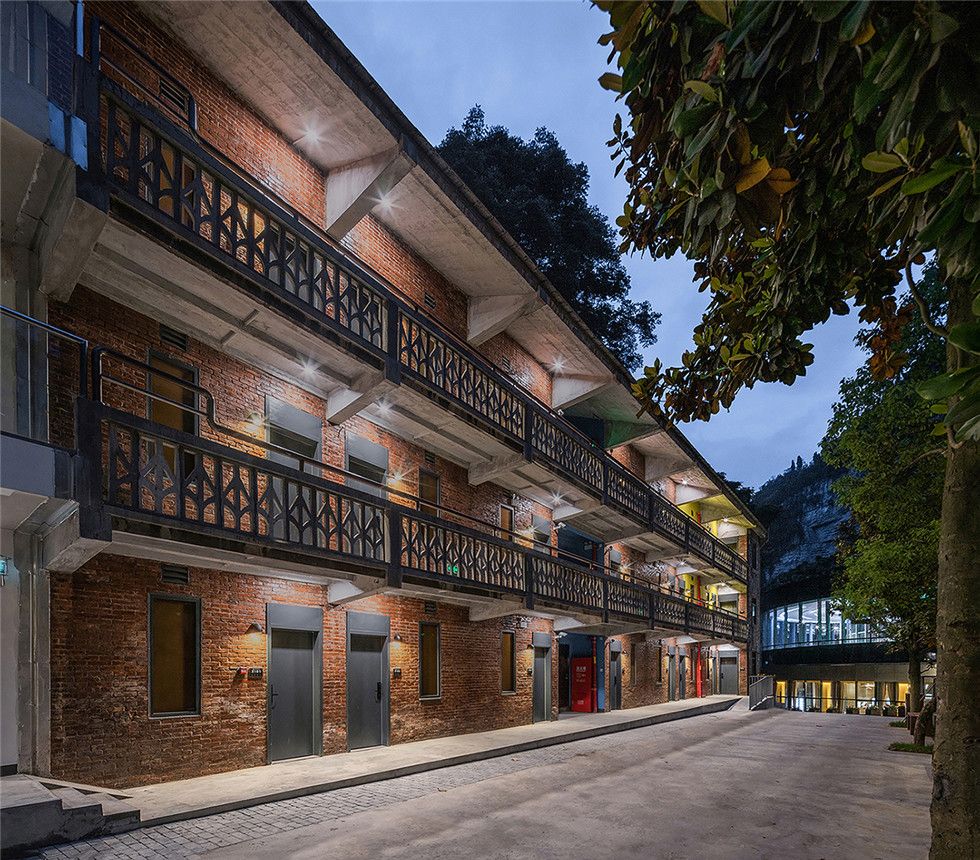

▽客房保留了原始的红砖立面©此间建筑/The guest room retains the original red brick facade©arch-inbetween
场地中的主要树木被保留，新建筑避让树木建设，与树木形成共生关系。夜晚的灯光处理延续了建筑设计的思路，总体宁静的基础上，在建筑节点处重点处理。客房区域采用3000K暖白光，公共区域采用4000K左右的中性白光。 The main trees in the site are reserved,and the construction of new buildings avoided the trees, forming a symbioticrelationship with the trees. The lighting treatment at night continues thethinking of architectural design, which, based on the overall tranquility,focuses on the treatment of building nodes. 3000K warm white light is used inguest room area while 4000K neutral white light in public area.
▽从中餐厅入口位置看大堂和展厅©此间建筑/ Lobby and circular exhibition hall viewed from entrance of Chinese restaurant©arch-inbetween
3.客房：梳理交通，重组空间 3.Guest rooms: traffic arrangement andspace reorganization
客房由原工厂的员工宿舍改造而成。原宿舍共4栋，呈南北向平行排布，它们的建设年代并不完全一致，这给改造带来了极大的不确定性。首先在结构上四栋建筑并不一样，墙体有二四砖墙、空头砖墙、碎石填充墙几种，楼板则是预制槽板；此外，房间的空间布局也多达十几种。如何在充分利用原有物理空间的基础上，满足酒店客房的使用需要，满足现行规范，满足安全等要求是此部分设计工作的难度和痛点。 The guest room is transformed from thedormitory of the original factory. There are 4 original dormitories, which arearranged in parallel from north to south. Their construction dates are notcompletely the same, which brings great uncertainty to the reconstruction.First of all, the four buildings are not the same in structure. There are twenty-fourbrick walls, hollow brick walls and gravel filled walls, and the floor slab isprefabricated trough slab. In addition, there are as many as ten kinds of roomlayout. Based on making full use of the original physical space, how to meetthe needs of hotel rooms, to meet the current norms, and to meet the safetyrequirements, are the difficulty and pain of this part of the design work.

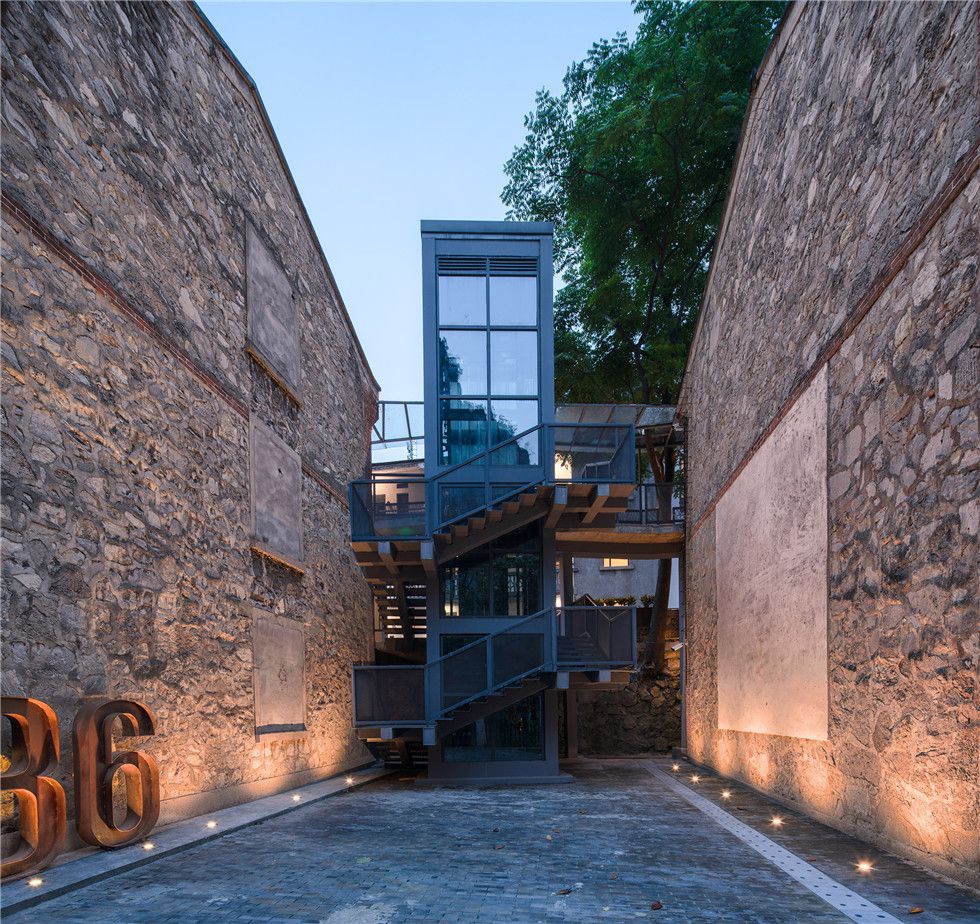

▽完整保留原有山墙，中间增加新的交通©此间建筑/The historic exterior walls of the original building well-preserved with new traffic construction added©arch-inbetween
对于东侧靠近山坡的两栋宿舍，设计首先保留了原有的交通组织方式，即：位于建筑中部的垂直交通和建筑西侧的外走廊；之后，在两栋建筑的连接部分，拆除部分宿舍房间，新增垂直楼梯和电梯，及公共空间。南侧的宿舍楼被改造为青年旅社，北侧的宿舍楼则改造为标间。这样的处理一方面基于客房数的考虑，另一方面也由于此两栋建筑并不具备开阔的视野，因此定位为平价房间。 For the two dormitories close to thehillside in the East, the original traffic organization mode is retained in thedesign, that is, the vertical traffic in the middle of the building and theexternal corridor in the west of the building; then, in the connection part ofthe two buildings, some dormitory rooms are removed, vertical stairs andelectric ladders are added, and public space is removed. The dormitory buildingon the south side was transformed into a Youth Hostel, while the dormitorybuilding on the north side was transformed into standard guest rooms. On theone hand, such treatment is based on the number of rooms, on the other hand,because these two buildings do not have a broad vision, they are positioned asaffordable rooms.
▽青年旅社外观©此间建筑/Exterior of youth hostel©arch-inbetween

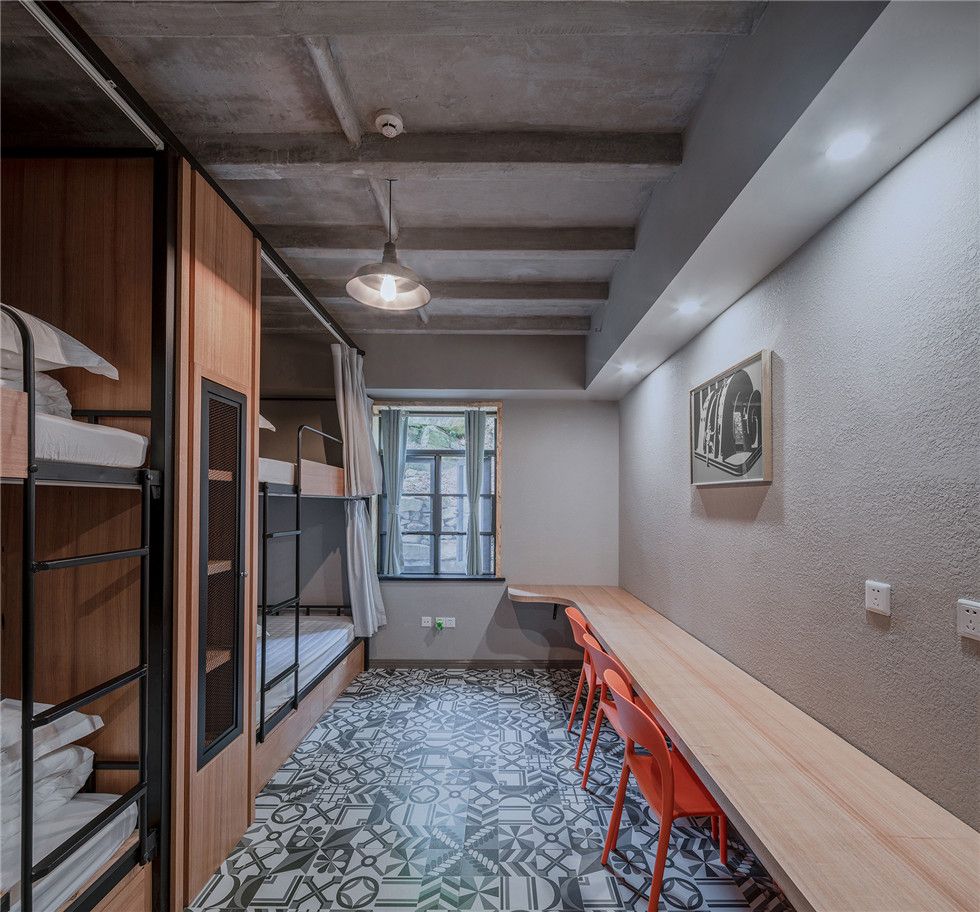

▽青年旅舍室内©此间建筑/Interior ofyouth hostel©arch-inbetween
西侧的两栋宿舍向西视野开阔，能看到溪流和峡谷对面的山峰，具有较高的市场价值。但原建筑的水平交通位于西侧，与未来客房的观景面矛盾，建筑师将新的交通调整到建筑东侧，新设楼梯、电梯和外走廊。原走廊被拆除，新建阳台，增加室内面积的同时，为顾客提供更舒适的观景体验。北侧客房为标准间，阳台呈不对称的梯形，两两成组，形成富于韵律感的外立面；南侧客房则是套间，阳台交替分布，改变了原来宿舍建筑刻板的外立面。新建筑部分为白色，与原建筑红砖和毛石的外墙形成对比，显示了不同时期的特征。 The two dormitories on the west side have awide view to the West and can see the peaks opposite the streams and canyons,which have a high market value. However, the horizontal traffic of the originalbuilding is located on the west side, which is in conflict with the viewsurface of the future guest rooms. Therefore, the architect adjusted the newtraffic to the east side of the building, and set up new stairs, elevators andexternal corridors. The original corridors have been demolished and newbalconies have been built to increase the indoor area and provide customerswith a more comfortable viewing experience. The rooms on the north side arestandard rooms, and the balconies are asymmetric trapezoid, in groups of two,forming a rhythmic facade; the rooms on the south side are suites, withbalconies alternately distributed, changing the original dormitory building'srigid facade. The white part of the new building, in contrast to the red brickand rubble of the original building, shows the characteristics of differentperiods.

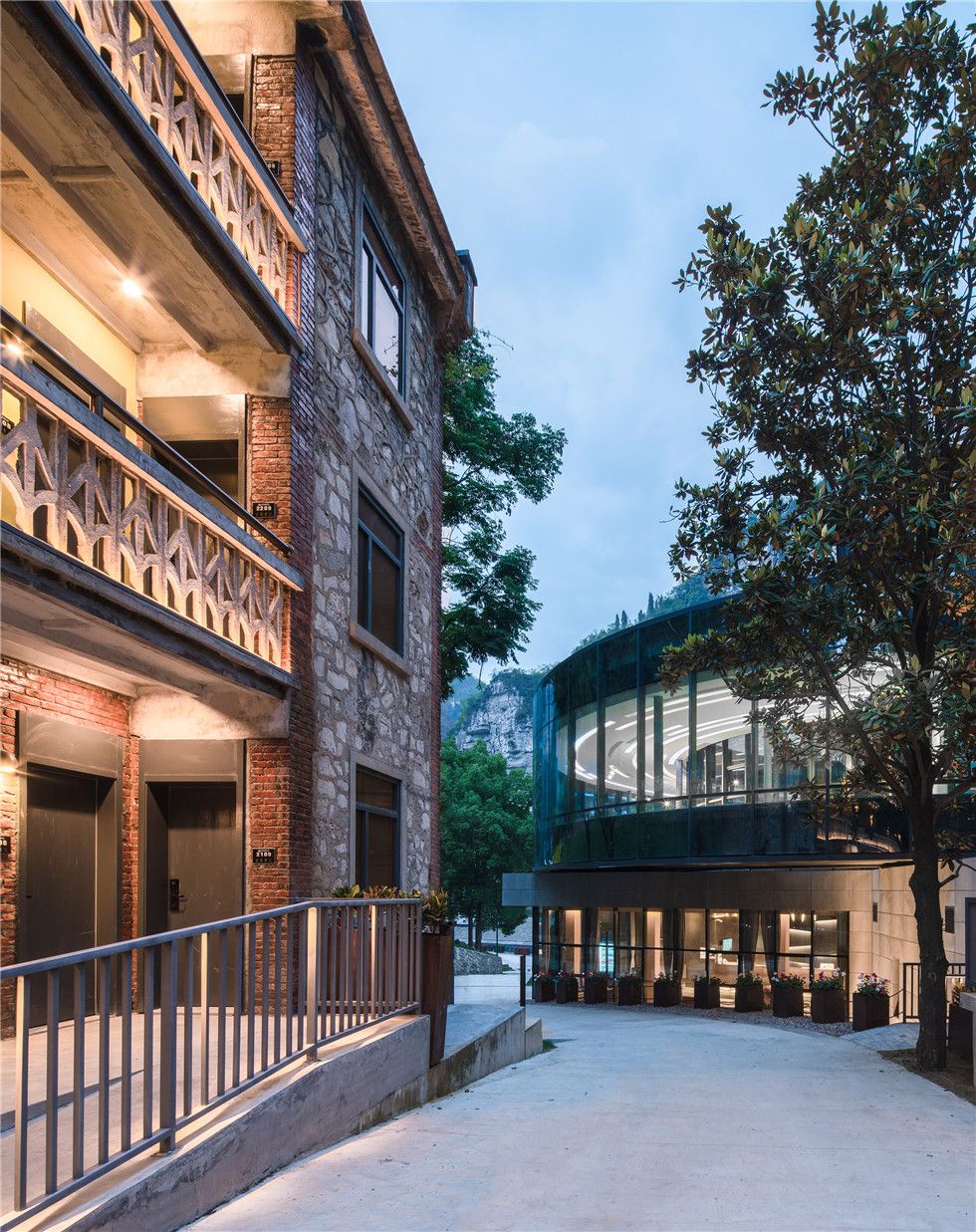

▽客房与大堂的新旧对比©此间建筑/New and old contrast between guest rooms and lobby©arch-inbetween
客房室内首先进行了结构加固，并增设洗手间，满足酒店的安全和基本功能需求。为了体现老三线工厂的历史信息，部分房间的屋顶保留了原始的槽板，墙面也在特定位置暴露部分原始墙面。因为酒店的总体定位不属于奢华型酒店，在装修和家具选择上较为朴素，并有意选择了工业风格的产品，与整个区域的主题呼应。 First of all, the structure of the guestrooms has been strengthened, and toilets are added, to meet the safety andbasic functional requirements of the hotel. In order to reflect the historicalinformation of the old third line factory, the roofs of some rooms retain theoriginal slot boards, and the wall surfaces also expose part of the originalwall surfaces at specific locations. Because the overall positioning of thehotel does not belong to luxury hotel, it is simple in decoration and furnitureselection, and industrial style products deliberately are chosen, echoing thetheme of the whole region.

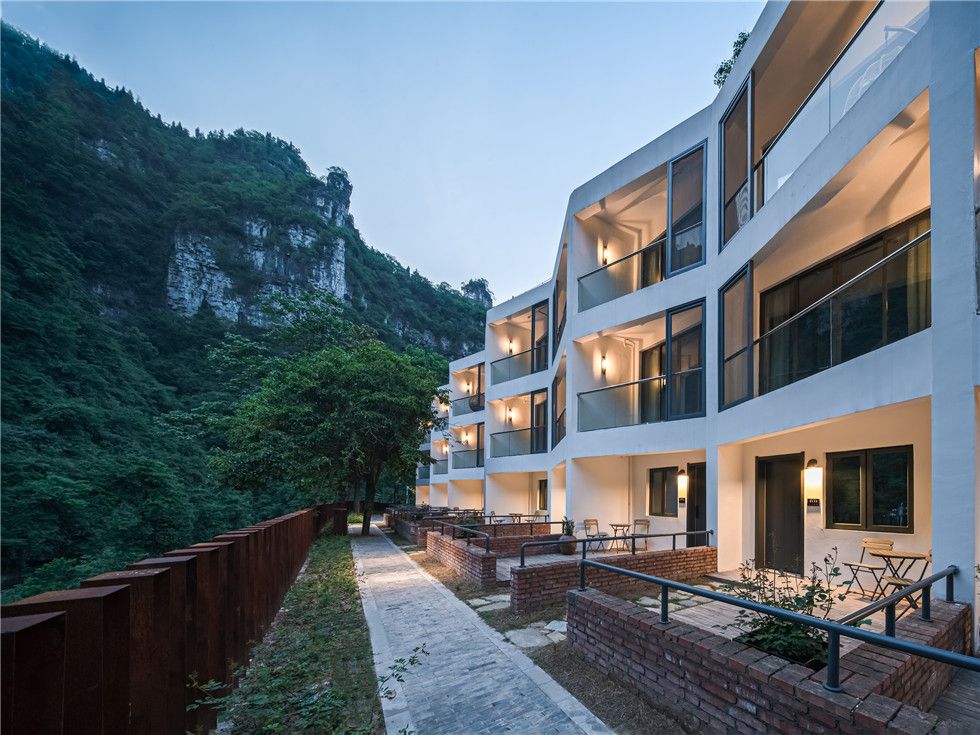

▽西侧客房，新加的阳台和小院©此间建筑/Guest rooms on the western side, with new-added balconies and yards©arch-inbetween

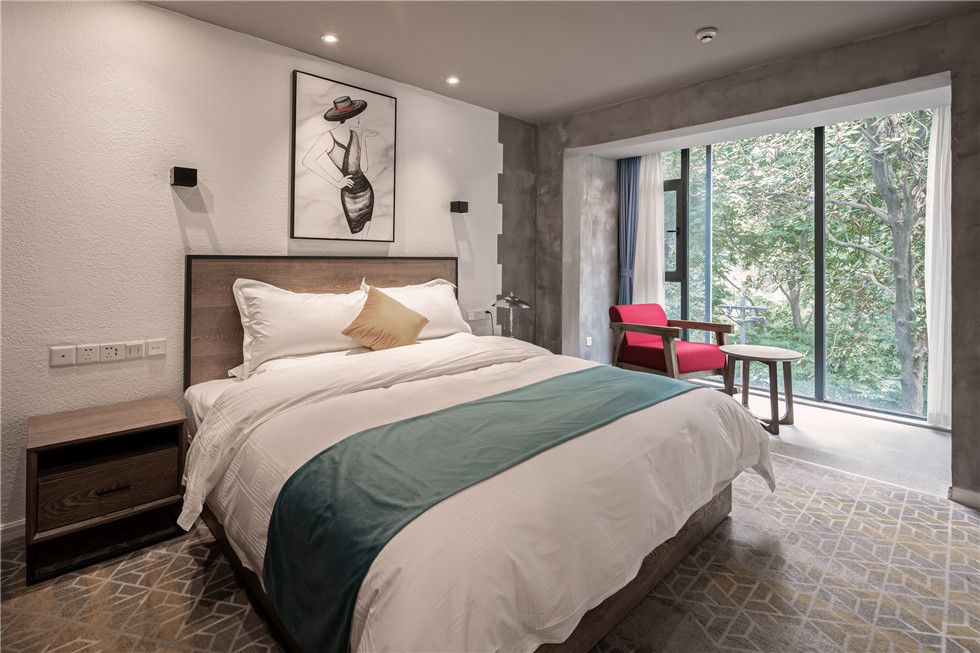

▽客房室内©此间建筑/Interior ofguest room©arch-inbetween
4.大堂：利用体块穿插，营造区域标志 4.Lobby: using body blocks to createregional signs
酒店大堂是新建，它位于四栋客房建筑与西餐厅中间，起到了公共区域和私密区域阻隔和转换的作用。建筑分为两层，由四个建筑体块互相穿插构成。首层为酒店大堂，包含前台，休息等待区等功能，通过橙色的酒廊，大堂空间与西餐厅的三层相连。二层则是环形展厅，可以举办活动和展览。从一层到二层除了可以走室内楼梯，也可以使用室外的大阶梯。 The lobby of the hotel is newly built. Itis located between the four guest buildings and the western restaurant, whichacts as a barrier and transformation between public areas and private areas.The building is divided into two layers, which are composed of four buildingblocks interpenetrating with each other. The first floor is the lobby of thehotel, including the functions of front desk, waiting area and so on. Throughthe orange lounge, the lobby space is connected with the third floor of thewestern restaurant. On the second floor is the circular exhibition hall, whereactivities and exhibitions can be held. From the first floor to the secondfloor, you can not only take the indoor stairs, but also use the outdoor largestairs.

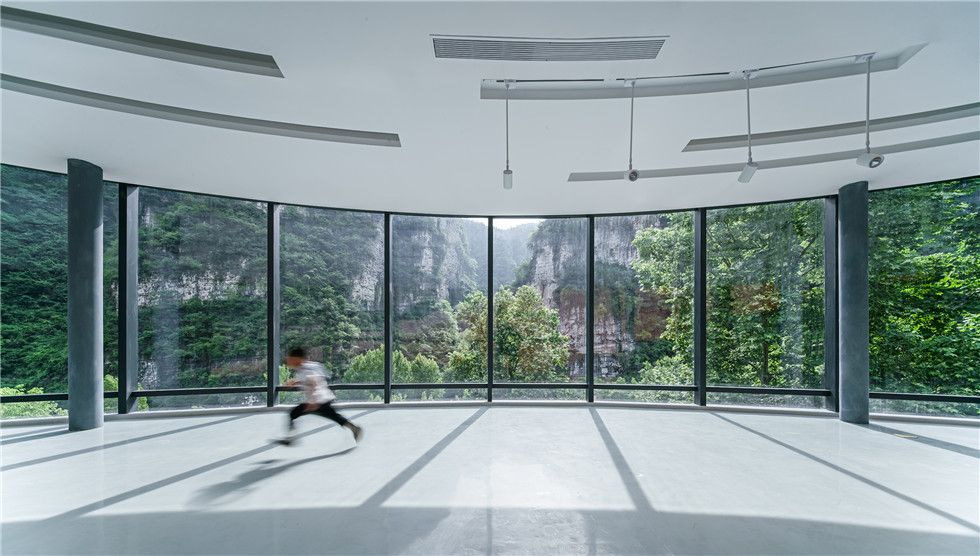

▽环形展厅与窗外绵延的山景©此间建筑/Circular exhibition hall and the continuous mountain scenery outside the window©arch-inbetween
▽建筑体块穿插形成奇特空间感受©此间建筑/Building blocks interspersed to form a unique space experience©arch-inbetween
在建筑师看来，新建大堂应该成为新809的地标。它需要被从远处清晰的捕捉到，并吸引客人进入新809区域。为了达到这个目的，建筑被刻意设计的具有视觉张力：超尺度的几何体块相互穿插，不同材料和强烈颜色的对撞，形成了不同于日常生活的视觉与感官体验。一层大堂不规则的形式既与场地地形有关，又避让了空间中原有的树木。二层的环形展厅采用全玻璃幕墙，它“飞架”在一层之上，为使用者提供了360度的观景面。弯折的酒廊，南侧插入西餐厅建筑体块中，北侧挑出于混凝土陡坎之上，形成强烈动势，其标高与西餐厅三楼的早餐厅一致，起到了连接大堂及早餐厅的交通功能。酒廊外皮由橙色的金属网覆盖，室内也同样被橙色覆盖，强调了建筑体块的同时也颠覆着使用者的感官。斜向的室外大楼梯被深褐色的金属表皮包裹，成为一个斜插向天空的方筒，表皮上的圆孔让内部形成丰富的光影效果，营造了一种“不真实”感。这一切都与原809厂的老三线风格不一样，新老建筑形成了强烈的视觉对冲，但正是因为这种对冲，让旧者更旧，新者更新。 According to architects, the new lobbyshould be the landmark of the new 809. It needs to be clearly captured from adistance and attract guests into the new 809 area. In order to achieve thisgoal, the architecture is deliberately designed with visual tension: superscale geometric blocks interpenetrate with each other, different materials andstrong colors collide, forming a visual and sensory experience different fromdaily life. The irregular form of the first floor lobby is not only related tothe site topography, but also avoids the original trees in the space. Thecircular exhibition hall on the second floor adopts the full glass curtainwall, which is "flying" over the first floor, providing users with a360 degree view. The crooked lounge is inserted into the building block of thewestern restaurant in the south, and lifted from the concrete steep ridge inthe north, forming a strong momentum. Its elevation is the same as that of thewestern restaurant on the third floor, which plays the traffic function ofconnecting the lobby and the early restaurant. The outer skin of the lounge iscovered with orange metal mesh, and the interior is also covered with orange,which emphasizes the building block and subverts the user's senses. Theslanting outdoor staircase is wrapped by dark brown metal skin, which becomes asquare tube leading into the sky. The round holes on the skin endow theinterior with rich light and shadow effects, creating a sense of"unreality". All these are different from the old third-front styleof the original 809 factory. The new and old buildings form a strong visualhedge, but it is precisely because of this hedge that the old ones are olderand the new ones are newer.

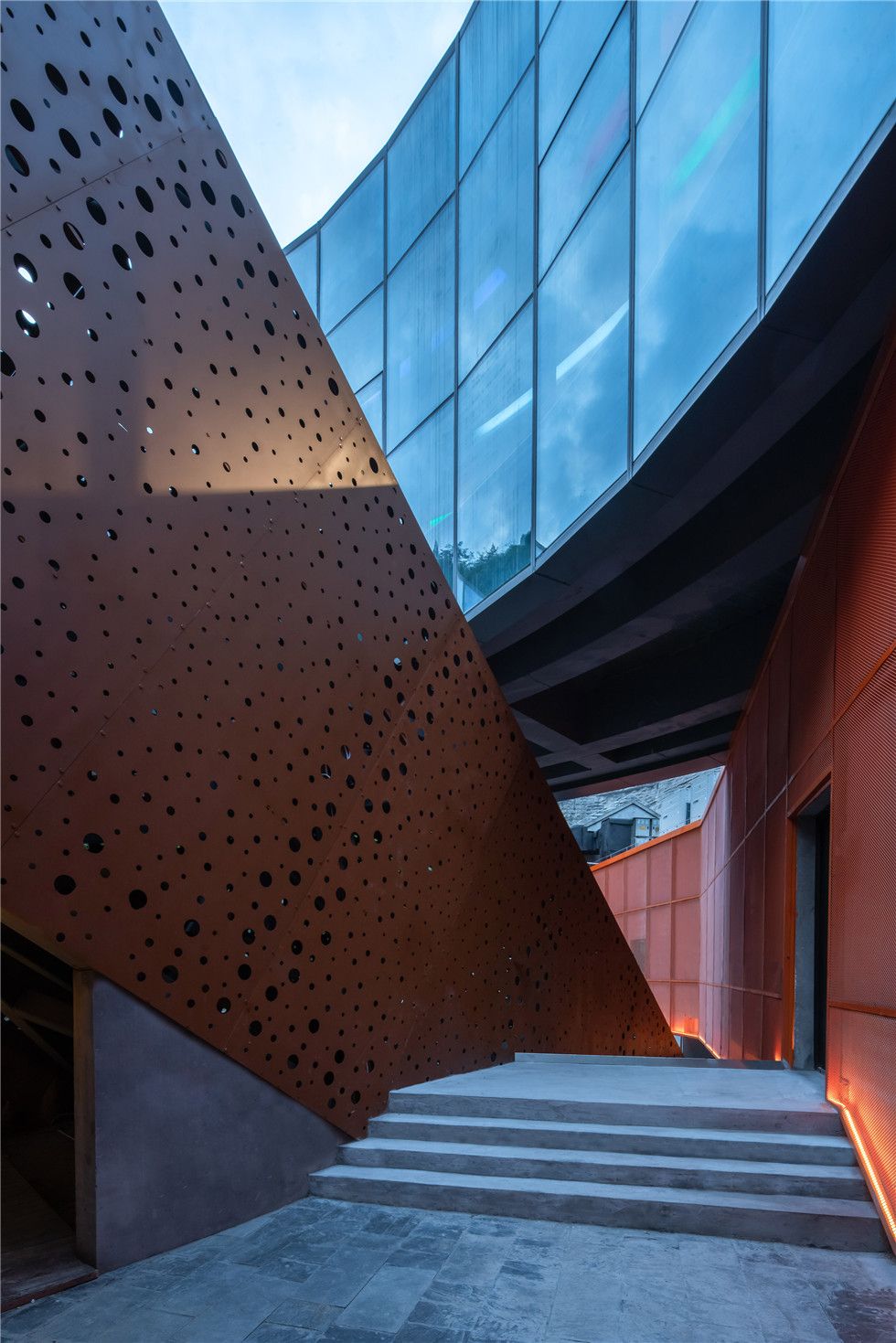

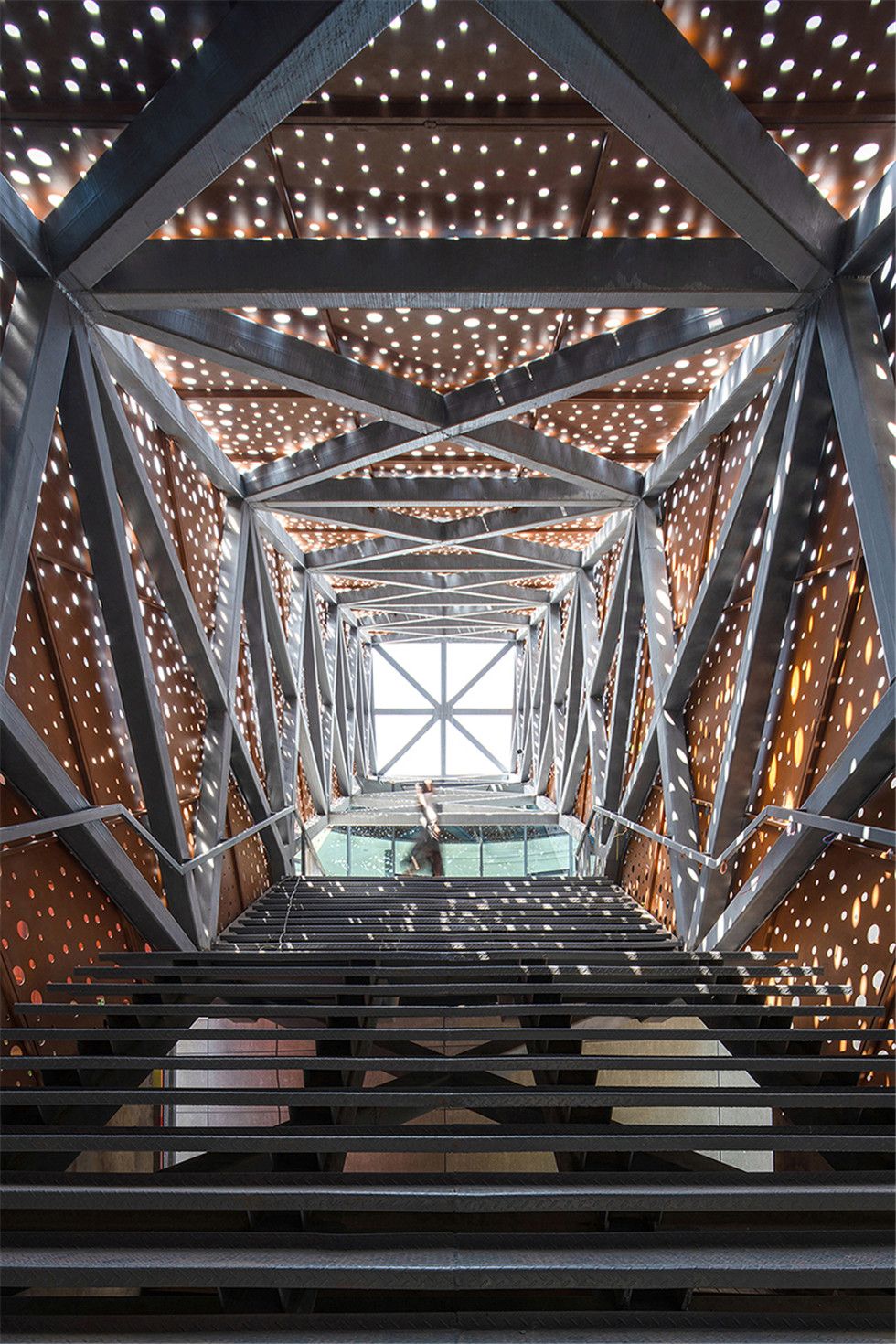

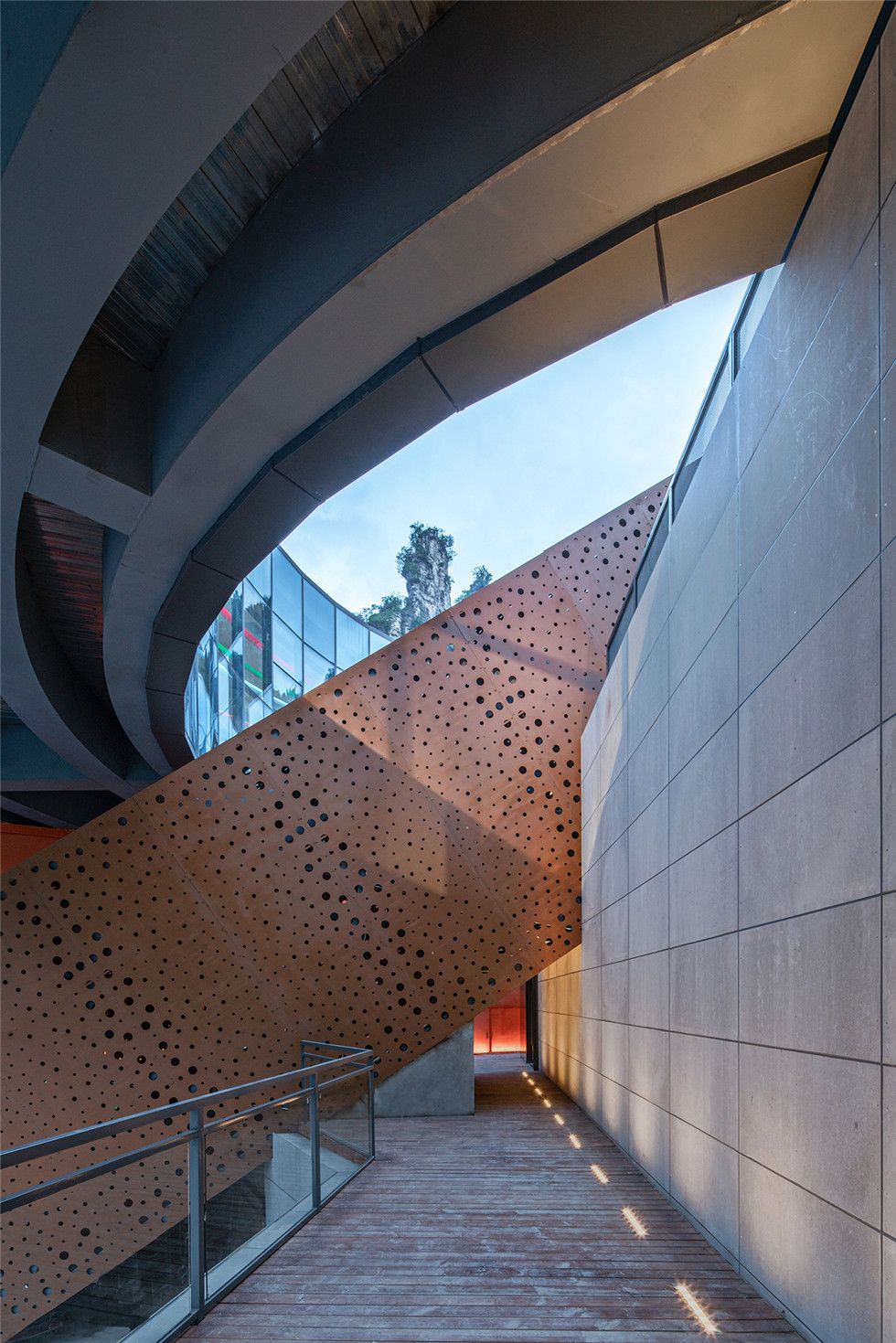

▽通向屋顶的大楼梯，表皮上的开孔形成丰富的光影效果©此间建筑/ Major steps leading from the lobby to the roof©arch-inbetween
▽斜向楼梯体块如同堆积木一般穿过圆环©此间建筑/Slanting staircase block passes through the ring like building blocks©arch-inbetween
为了实现大堂建筑特殊的形态，建筑师与结构工程师付出了巨大的努力。建筑整体采用钢结构，为了得到一个尽量通透的环形展廊，并保证一层建筑室内的舒适性，环形展厅的由三组巨型钢柱支撑，它们呈120度排布，分别隐藏在大堂的服务型空间和酒廊空间内，从室外无法察觉。环形展厅由9组钢柱支撑，它如同一个环形“盒子”放置在一层结构上。斜向的大阶梯及包裹它的筒则如同一根巨大的方柱斜插于圆环中，起到了不同高程的交通联系。四个建筑体块看似相互倚靠堆叠，实则结构相互独立，自成系统，这样的处理保证了建筑结构的安全性。场地复杂的高差、不确定的地质条件（喀斯特地貌），毗邻的老建筑基础的避让和场地内原始树木的保留等问题都给项目实施过程带来了巨大的挑战，建筑师、结构工程师及施工单位面临并一一克服这些问题，最终完成了建筑复杂形体的建造及表达。 In order to realize the special form oflobby architecture, architects and structural engineers have made greatefforts. The whole building is of steel structure. In order to get atransparent circular exhibition gallery as much as possible and ensure theindoor comfort of the first floor building, the circular exhibition hall issupported by three groups of giant steel columns, which are arranged at 120degrees, hidden in the service-oriented space and the lounge space of the lobbyrespectively, and cannot be detected from the outside. The circular exhibitionhall is supported by 9 sets of steel columns, which is placed on the firstfloor like a circular "box". The oblique large ladder and the tubesurrounding it are like a huge square column which is inserted in the ringobliquely, playing a traffic connection of different elevations. The fourbuilding blocks seem to rely on each other for stacking, but in fact, thestructure is independent and self-contained, which ensures the safety of thebuilding structure. The complex height difference, uncertain geologicalconditions (karst landform), the avoidance of the adjacent old buildingfoundation and the reservation of the original trees in the site all broughtgreat challenges to the project implementation process. Architects, structuralengineers and construction units faced and overcome these problems one by one,and finally completed the construction and expression of the complex buildingshape.

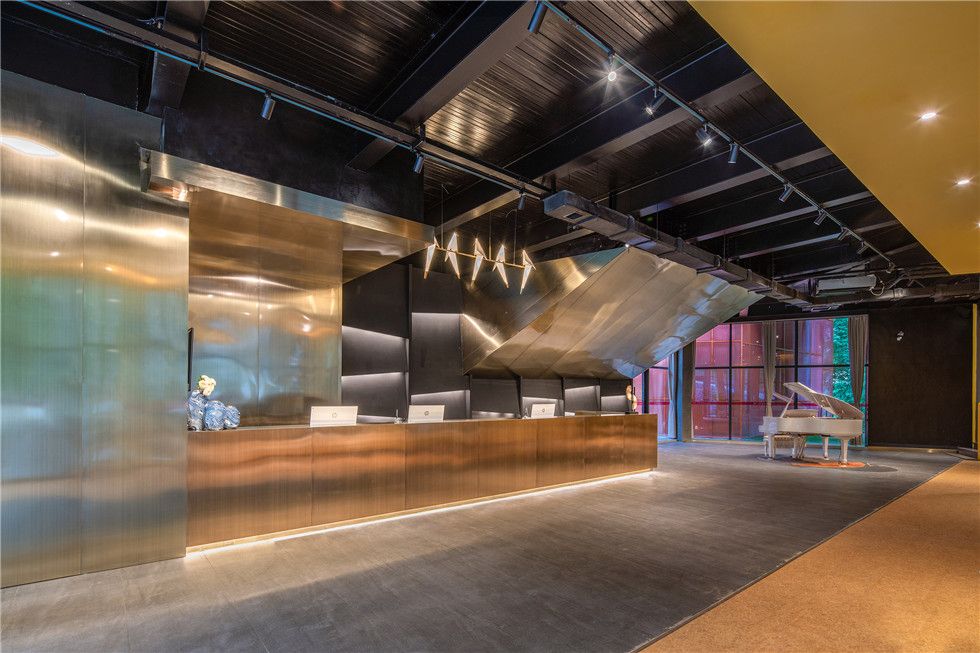

▽大堂室内©此间建筑/Interior of lobby©arch-inbetween

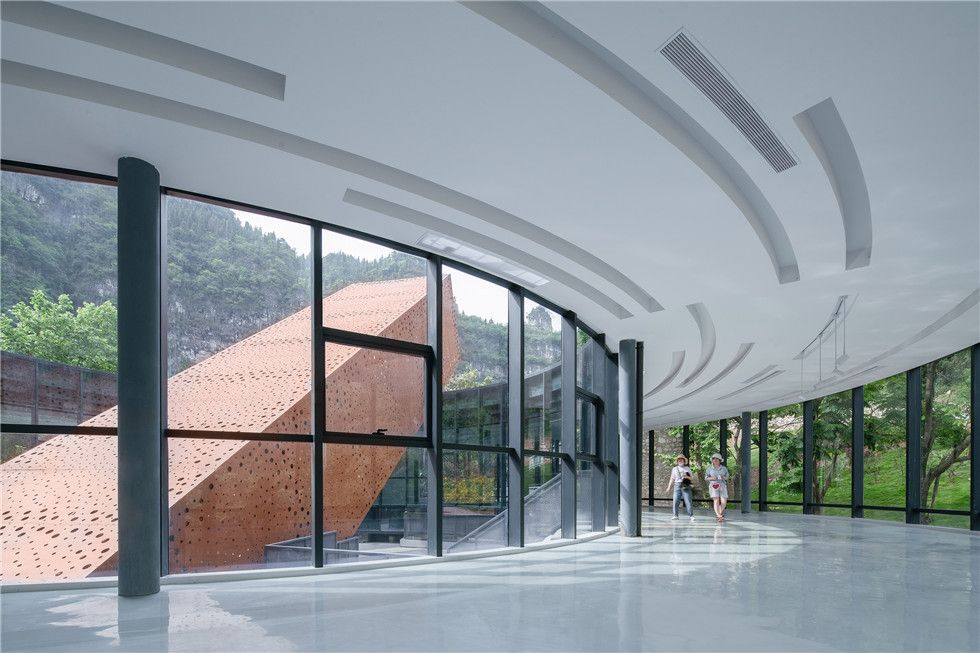

▽从环形展厅看斜向的大阶梯方筒©此间建筑/Squaretube of slanting big staircase viewed from circular exhibition hall©arch-inbetween

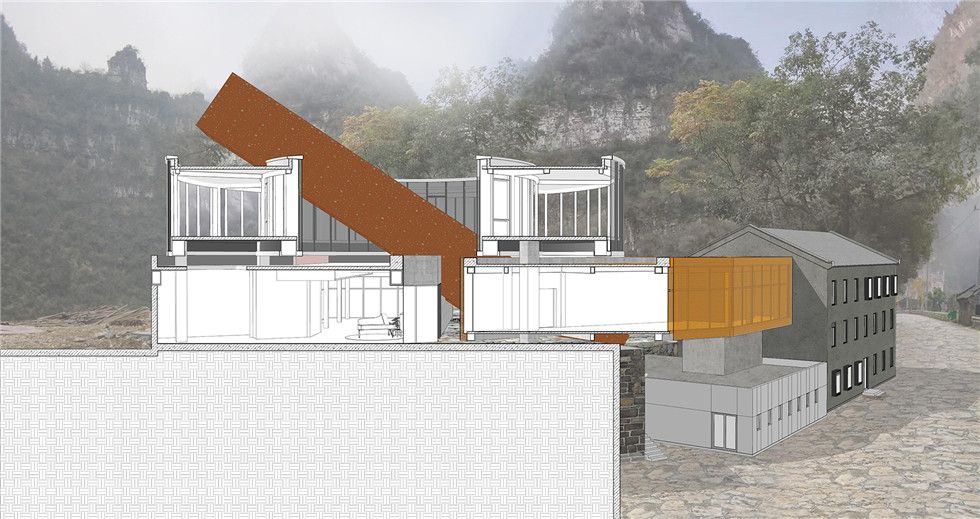

▽大堂剖透视/Profile perspective of lobby
5.结语 5.Epilogue
809厂是中国西部地区老三线兵工厂的一个缩影。1950-60年代，中国西部兴建了大量的兵工厂，他们多为砖石结构，反映特定时代中国西部地区工业建筑的特点。随着1990年代，中国经济的发展，产业转型，大部分此类兵工厂都已经停产、废弃，但建筑作为一种历史记录仍然具有文化价值。本案是在保护历史信息基础上，最大限度激活此类工业遗存的一种尝试。 The 809 factory is a miniature of thehistoric Third-Front arsenals in Western China. In 1950-60's, a large number ofmilitary factories were built in Western China, most of them are brick andstone structures, reflecting the characteristics of industrial buildings inWestern China in a specific era. With the development of China's economy andindustrial transformation in the 1990s, most of these arsenals have been shutdown and abandoned, but as a historical record, the architecture still hascultural value. This case is an attempt to maximize the activation of suchindustrial remains on the basis of protecting historical information.
中国以往的工业遗存改造后，功能多以文化产业园、艺术园区为主，这类功能对于西部地区，非城市区域的工业遗存并不适用。本案改造后的新功能为酒店，是近年来中国工厂改造中较特殊的一个，对中国西部工业遗存的再利用具有创新意义。 After the transformation of China's formerindustrial relics, the main functions are cultural industrial parks and artparks. However, such functions are not applicable to the Industrial Relics innon-urban areas of China’s western regions. The new function of this case is aresort hotel, which is a special one in the transformation of Chinese factoriesin recent years, which is of great innovative significance for the reuse ofIndustrial relics in Western China.

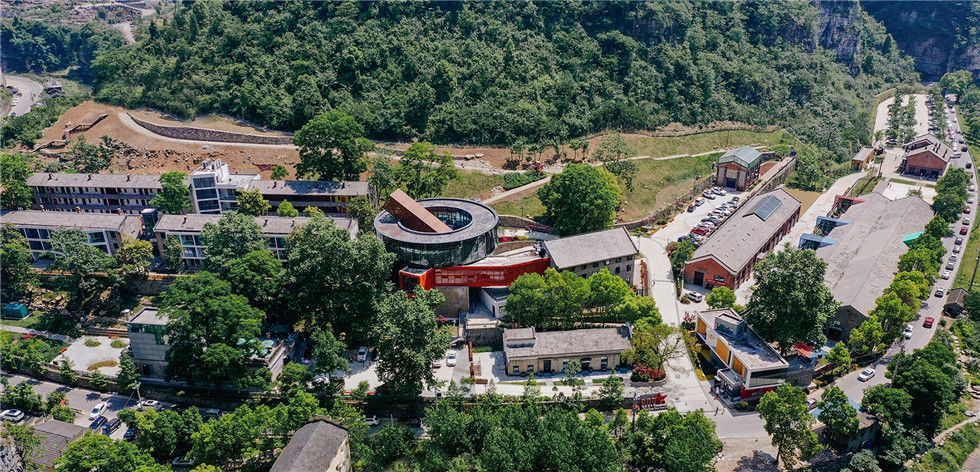

▽鸟瞰©曹金军/Bird's-eye view of site©JinjunCao

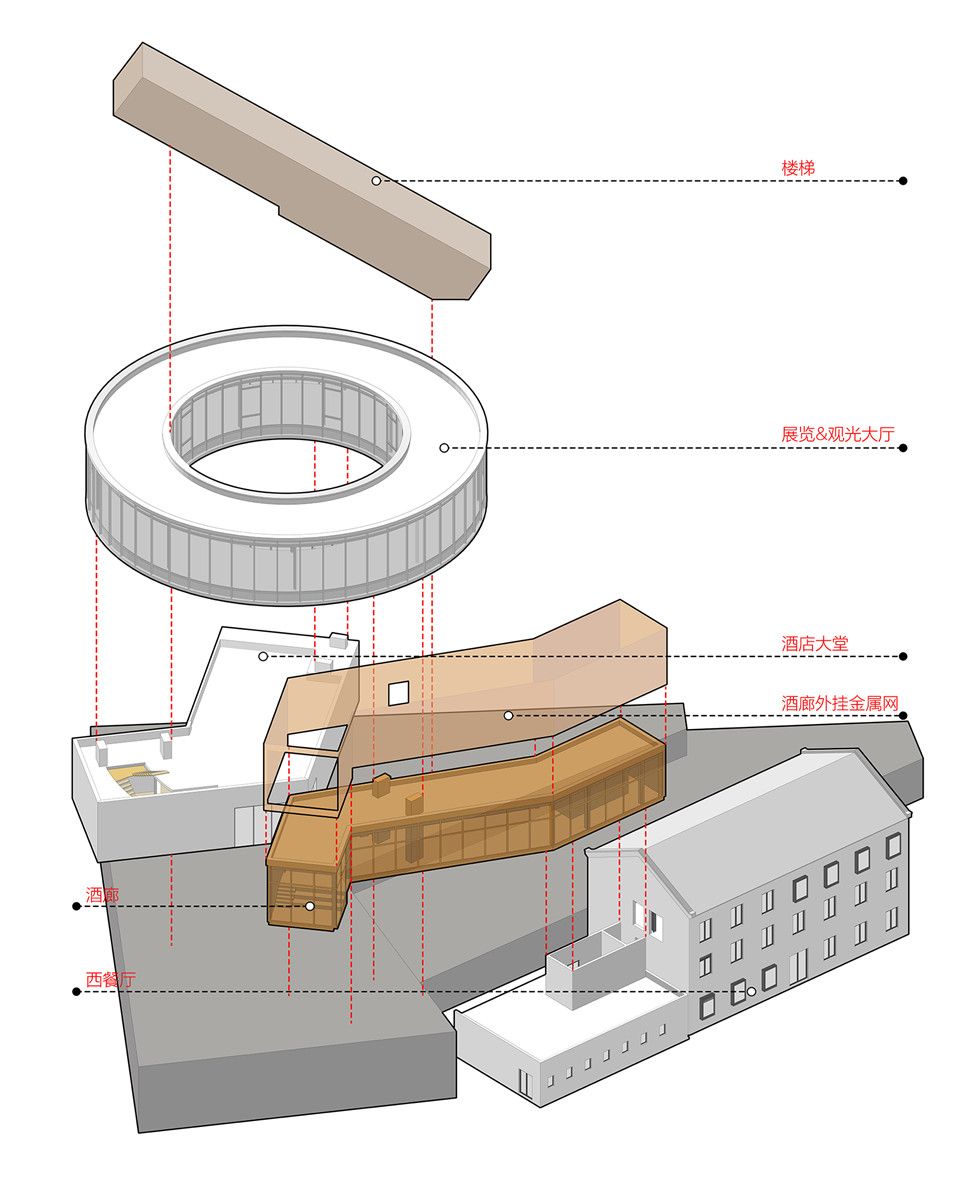

▽轴测图/Axonometric drawing

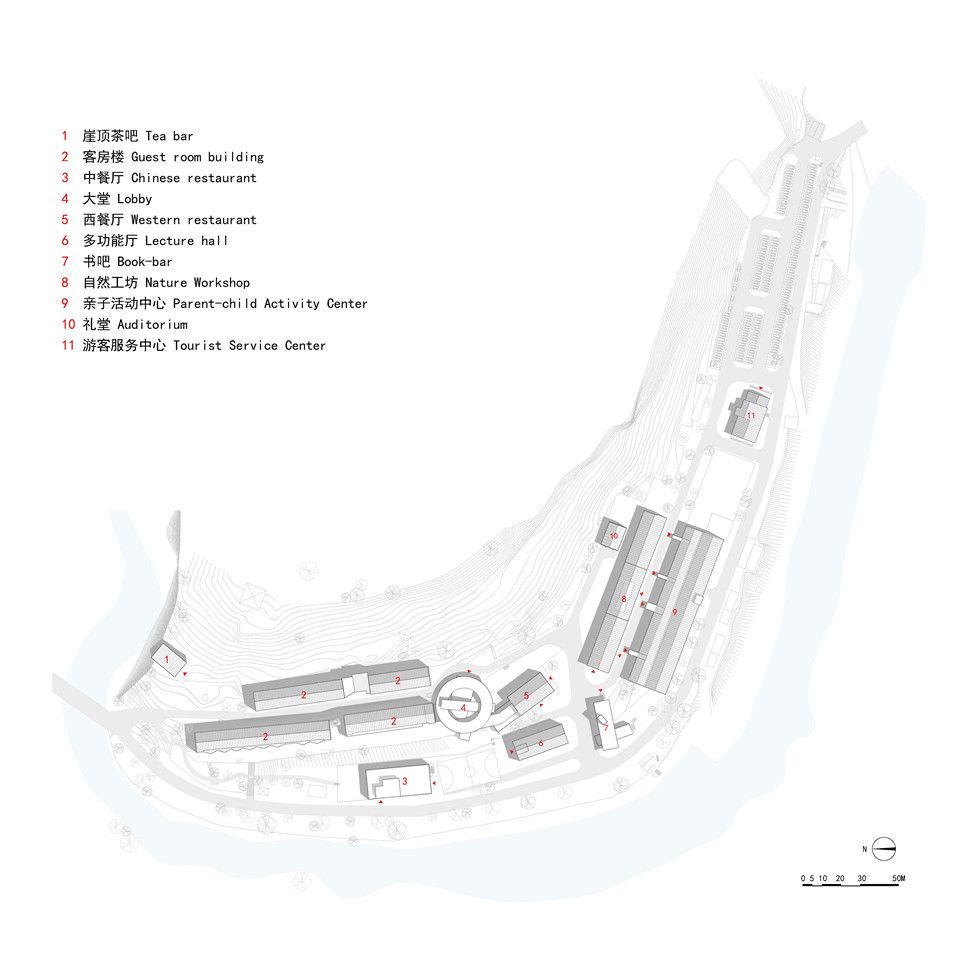

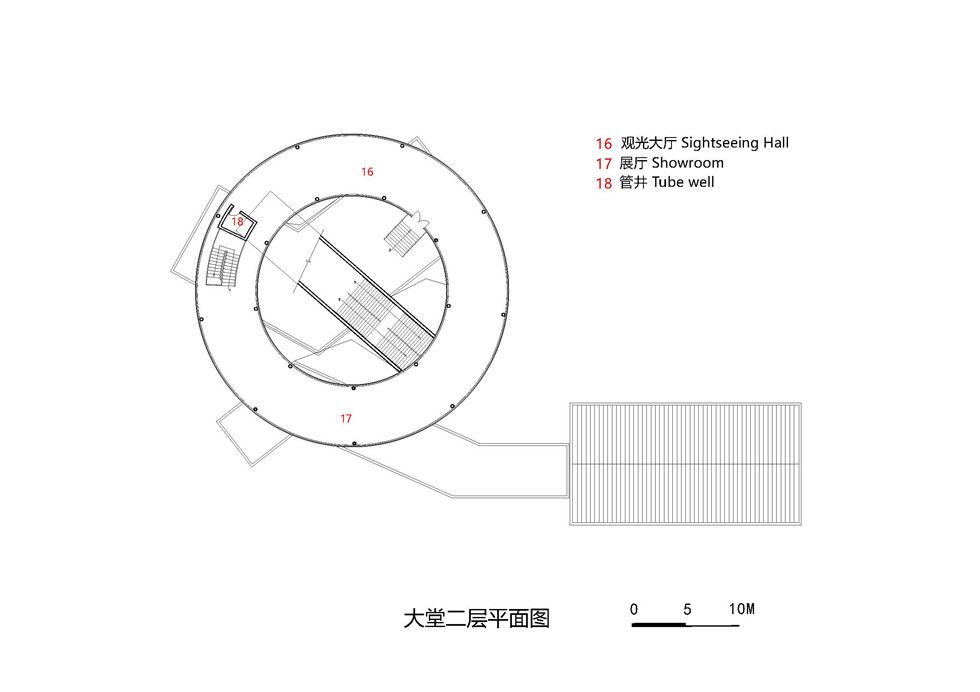

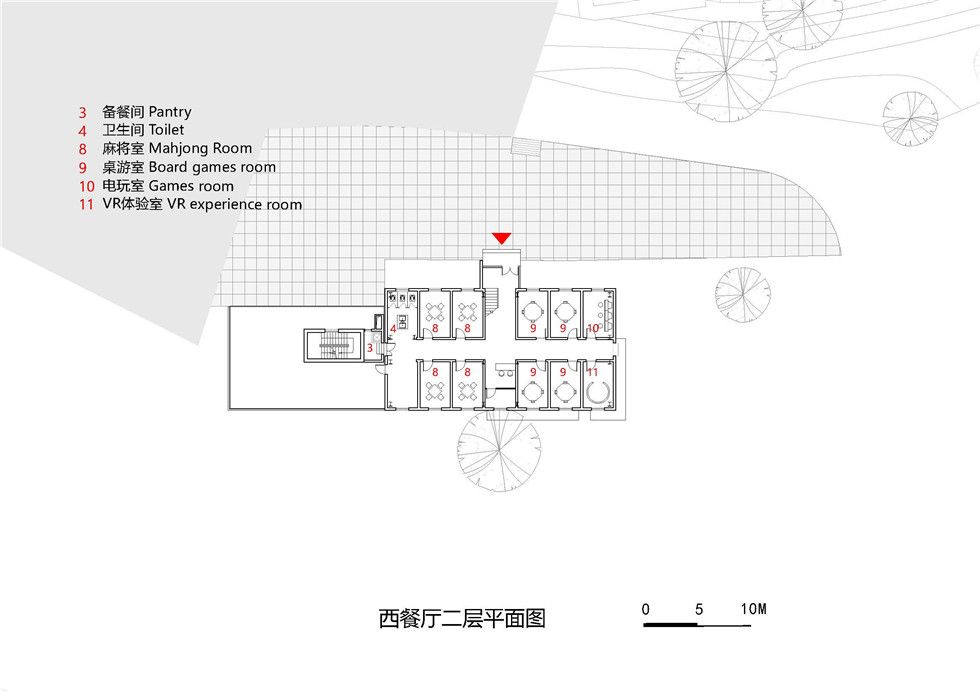

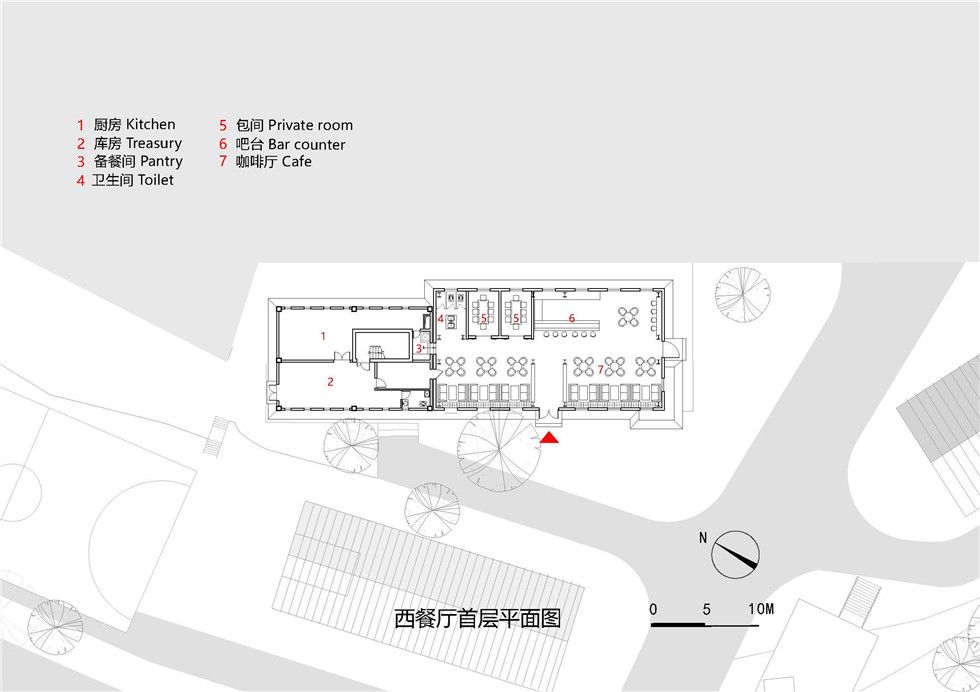

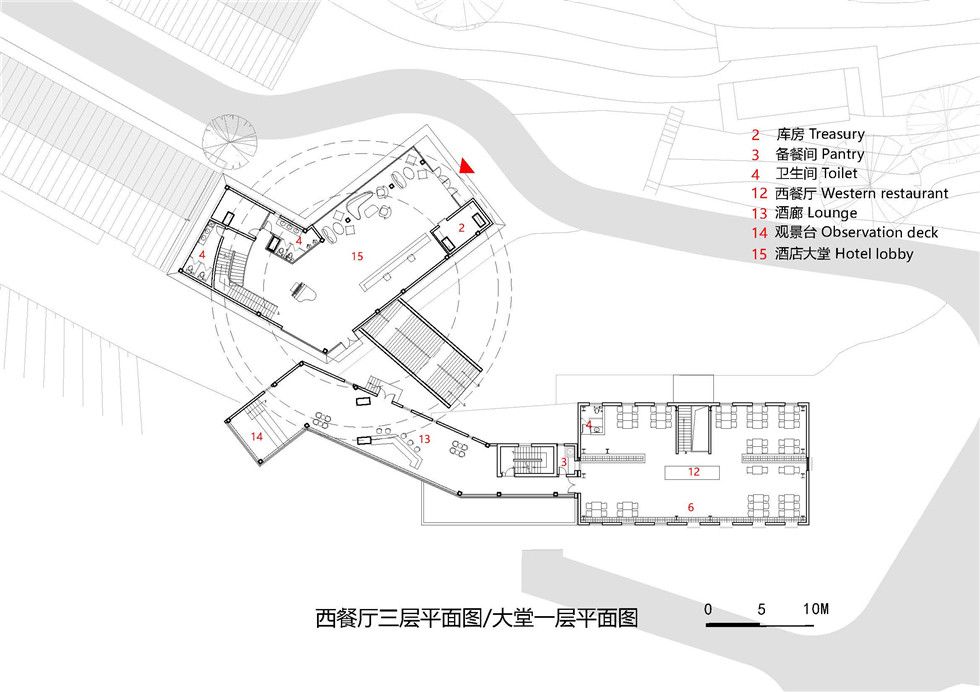

▽总平面图/General site layout ▽大堂+西餐厅平面/lobby and western restaurant plan

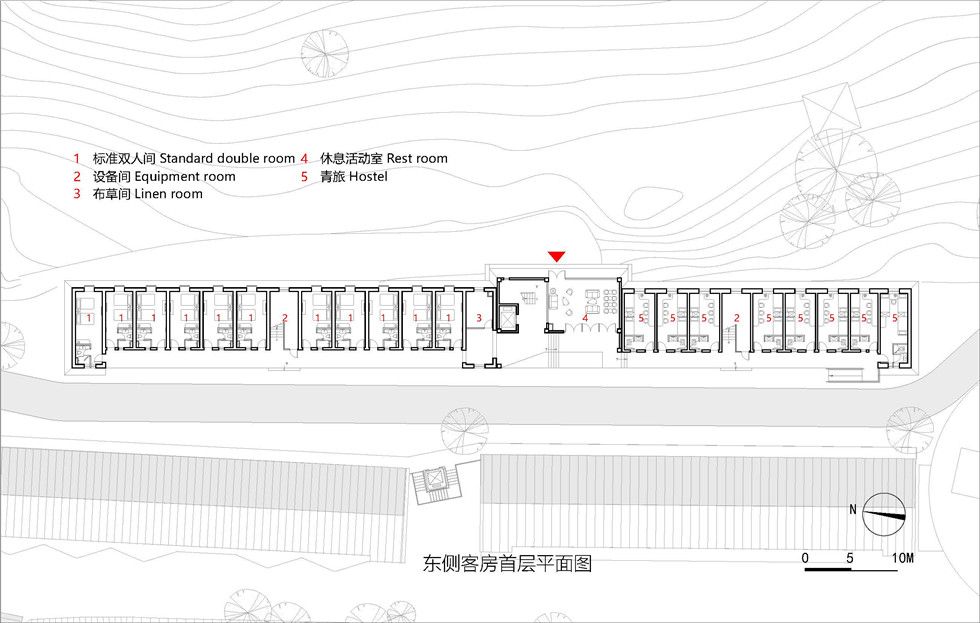

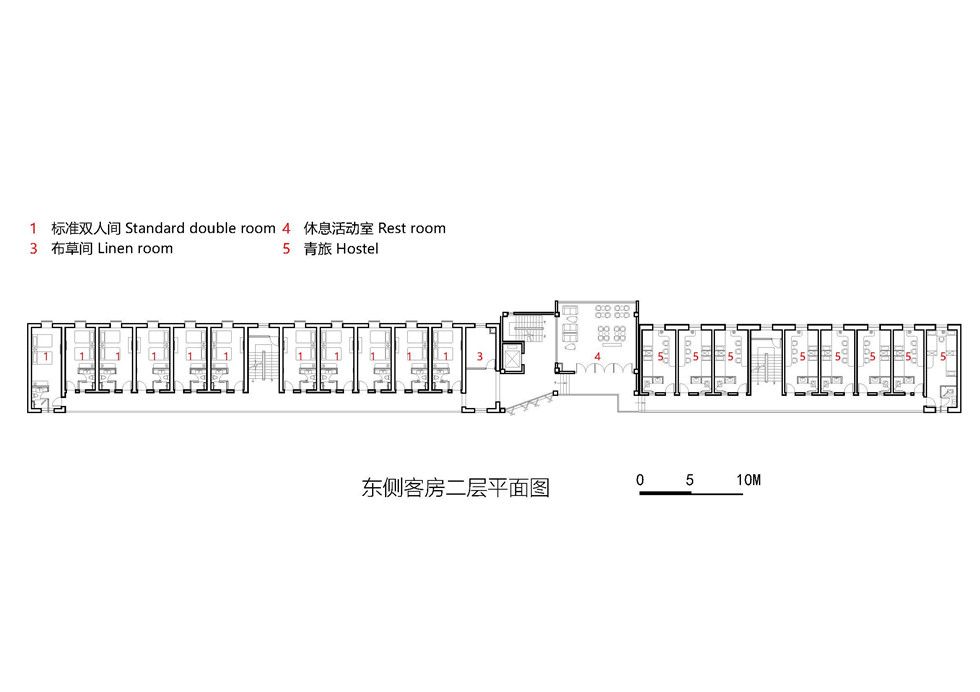

▽东侧客房平面图/Eastern side guest room plan

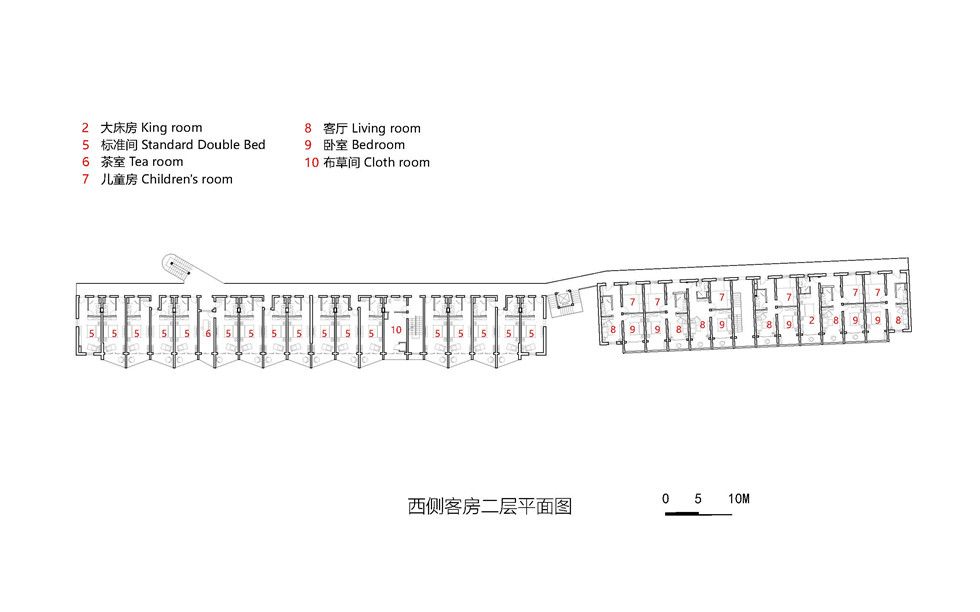

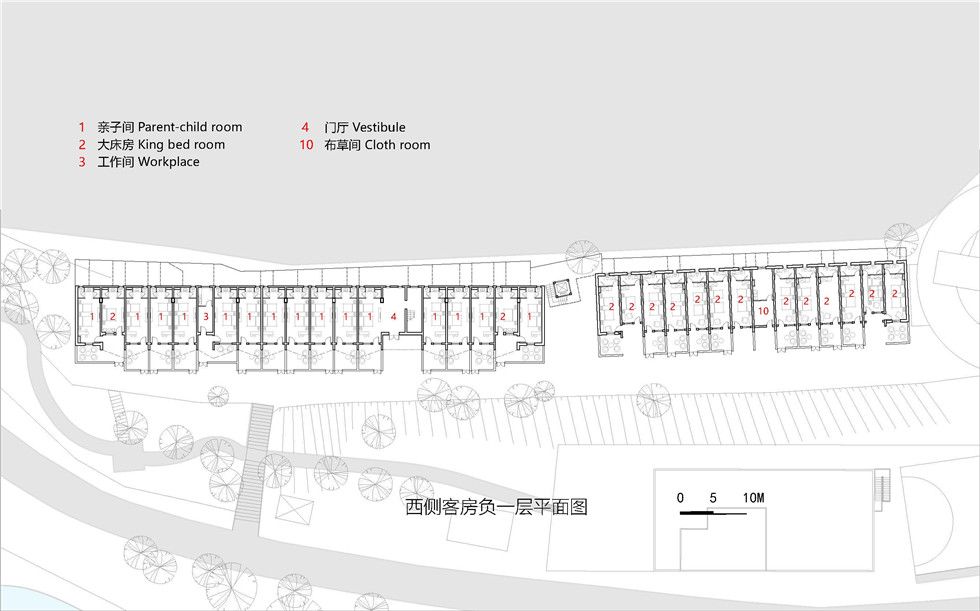

▽西侧客房平面图/Western side guest room plan
项目信息 名称：809兵工厂遗址改造 项目类型：休闲公园 地点：湖北省宜昌市 业主：宜昌交旅集团 建筑及室内设计：三文建筑 景观概念设计：三文建筑 主创建筑师：何崴、陈龙 团队成员：赵卓然、李强、宋珂、张天偃、李星露、桑婉晨、吴前铖（实习）、黄士林（实习）、周奇（实习）、李婉（实习） 结构顾问：潘从建 照明设计：清华大学建筑学院张昕工作室 团队成员：张昕，韩晓伟，赵晓波，王丹，宋柏宜，陶龙军 设计时间：2017年 建成时间：2020年4月 场地面积：30000平方米 总建筑面积：12900平方米（总体）、8300平方米（酒店部分） 合作单位 建筑施工图：北京华巨建筑设计院有限公司 室内施工图：北京鸿尚国际设计有限公司
Project data Project name: Renovation of the 809 ArsenalRelics Project type: A leisure park Project address: Yichang City, HubeiProvince, China Client: Yichang Traffic Tourism IndustryDevelopment Group Co., Ltd. Architectural and interior design: 3andwichDesign / He Wei Studio Landscape conception design: 3andwichDesign / He Wei Studio Principal architects: He Wei, Chen Long Design team: Zhao Zhuoran, Li Qiang, SongKe, Zhang Tianyan, Li Xinglu, Sang Wanchen, Wu Qiancheng(intern), HuangShilin(intern), Zhou Qi(intern), Li Wan(intern) Structural consultant: Pan Congjian Lighting design: Zhang Xin Studio at theArchitecture School of Tsinghua Universtiy Lighting design team: Zhang Xin, HanXiaowei, Zhao Xiaobo, Wang Dan, Song Boyi, Tao Longjun Design time: 2017 Completion time: April 2020 Site area: 30000㎡ Construction area: 12900㎡ (in total), 8300 ㎡ (hotel) Partners Architectural working drawings: BeijingVAGE Institute of Architectural Design & Planning Co., Ltd Interior working drawings: BeijingHongshang International Design Co., Ltd
|
