VenhoevenCS | 深圳宝安排涝河碧道总体规划VenhoevenCS | 深圳宝安排涝河碧道总体规划

2021-11-09 发布

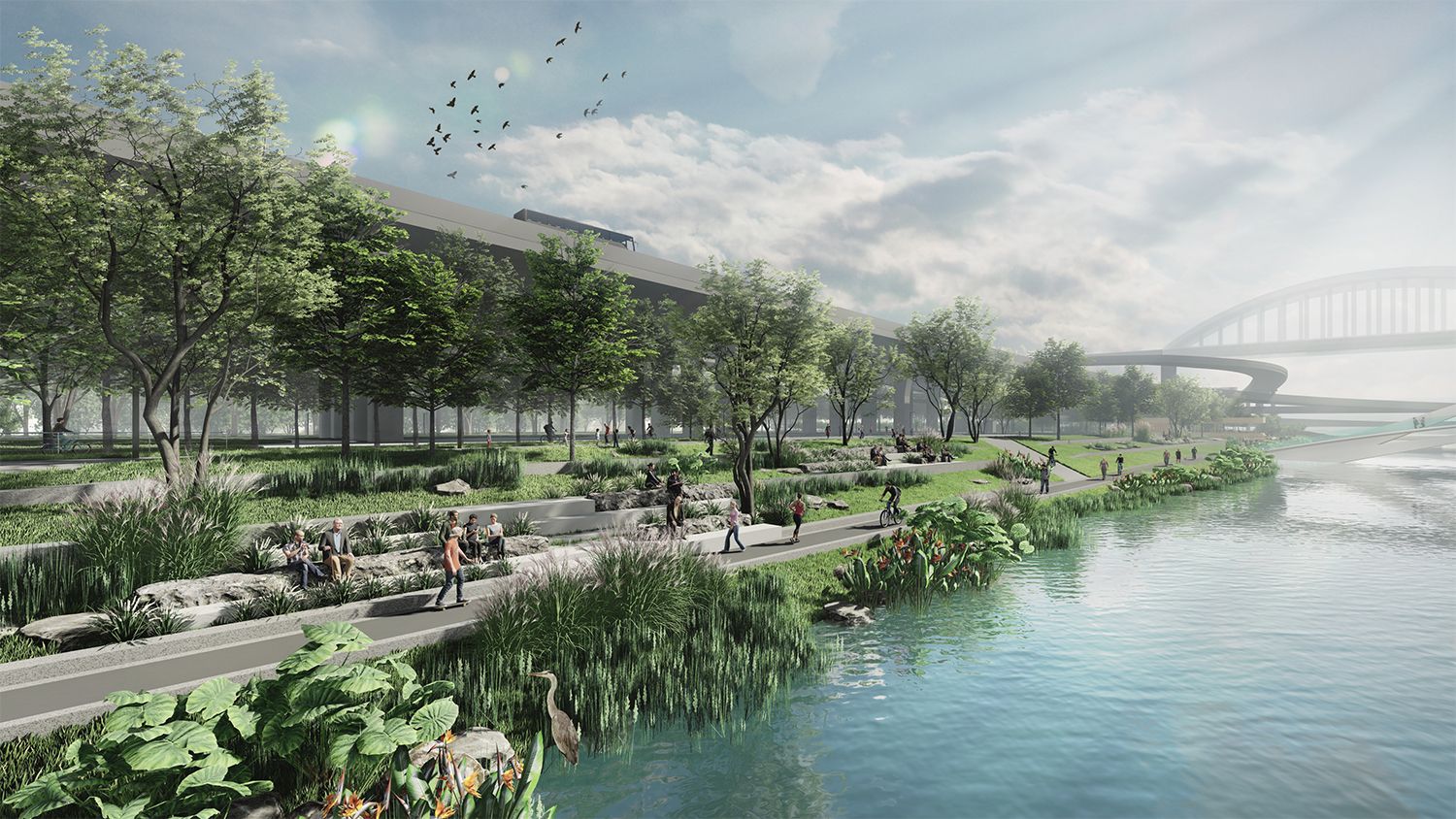

深圳宝安排涝河碧道自然河岸 Urban nature banks ©Shenzhen Hope Design

VenhoevenCS, 深圳翰博设计股份有限公司和中国电建集团华东勘测设计研究院有限公司团队为中国深圳宝安区排涝河中部的新生活景观设计了获胜的总体规划。位于低海拔的快速城市化地区,排涝河碧道项目将预防因暴雨造成的洪水泛滥。河岸将丰富城市自然景观,将蓄水空间融入社区日常。新的生态区旨在通过公园和驿站来容纳社会和文化活动以及体育活动。除了调节自然的 “海绵效应”外,滨河堤岸将促进经济增长以及整个城区的韧性、认同和活力。该项目体现了 VenhoevenCS 对自然包容设计的远见和追求,通过重塑人类与自然环境的共存,确保所有生命形式的可持续、健康的未来。

Team VenhoevenCS-HOPE-HUADONG has designed the winning masterplan for a new living landscape along the central Pailao River in the Bao’an district in Shenzhen, China. As a rapidly urbanising region located below sea level, the Pailao River Blueway Project will prevent flooding due to heavy rainfall. The riverbanks will be enriched with urban nature, incorporating space for water retention, deep into the neighborhood. The new ecological zones are designed to accommodate social and cultural activities and sports with parks and pavilions. In addition to the mediating ‘sponge effect’ of nature, these banks will enhance economic growth as well as the resilience, identity, and vibrancy of the entire city district. The project exemplifies VenhoevenCS’ visionary approach to nature-inclusive design, reshaping the co-existence of the human and natural environment to ensure a sustainable, healthy future for all life forms.


排涝河实景鸟瞰 Pailao River Birdeye View ©VenhoevenCS

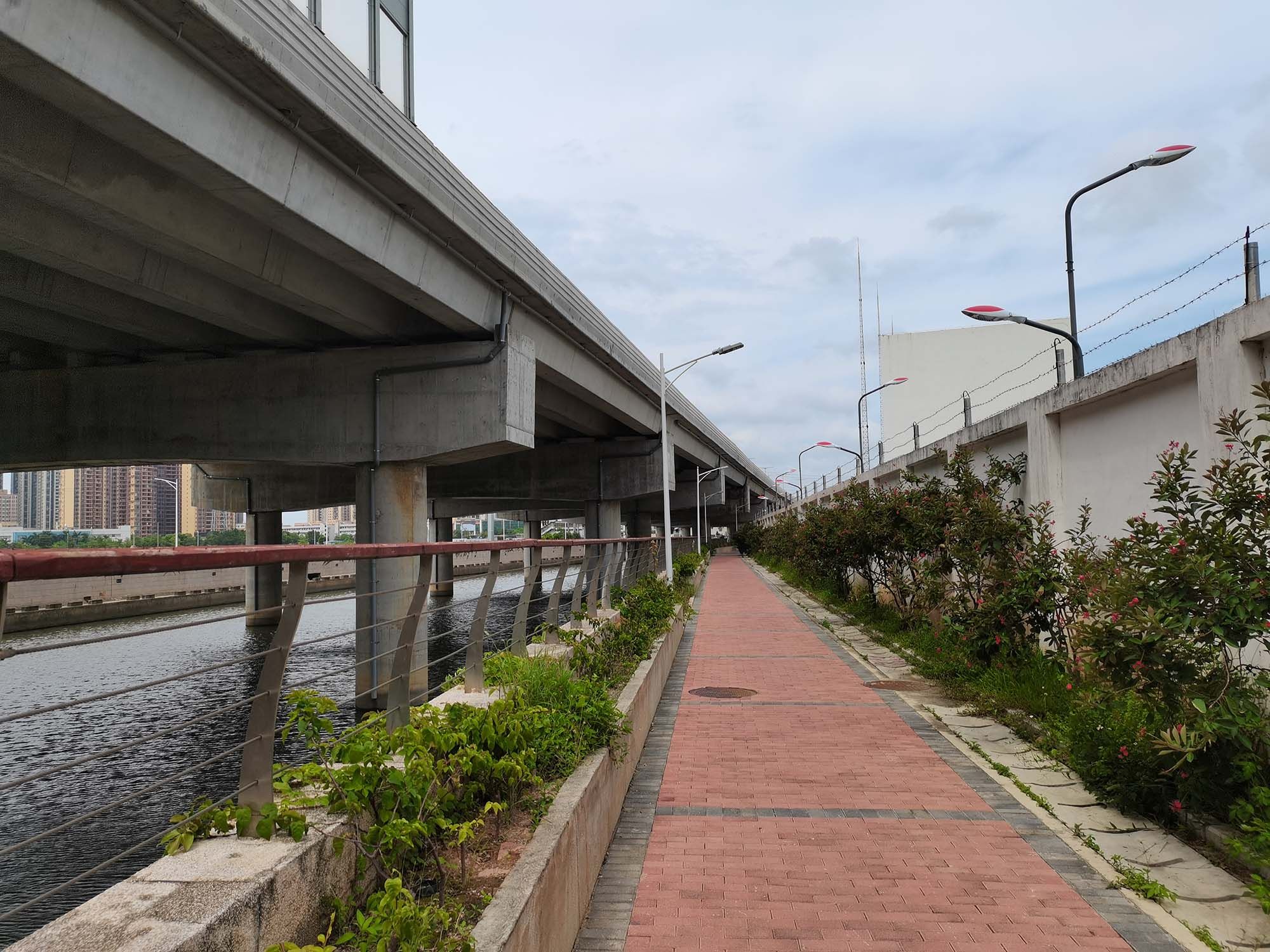

沿排涝河的现有步行道 Existing Walk along Pailao River ©VenhoevenCS

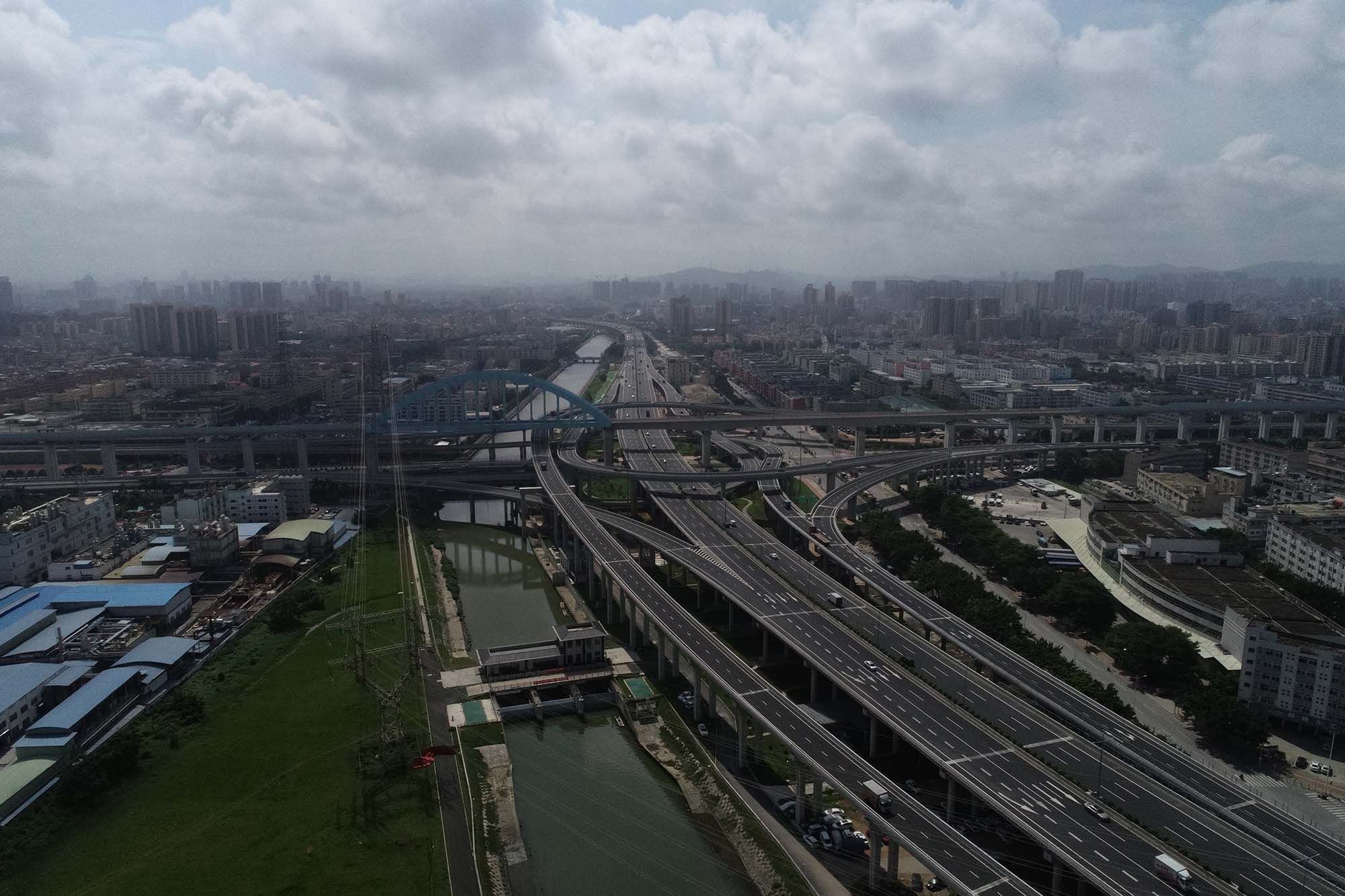

排涝河上的高架路 Highway above the Pailao River ©VenhoevenCS

“分层策略是排涝河碧道项目最重要的设计策略。根据设计任务为场地定制了丰富的储水空间,但通过我们的综合方法,我们将使现有的城市地区不受气候影响,并带动城市更新。”Ton Venhoeven – VCS建筑与规划事务所

“Our proposal for the Pailao River Blueway Project is layered. We organised the requested water storage there, but with our integrated approach we will make an existing district climate-proof and enhance urban regeneration at the same time.” Ton Venhoeven – VenhoevenCS architecture+urbanism

以水为媒带动城市更新
Designing with water for urban regeneration

项目总体规划目标未来,设计团队构思了一个创新的用水设计以适应气候变化,目标是构建和确定宝安的新身份。这个出发点之所以重要,是因为深圳所处的亚热带地区,降雨强度正急剧增强。随着工业和住房的密集发展、基础设施的主导地位以及排劳河的排涝整治使场地区域容易受到内涝的侵袭。

To future-proof their masterplan, the VenhoevenCS team created an innovative design with water to adapt to the consequences of climate change: the construction of ponds, green roofs, more space for trees, urban farming, new parks, wetlands, and soft banks are just a few interventions that organise water storage and determine the new identity of Bao'an. This is crucial because the intensity of rainfall is increasing in this subtropical part of China and the dense development of industry and housing, the dominance of infrastructure, and the limited capacity of the Pailao River make Bao'an vulnerable to flooding.


改造后的鸟瞰 Birdeye View ©Shenzhen Hope Design

因而在这次设计中,设计团队跳脱出红线范围限制。首先探寻碧道与更大尺度河流网络,和其间密集的城市地区的联系。这些社区及其公共空间的气候适应性改造将构成总体规划重要组成部分。自然空间也将流动性变化——简言之,更多的自然意味着更少的沥青、更少的停车位和更少的汽车。转变之后,宝安仍然可以通过地铁枢纽、便捷的公共交通以及适合当地慢速交通的广泛网络到达。灰空间变成了绿色空间,水将成为该地区新身份的核心。

To redesign the waterway, the team zoomed out far beyond the contours of the plan area. The Blueway Project was considered in relation to the network of rivers flowing to the sea and the dense urban areas in between. The climate-adaptive transformation of these neighborhoods and their public space became essential to the masterplan. Space for nature also constitutes changes in mobility – after all, more nature implies less asphalt, less parking and fewer cars. Bao'an remains accessible with mobility hubs, robust public transport, and an extensive network for local, slow traffic. Grey matter becomes green space, with water at the heart of the area’s identity.

城市自然和创造性愿景
Urban nature and entrepreneurial visions

排涝河的混凝土堤岸将被宽阔柔软的河岸所取代,这些河岸就像海绵一样绵延吞吐。河畔城市自然区被巧妙设计成一系列不同的滨水公园,行人和骑行者将会被优先考虑——这将会是对汽车导向的巨大桥梁和立交桥外更人性的补充。高架桥下的灰空间为文化活动和社区倡议提供了聚集场所,而他们将在雨中保持干燥,在阳光下保持阴凉。

The concrete quays of the Pailao River will be replaced by wide, soft banks that act as sponges. This riverside urban nature area has been designed as a series of varied parks which prioritise pedestrians and cyclists - a welcome addition to the huge bridges and overpasses for car traffic. The spaces under the viaducts offer meeting places and sites for cultural activities and local initiatives, staying dry in the rain and shady in the sun.


排涝河柔软河岸、驿站,旱季与雨季对比 Pailao River, with soft banks and pavilions, here in the dry and in the wet season ©Shenzhen Hope Design


河口公园,旱季与雨季对比 River Mouth Park, here in the dry and in the wet season ©Shenzhen Hope Design

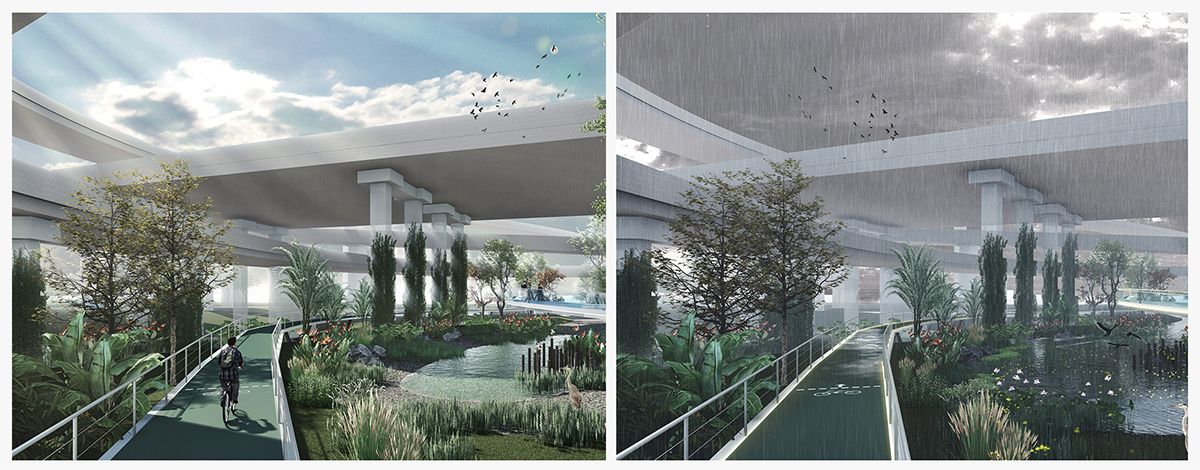

桥下空间,旱季与雨季对比 Space Under Bridge, here in the dry and in the wet season ©Shenzhen Hope Design

而总体规划的可持续原则也反馈到最小的设计尺度-驿站。不管水位和天气如何变化,抬升的服务驿站都能发挥作用。其绿色屋顶为生物多样性做出贡献,木制结构进一步降低碳足迹。本地商家可以轻松开展面向社区的商业活动;这些驿站与城市自然区一起,助力排涝河成为周边城区居民的欣欣向往之地。

The masterplan’s sustainable principles have been consistently applied down to the smallest scale of the design, as seen with the pavilions. The pavilions function at any water level because they are on stilts, contribute to biodiversity with green roofs, and are constructed out of wood. They will additionally be run by local entrepreneurs to develop a public offering; along with the urban nature area, the pavilions contribute to Pailao River becoming a revitalised destination for all residents of Bao'an district.


驿站 Pavilion ©Shenzhen Hope Design


本地活动 Local activities ©Shenzhen Hope Design

前沿性探索
Pioneering research

作为一种前瞻性思维、议程基础的实践,VenhoevenCS 团队采用好奇心导向和创造性的研究方法来应对重大气候挑战。2021年初期,该团队使用可持续发展目标作为设计工具,对即将发生洪水的地区进行了研究。他们在荷兰的 IABR–Atelier Dordrecht 应用了这些经验:在即将发生洪水的情况下,“De Staart”区域的安全布局提案充当了真正可持续城市更新的杠杆,这反过来又为我们在排涝河碧道的工作中提供了有力的参考。

As a forward-thinking, agenda-setting practice, the VenhoevenCS team takes an inquisitive and creative approach to research to address major climate challenges. The team conducted research earlier this year into designing for areas with imminent flooding, using Sustainable Development Goals as design tools. They applied these learnings at IABR–Atelier Dordrecht in the Netherlands: the proposal for a safe layout of 'De Staart' area in the event of imminent flooding acted as a lever for truly sustainable urban regeneration, which in turn informed their work on the Pailao River Blueway Project masterplan in the face of similar conditions.

项目图纸
Drawings

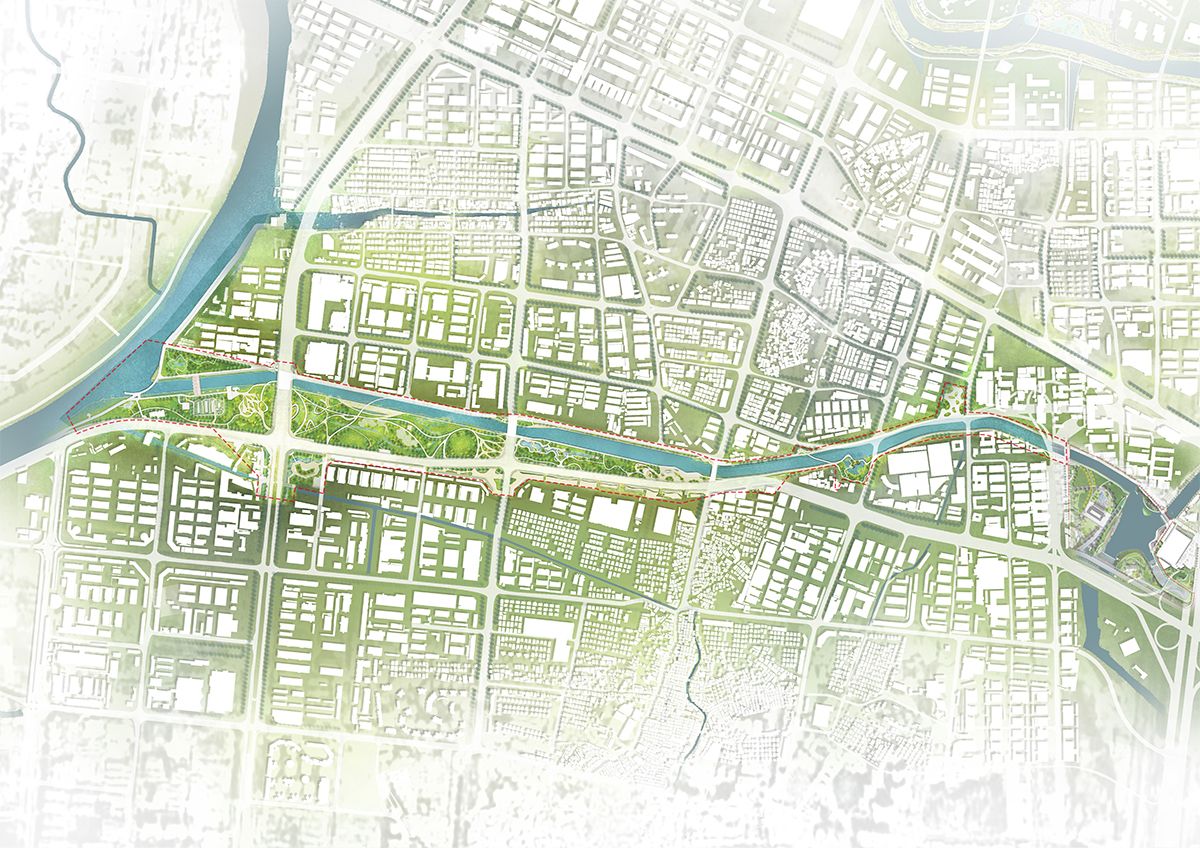

排涝河碧道总平面 Master plan ©VenhoevenCS


河道断面 River section ©VenhoevenCS

项目信息
项目名称:深圳宝安排涝河碧道总体规划
项目位置:中国,深圳
项目类型:总体规划
项目业主:深圳宝安区水务局
规划设计与建筑:VenhoevenCS 建筑与城市规划事务所
景观设计:深圳翰博设计股份有限公司
水体设计:中国电建集团华东勘测设计研究院有限公司
项目状态:中标项目,开始总规设计
设计-完成:2021-2023
项目面积:736.000 ㎡
项目图片:深圳翰博设计股份有限公司

Info
Name: Pailao River Blueway Project
Location: Shenzhen, CN
Assignment: Masterplan
Client: Shenzhen Bao’an District Water Bureau
Urban design and architecture: VenhoevenCS architecture+urbanism
Landscape design: Shenzhen Hope Design Co.,Ltd.
Water design: HUADONG Engineering Corporation Limited (HDEC)
Status: Tender won; start design masterplan
Design-completion: 2021-2023
Surface: 736.000 ㎡
Images: Shenzhen Hope Design Co.,Ltd.
