BAU建筑城市设计 | 上海青浦演艺中心BAU建筑城市设计 | 上海青浦演艺中心

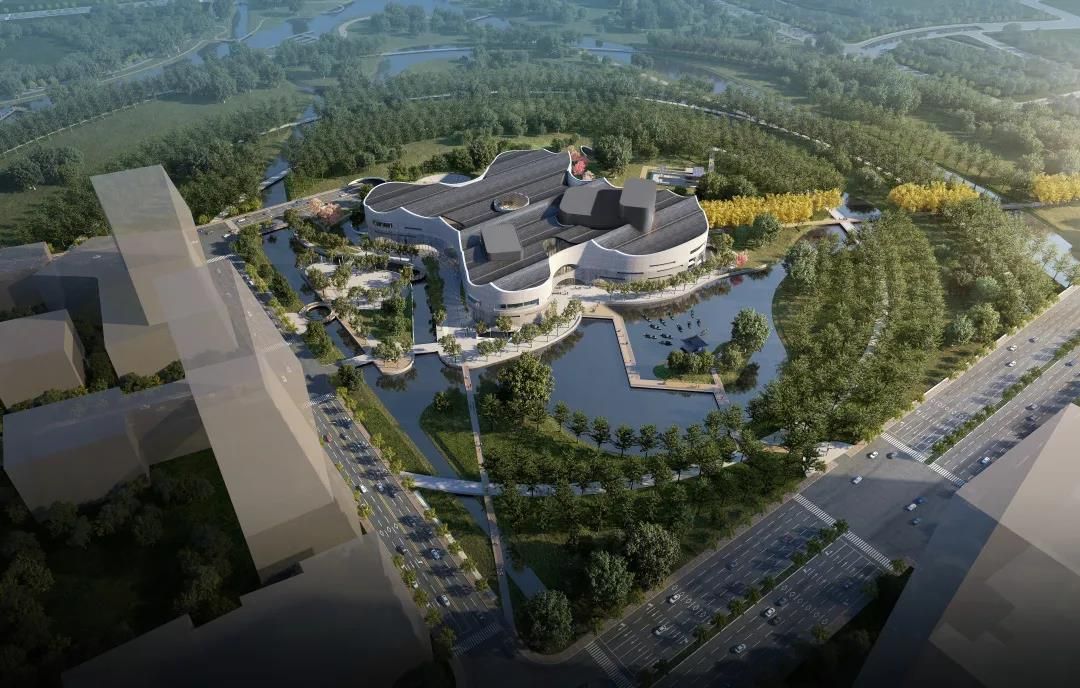

上海青浦演艺中心东南角鸟瞰 Southeast brid view of Qingpu Theater

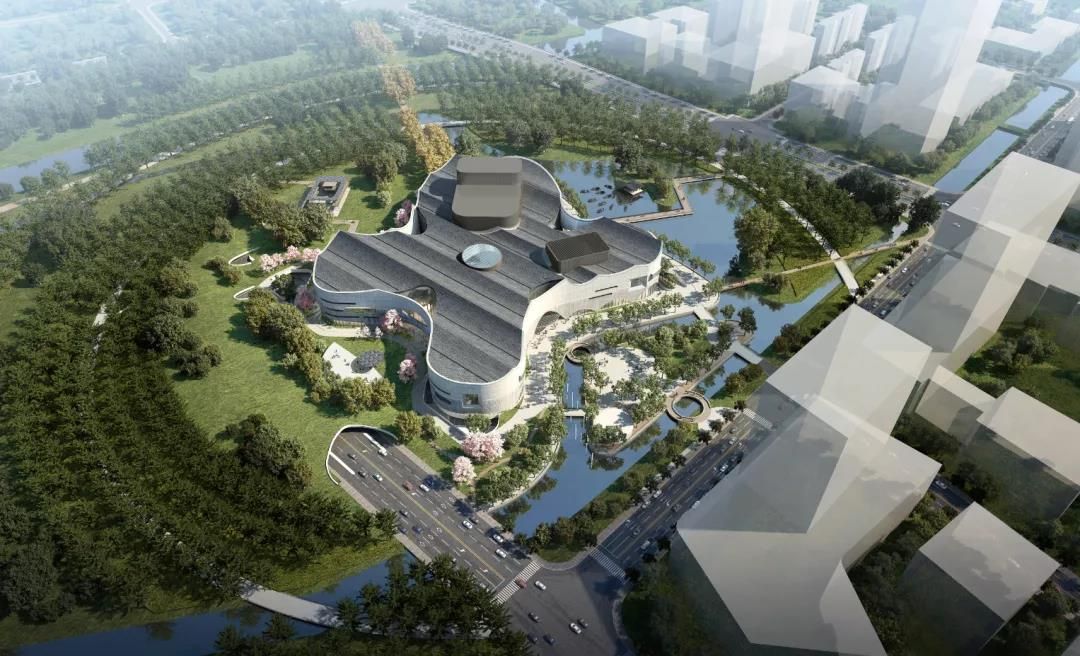

西南角鸟瞰 Southwest bird view

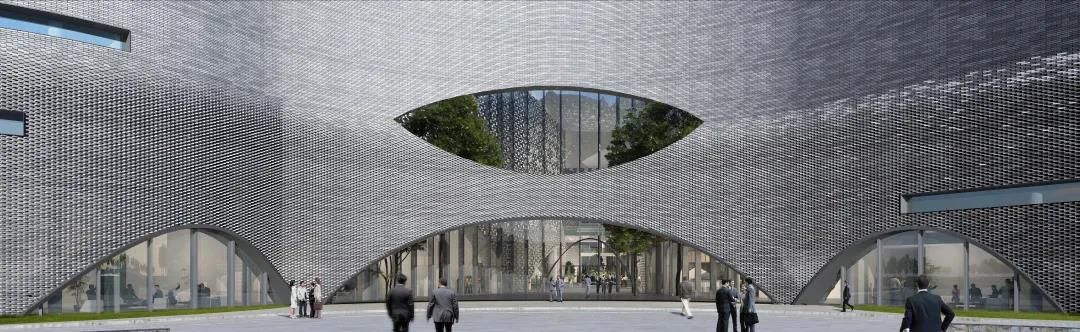

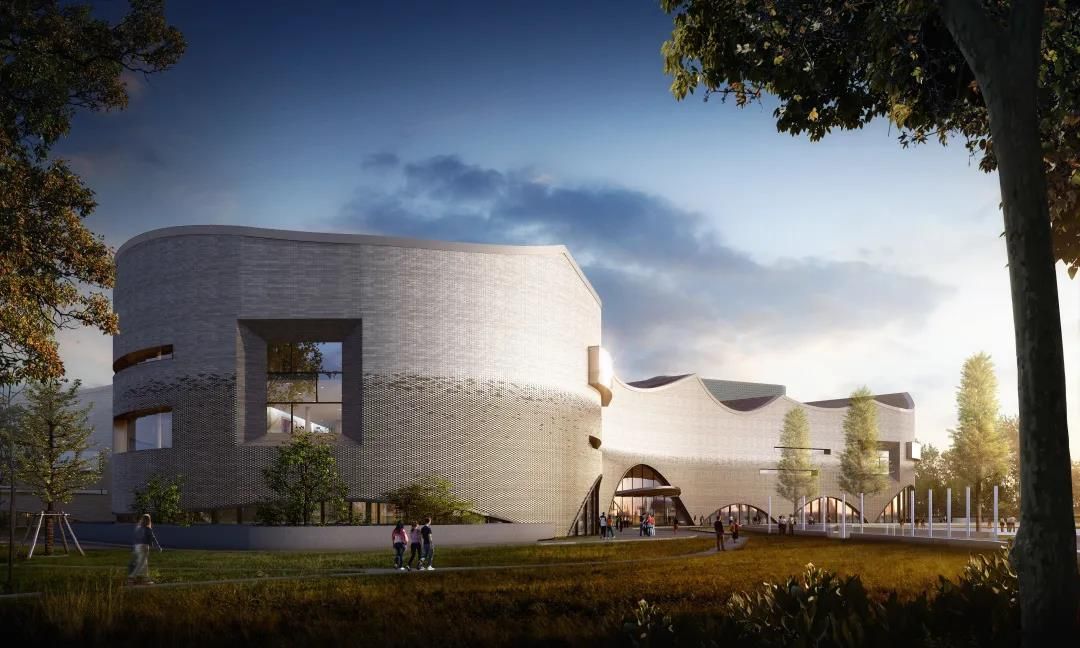

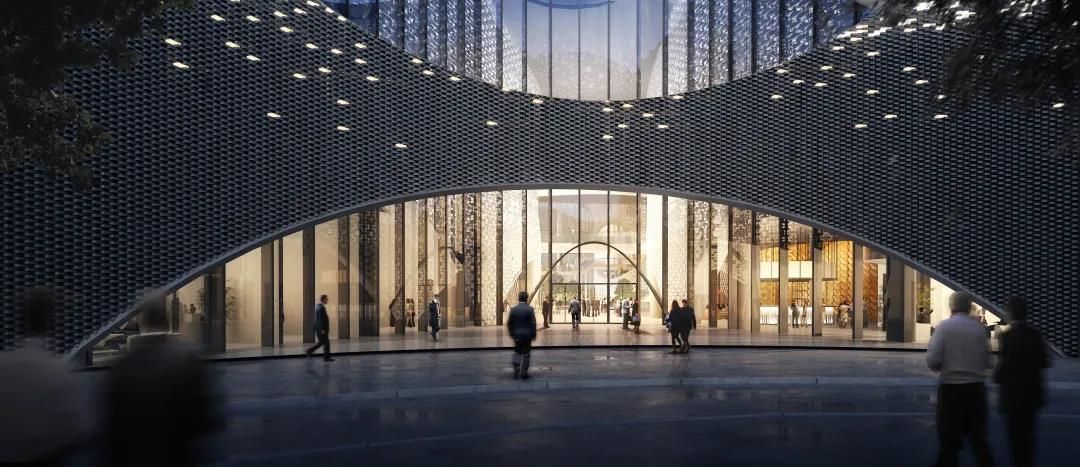

主入口 Main entry

青浦大剧院由BAU建筑城市设计与Carr卡尔建筑与室内设计、Marshall Day 马歇尔剧场灯光专项设计共同完成。

The Qingpu Performing Arts Centre is designed by BAU Brearley Architects+Urbanists in collaboration with Carr Architecture and Interior Design and Marshall Day Accounstics.

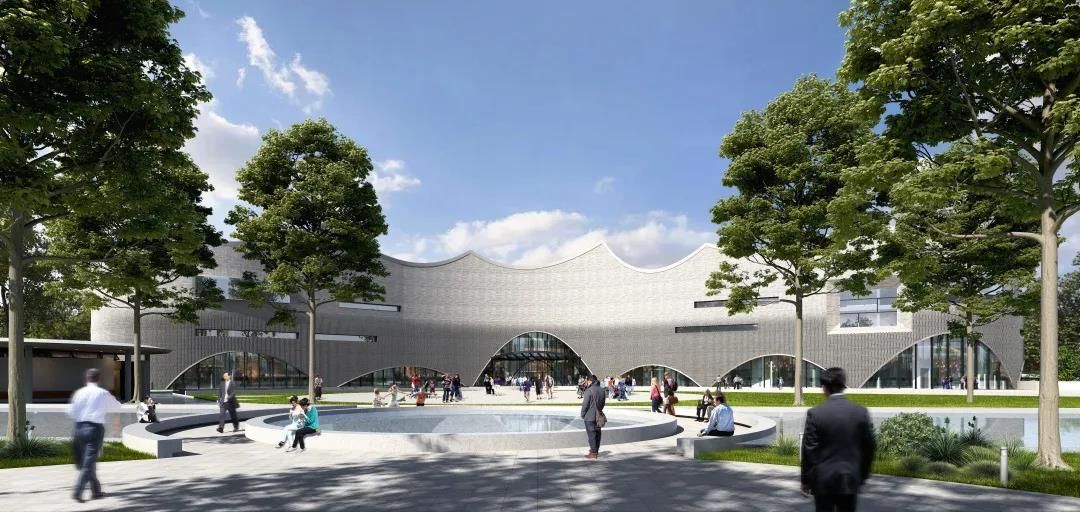

主入口街景 Main entry street view

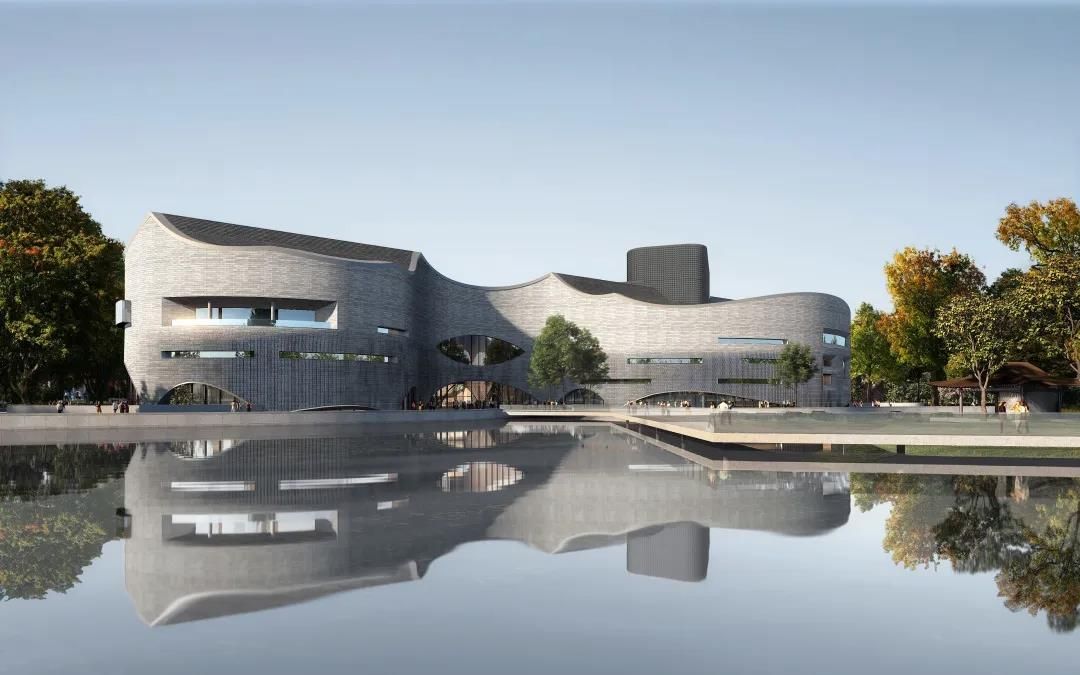

东侧湖畔与水上戏台 Lakeside entrance and Water stage

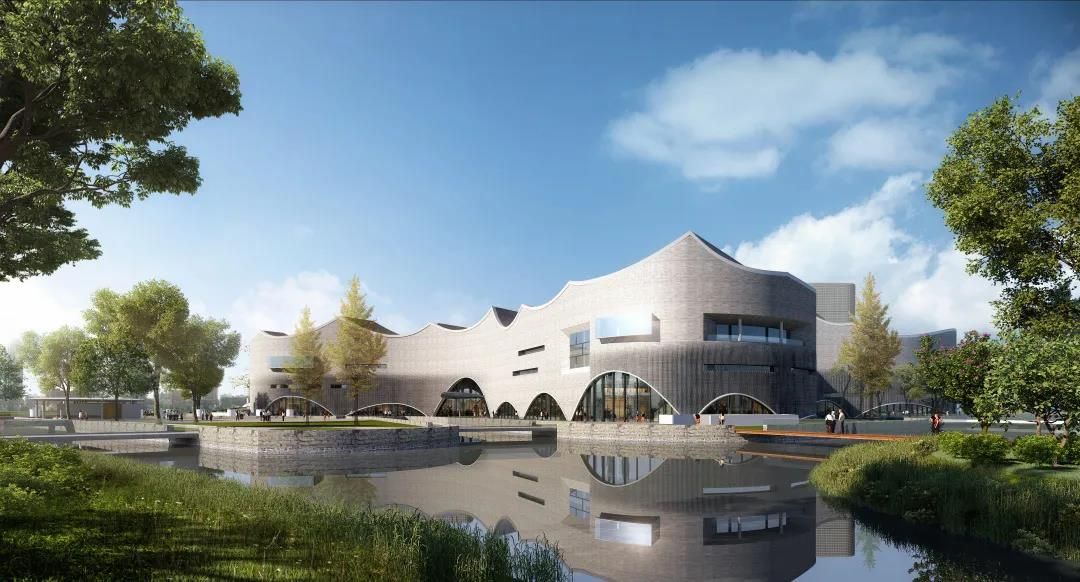

东侧湖畔入口 Lakeside entrance

本项目位于依水而建的青浦区，与该地区悠久而丰富的文化遗产有密切的联系。青浦区位于上海西部，从水乡、古城、传统的砖瓦建筑和扇形屋顶开始，是围绕着水慢慢演变发展的。青浦演艺中心的建筑造型巧妙地借鉴了这些传统元素。青浦当地的手工艺品和玉璧、金器、陶土、漆器等传统技艺也在四个演出厅的室内设计中得到了呼应。

The Qingpu Performing Arts Centre is profoundly connected to the long and rich cultural heritage of the area. Qingpu’s settlements evolved around water, starting with water towns, the ancient walled city, traditional brick construction, and the scalloped roof form. The architecture of the Qingpu Performing Art Centre derives its silhouette, iconography, and materiality by subtly referencing these elements. Qingpu’s local artefacts and traditional expertise in jade, gold, clay and lacquer, are echoed in the interior design of the four performance spaces.

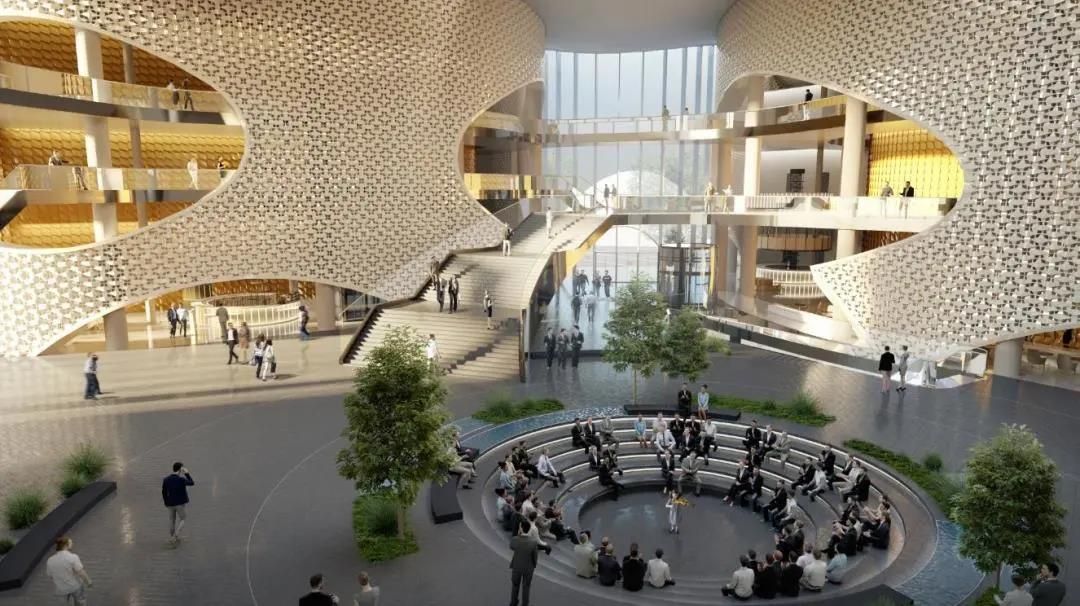

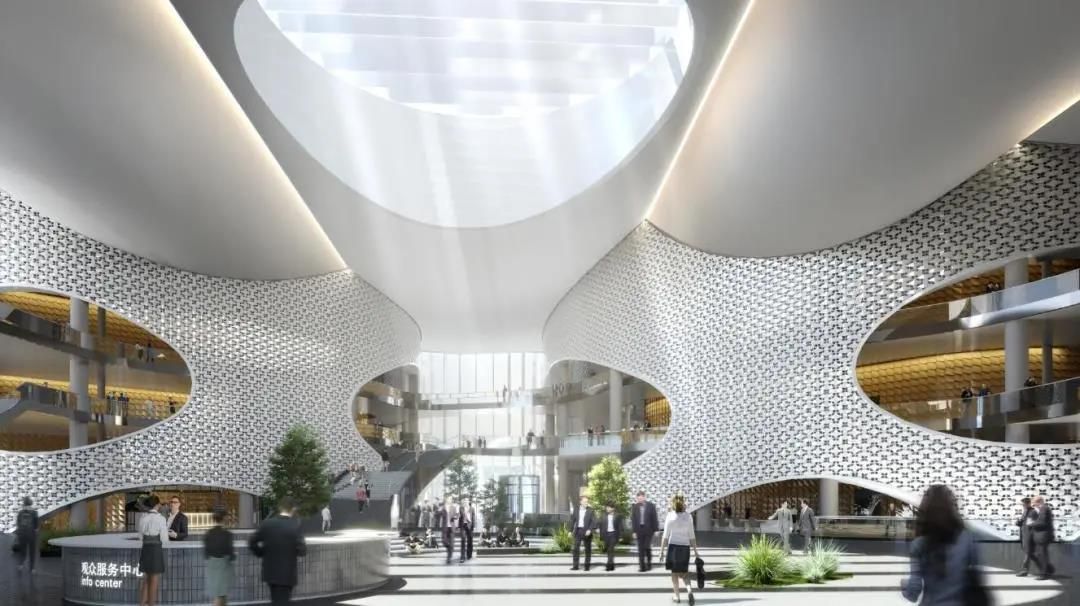

中央大厅 Concourse

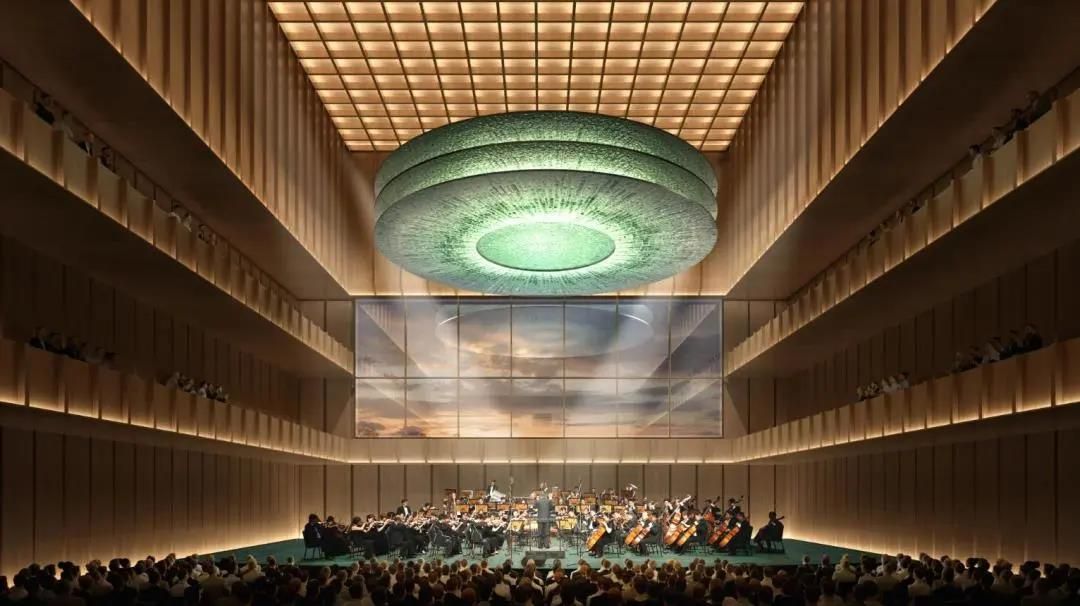

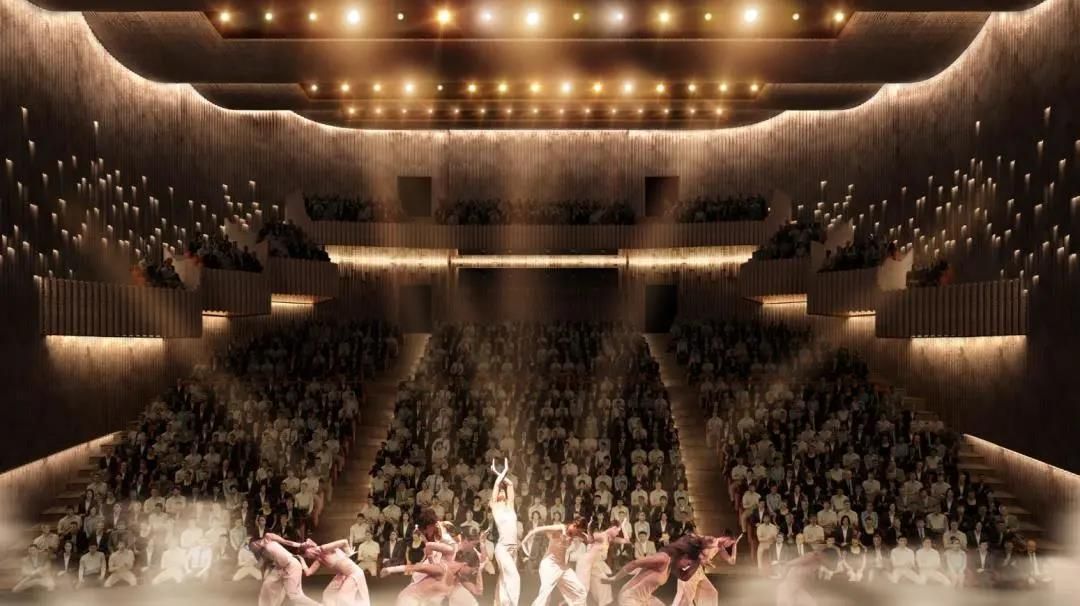

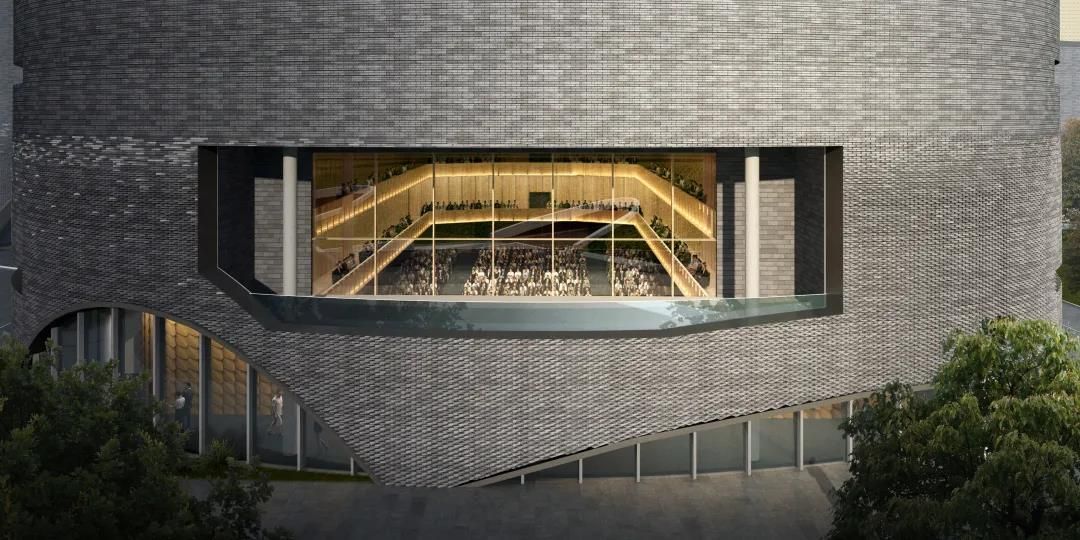

音乐厅 Concert hall

音乐厅 - 夕阳时分 Concert hall - Sunset view

水，一直存在于青浦，环绕着这座建筑，映射出这座建筑引人注目的轮廓。建筑的公共空间与公园相互渗透，得力于所有的后勤卸货都放置于地下。

Water, which is ever present in the Qingpu, surrounds the building, reflecting the building’s striking silhouette. The public spaces of the building seamlessly connect to the parks - made possible only because all loading and vehicle circulation is located underground.

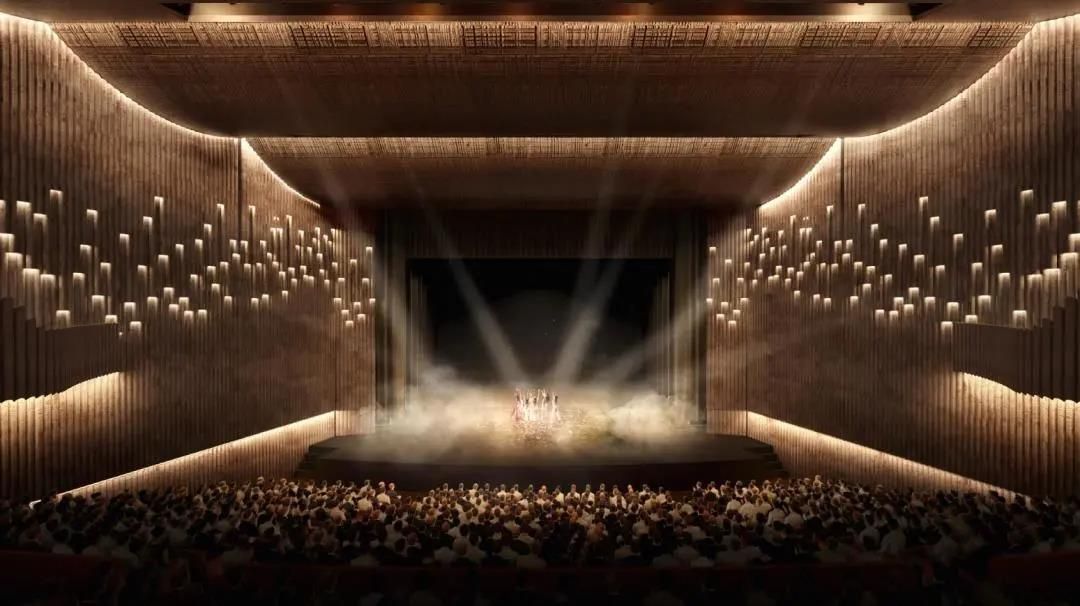

大剧院 - 表演模式 Grand theather - Performing

青浦演艺中心深深植根于当地的历史文化之中，与公园无缝衔接，是一座标志性的公共建筑，它以尊重和独特的现代设计手法理解、重新诠释当地的文化。

Deeply rooted in the local history and culture and seamlessly connected to the park, the Qingpu Performing Art Centre is an iconographic landmark - a public building which firstly understands, then interprets and represents, local culture in ways that are both respectful and uniquely contemporary.

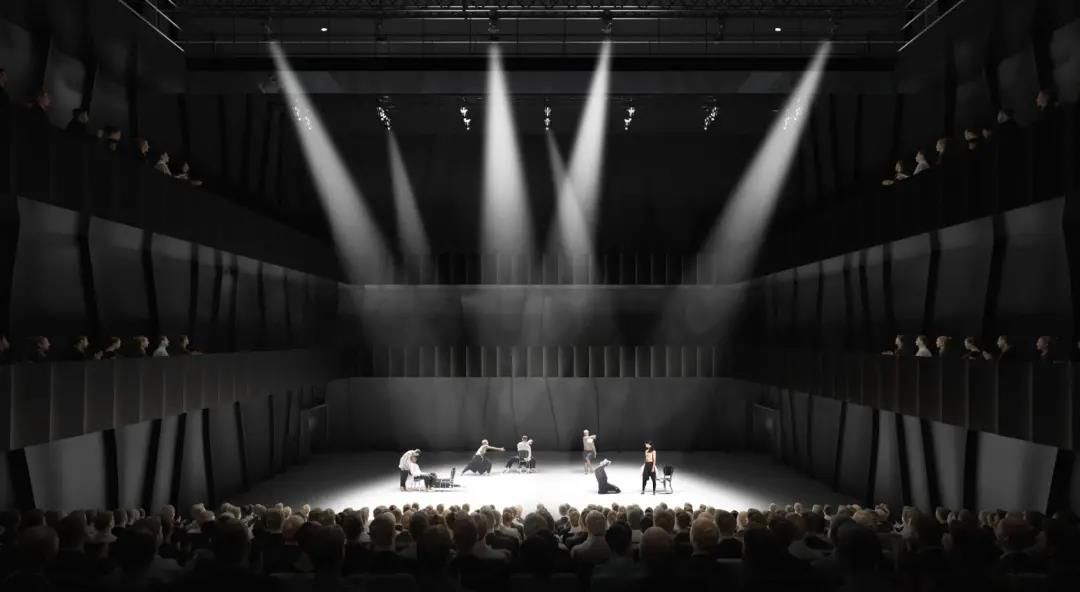

黑匣子剧场 Black Box Theater

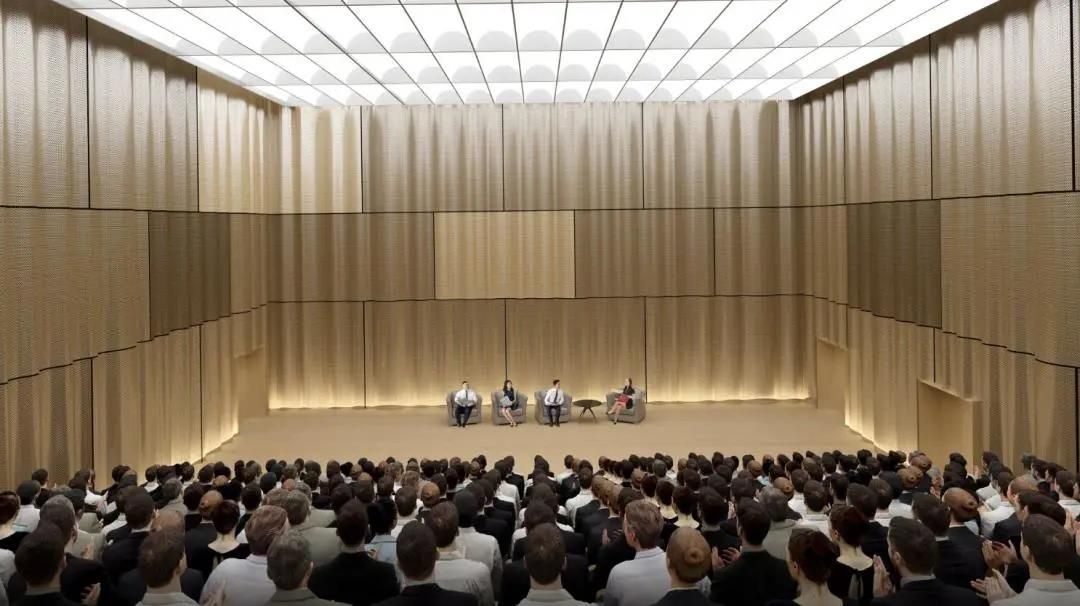

报告厅 Lecture Hall

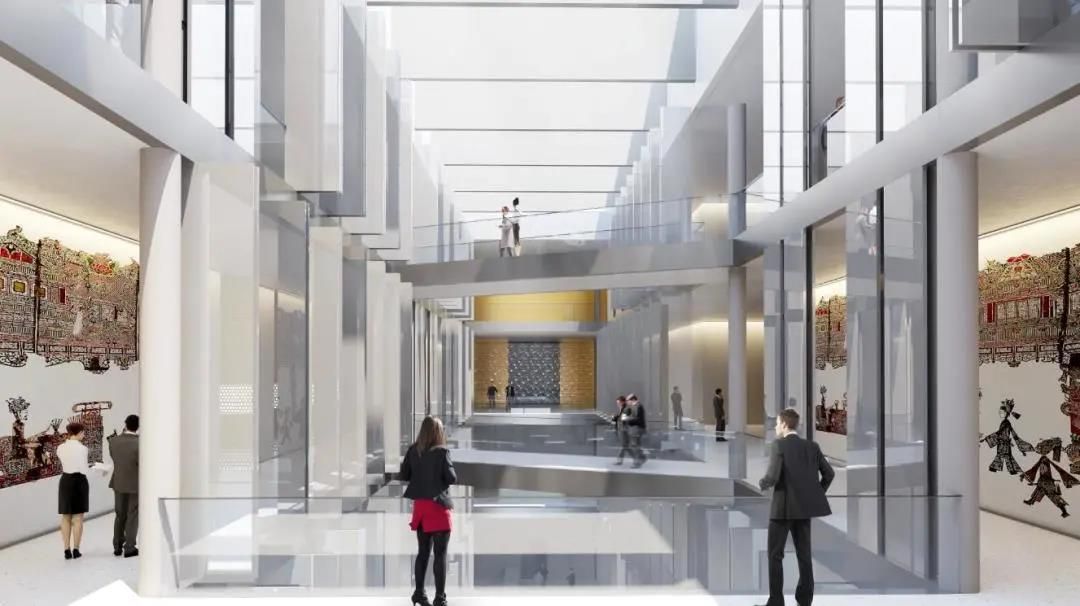

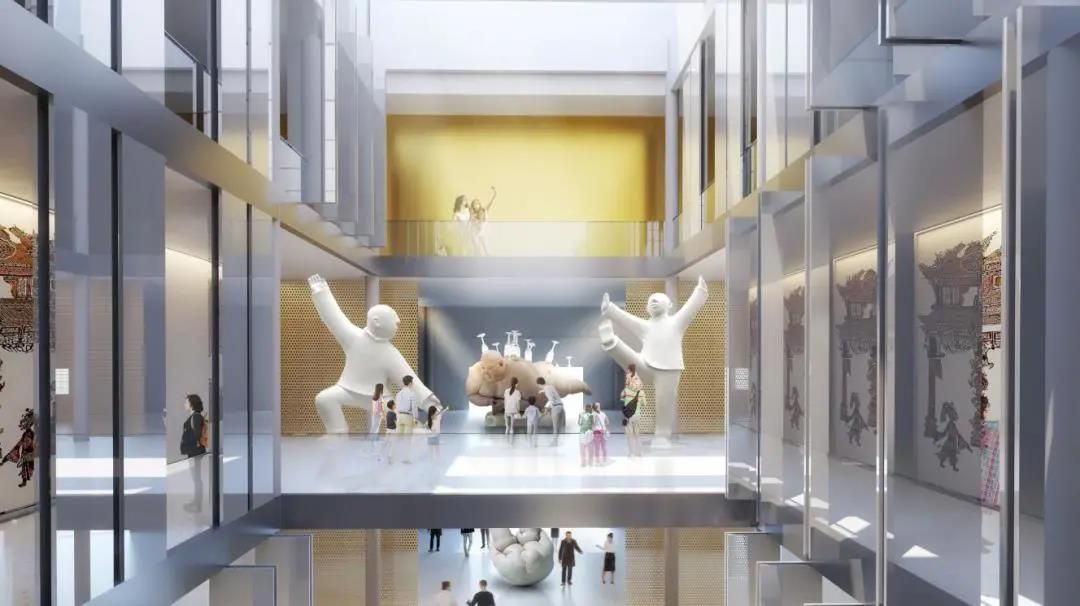

展厅与文化体验中心 Exhibition and Culture experience centre

项目图纸
Drawings

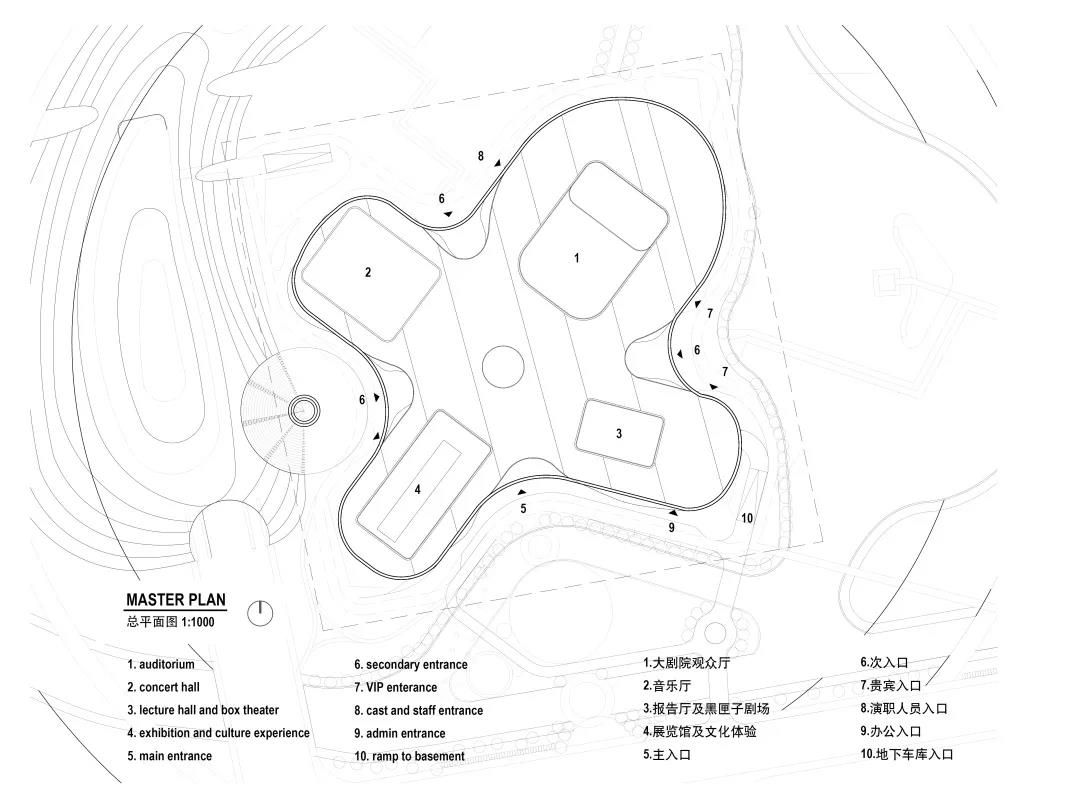

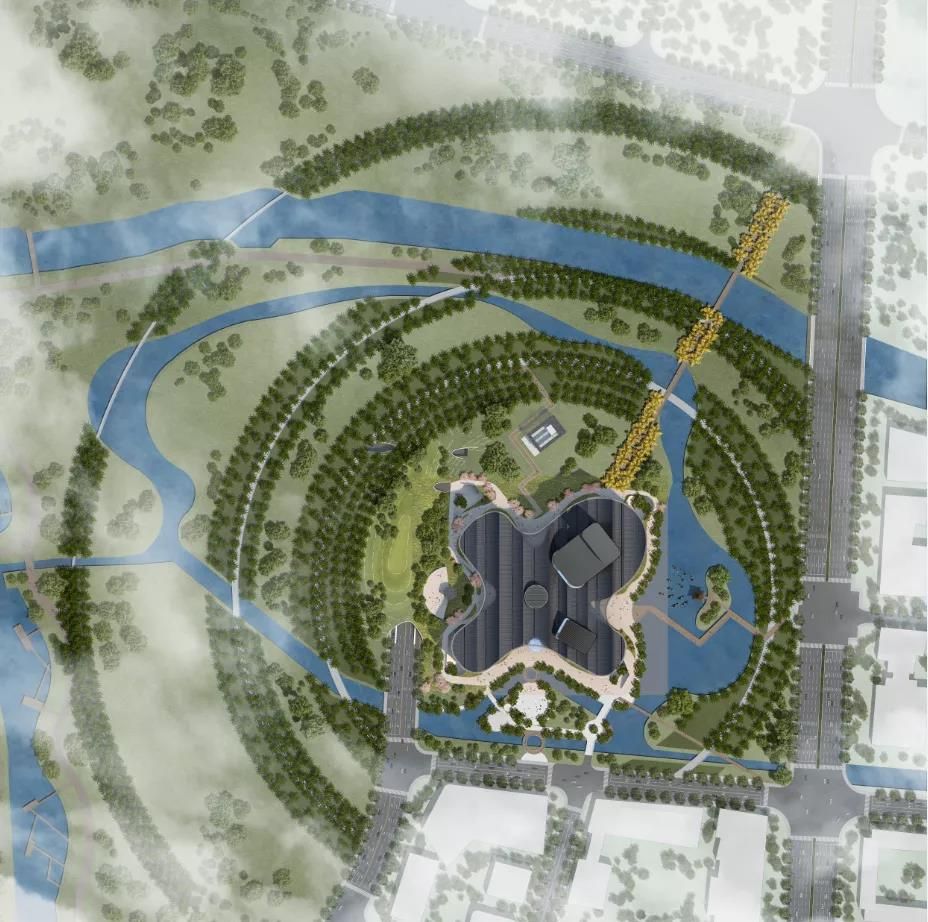

总平面图 Masterplan

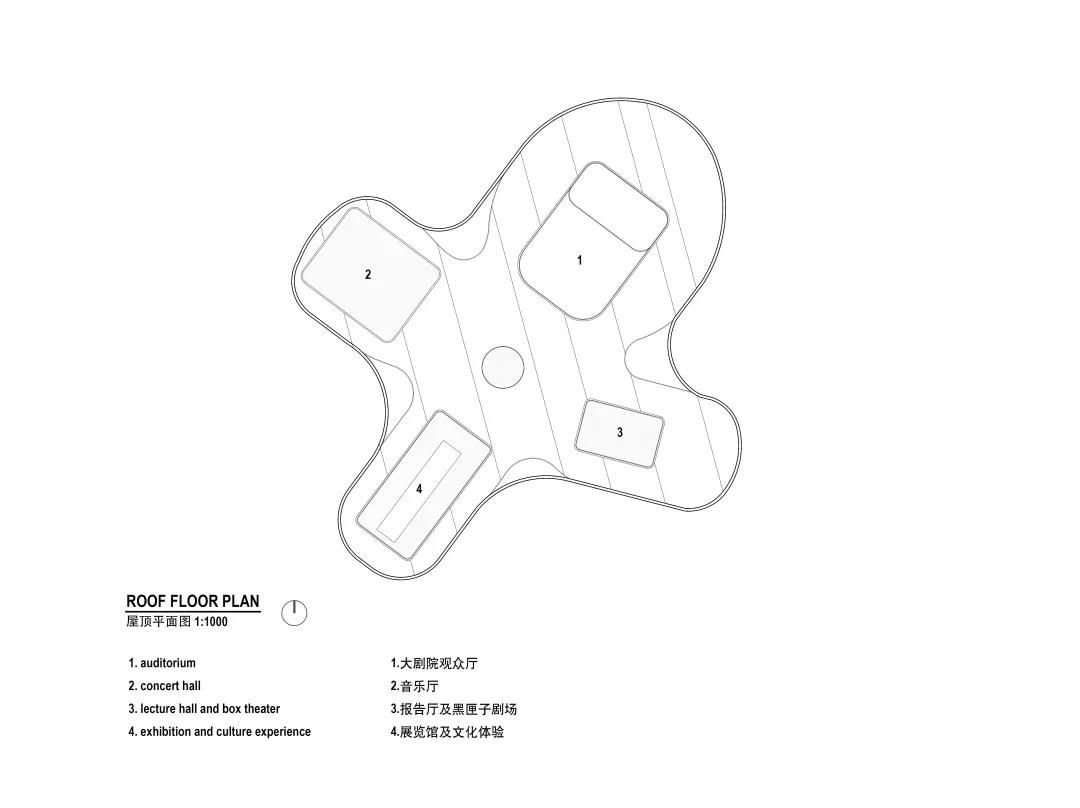

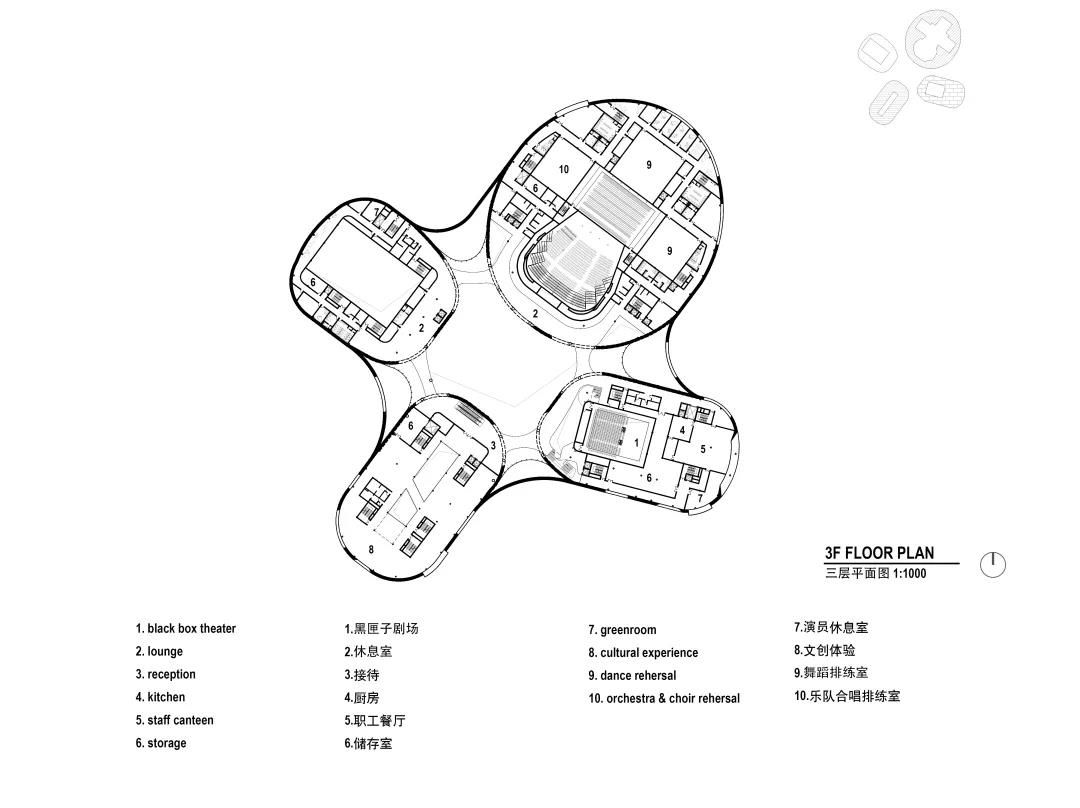

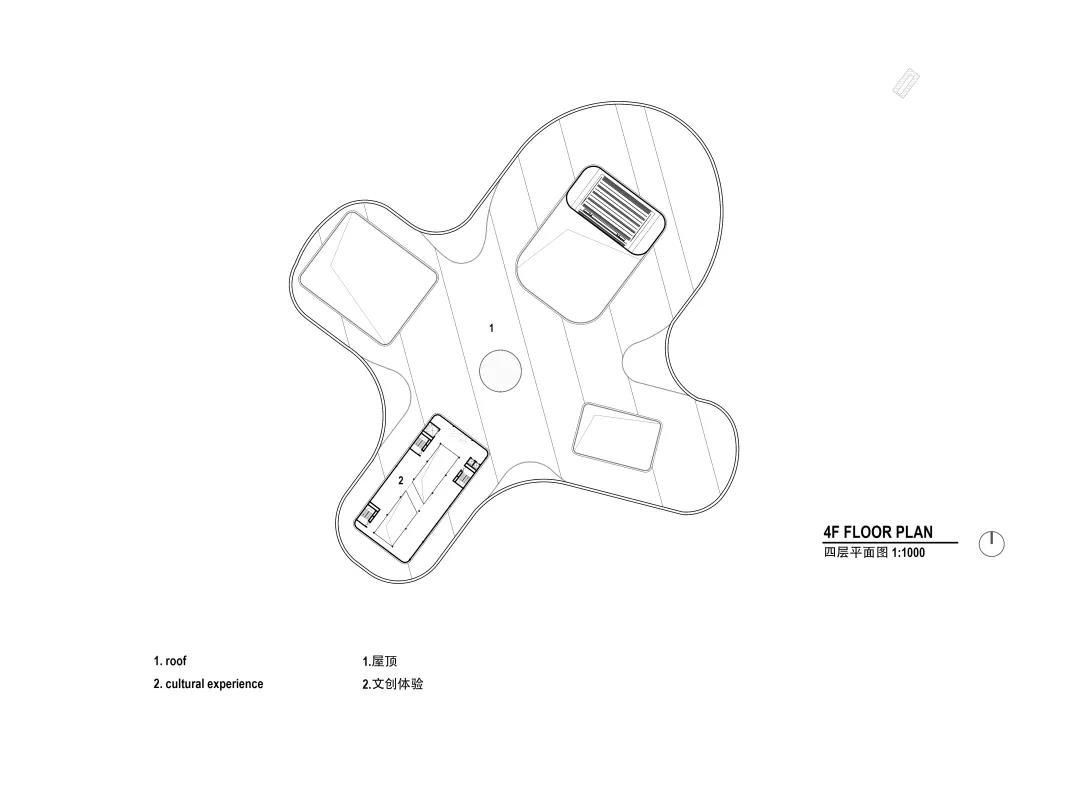

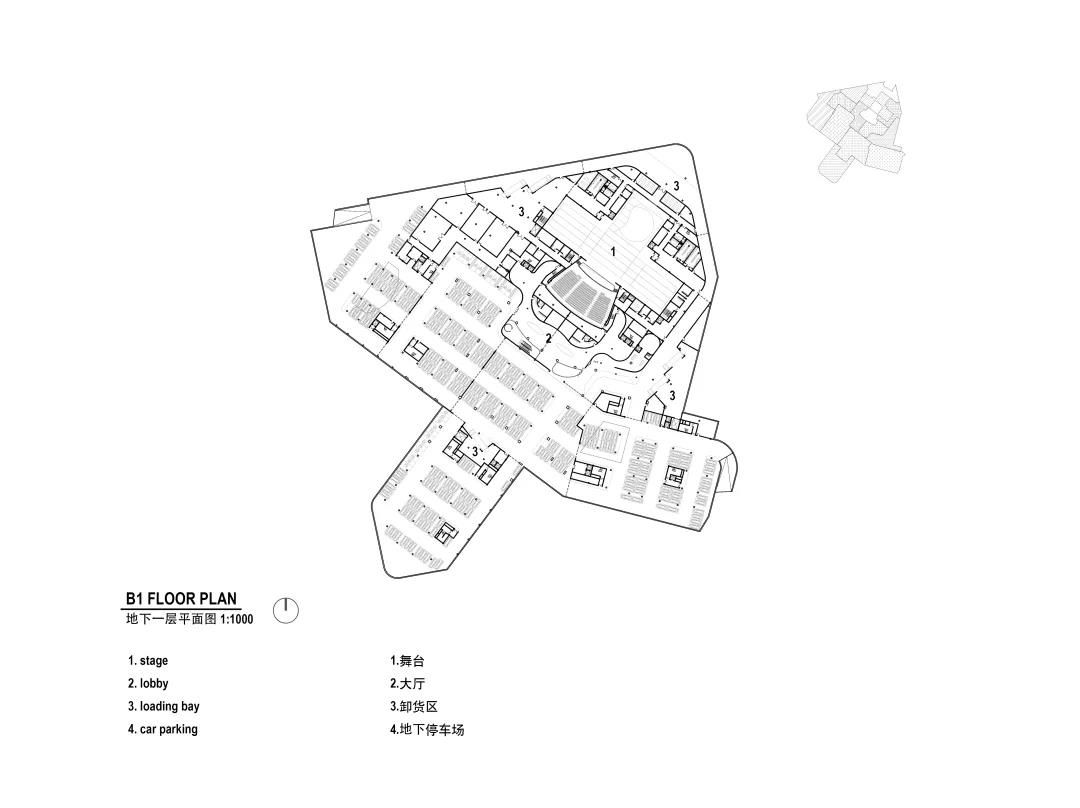

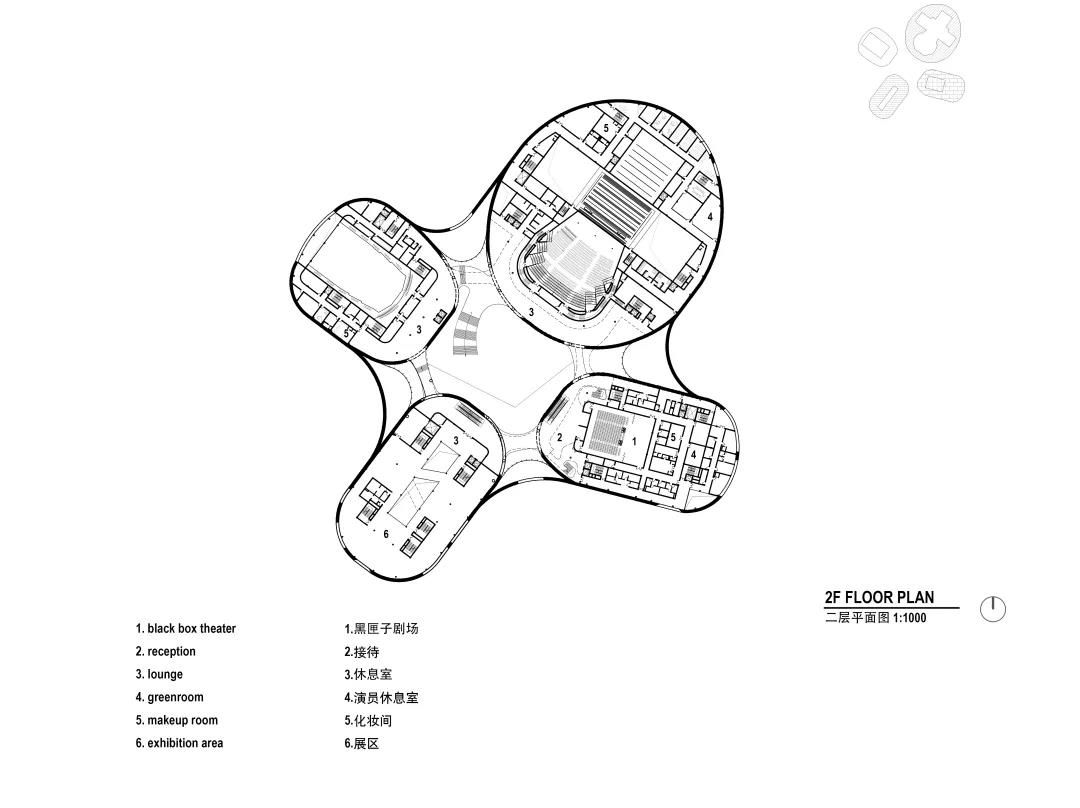

平面图 Plans

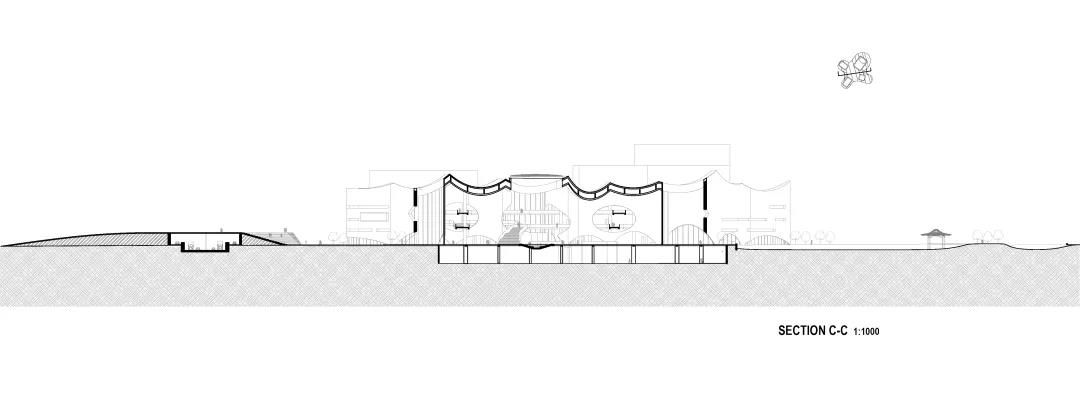

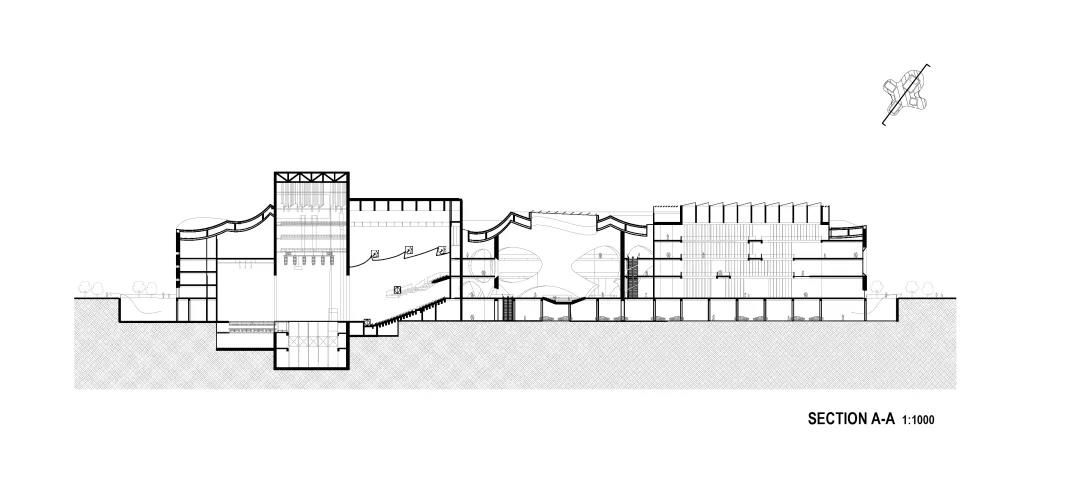

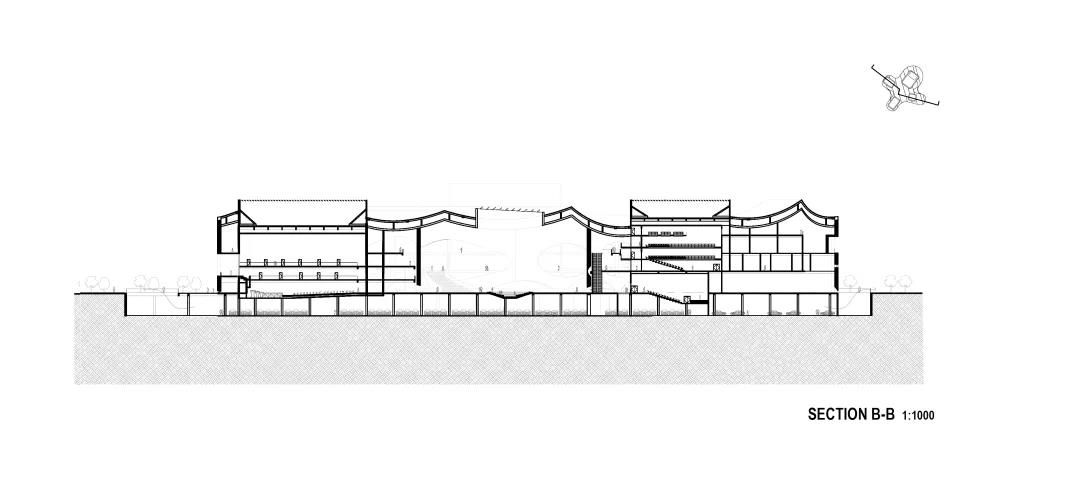

剖面图 Sections

项目信息
Project Data

项目情况：国际竞赛
Project Status: international competition
地点: 中国，上海，青浦
Location: Qingpu, Shanghai, China
年份: 2020
Year: 2020
客户: 上海淀山湖新城发展有限公司
Client: Shanghai Lake Dianshan Newtown Development Co., Ltd.
建筑面积: 76019平方米
Construction Area: 76019m2
建设投资: 18亿人民币
Construction Cost: RMB 1.8 billion

类型: 文化建筑
Typology: Culture
功能项目: 1200座大剧场、800座音乐厅、500座黑匣子剧场、300座报告厅、展览
Program: 1200-seat Grand Theater, 800-seat Concert Hall, 500-seat Black-box Theater, 300-seat Lecture Hall, Exhibition Hall

BAU项目组成员:
BAU Project Team:
建筑设计: James Brearley, Steve Whitford，Jens Eberhardt, María Cala Gonzalez, 李旭丰, 胡丽瑶，丁雪杨，陈志勇，Nat Pornvarojanabun
Architecture: James Brearley, Steve Whitford, Jens, Eberhardt, María Cala Gonzalez, Tammy Li, Liyao Hu, Xueyang Ding, Fonarri Chen, Nat Pornvarojanabun

景观设计: 黄芳，潘琳璐
Landscape Design: Fang Huang, Pan Linlu
室内设计: 卡尔建筑与室内设计
Interior Design: Carr Architecture and Interior Design
声学顾问: 马歇尔剧场声光专项设计
Acoustic Consultant: Marshall Day Acoustics
舞台顾问: Marshall Day Entertech
Stage Consultant: Marshall Day Entertech

3D 渲染: BAU
3D Rendering: BAU
