力场新作 | 常州Meet11花漾餐厅力场新作 | 常州Meet11花漾餐厅

2023-02-02 发布

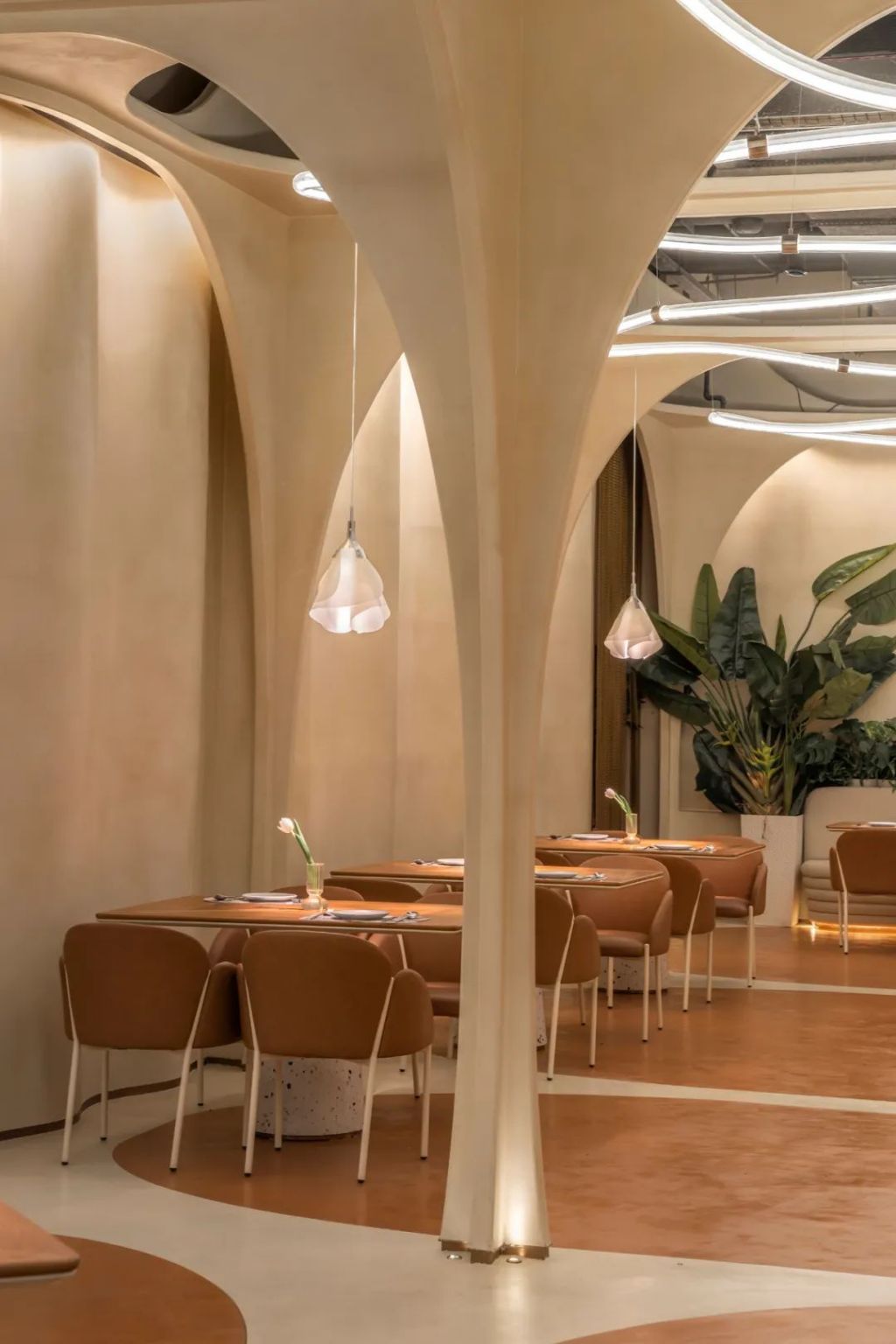

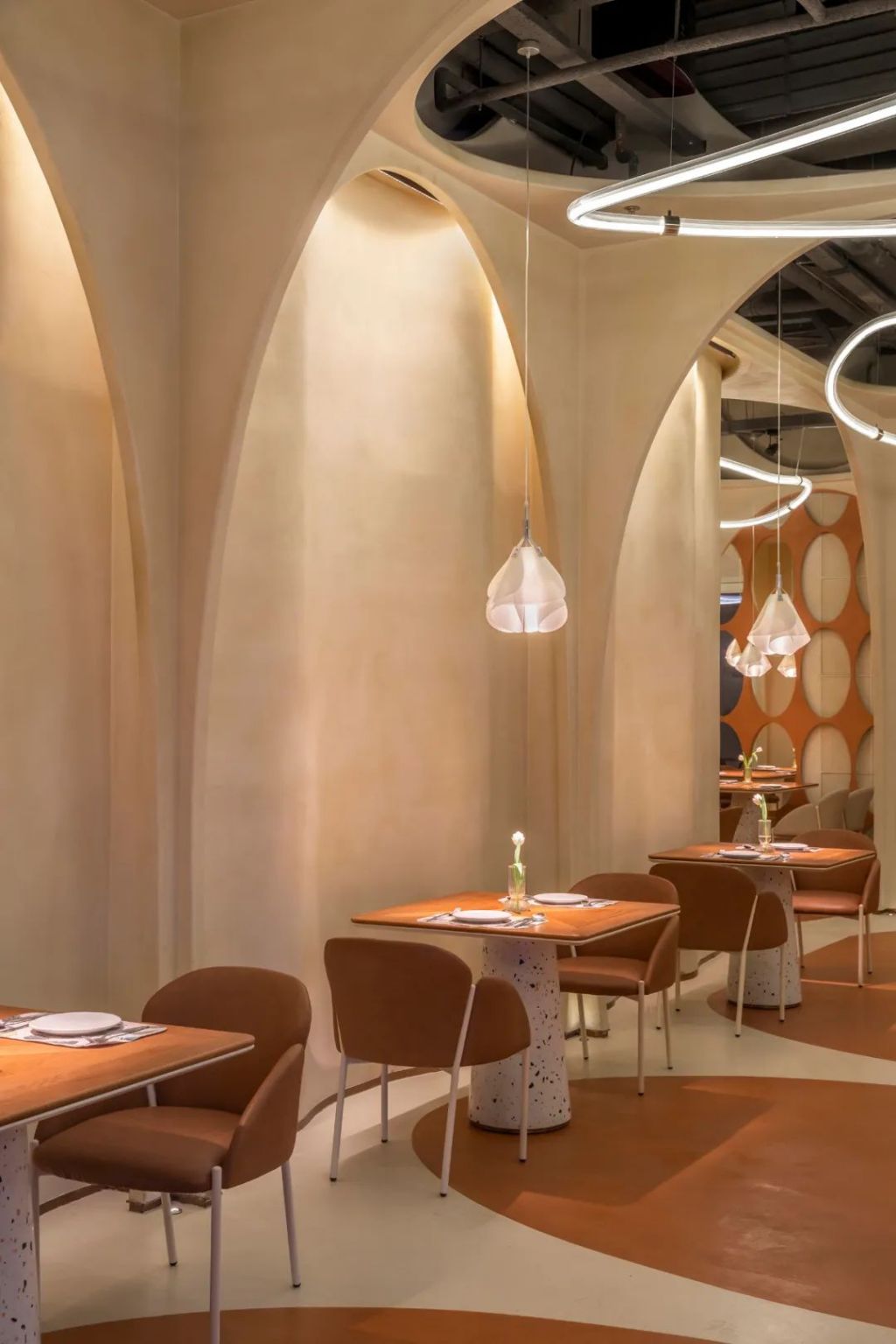

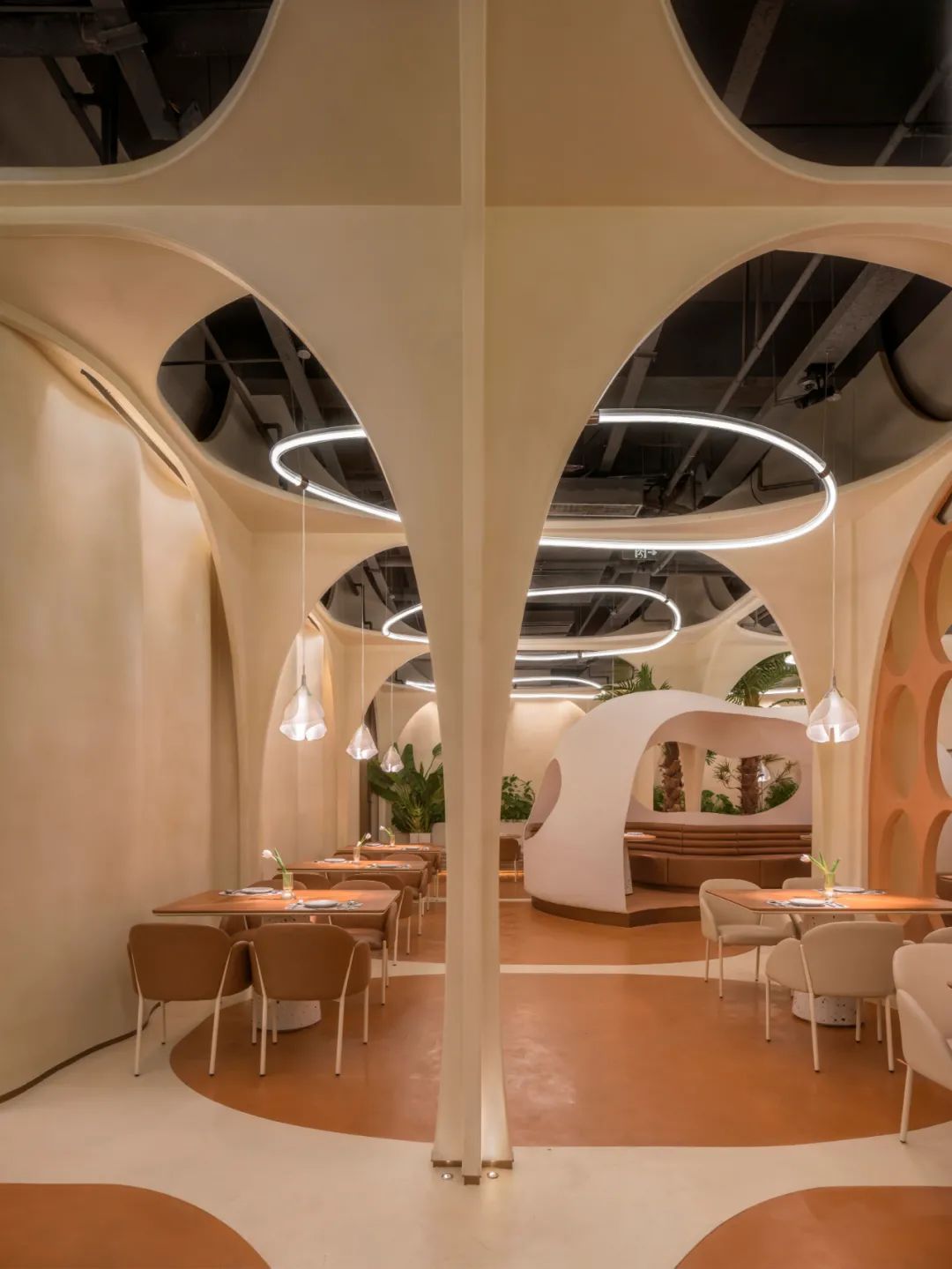

Arabesque结构柱-©金伟琦

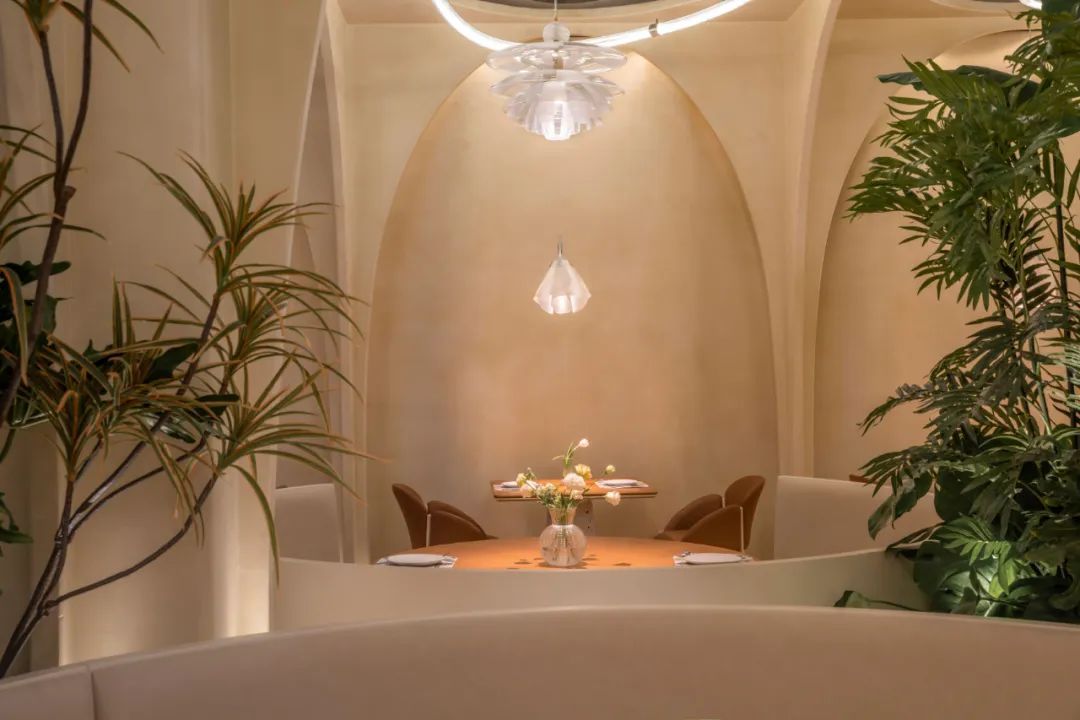

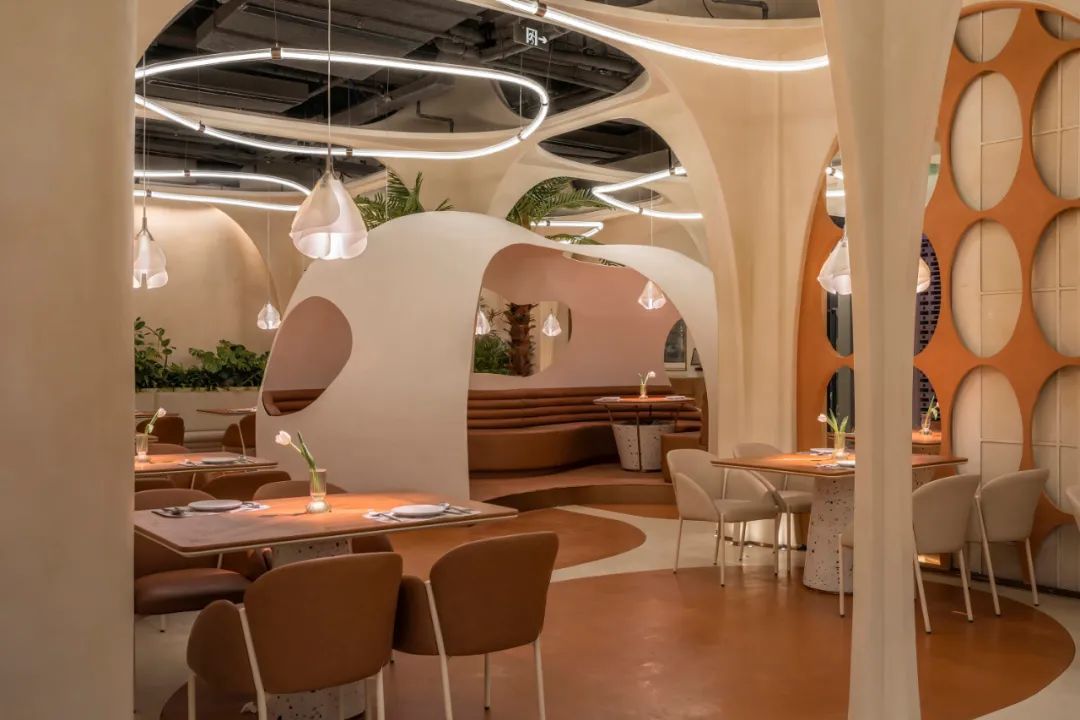

圆形卡座-©金伟琦

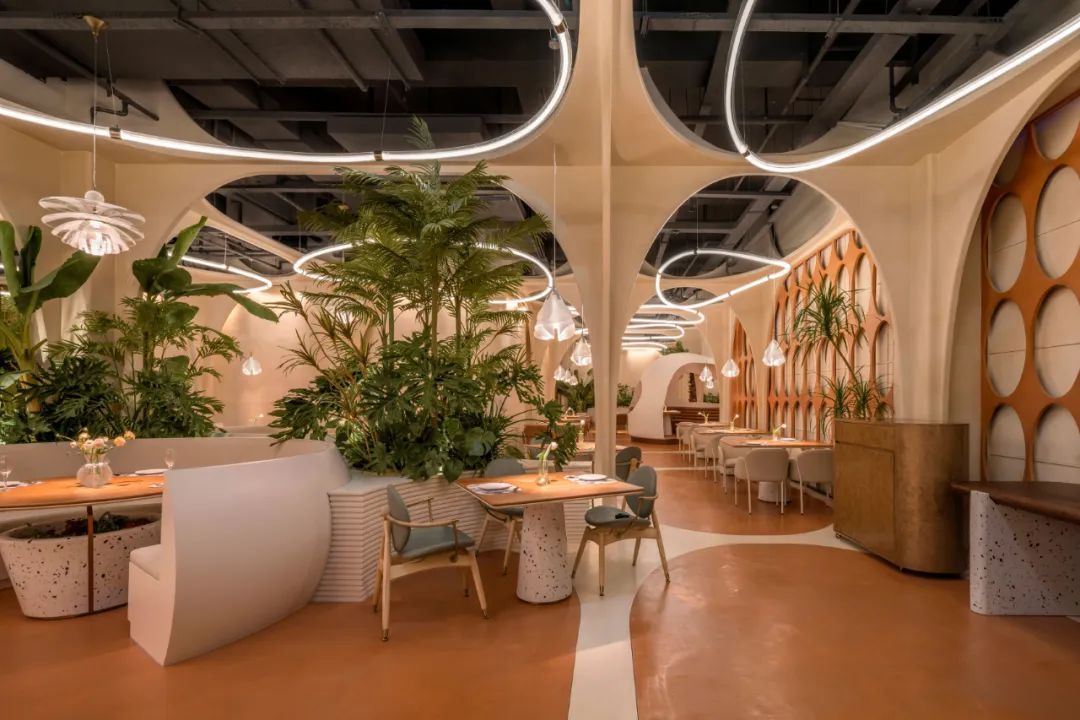

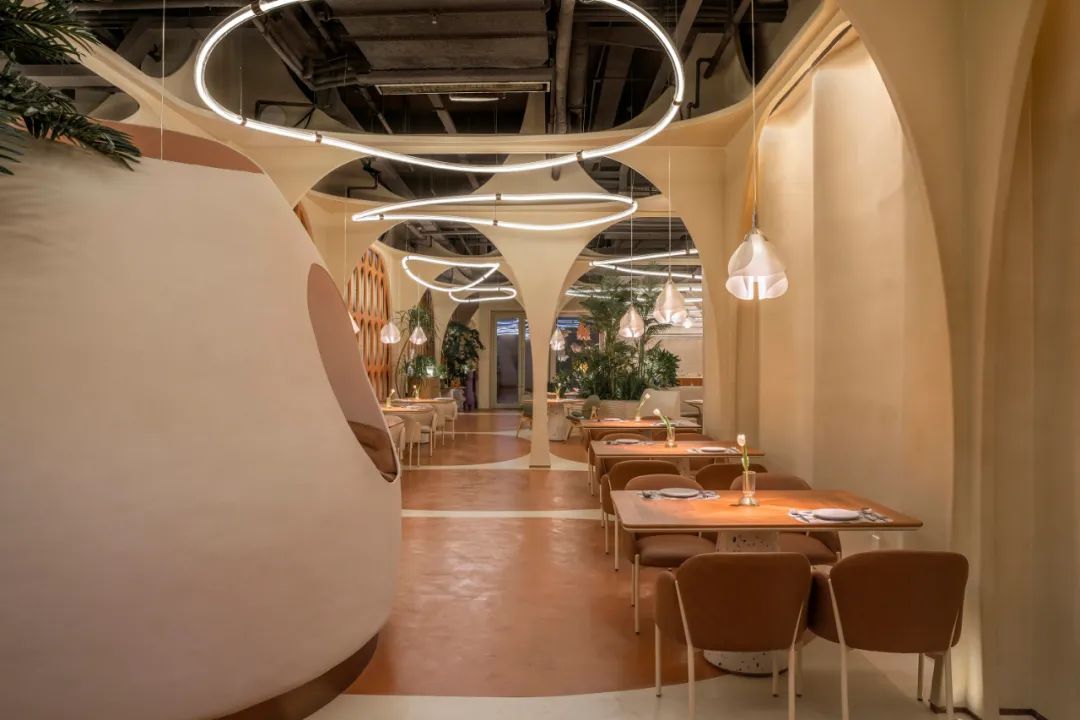

就餐区©金伟琦

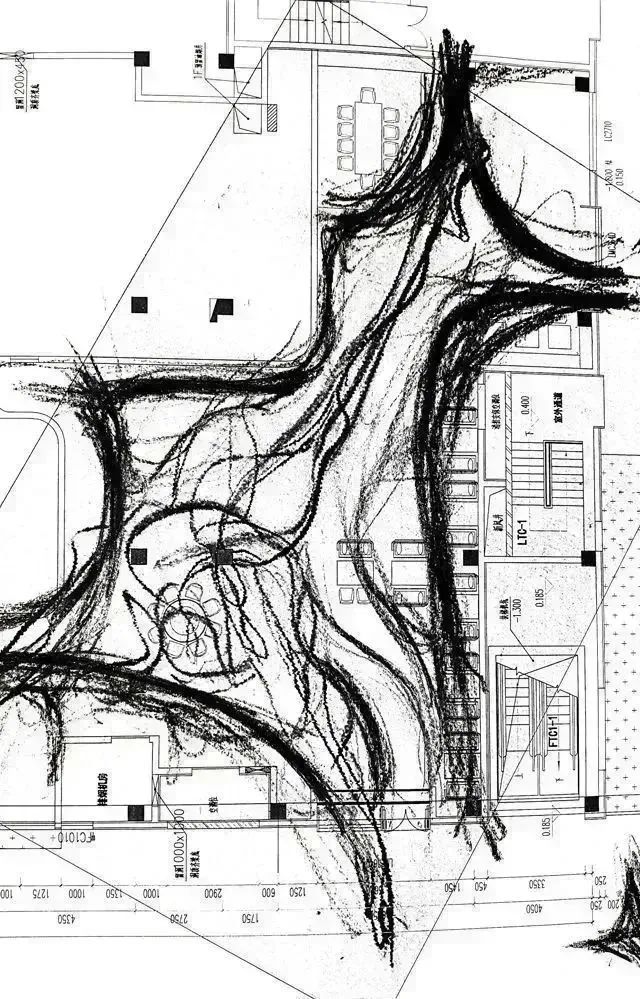

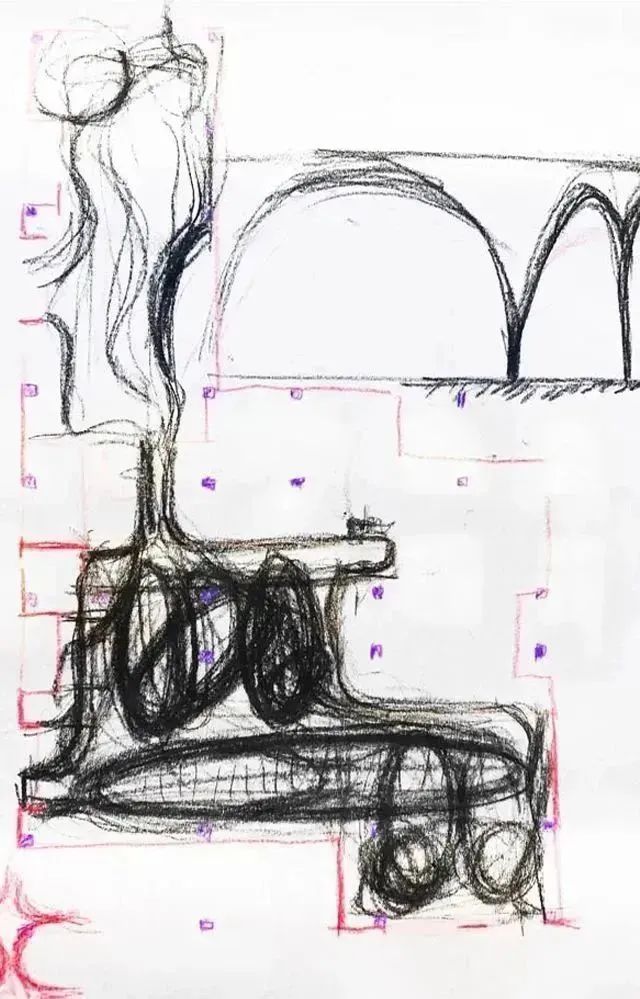

概念手绘图

关于Meet 11
Meet11花漾餐厅位于江苏省常州市青果巷二期,Meet 是遇见,表达时间,11是十一种风味菜品的可能性尝试。

About Meet 11
The Meet11 Huayang Restaurant is located in Phase II of Qingguo Lane, Changzhou City, Jiangsu Province. Meet 11 is a place to eat, meet friends, and pass the time in a refined, contemporary interior.

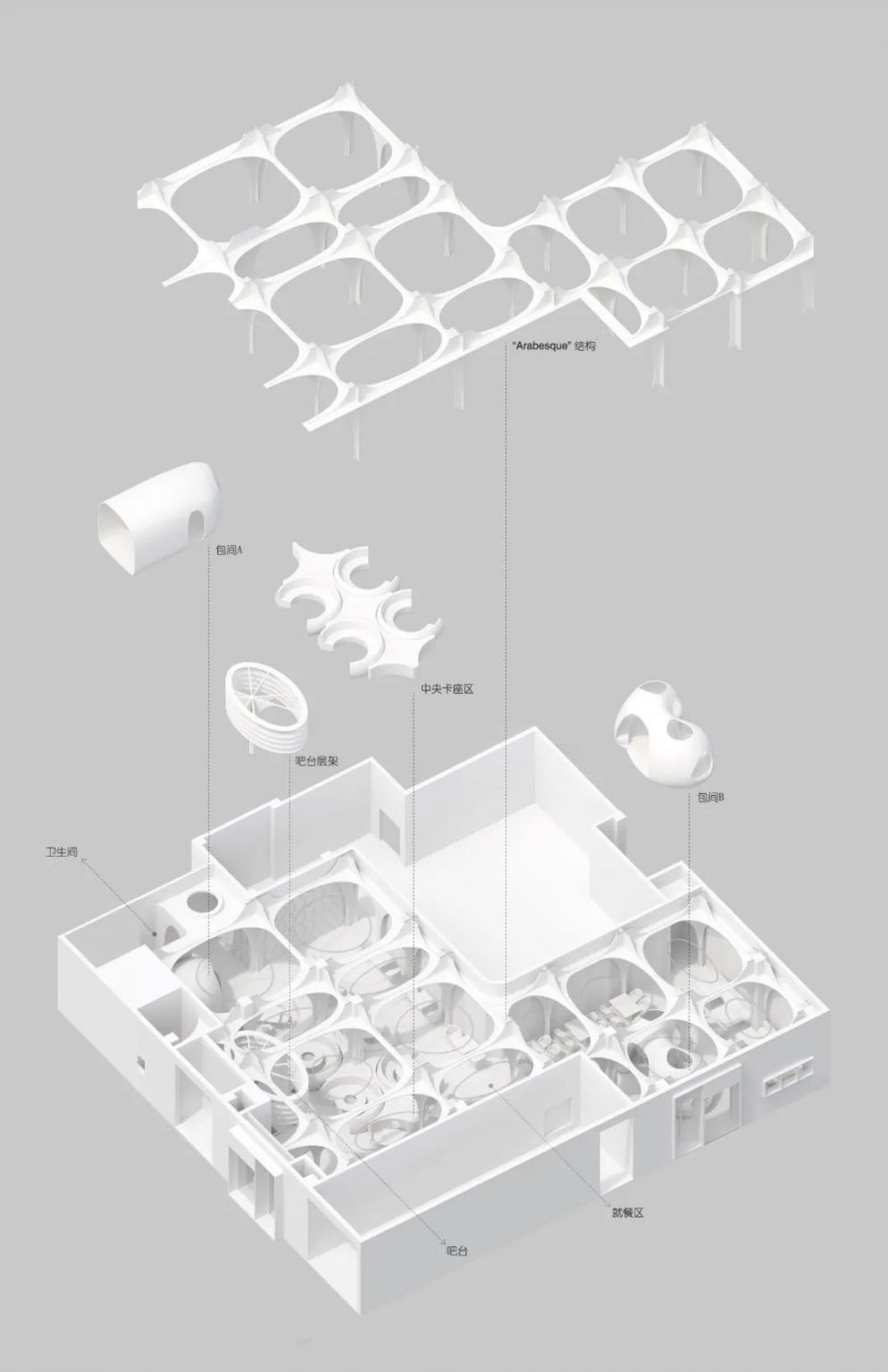

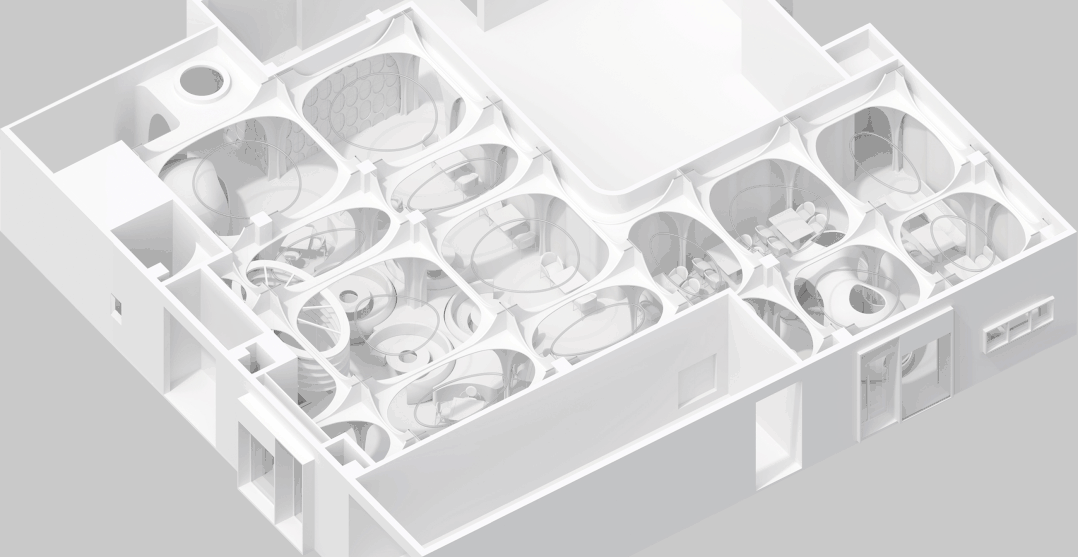

轴侧分析 ©Linkchance Architects

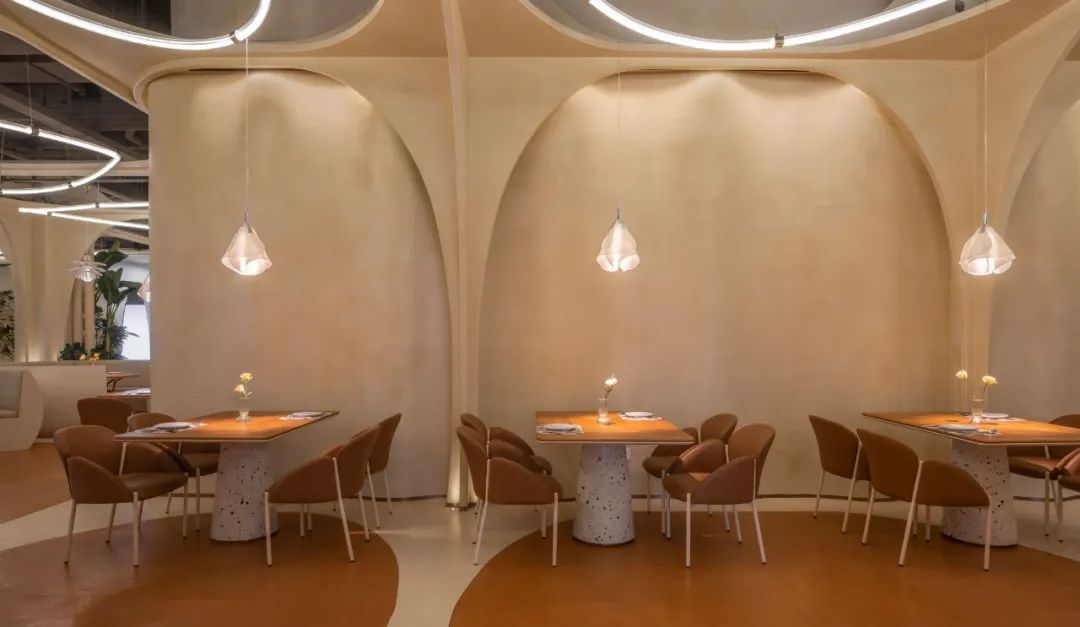

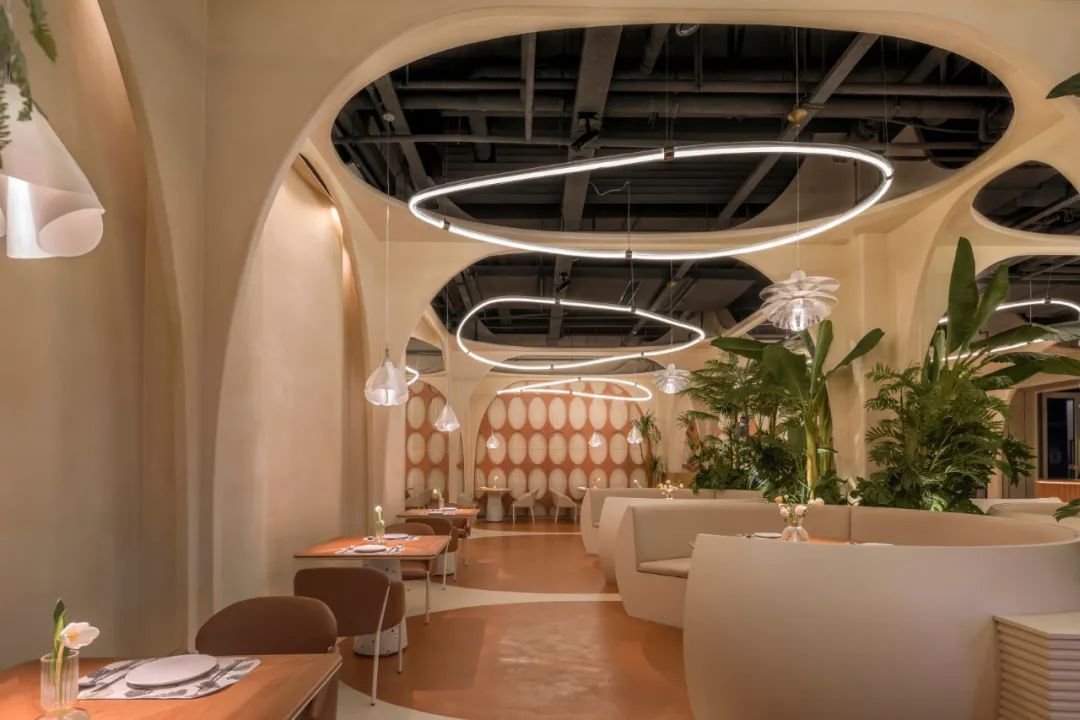

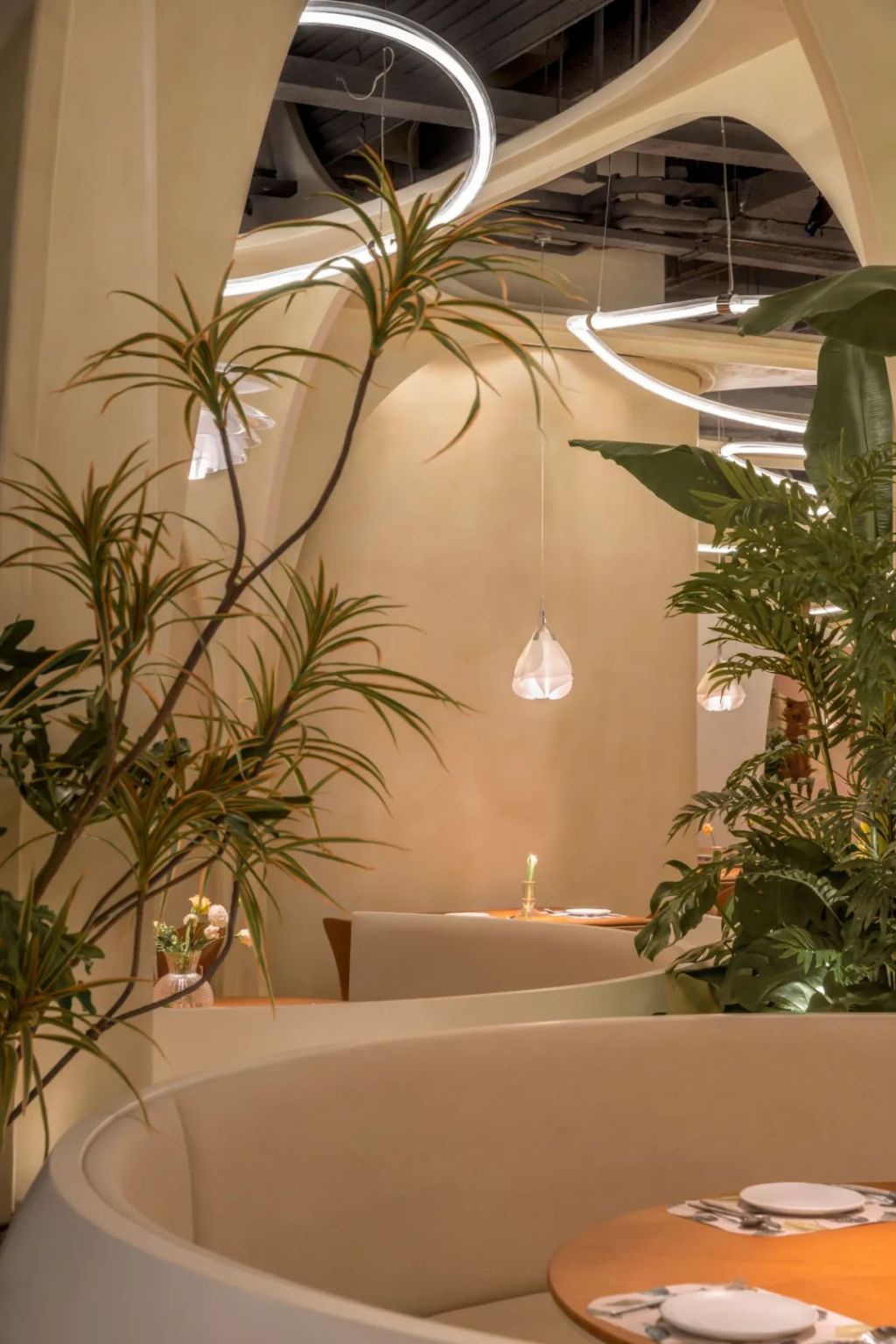

▲中央卡座就餐区©金伟琦

场力
一、对话力:场地西侧仅隔三米是一座两层独栋建筑,室内是用来经营传统常州融合私房菜,主理人是Meet 11餐厅主理人的长辈。一巷两店,一中一西、年青一代与年长一代 、室内空间风格及理念不同,形成一种无形的对话力。

1. An Architectural Dialogue
Only three meters away from the west side of the site is a two-storey detached building, the interior of which is a traditional Changzhou private dining space, and is managed by the elders of the owner of Meet 11 restaurant. The two restaurants, one Chinese and one Western, coexist in one lane, bringing old and young generations – with their contrasting styles and concepts of interior space, an unspoken aesthetic dialogue takes place between them.

Arabesque结构柱-©金伟琦

二,秩序力:场地虽然柱子多,但整体空间方正规整,有潜力被整合、梳理成具有秩序感的结构空间。整体空间概念是由Arabesque演化而来,不管是阿拉伯图案的无限之美、芭蕾舞舞姿的柔美、还是音乐里Arabesque美妙旋律,它们的美都来自”秩序”,是秩序感在不同时间和空间中经过精心编而排形成的特定韵律平衡之美。Meet 11主要针对常州本地年轻、独立的现代女性,柔美的力量、温和、曲线这些语汇与Arabesque美的内核是一致的,我们在此空间设计上努力追寻Arabesque这种秩序与平衡,让人在这样的氛围空间中体验“韵律”之美。

2. Spatial Order
Although the project’s interior has many structural columns, their overall layout is regular and neat, and there is the potential to integrate them into a space with a unique sense of order. The overall design concept of the interior takes its inspiration from traditional Arab culture, whether it is the infinite beauty of Arabesque architectural patterns and decoration, the delicacy of Middle Eastern dance, or the refined melodies of the Arab world’s music. Their timeless aesthetic beauty is derived from a balance between flowing rhythms and a refined sense of order. Meet 11’s intended clientele are young and independent modern women in Changzhou, and the interior’s conceptual cues of subtle strength and gentle curves are consistent with the core principles of Arabesque beauty - imbuing a sense of its order, balance, and beauty to everyone who comes here.

墙体Arabesque结构-©金伟琦

蛋壳小屋轮廓-©金伟琦

挑战
如何化解场地柱子过多的问题,如何解决现场自然光线不足的问题;技术上如何实现实现“蛋壳”小屋 (包间)“轻”的现代性;如何营造出可以凸显Meet11的辨识度的氛围空间。

Challenges
The space presented multiple issues for the designers: how to deal with numerous existing columns, an insufficient amount of natural light on the site, and the technical question of how to realize the thin, eggshell-style surfaces surrounding the restaurant’s booths; all required creative solutions to shape the unique atmosphere of Meet11.

蛋壳小屋用餐区-©金伟琦

力场
Meet 11主体空间围绕Arabesque展开,其中最大的特点是“Arabesque拱形”,我们将Arabesque拱形进行模块化设计,整个空间的结构由这些拱形搭建而成,从而形成表达张力。这种模块化的结构方式能大大减少施工出错率,也能提高施工效率;

Atmosphere
The main space of Meet 11 unfolds around a Middle Eastern aesthetic, with the principal feature being the Arabesque arch employed in a modular design, which allows for greater ease and efficiency of construction, and provides a strong visual structure and tension.

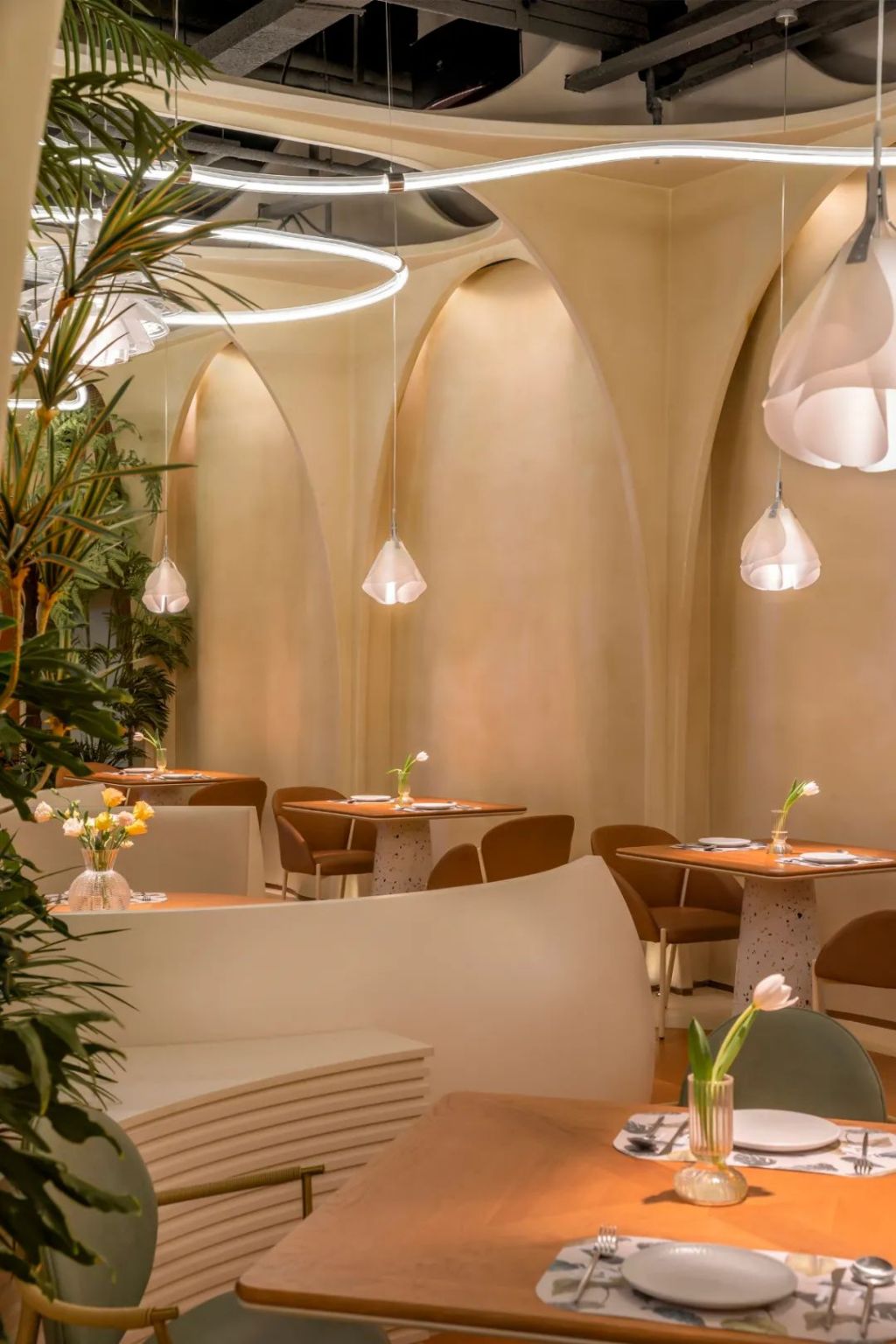

卡座区局部-©金伟琦

卡座区-©金伟琦

主入口一进门左侧设置整场的酒水吧台,吧台所处位置使得工作人员可以最大化角度服务到全场,吧台最大的特点是其上方的导光板层架,层架是由1.5cm厚度的导光板贴扩散膜构成,打开灯光整个层架有强烈的漂浮感;吧台对面区域设置了四个3/4圆形卡座,卡座与卡座之间设置热带绿植营造休闲度假氛围;在整个空间里我们嵌入了两处“蛋壳”半开放空间,我们在造型上开了几处洞口,这样蛋壳室内外在视线上可以互通、流动的,有私密性又与整场有很强的互动。蛋壳工艺上我们此次做了极大挑战,厚度只有1cm,构造很薄但强度和韧性极高,挑战了从来没有过的薄度,两个造型与空间结构并置但不显得突兀反而各自形成不同的氛围和“场感“。

The main entrance is positioned on the left side of the bar, allowing the bar staff to face and serve all customers in the space. The most prominent feature of the bar is the custom-designed light fixture composed of a series of illuminated 1.5cm thick oval-shaped ‘shelves’, which seems to float overhead.Four circular booths are located opposite the bar, with clusters of tropical plants placed between them to create a relaxing, convivial atmosphere.

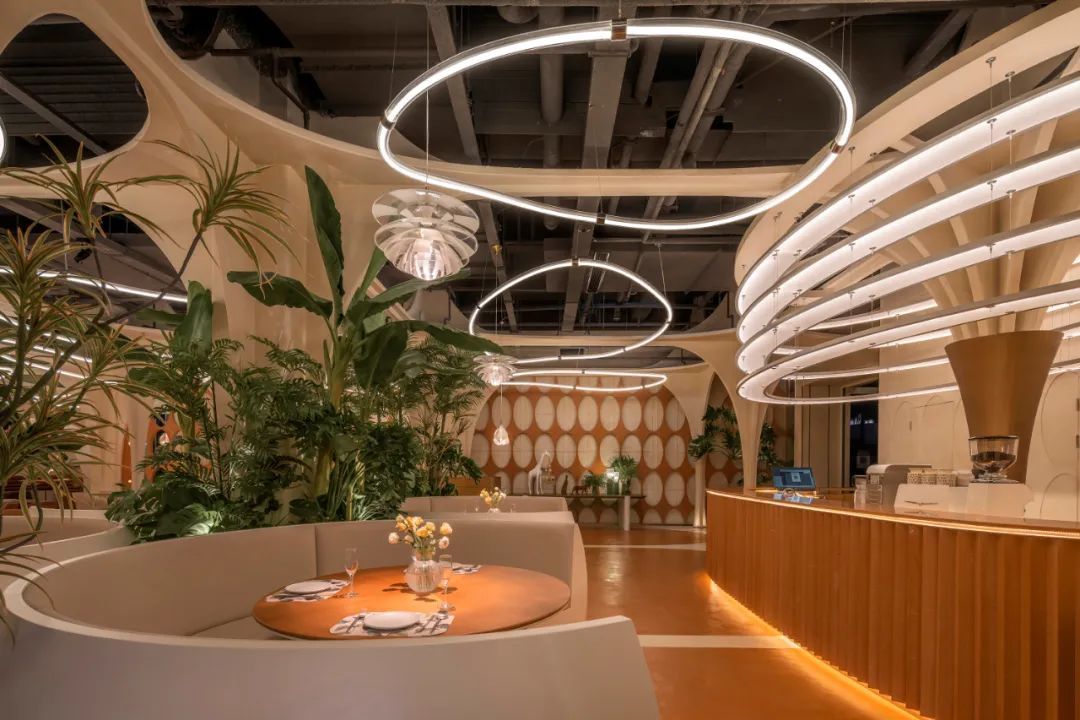

吧台及导光板层架-©金伟琦

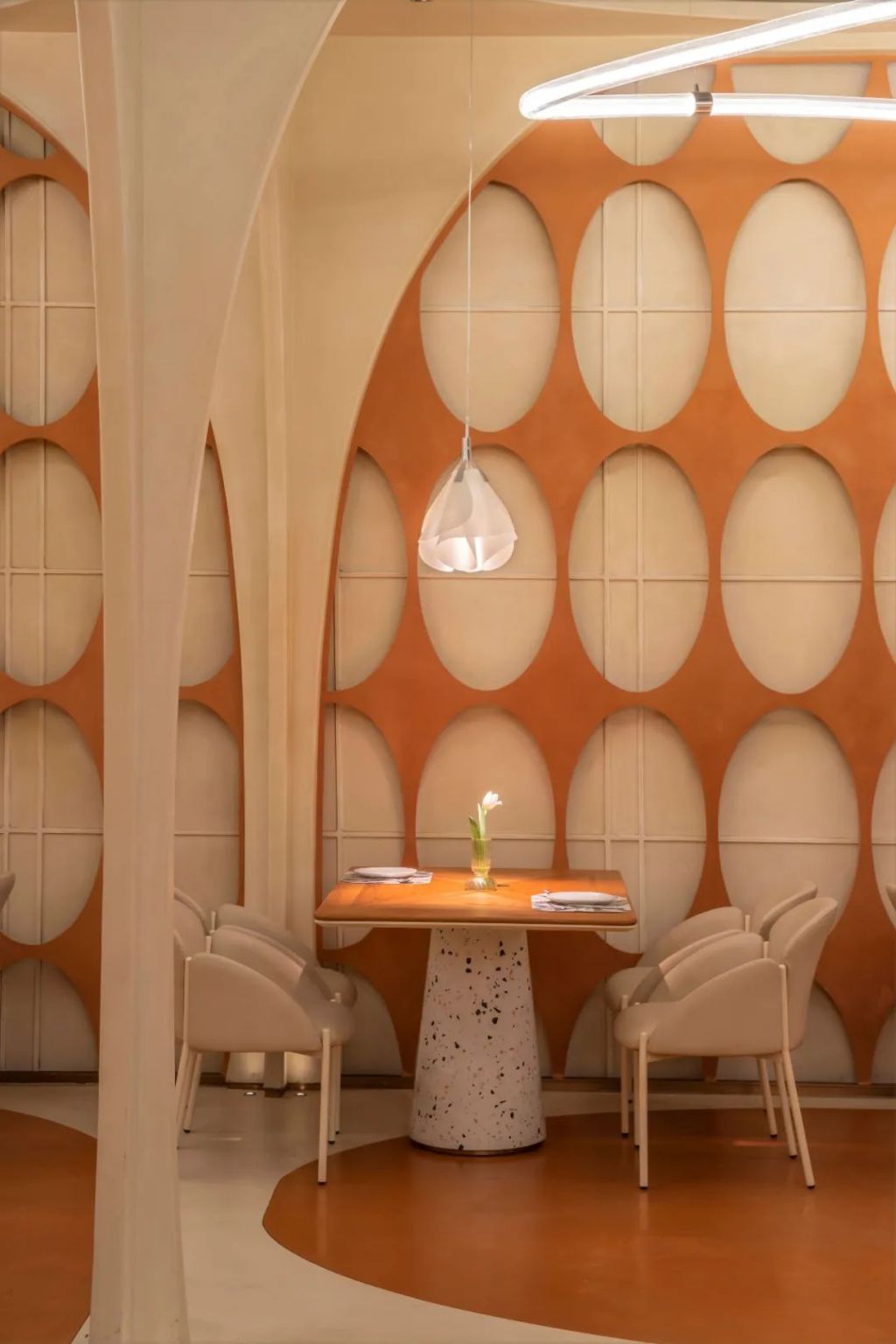

▲Arabesque墙面-©金伟琦

墙体Arabesque结构-©金伟琦

1CM壁厚蛋壳小屋-©金伟琦

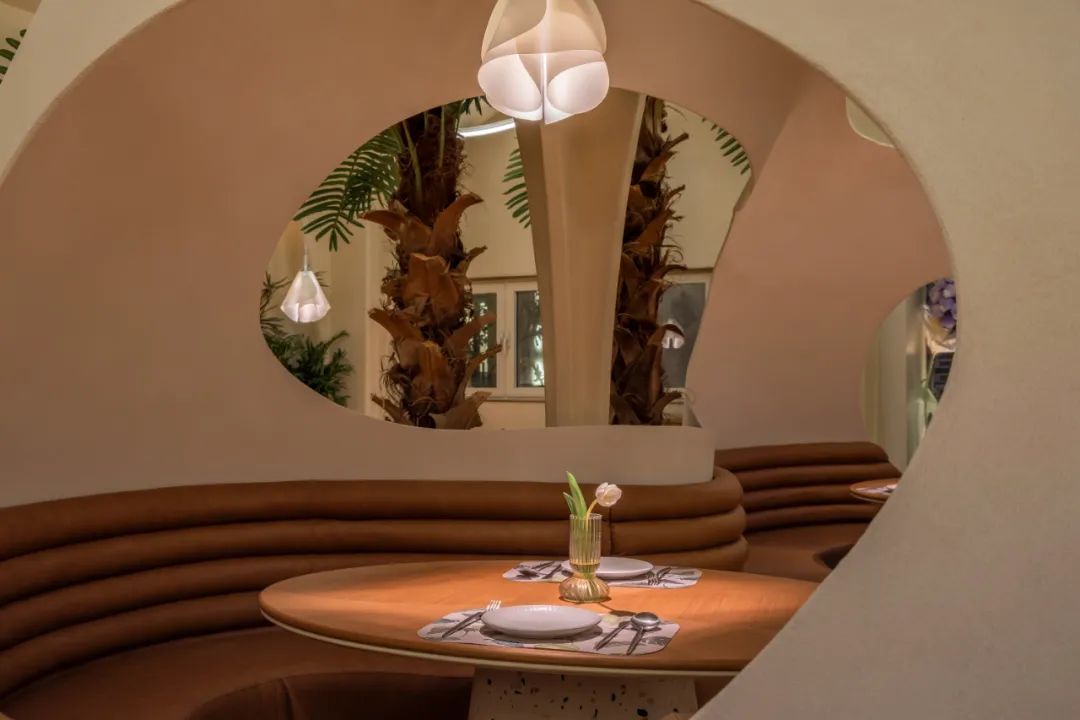

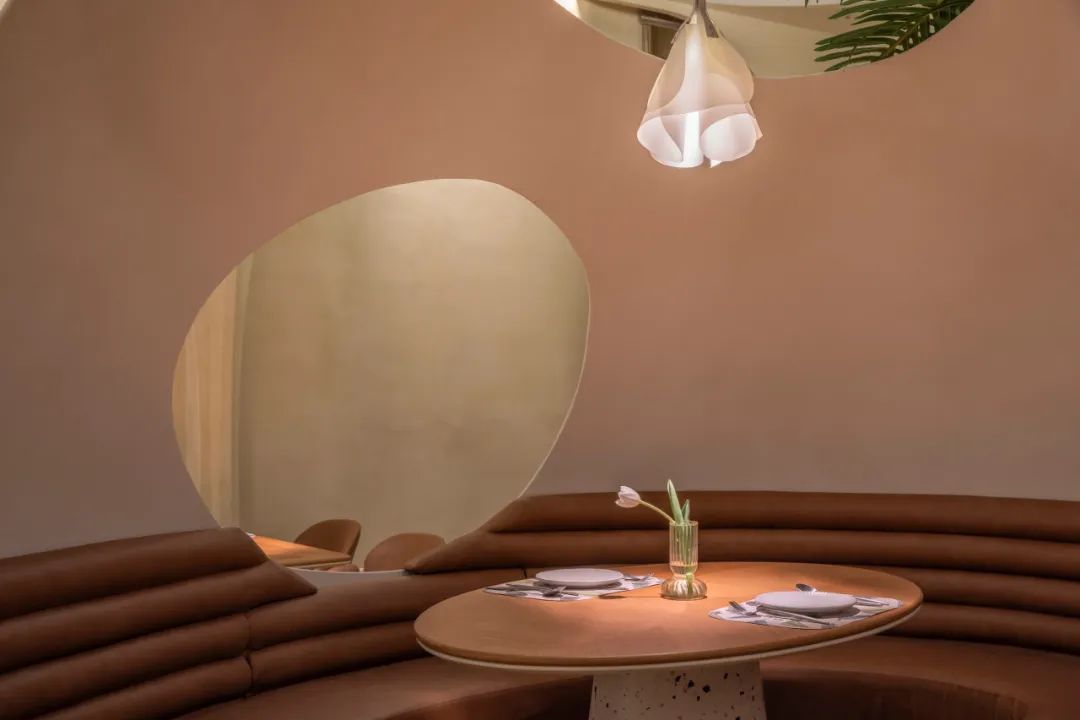

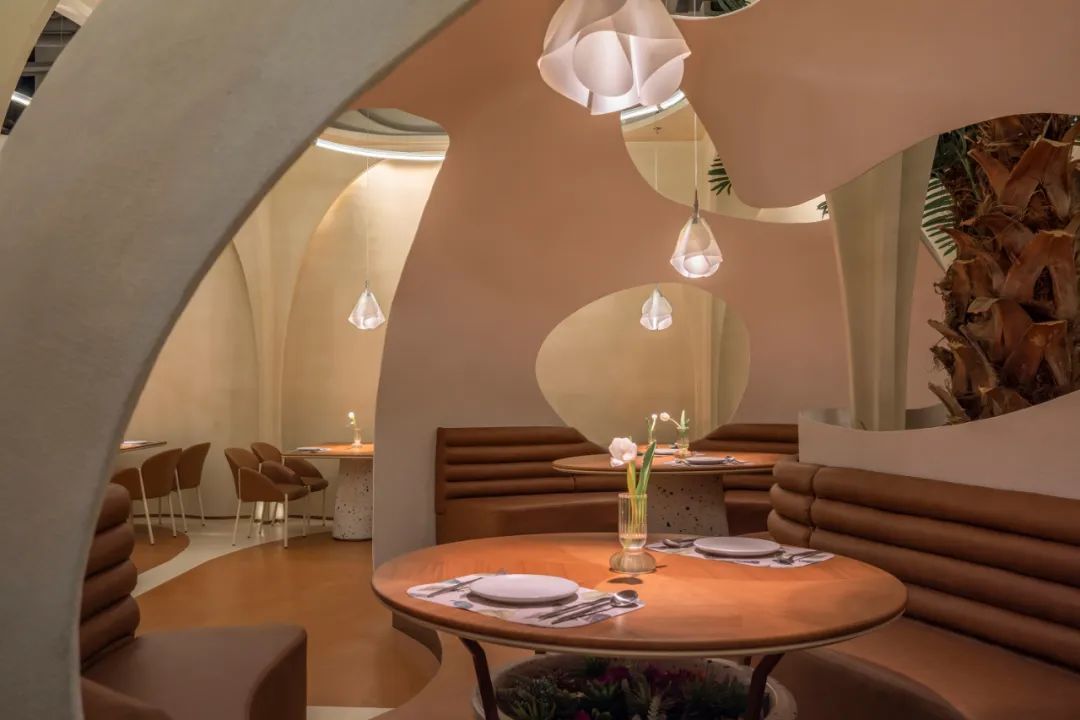

蛋壳小屋卡座-©金伟琦

The designers have also created two spaces semi-enclosed by coverings reminiscent of eggshell - several openings allow their inner space to flow into the rest of the restaurant, providing a strong visual connection with the main space while also allowing customers seated there a feeling of privacy.The designers faced a challenge in implementing these eggshell-inspired enclosures, as they are a mere 1cm thick but ultimately have more than ample structural strength to serve their purpose. Their overall shapes are in some ways a contrast to the remainder of the space, yet they adhere to a similar aesthetic and provide a different nuance to the atmosphere of the restaurant.

蛋壳小屋卡座-©Linkchance Architects

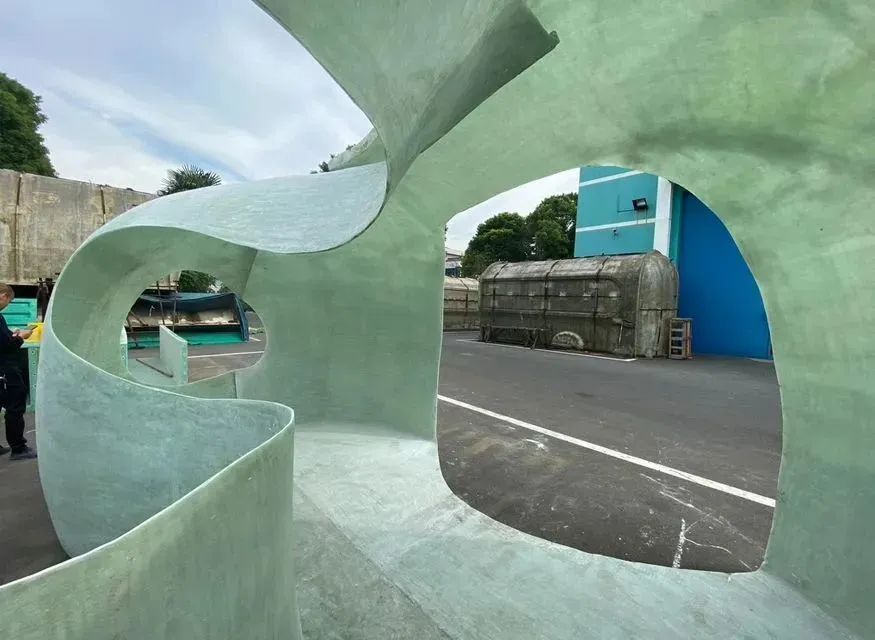

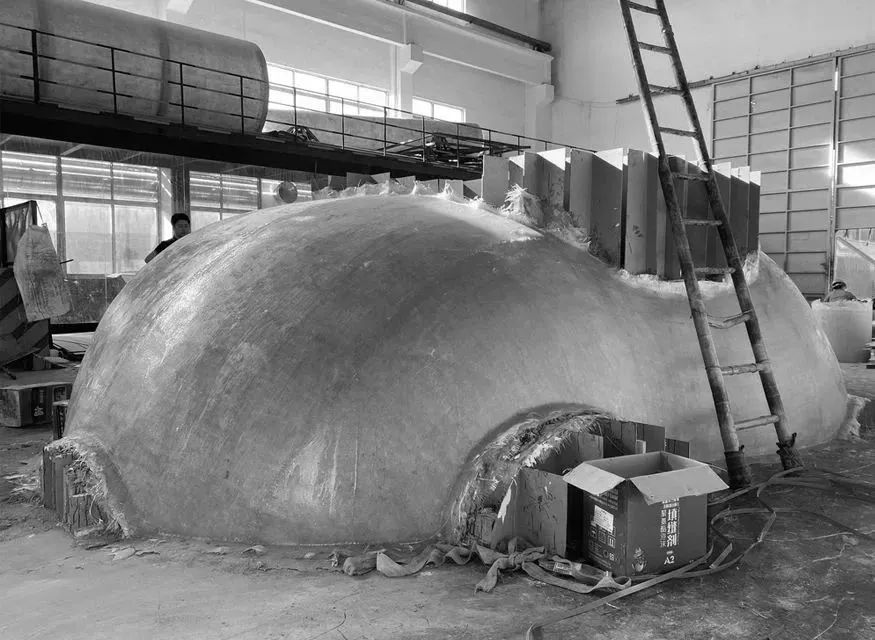

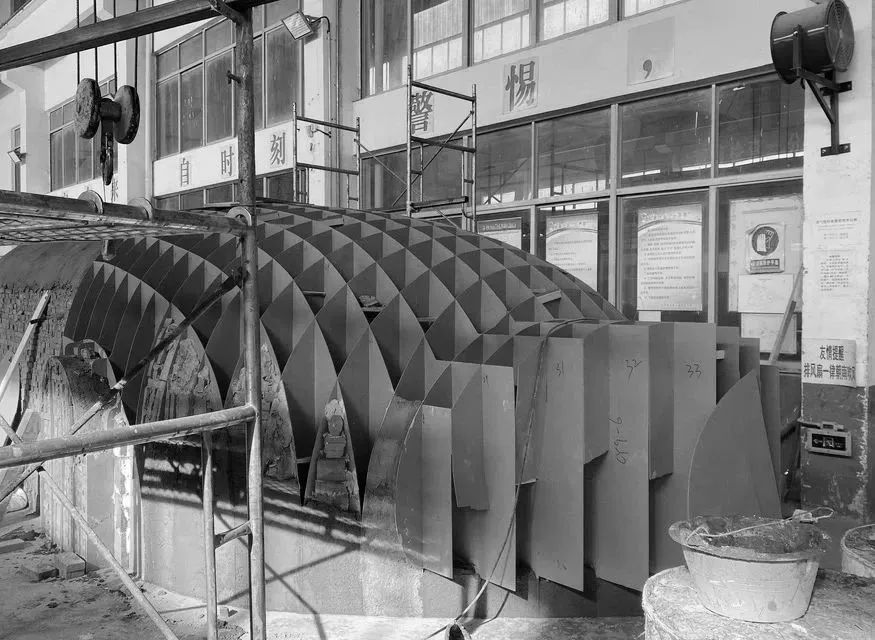

蛋壳小屋建造过程

墙体立面我们没有做过多的修饰,仅在局部两面墙做了Arabesque小比例造型,距离墙面8cm,背后我们设置了弱弱发光的光纤,表达存在,让墙面具有“呼吸”感;地面我们用了强度高、耐油污的装饰混凝土材料,实现与空间协调的配色。为整体空间增添氛围,顶部造型结构”中空“的区域我们做了13组双曲亚克力吊灯,当人在空间走动的时候,可以看到吊灯造型一直处于动态变化中。
The interior walls are simply and elegantly decorated with light, provided indirectly by strips of LED hidden behind arch and oval-shaped openings in thin partitions built 8cm away from the main walls. For the floors, high-strength decorative concrete has been used to achieve a color palette and pattern which seamlessly matches the other elements of the space. Custom-made chandeliers of translucent acrylic provide pleasantly focused light throughout the restaurant, and present sculptural qualities which seem to shift and change as visitors walk through the interior.

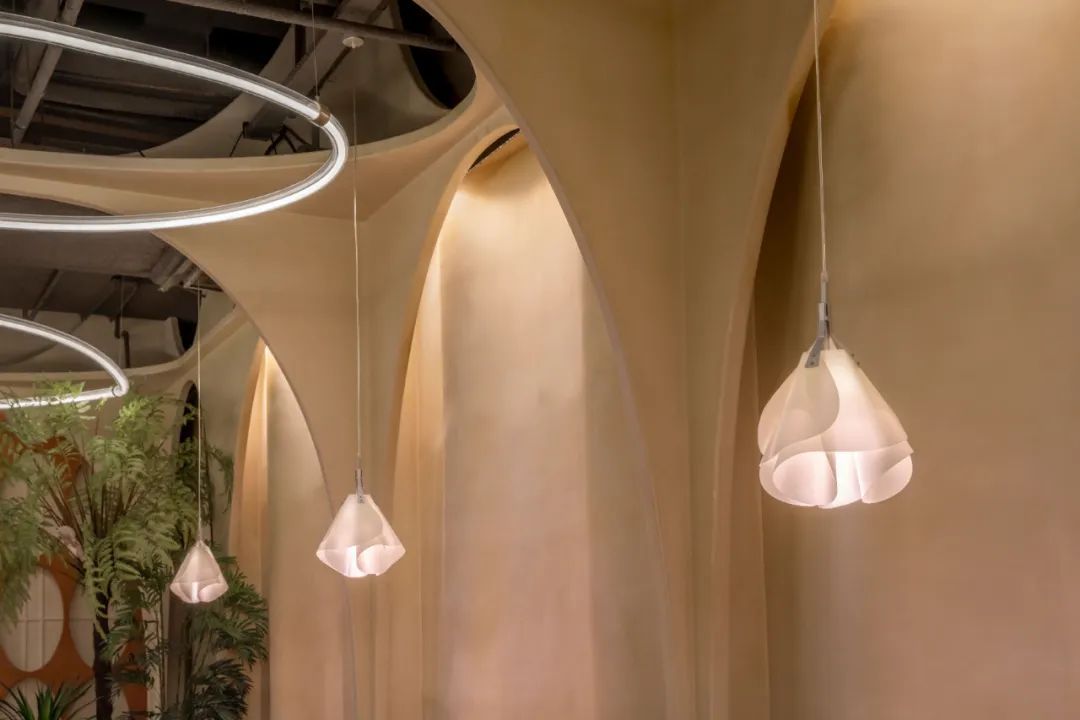

定制吊灯-©金伟琦

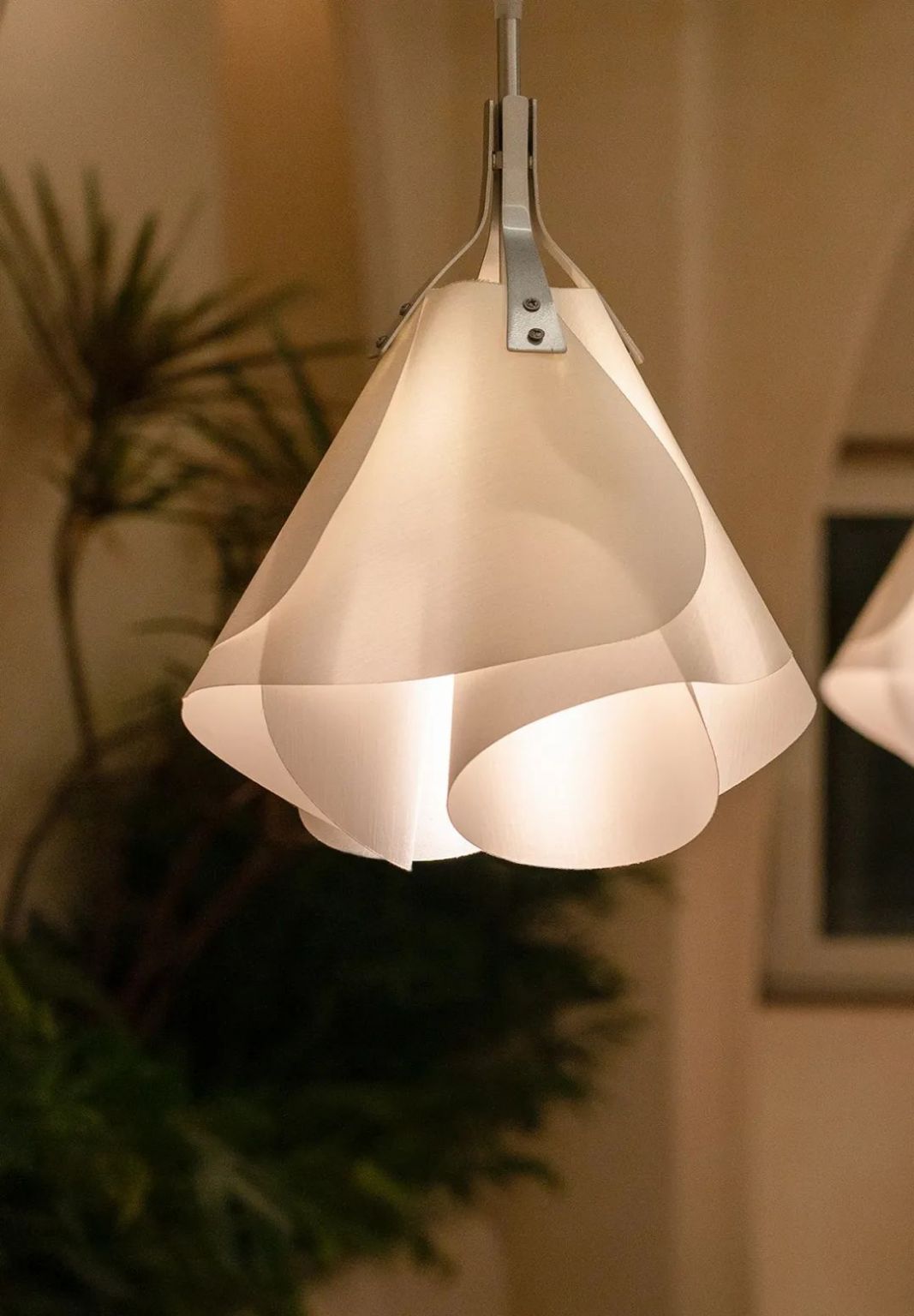

吊灯细节-©Linkchance Architects

客区通道-©金伟琦

波浪墙面-©金伟琦

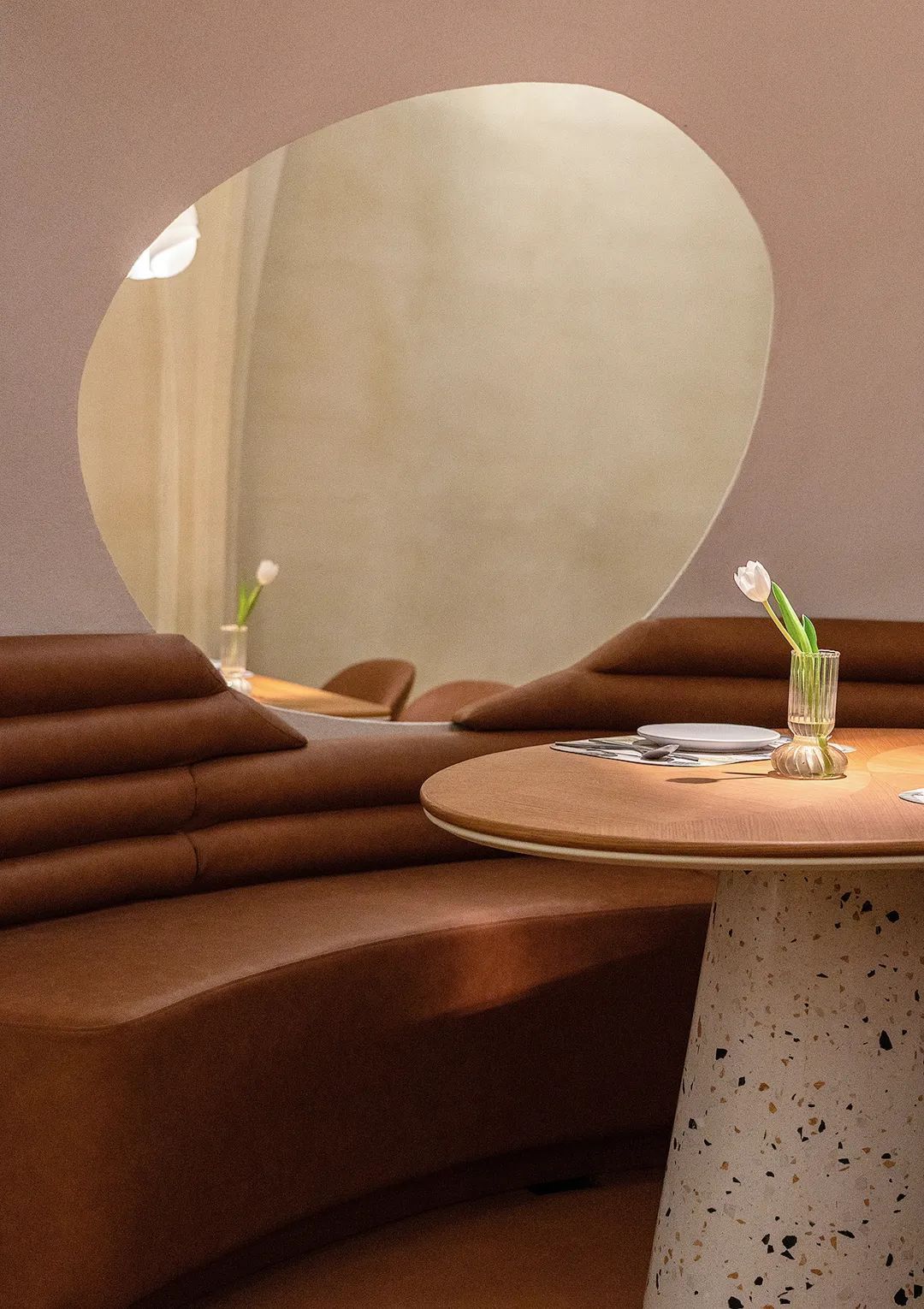

蛋壳小屋餐桌-©金伟琦

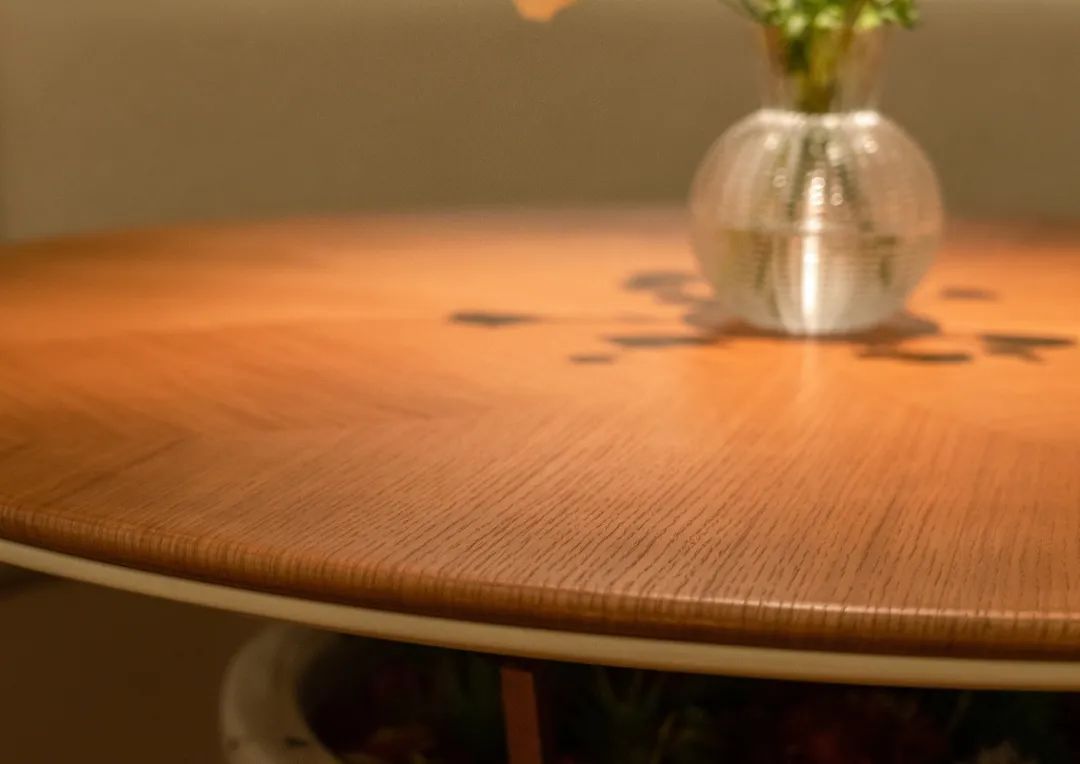

餐桌细部-©Linkchance Architects

结合常州本地气候,整体空间绿植采用类热带绿植搭配,营造出自然、阳光、休闲的惬意氛围。
In accord with the local climate of Changzhou, the space is decorated with tropical green plants to create a natural atmosphere of lightness and leisure.

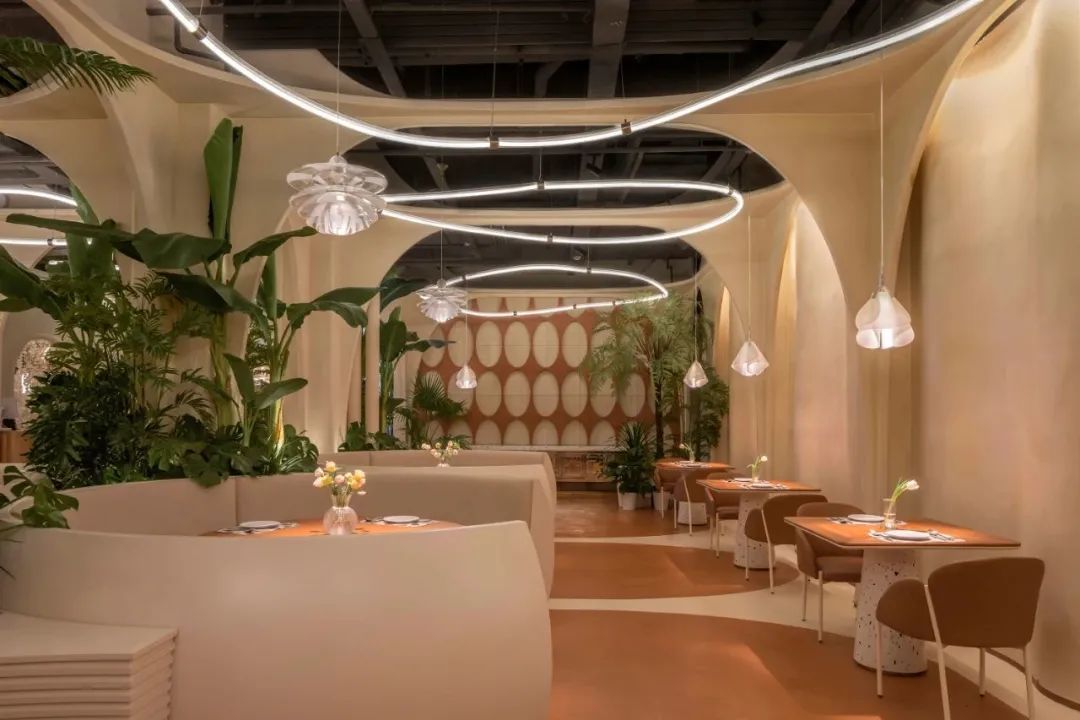

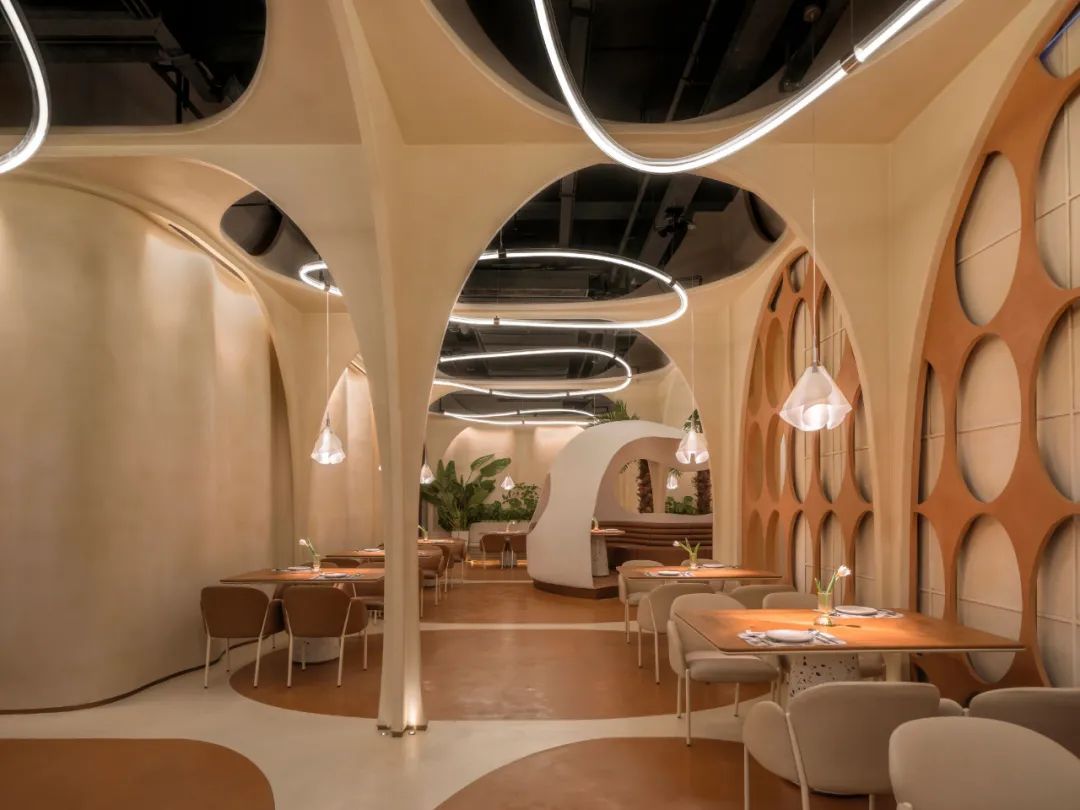

中央就餐区-©金伟琦

圆形卡座区-©金伟琦

结语
时光流动,岁月更迭,由Arabesque元素构造的Meet11 “韵律”空间,形成了秩序、流动、力、时间、自然、柔美的”场“,在这里人们可以与Meet 11相遇,与十一种人生美味相遇。

Conclusion
The Meet 11 Restaurant is an interior design inspired by and composed of timeless Arabesque elements, brought together to create an experience of order and flow, strength of form, and recollections of time, nature, and beauty. It is a place where people can meet, feel at ease, and enjoy the “11 delicacies” of life.

空间组成 ©Linkchance Architects

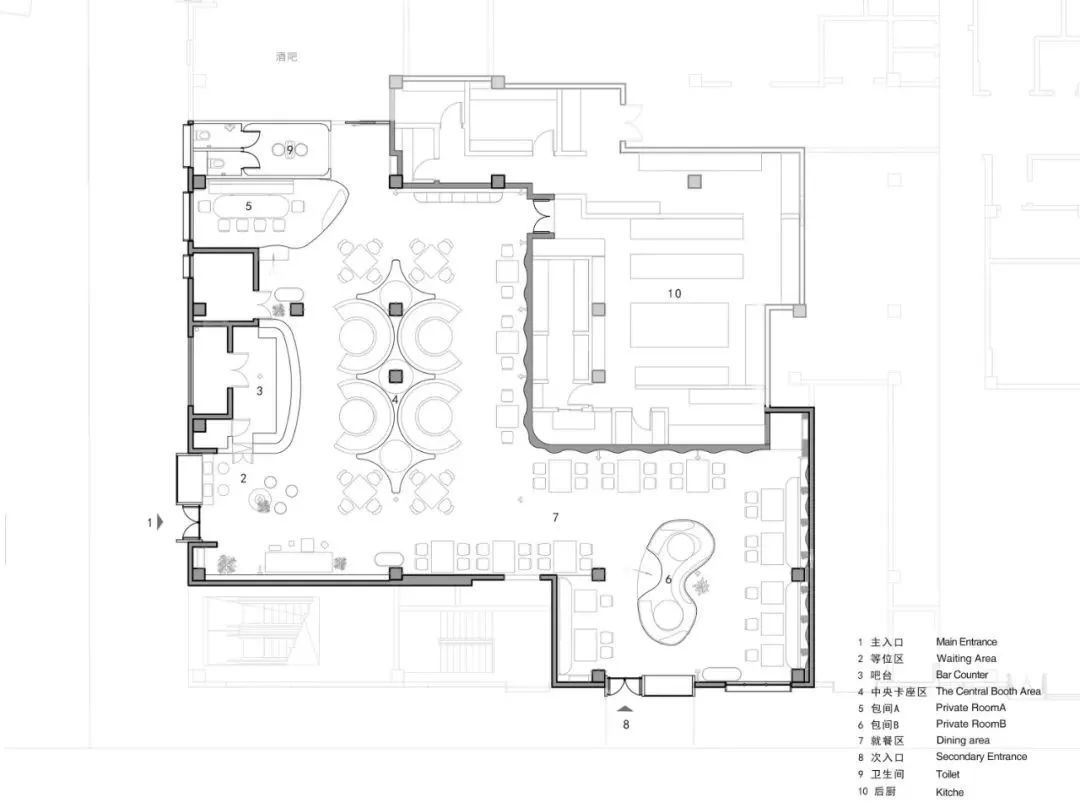

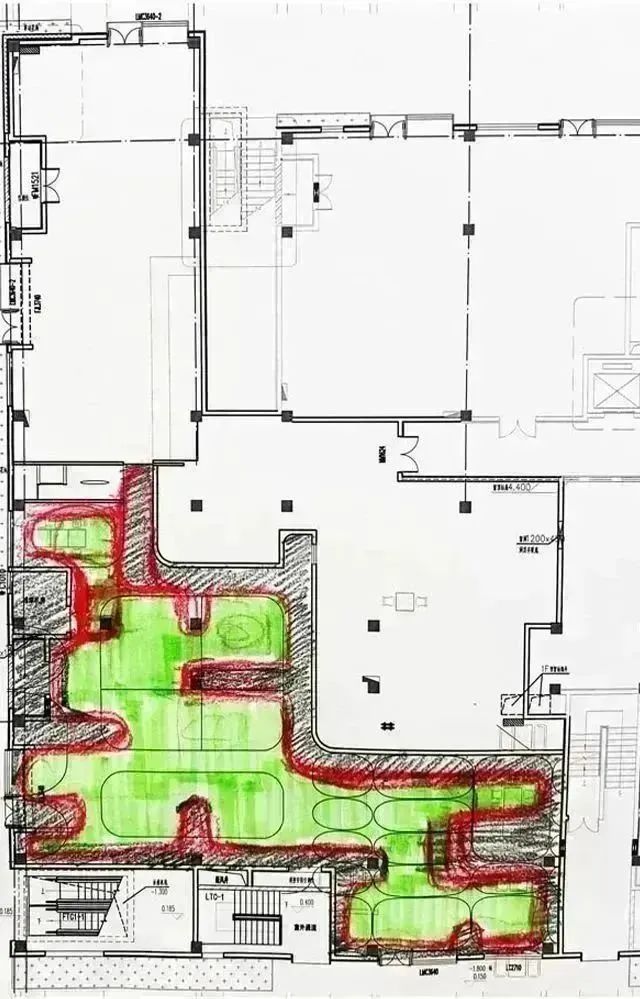

平面图 ©Linkchance Architects


项目信息:
项目名称:Meet 11 花漾餐厅
项目地址:江苏,常州
项目业主:常州大城小爱餐饮公司
建造时间:2022年5月-2022年10月
室内面积:450平方米
设计单位:力场(北京)建筑设计 Linkchance Architects
设计团队:安兆学、闫新秀、魏泽同、常梦雅、李嘉琦
照明咨询:Owen
建造材料:磐多磨、穿孔铝板、导光板、柚木、微水泥、镜面不锈钢板等
项目摄影:金伟琦、Linkchance Architects
视频制作:视源品牌
工程施工:杭州唐耀装饰工程有限公司/成昌弘致建材(北京)有限责任公司/ PanDOMO Studio (北京) / 江苏常州恒丰伟业玻璃钢有限公司
设计撰文:Linkchance Architects
