2023-02-16 发布
Serdar Uslubaş
Merih Feza Yıldırım
On light, shadows and reflections...

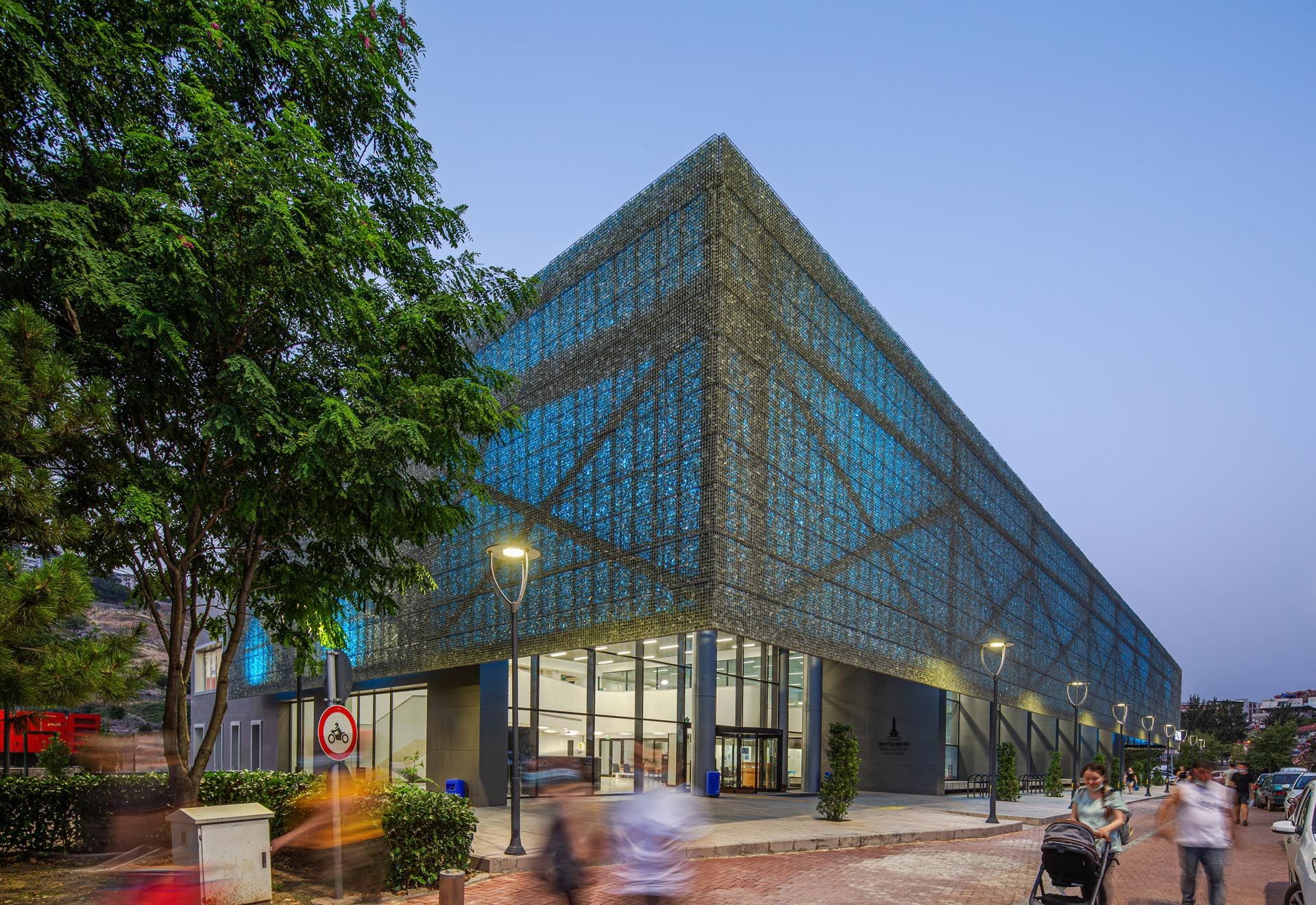

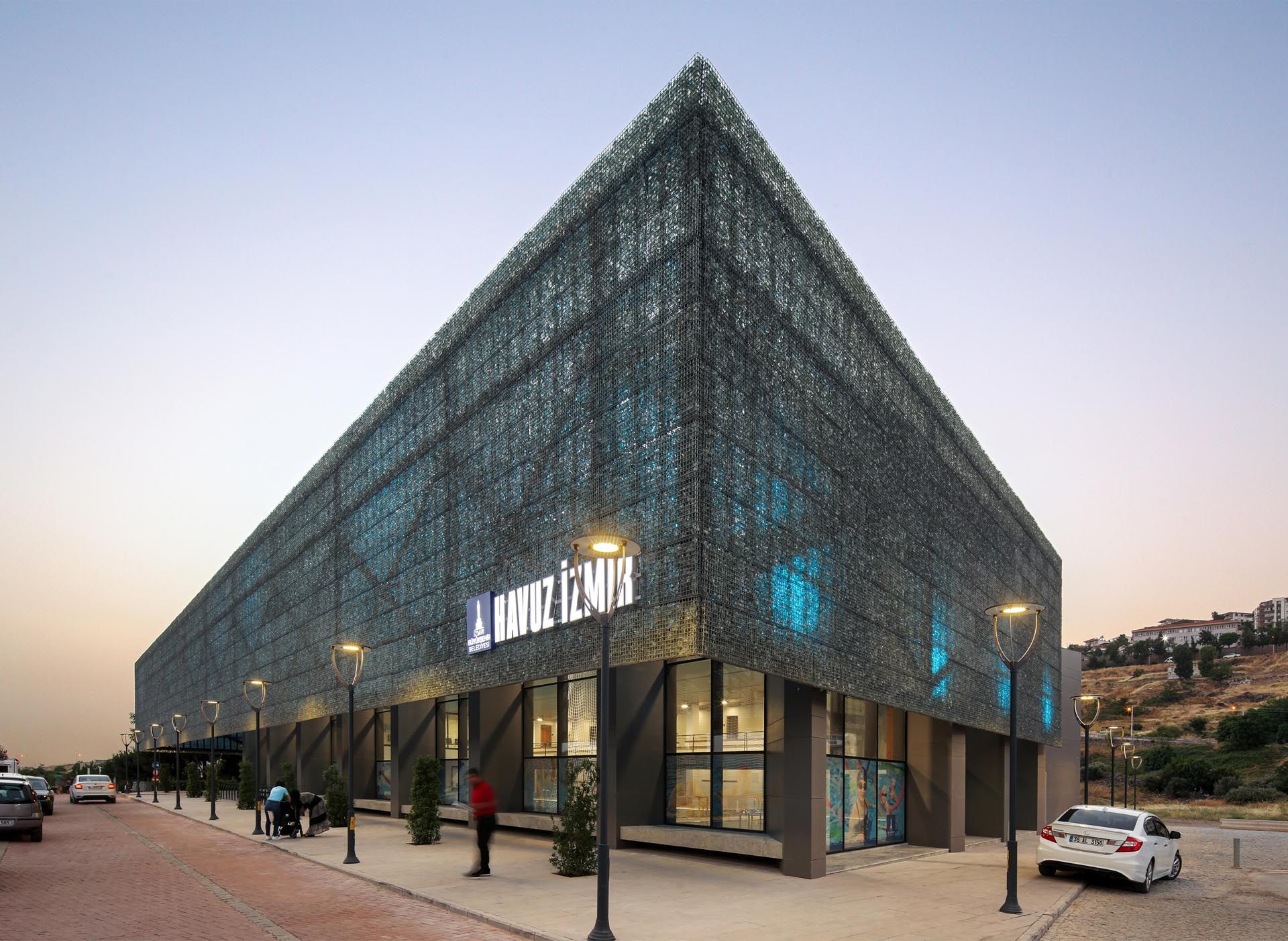

We found it valuable to make a structure that we experienced without the covering that surround us visible through the shell that surrounds it, to bring it to the forefront. In a sense, the shell has reached a point that surrounds both structure and people. The shell was knitted with contrasts. Despite its holistic appearance, it was made of thousands of small parts. Despite his heavy appearance, he remained in the air, hanging from above without stepping on the ground. Despite its opaque appearance, it was actually made of clear glass. It was our first goal to reach the unrepeatable and unimaginable atmosphere created by the light and reflections that seeped out of the shell. In the area where the structure was located, primitive stone walls made for land arrangement gave us this inspiration. These stone walls became the shell of the structure with a new interpretation. The light effect and light shadow games created by filtering light from the shell into the interior, the position, size and randomness of the gaps in the building shell, will make the experience of the structure unique.
我们发现，让我们体验到的没有覆盖物的结构通过其周围的外壳可见，并将其带到最前沿是非常有价值的。从某种意义上说，外壳已经达到了既包围结构又包围人的程度。贝壳是用对比色编织的。尽管整体外观，它还是由数千个小部件组成。尽管他外表沉重，但他仍然呆在空中，从上面吊着，没有踩到地面。尽管外表不透明，但它实际上是由透明玻璃制成的。这是我们的第一个目标，要达到从外壳中渗出的光线和反射所创造的不可复制和难以想象的氛围。在建筑所在的地区，为土地整理而建造的原始石墙给了我们这种灵感。这些石墙以新的诠释成为了建筑的外壳。通过将光线从外壳过滤到内部而产生的光效果和光影游戏，以及建筑外壳中缝隙的位置、大小和随机性，将使结构的体验与众不同。

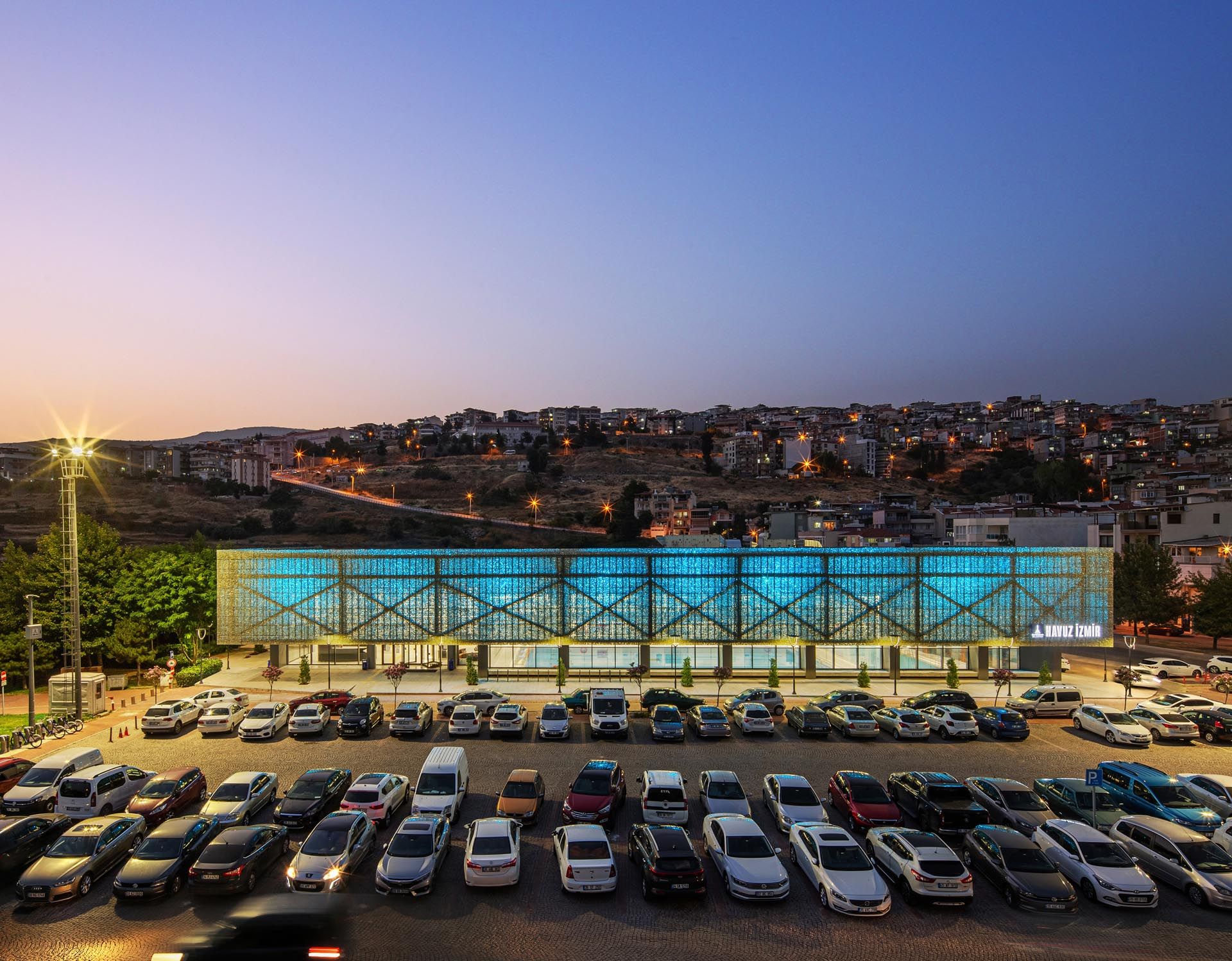

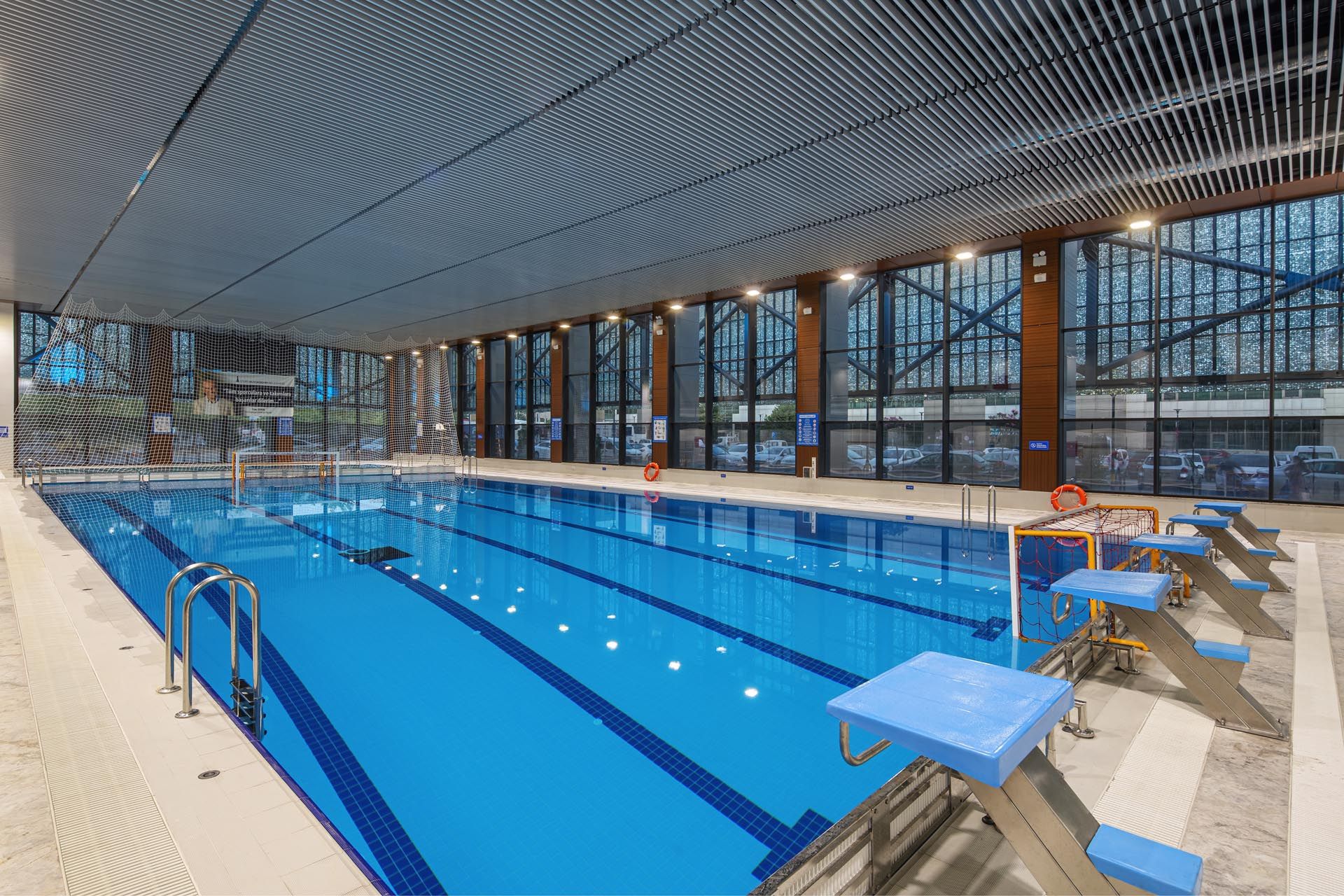

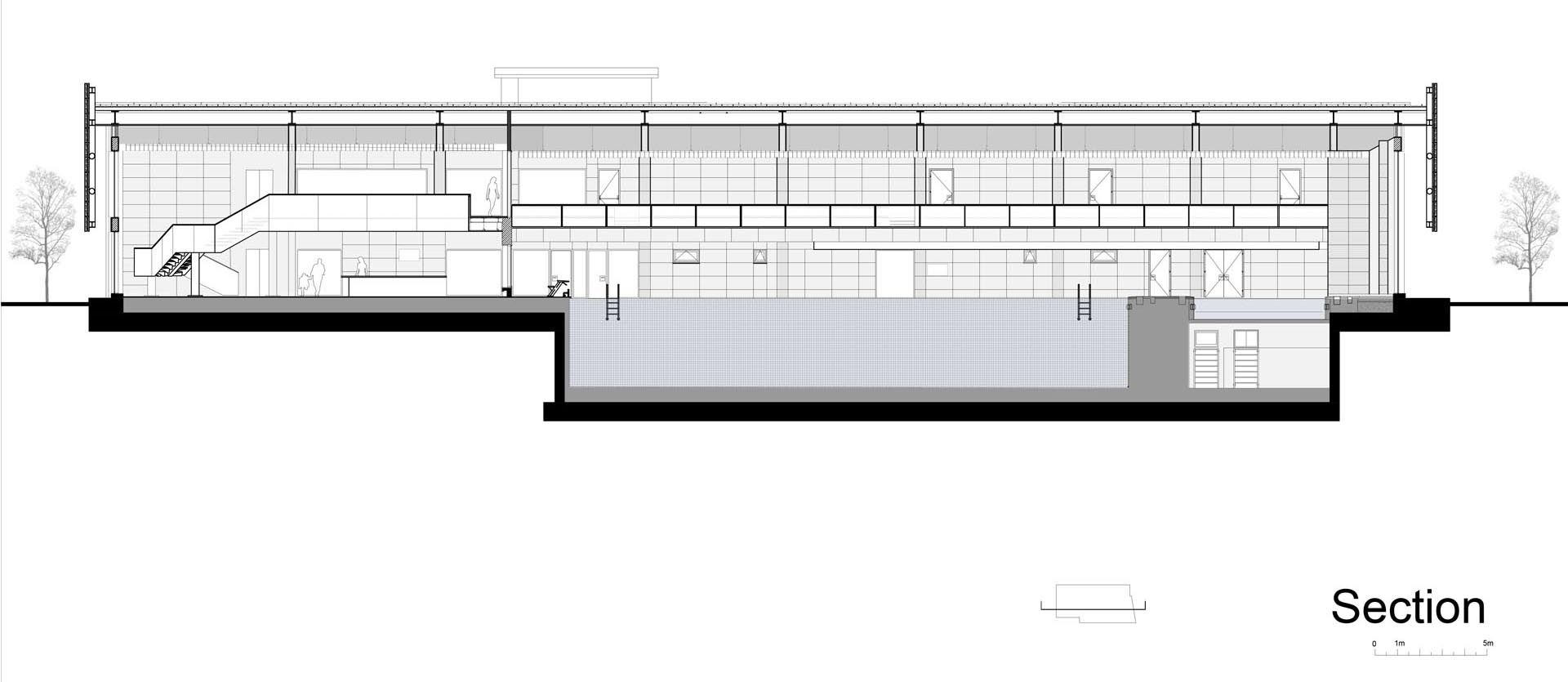

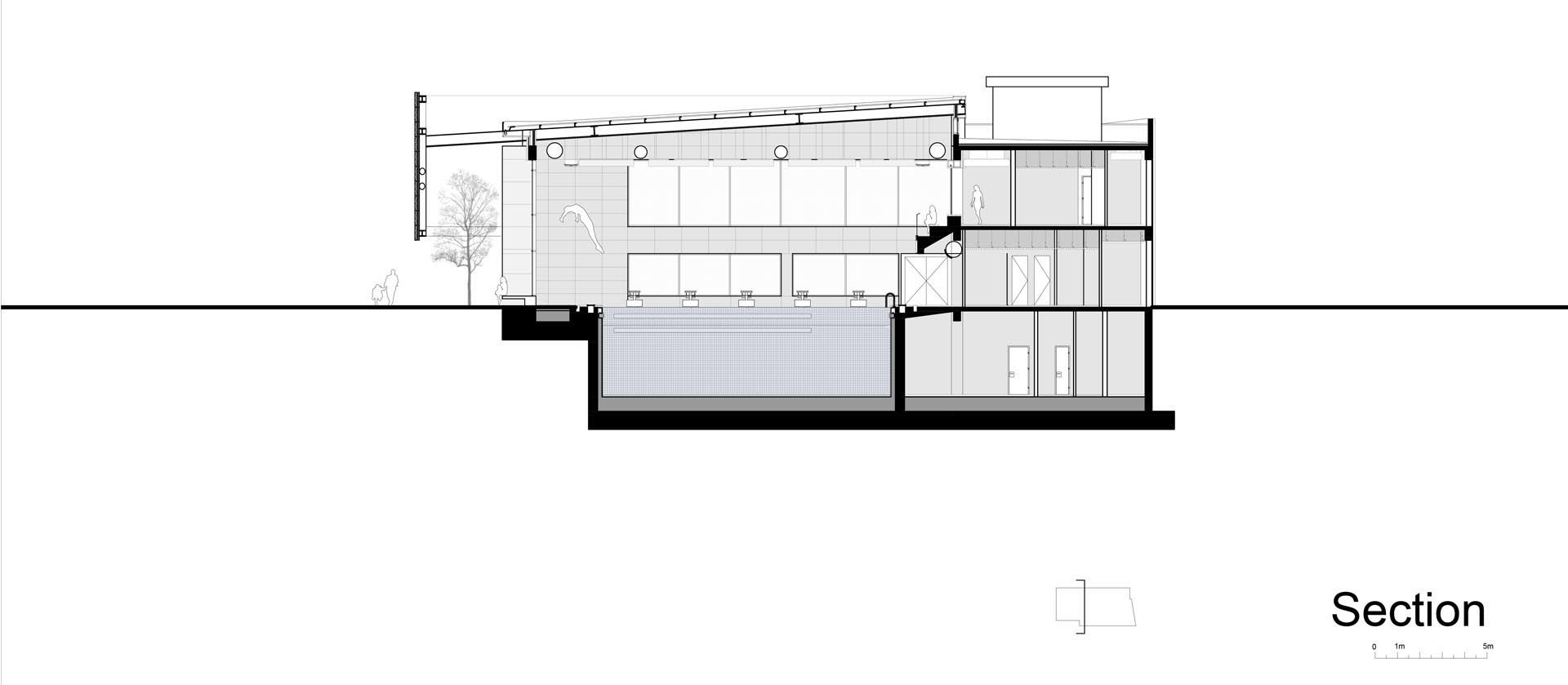

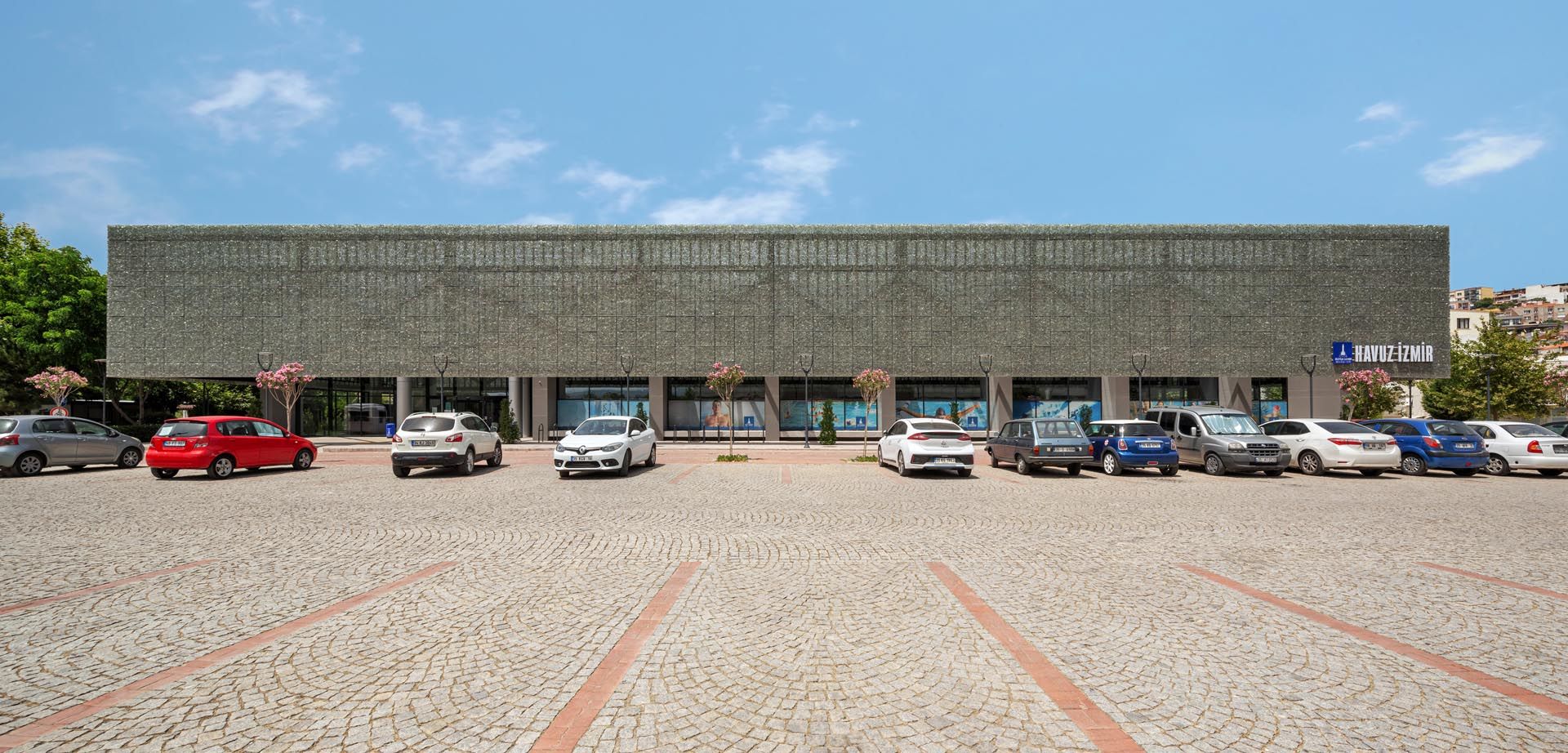

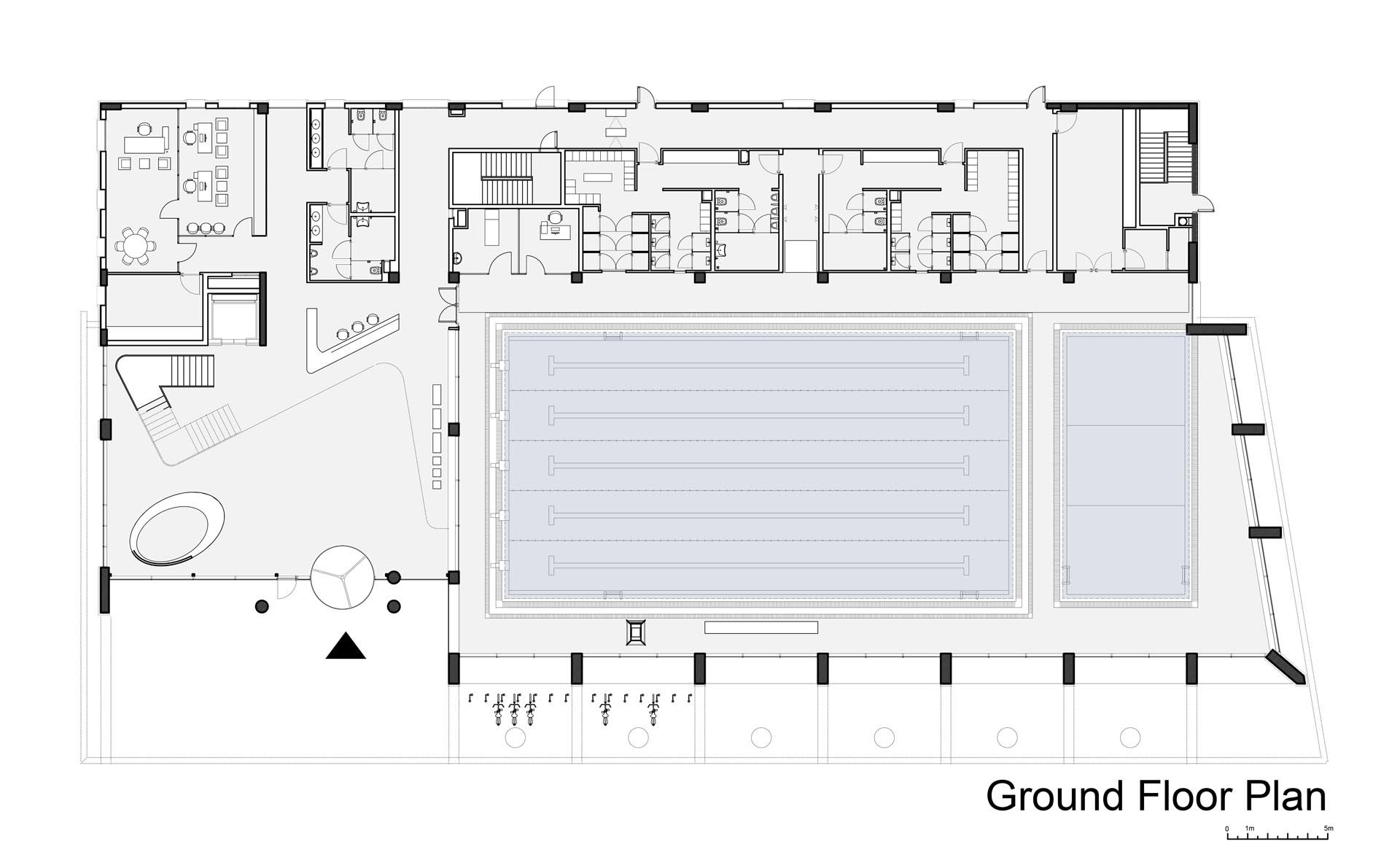

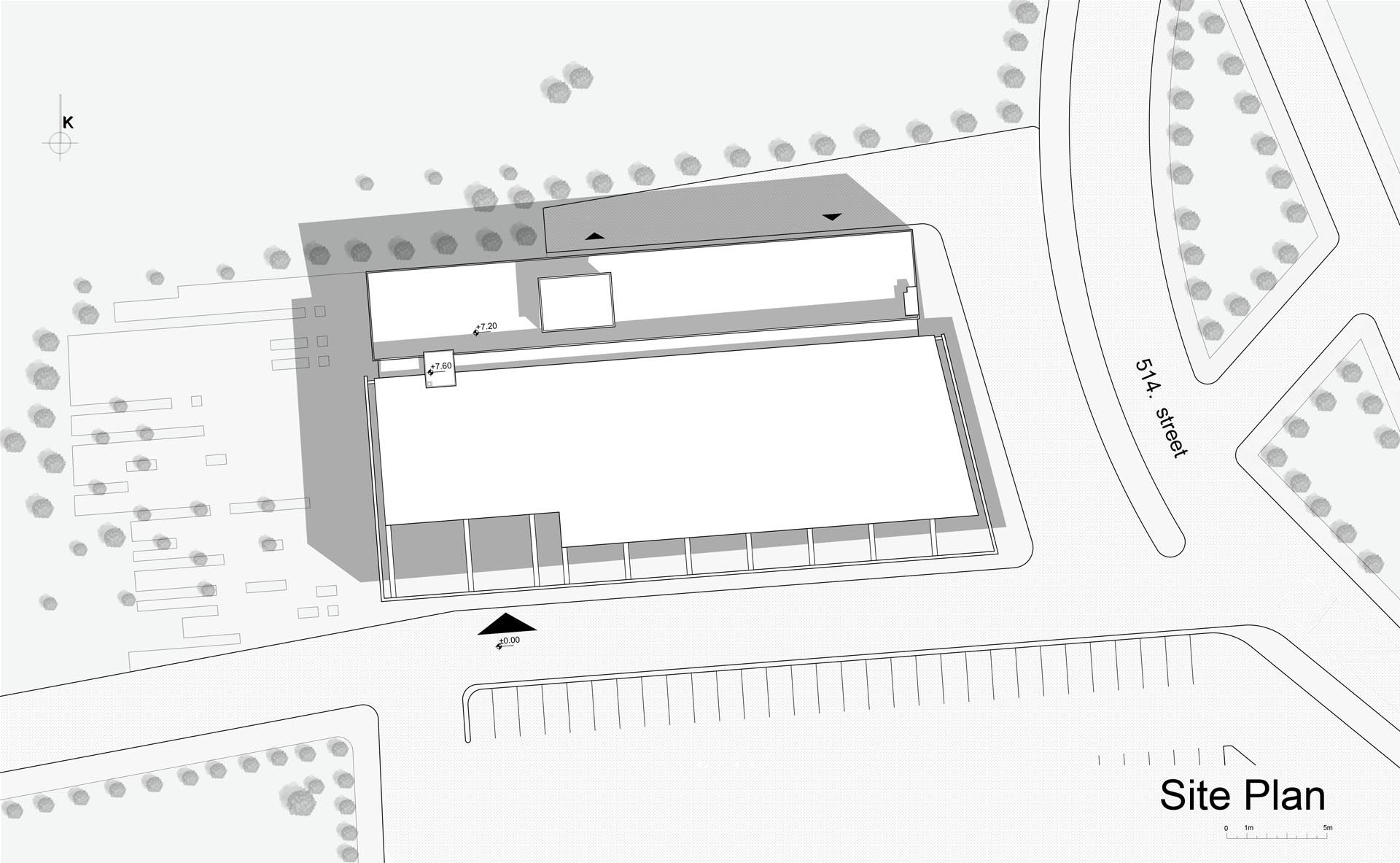

Bornova semi-Olympic Pool project is located in Asik Veysel Recreation Area. Due to its location, which is easily accessible to the main arteries of the Izmir transport network, it is a facility that will serve not only the regional but also the entire city. It will also meet a significant need of the growing and growing population in its immediate vicinity. It will be possible to reach the building by bicycle, private vehicle or public transport. Because of its location, the building, which is passed by quite a lot of people, has the purpose of attracting people's interest, curiosity, and arousing interest in water sports, as well as keeping them alive. The building has a covered area of 3200 m2 and has a semi-Olympic 4 meter deep pool measuring 25 m x 12.5 m. It has a capacity of 200 spectators. There is also a gym to meet the needs of athletes.
博尔诺瓦半奥林匹克游泳池项目位于Asik Veysel娱乐区。由于其地理位置，伊兹密尔交通网络的主要干线很容易到达，因此该设施不仅将为地区服务，也将为整个城市服务。它还将满足附近不断增长的人口的巨大需求。可以通过自行车、私家车或公共交通工具到达大楼。由于它的位置，这座被很多人路过的建筑，其目的是吸引人们的兴趣和好奇心，激发人们对水上运动的兴趣，并保持他们的活力。该建筑的占地面积为3200平方米，有一个25米x 12.5米的半奥运会4米深的游泳池，可容纳200名观众。还有一个健身房来满足运动员的需求。

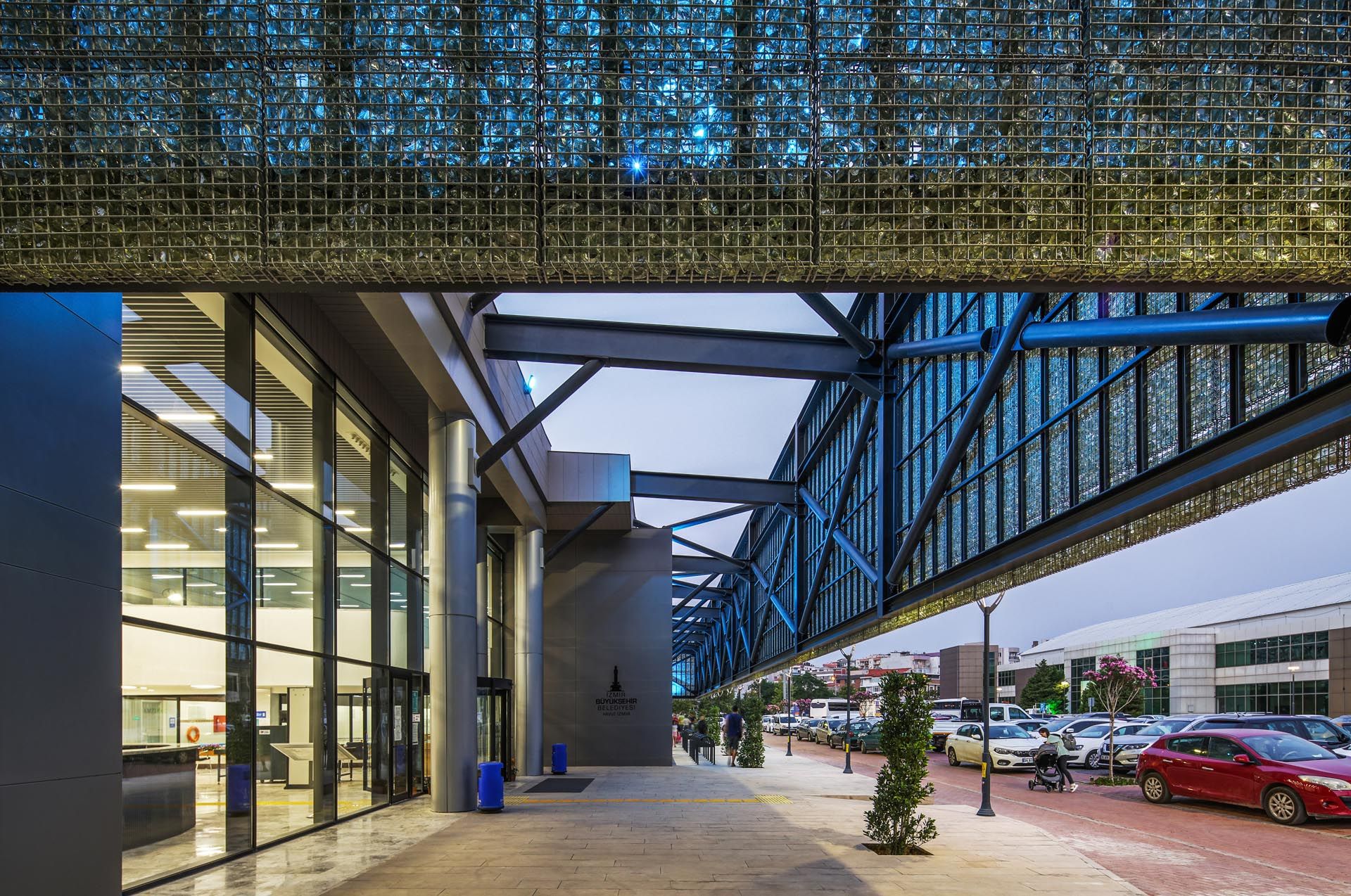

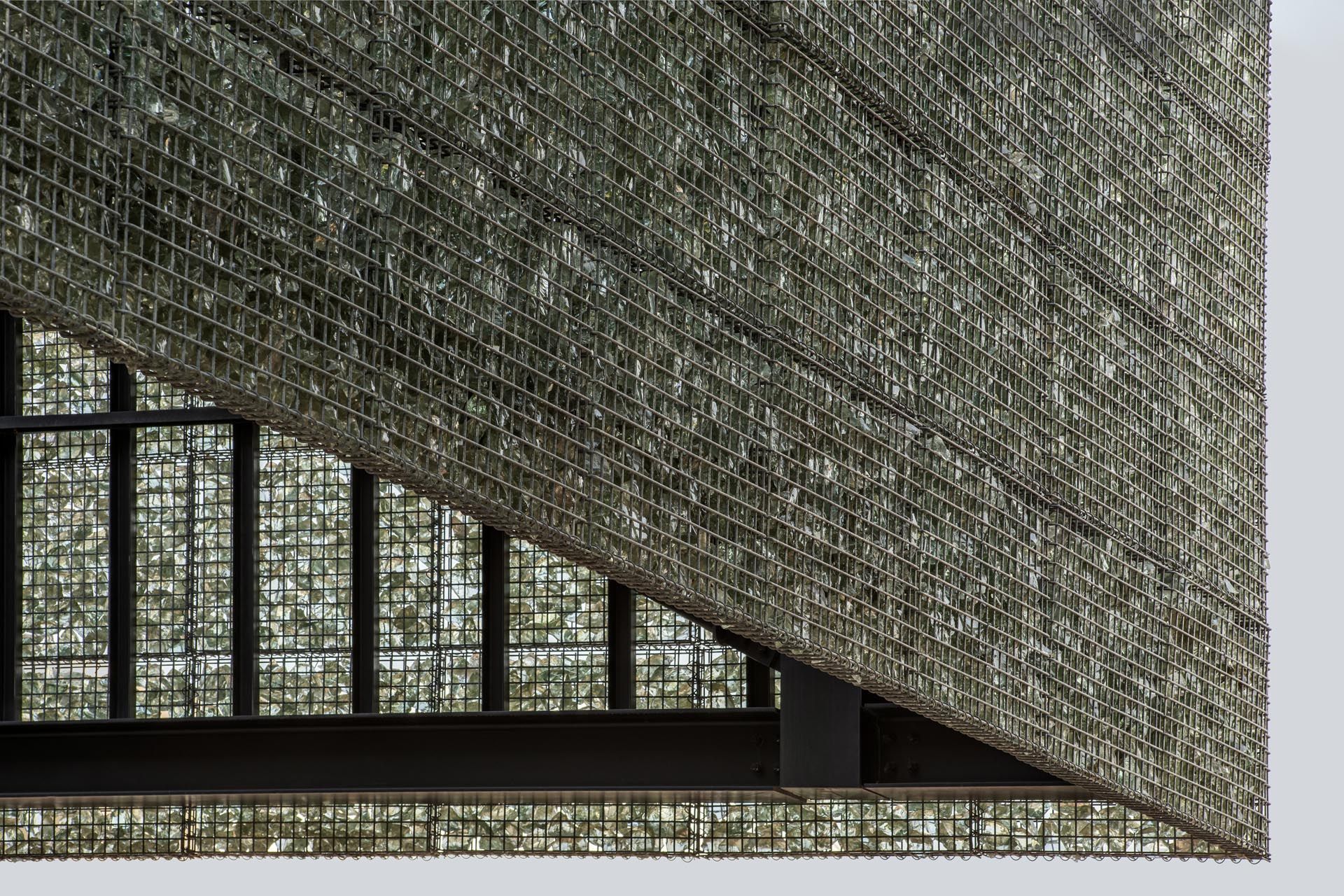

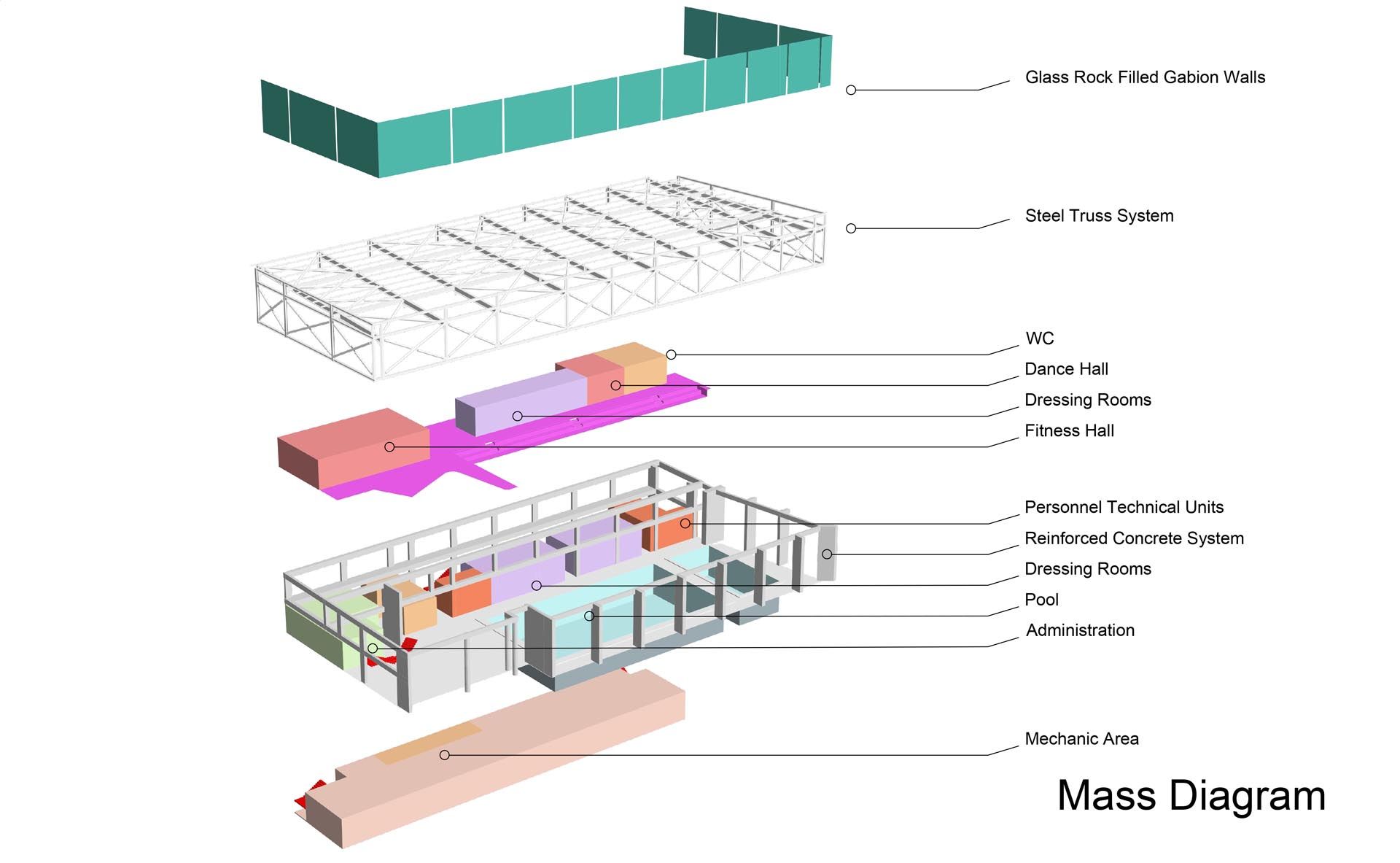

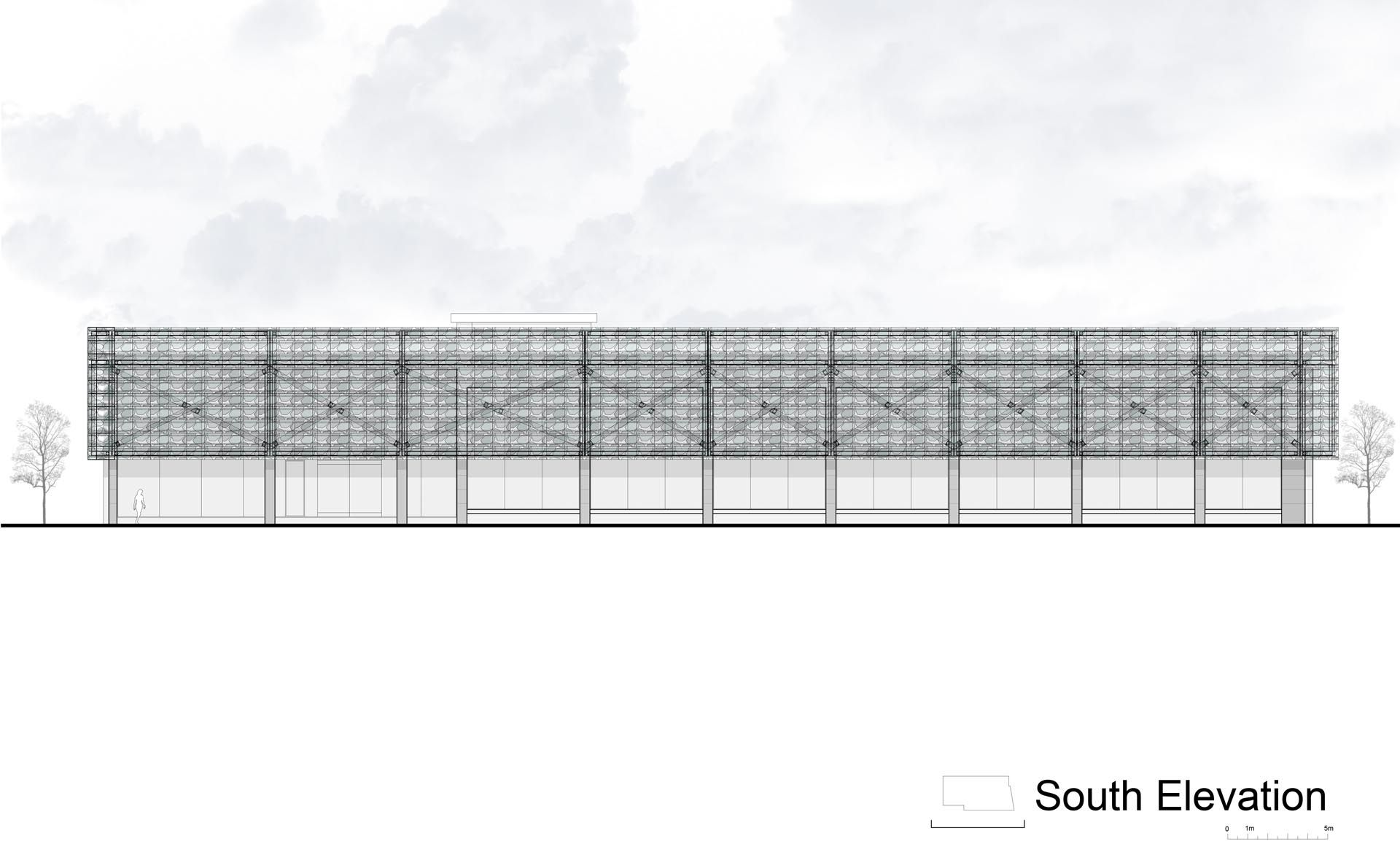

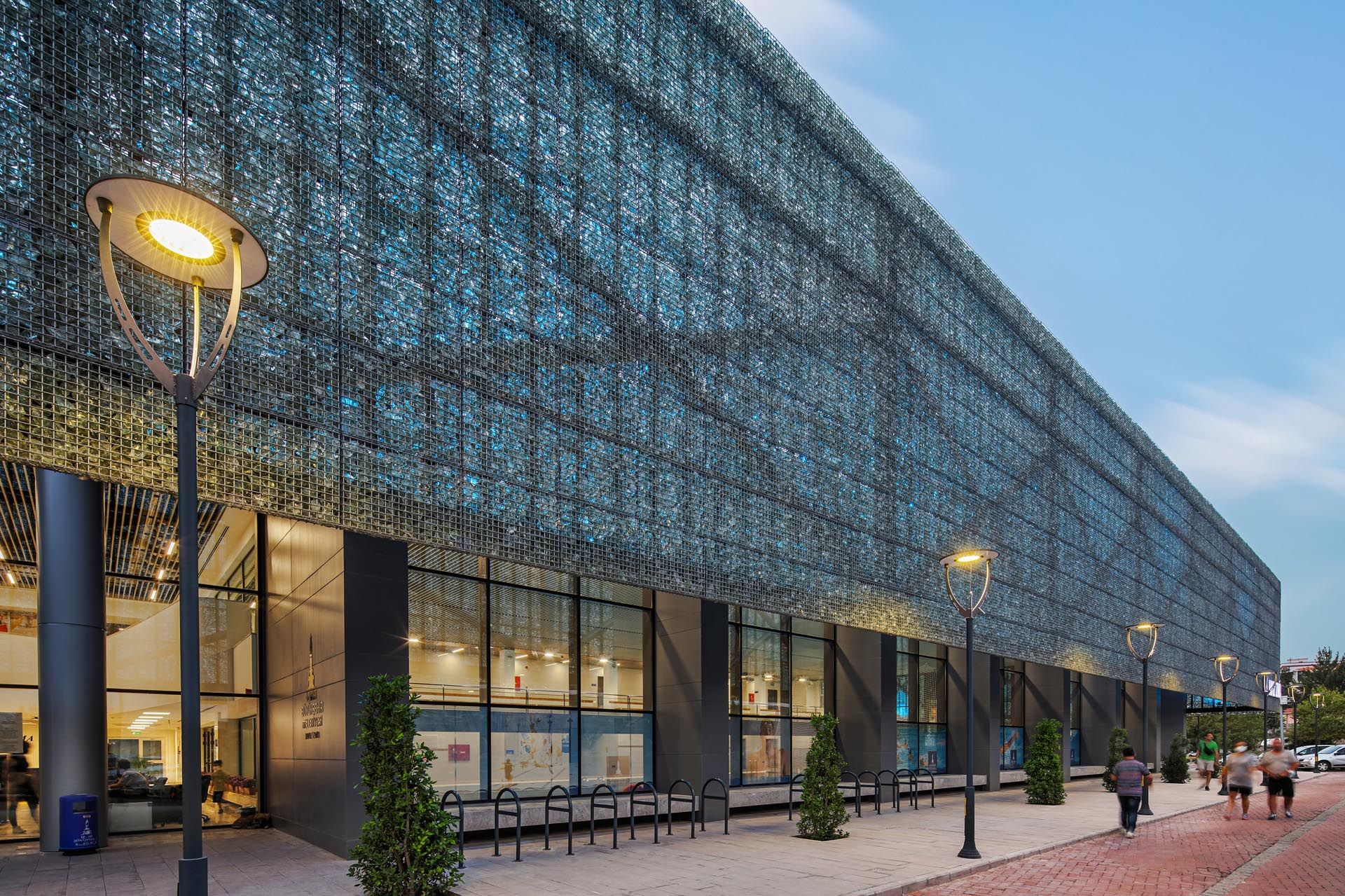

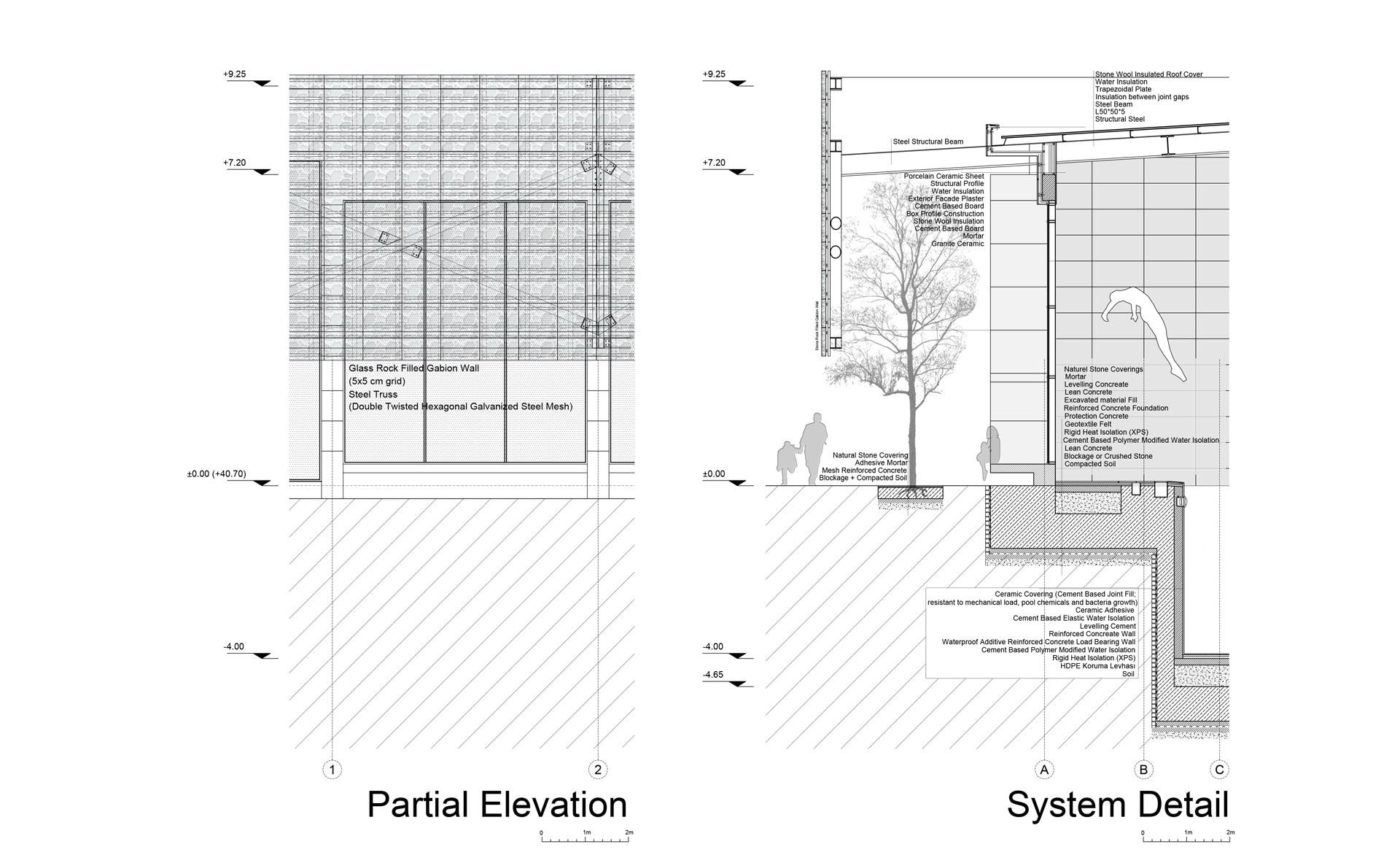

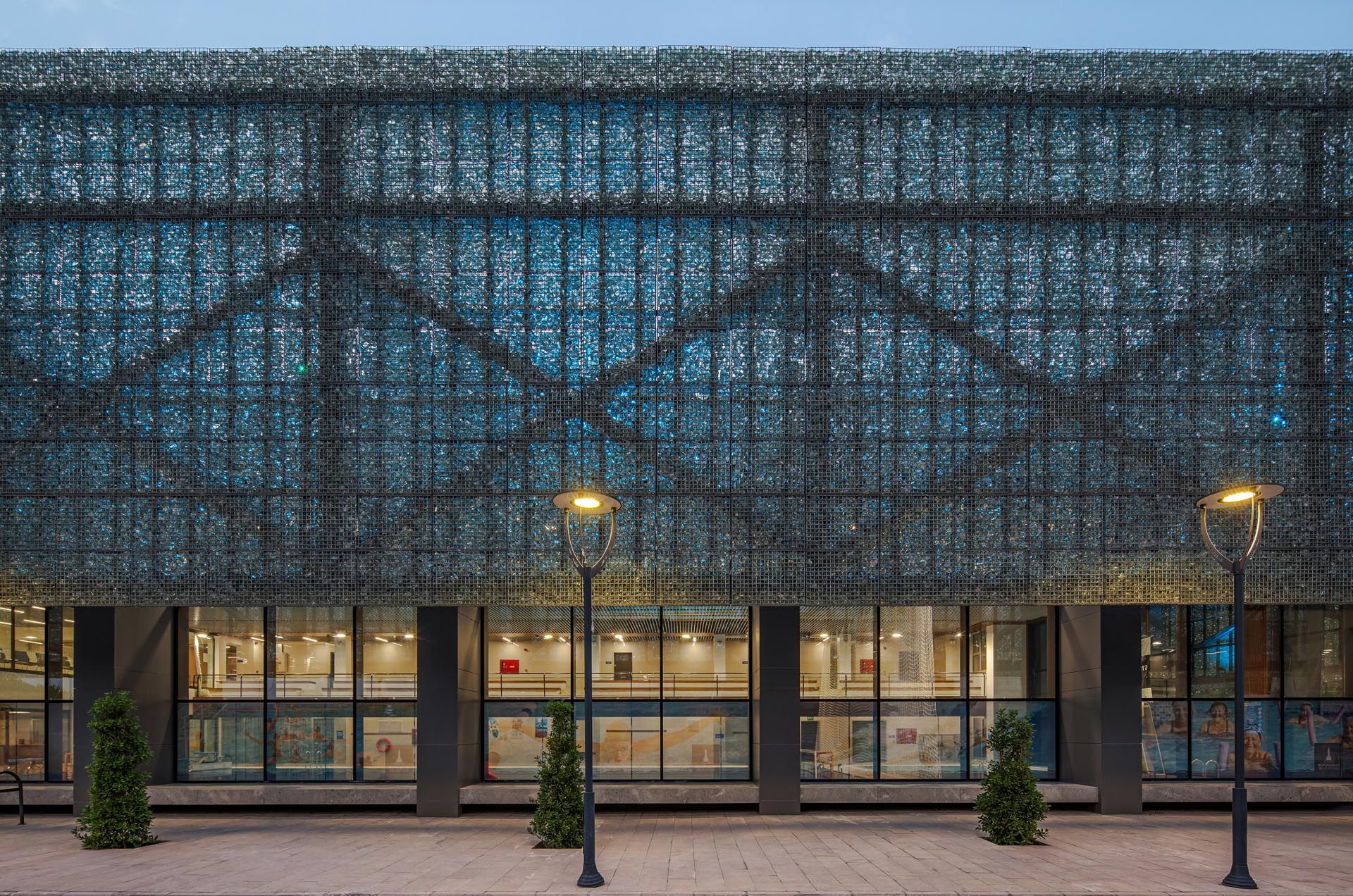

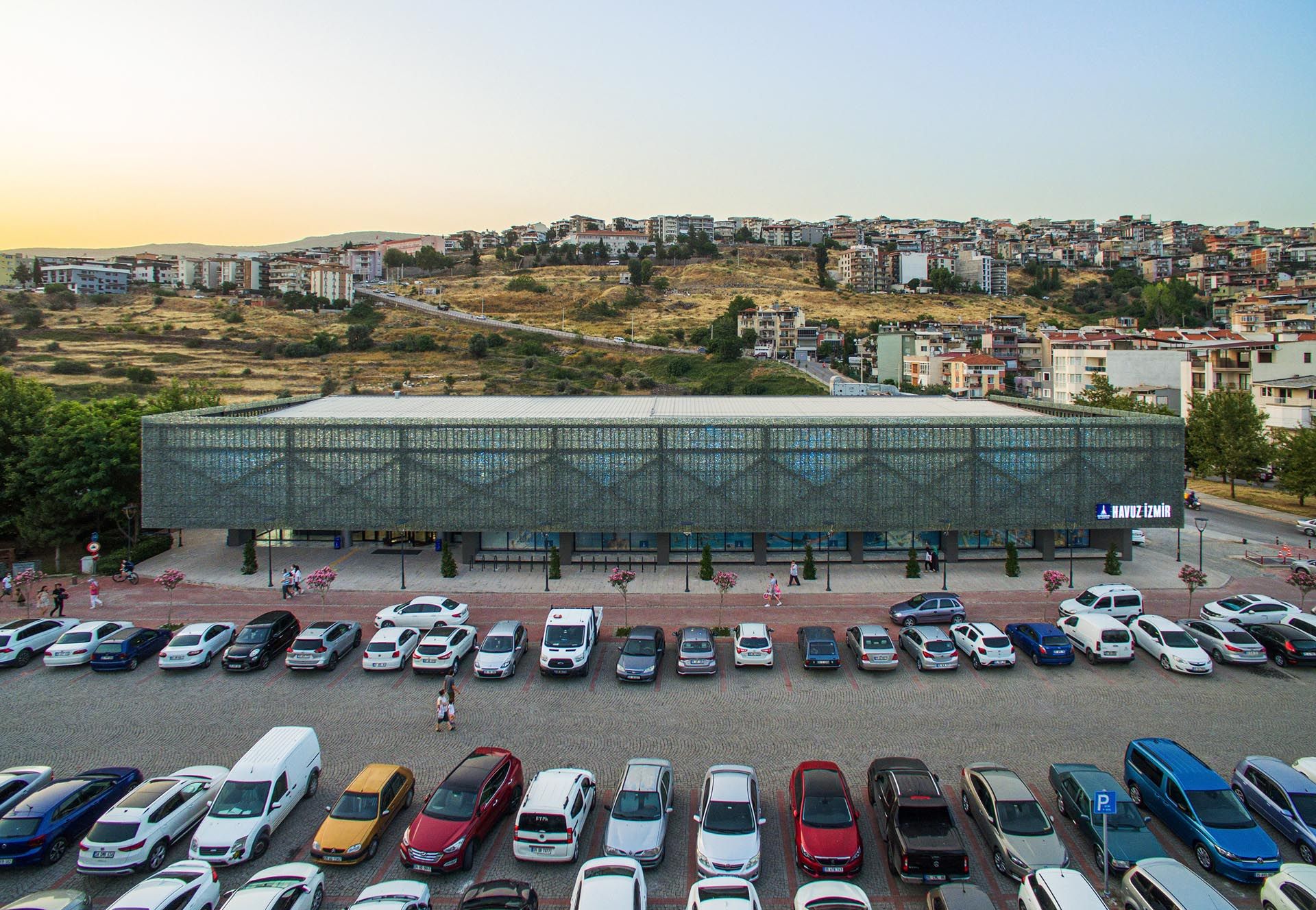

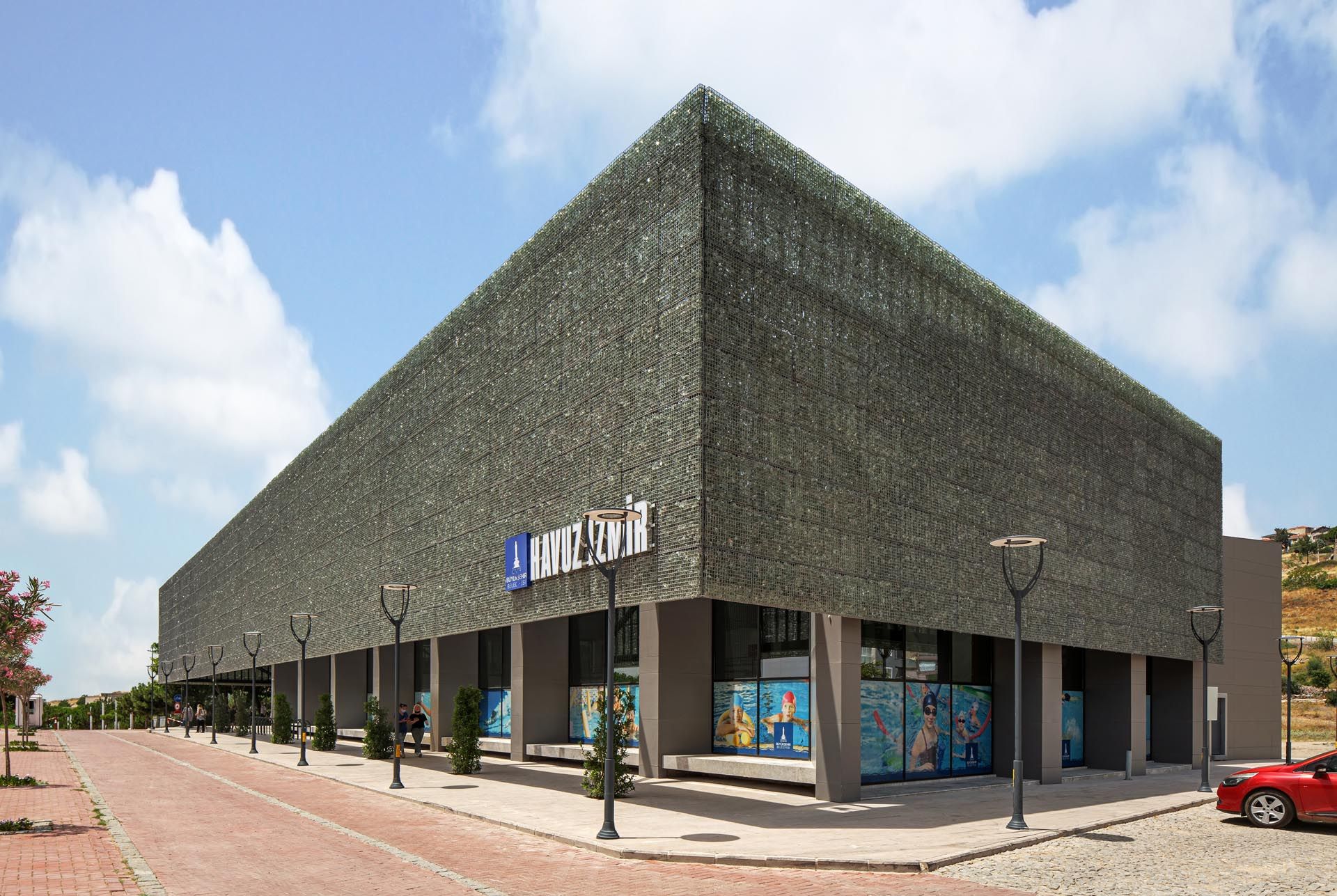

Glass has been one of the main building materials of architecture for centuries, although its shape, color, and details change, it always appears in the same form and for the same purpose. We found it inspiring to use a waste material generated during the production of glass in its non-recycled state, to explore different uses for different materials. The glass rocks, which we use unusually, are located in a suspended shell instead of transferring their loads directly to the ground. This shell also offers solar control on the south and west facades. This shell also offers solar control on the southern and western fronts.
几个世纪以来，玻璃一直是建筑的主要建筑材料之一，尽管它的形状、颜色和细节发生了变化，但它总是以相同的形式出现，并用于相同的目的。我们发现，使用玻璃生产过程中产生的一种未回收状态的废料，探索不同材料的不同用途，是一件令人鼓舞的事情。我们不寻常地使用的玻璃岩石位于一个悬浮的外壳中，而不是将它们的负载直接转移到地面上。这种外壳还为南立面和西立面提供太阳能控制。这种外壳还提供了南部和西部前线的太阳能控制。
Identity Disc Project Location: Bornova, İzmir,Türkiye
Project Type: Swimming Pool
Employer: İzmir Büyükşehir Belediyesi
Project Year of Start: 2016
Project Completion Year: 2017
Build Completion Build: 2020
Land Area: 4,732 m²
Total Construction Area: 3,205 m²
Architectural Project: Not Architecture Serdar Uslubaş – Merih Feza Yıldırım
Static Projects: Kobe Construction – Barış Köroğlu
Mechanics Project: Prodem Machine – Kamil Demir
Electric Project: Onmuş Electric Office – Cihan Onmuş
Photo: ZM Yasa Photo
Map Services: Rs Map Office
Ground Survey Services: Msc Geotechnics
Contractor Company: Koman Construction
Software Used For Architecture: Autocad – Sketch Up – Photoshop
</ |
|
|
|
|
|
|
|
|
