这栋房子坐落在府里市（河南省）一个新的城市发展区。由于这个区域在以前是墓地的附近，据称有深埋的墓穴，所以在建设之前必须挖掘旧土层，以消除上述假设。这种观点有助于开发利用挖掘出的用地作为房屋的一部分（在旧土层被清除后），从而不仅创造了可辨认的空间特征，而且还有充分利用地热能的可能性。

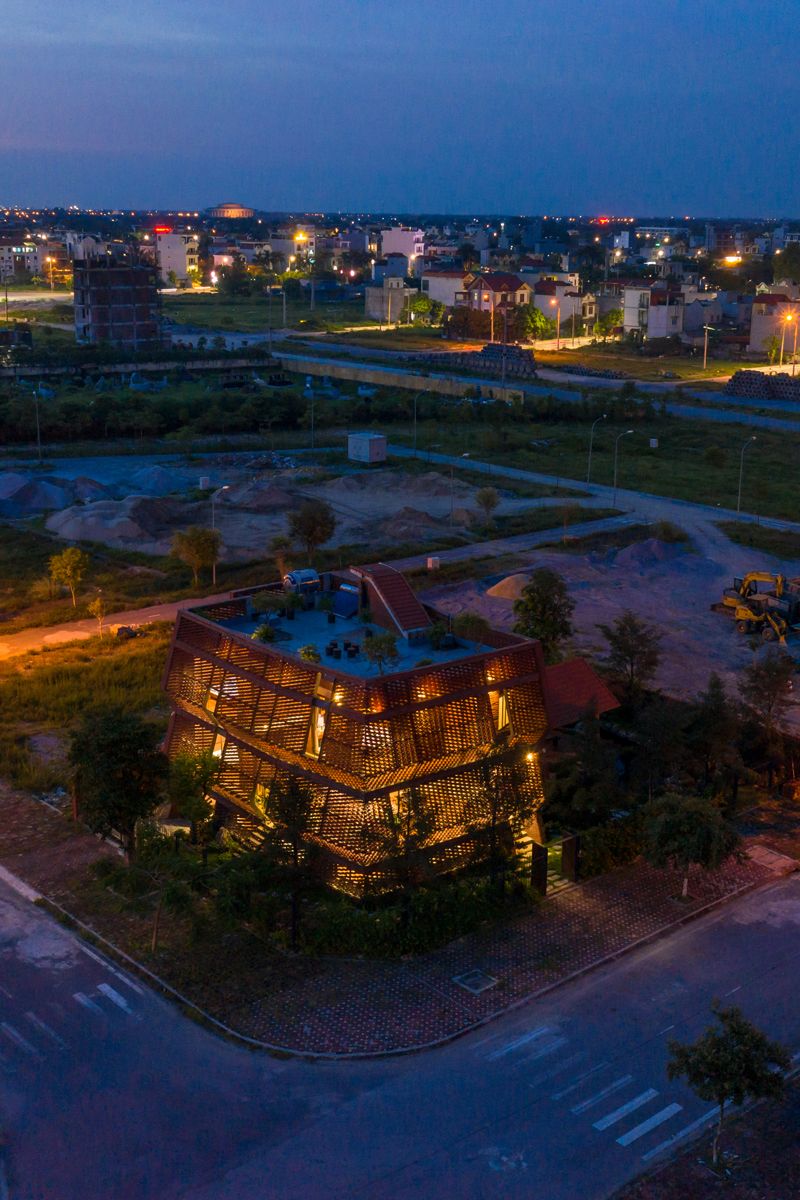

The house is located in a new developing urban area in Phu Ly city (Ha Nam province). Since this area is supposed to have graves deep underground (due to its proximity to the former cemetery), it is, therefore, necessary to excavate the old soil layer before construction so as to clear the above-mentioned assumption. This perspective then helps develop the concept of making use of the excavated site as part of the house (after the old soil layer is removed) so that not only distinguishable spacial features are created but also the possibility to harness geothermal energy is made.

该房屋名为“瓦巢”，它传达了创造一个空间的理念，将Nest与许多角落相结合，这些壁龛通向地面和部分隐藏在地下的古老坑屋。这种组合赋予了房屋建筑独特的波纹状外观，外观上感觉像是多孔/有孔的外壳，内部空间较大。

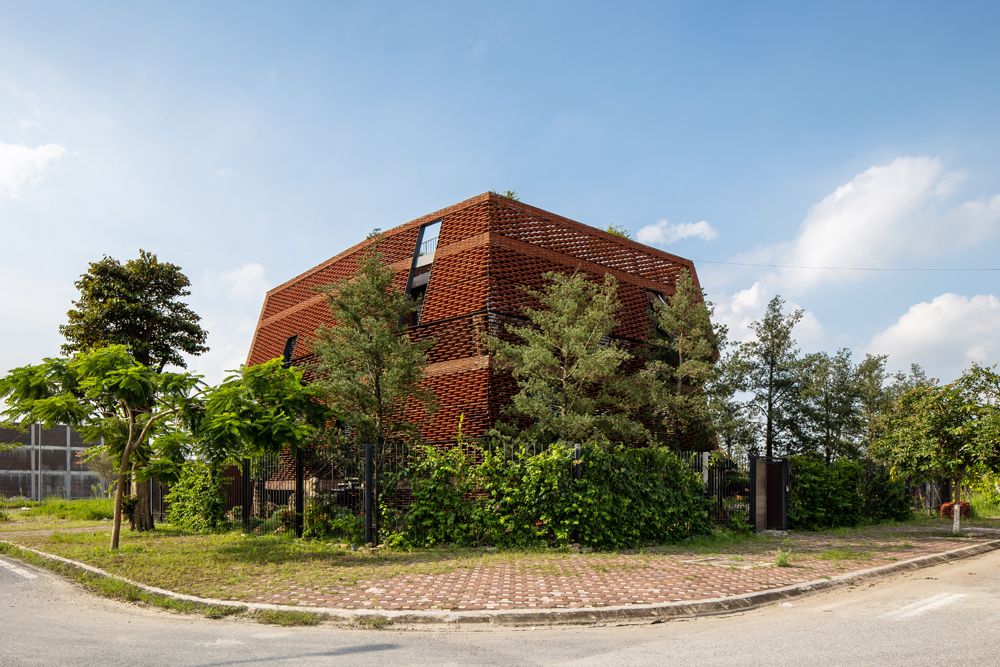

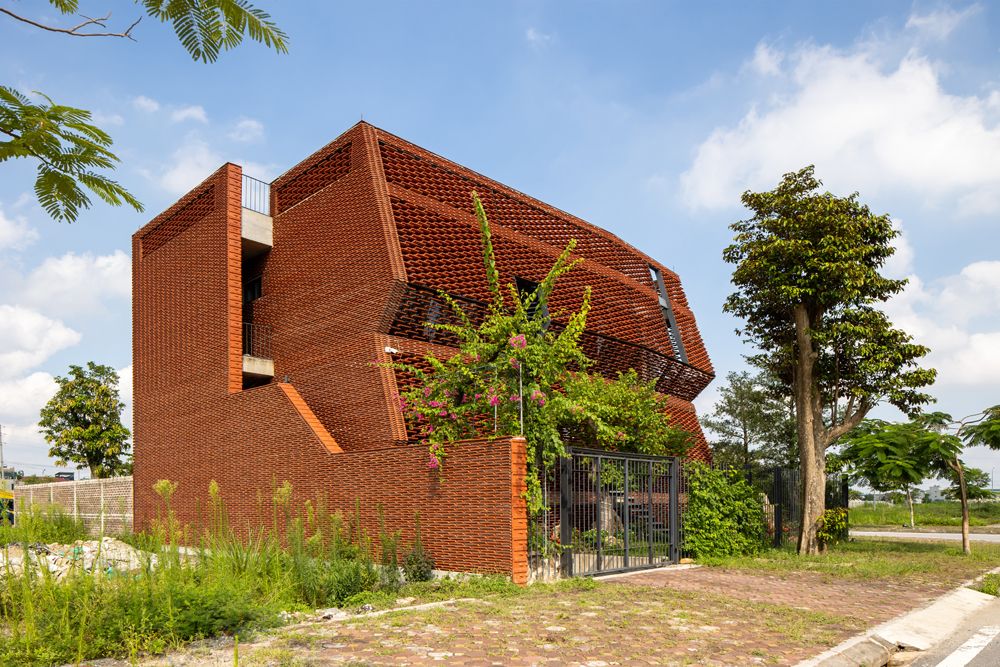

Named as Tile Nest, the house communicates the idea of creating a space, a blend of the Nest with many nooks and crannies finding all their ways up to the ground and the Ancient Pit House partially hidden underground. This combination gives the house’s architecture a distinct corrugated appearance, with the shell felt like porous/ perforated on the outside and large space on the inside.

外壳由许多瓷砖组成，它们好像在飞行（引发对传统房屋方式中的叠屋顶和遮阳篷的想法...）；中间层以不同高度的过渡绿色阳台为特色，这带来了迷人的景色，帮助调节内部使用空间的微气候。

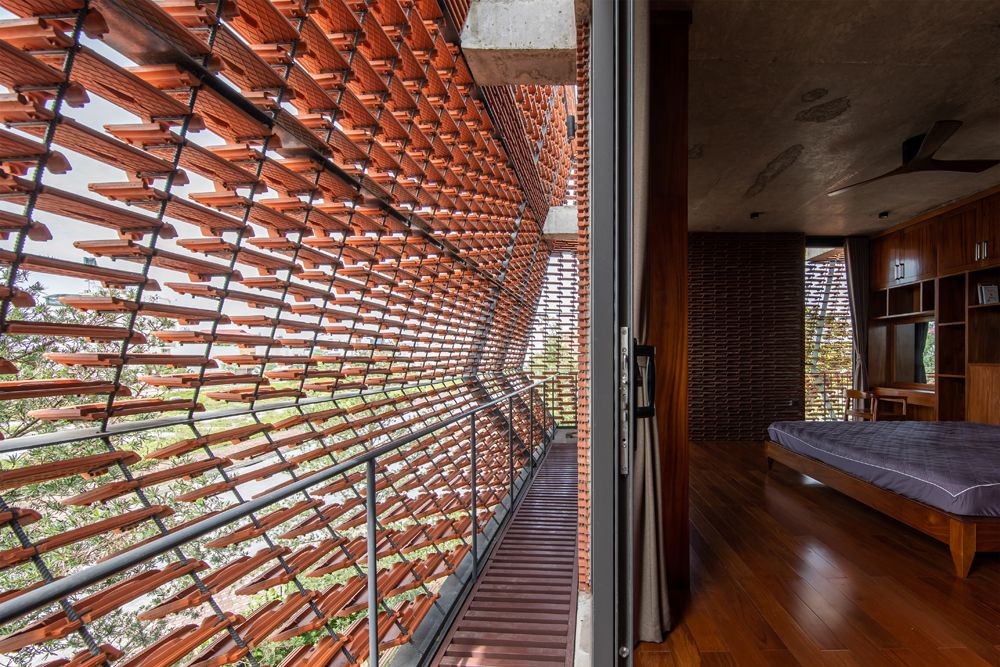

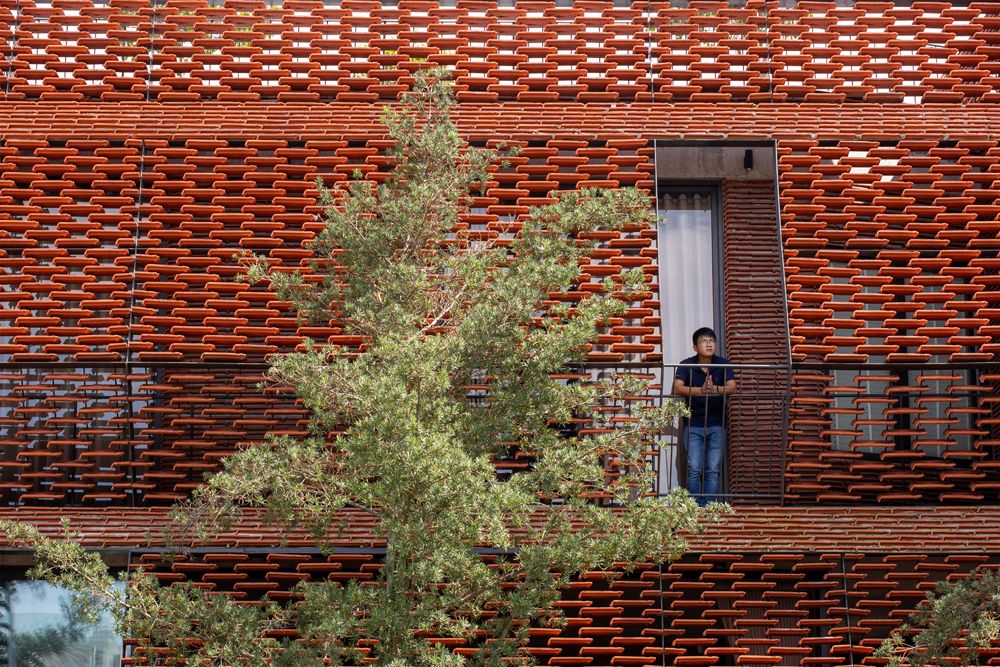

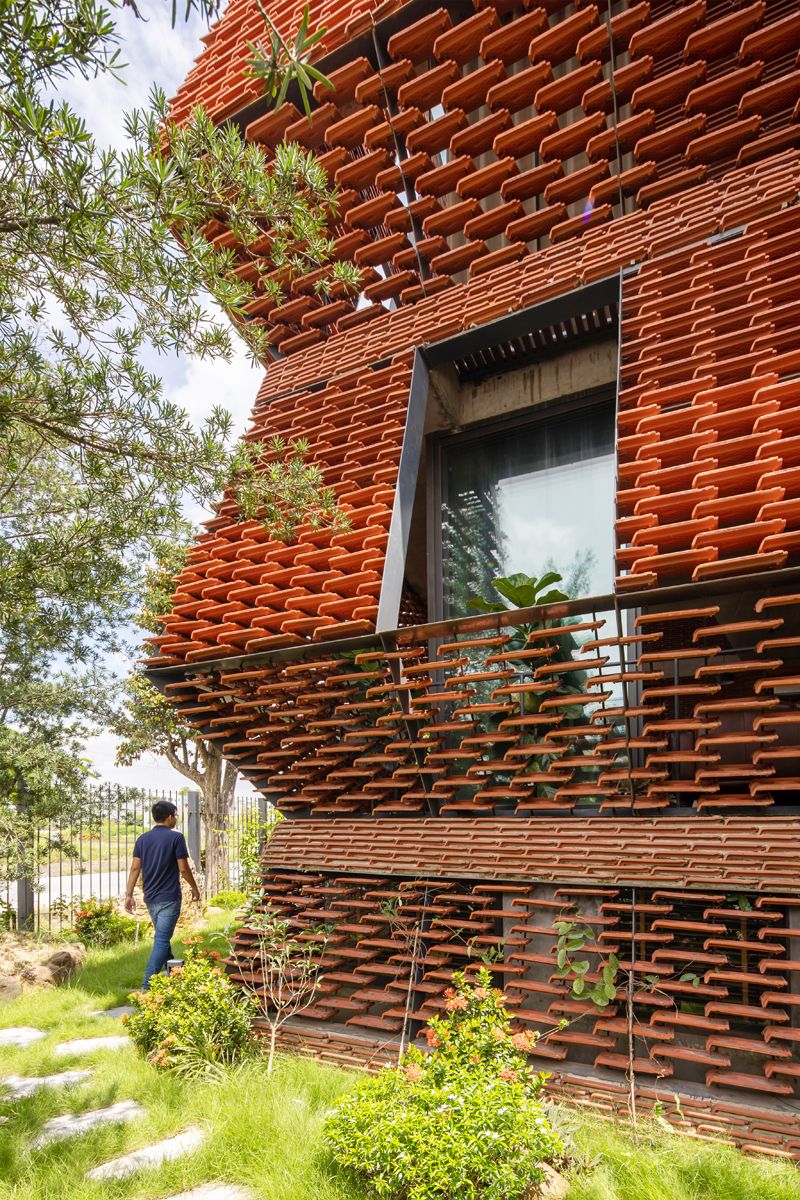

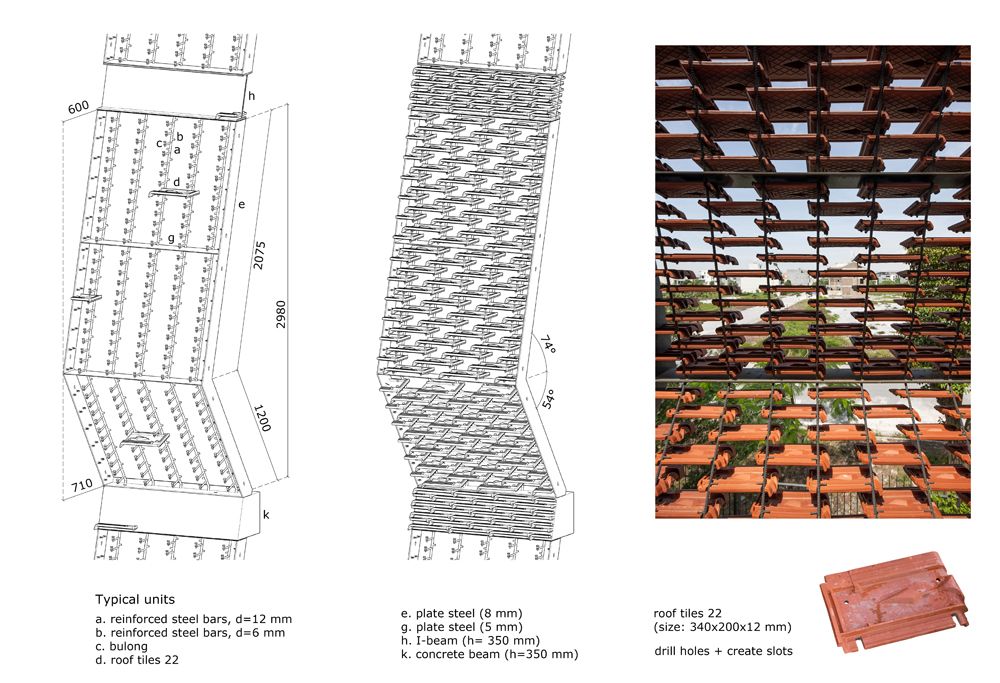

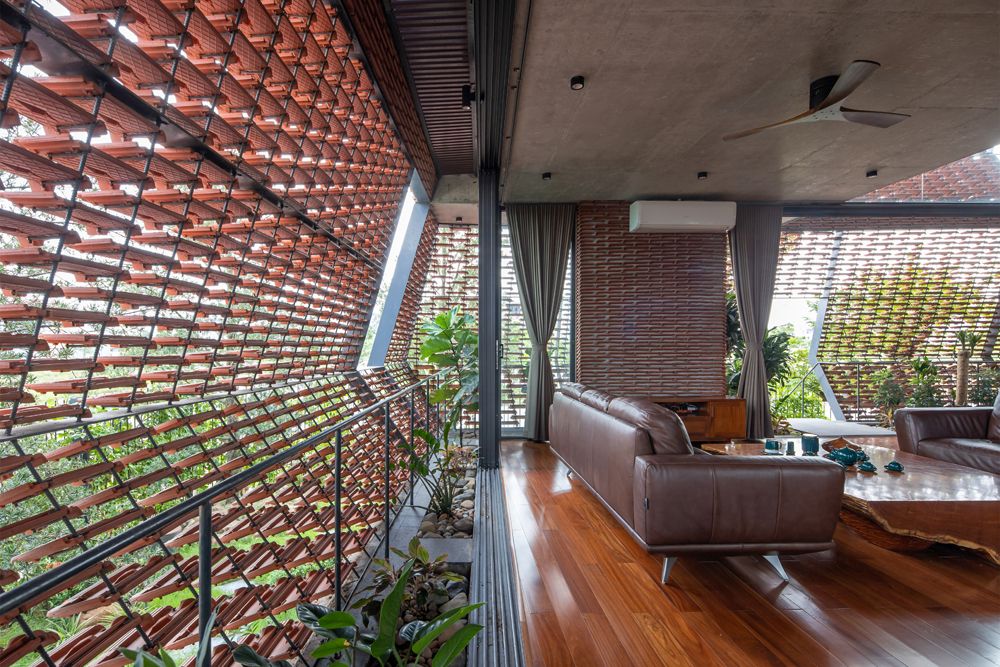

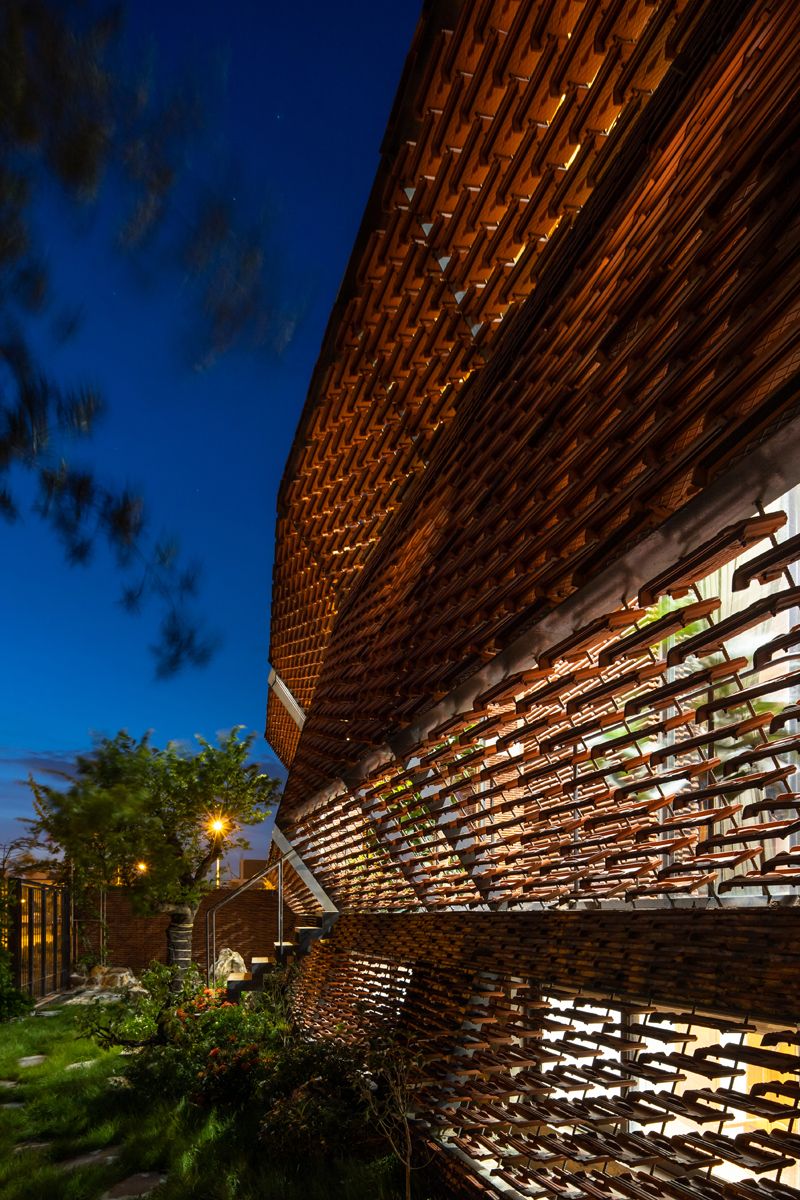

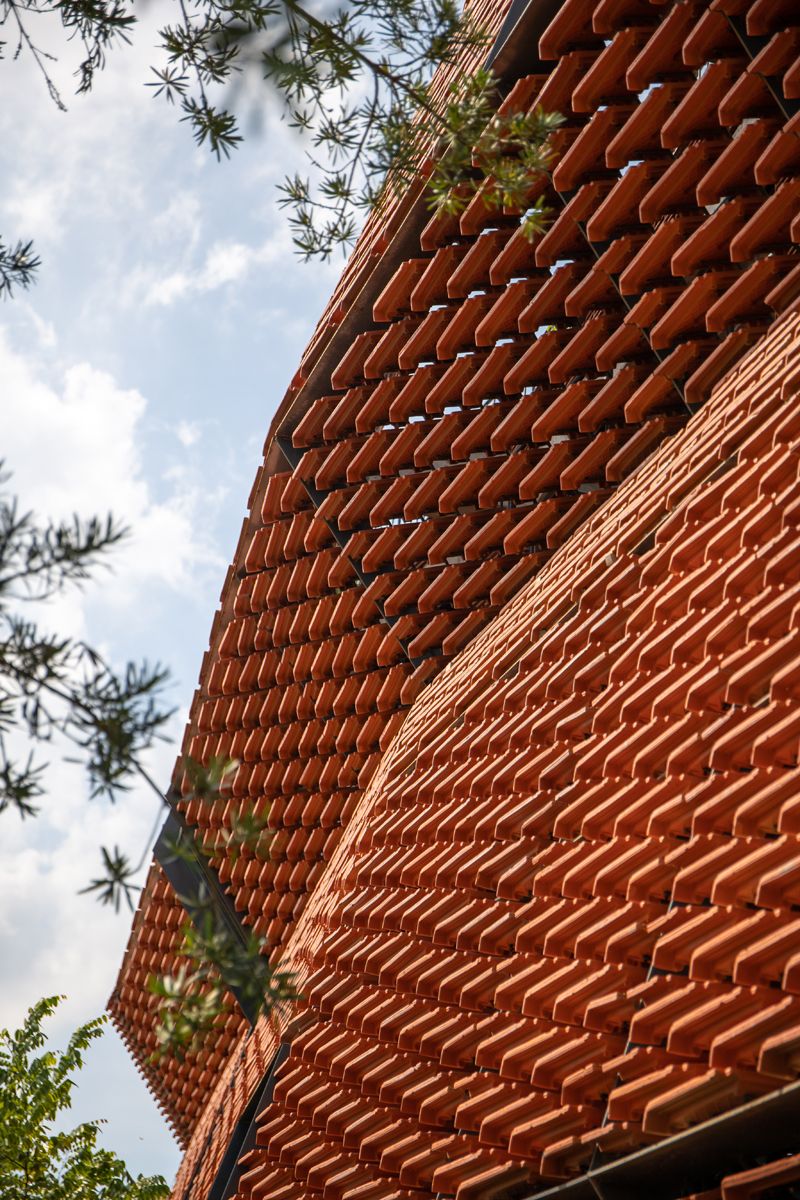

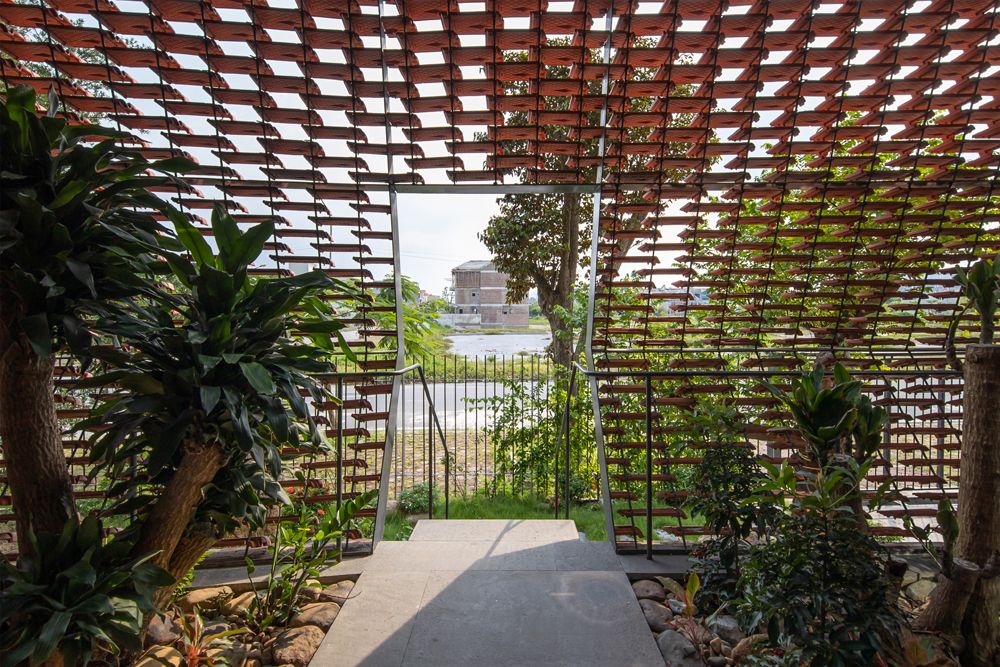

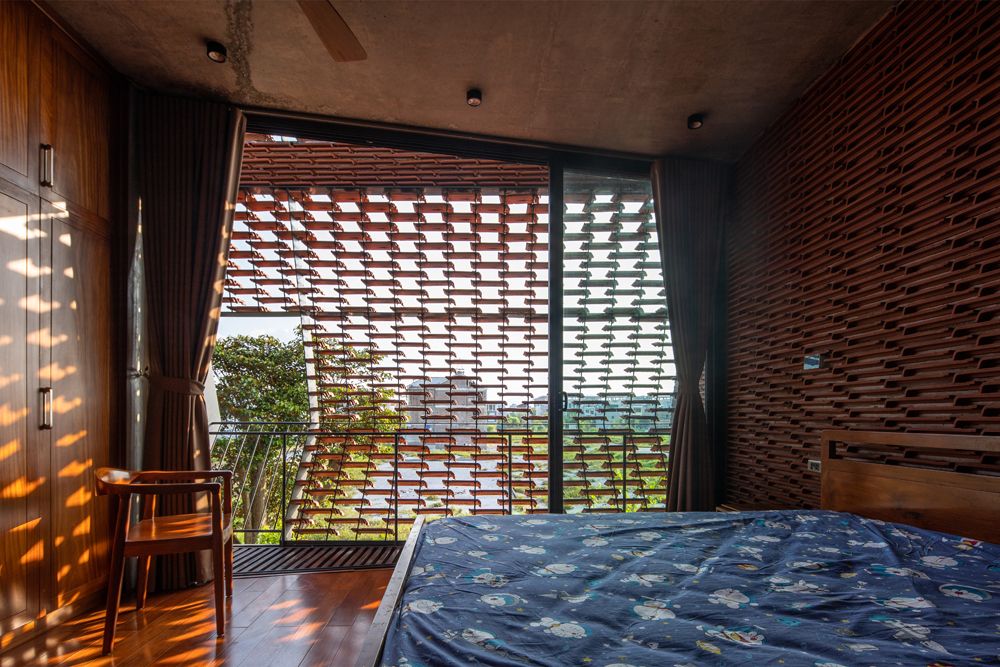

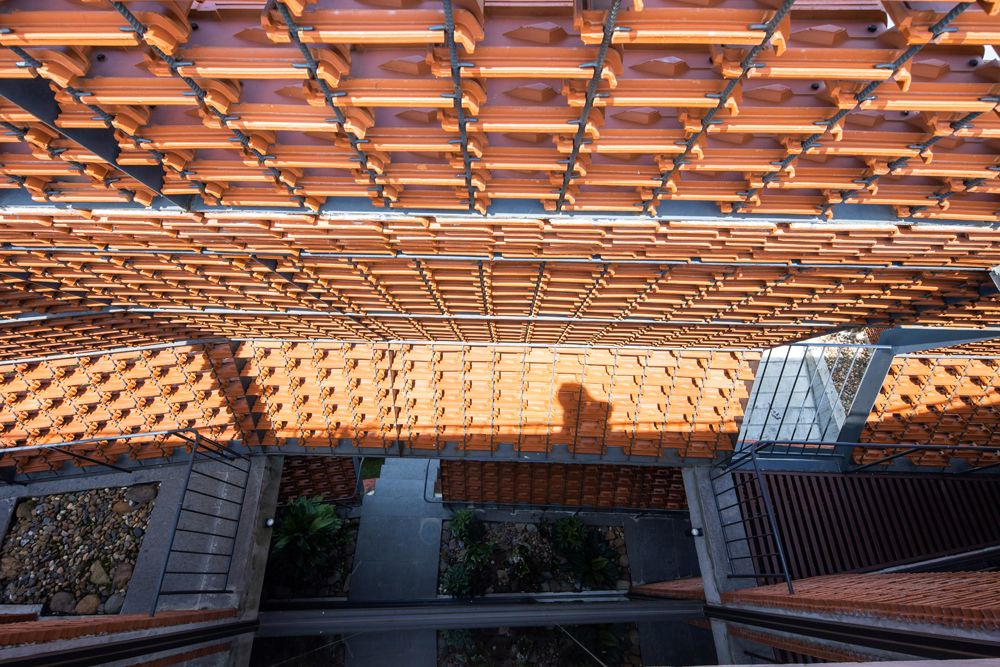

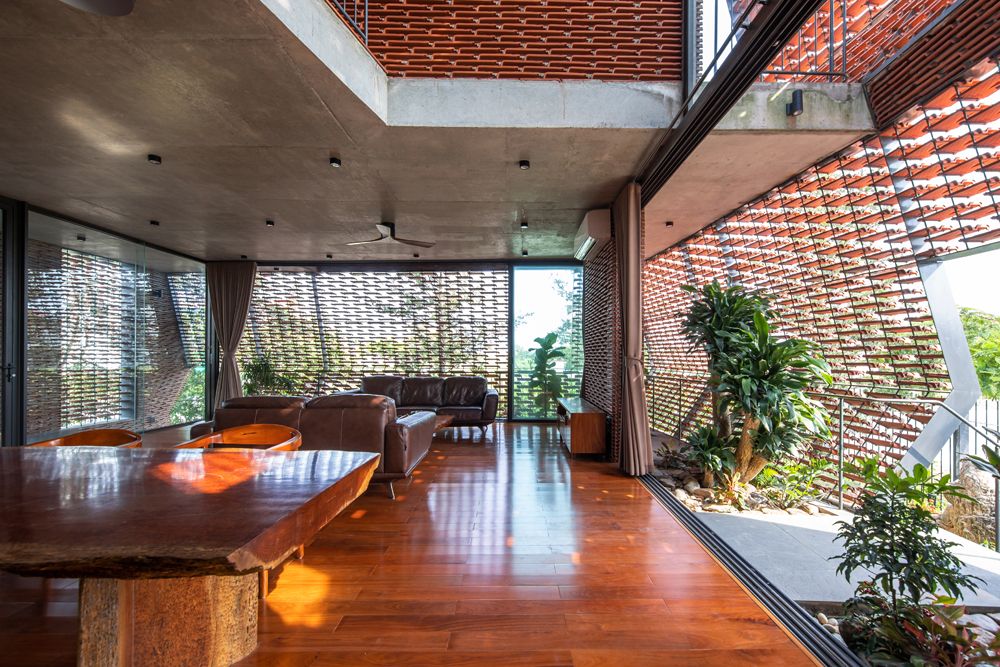

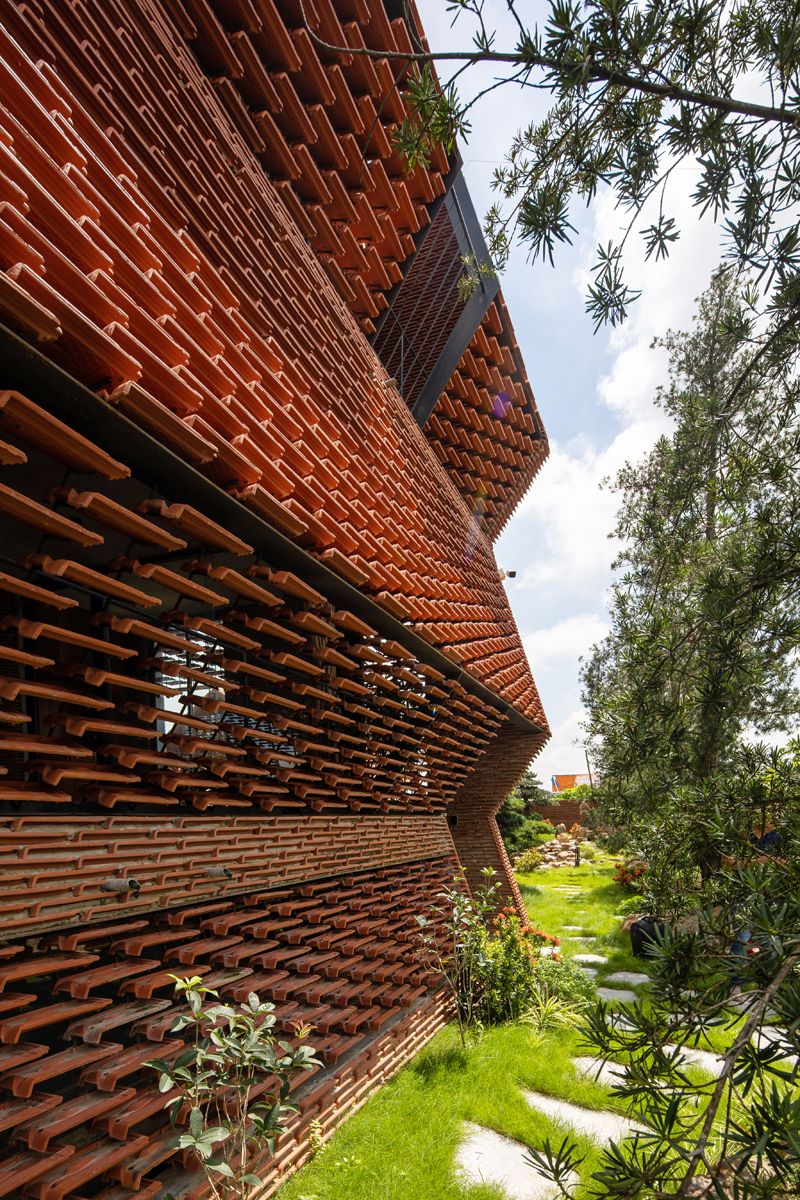

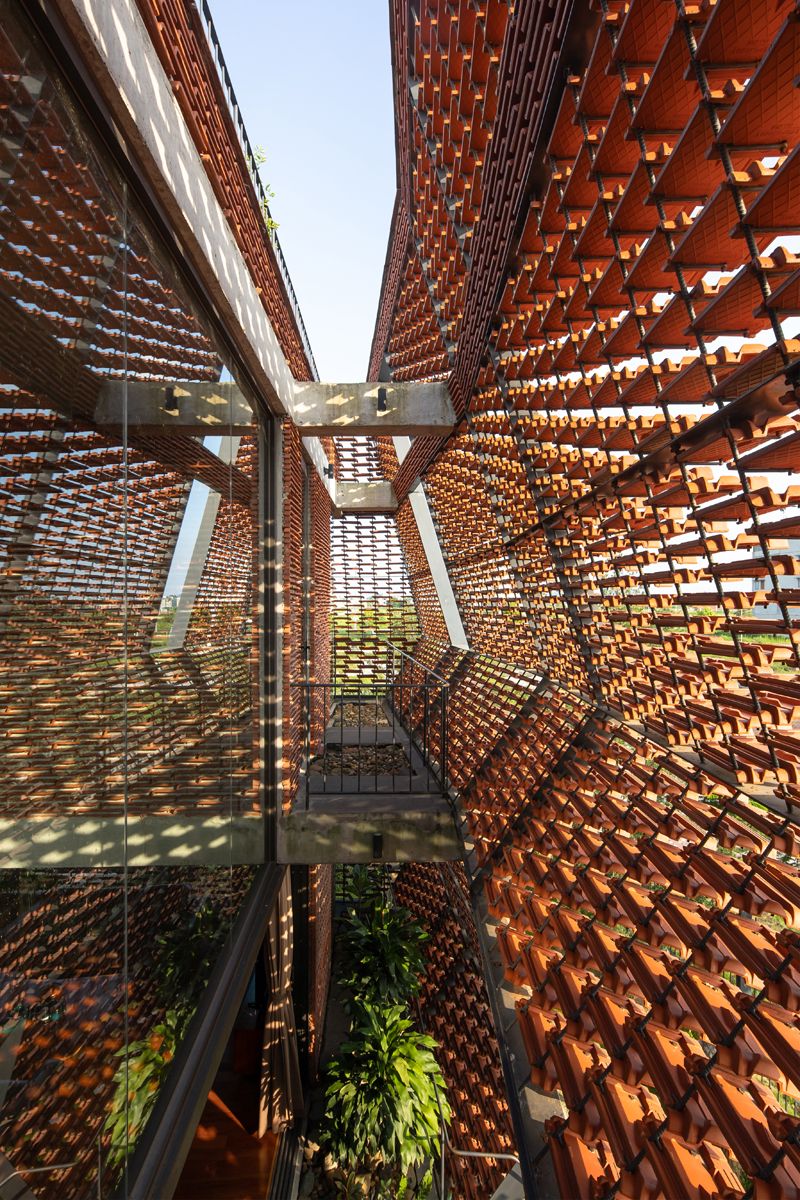

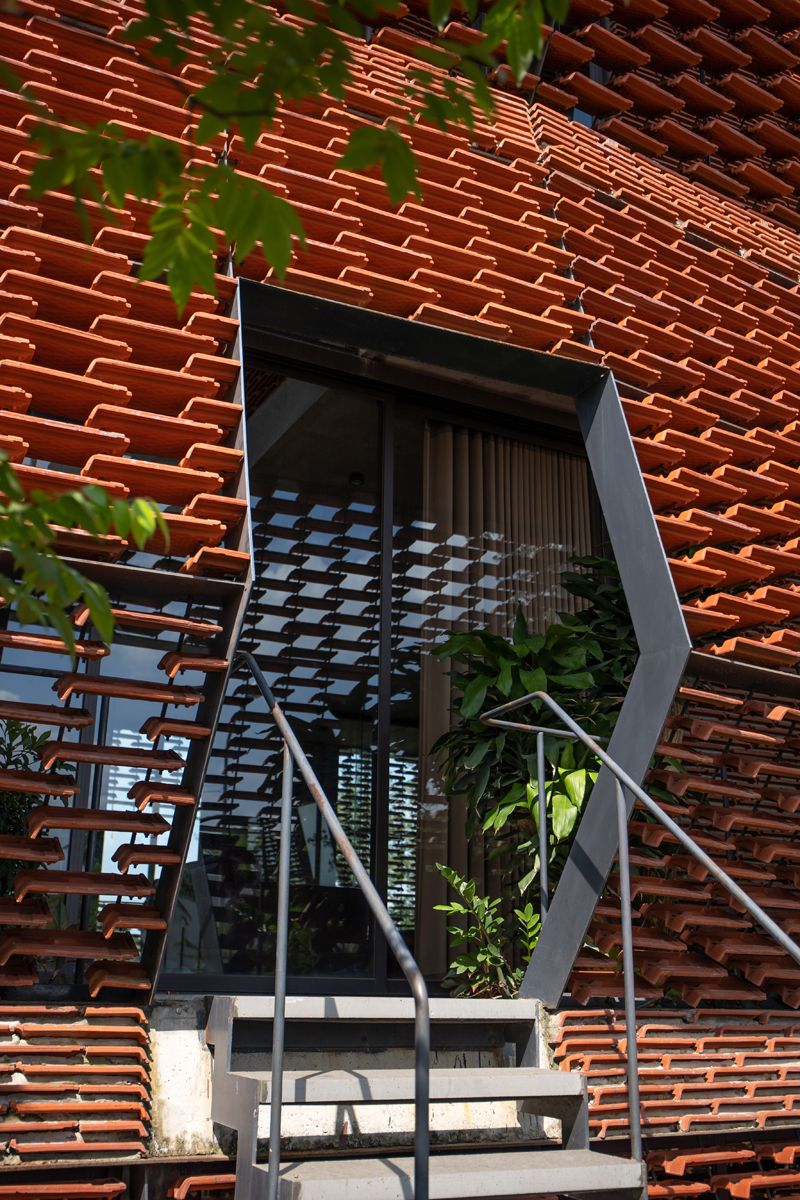

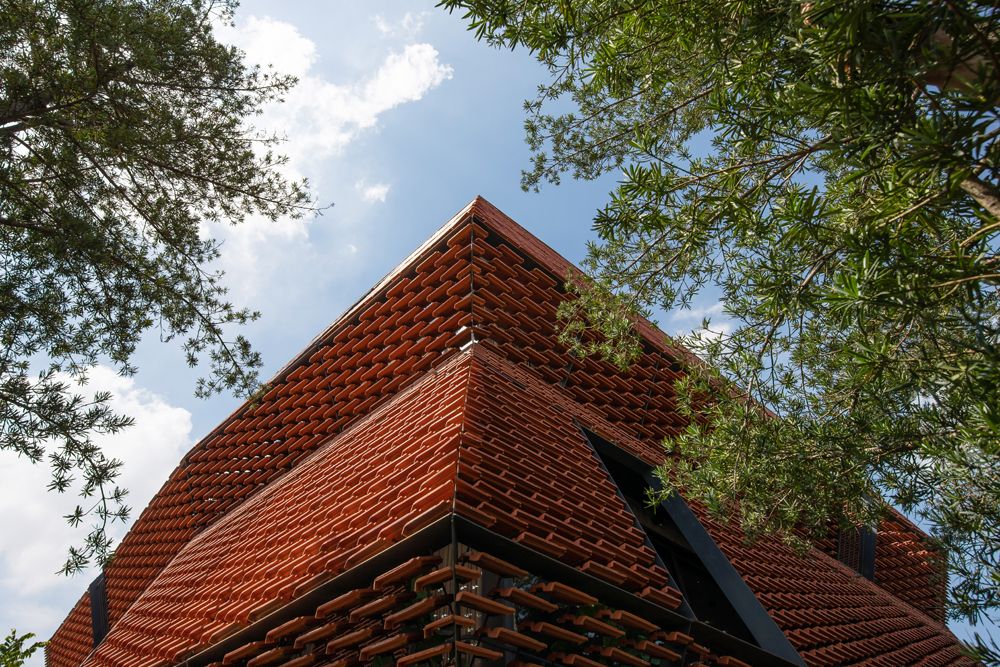

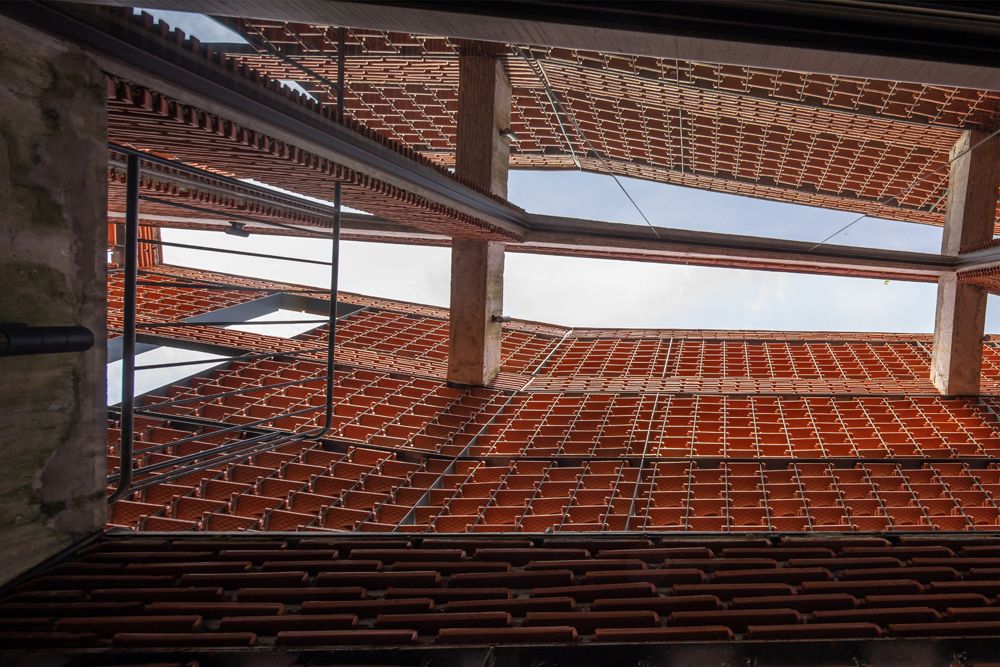

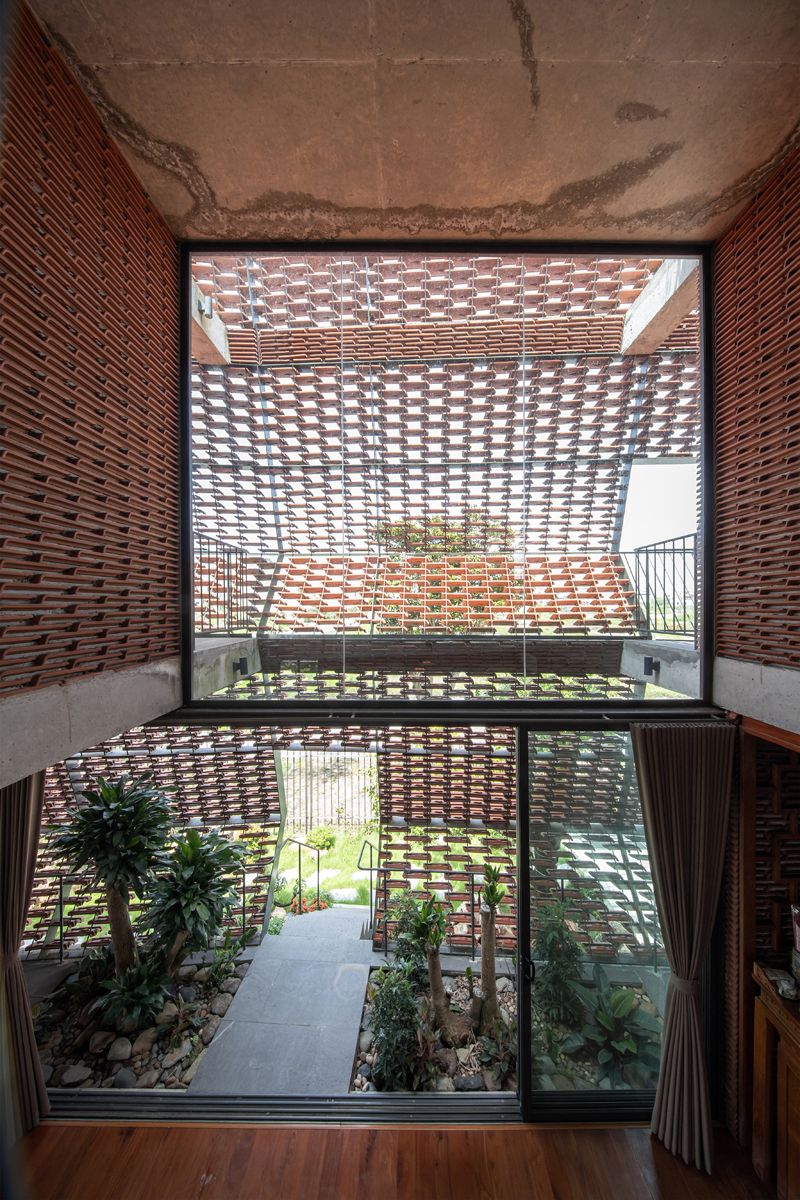

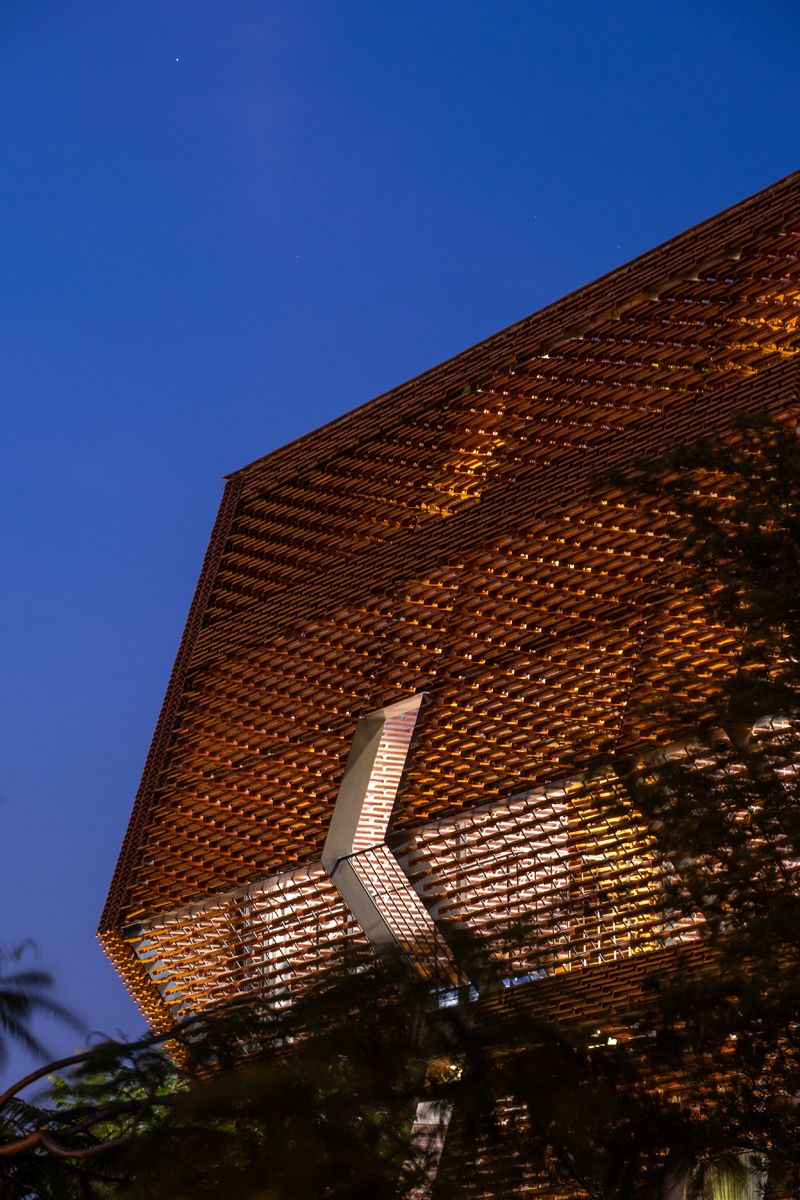

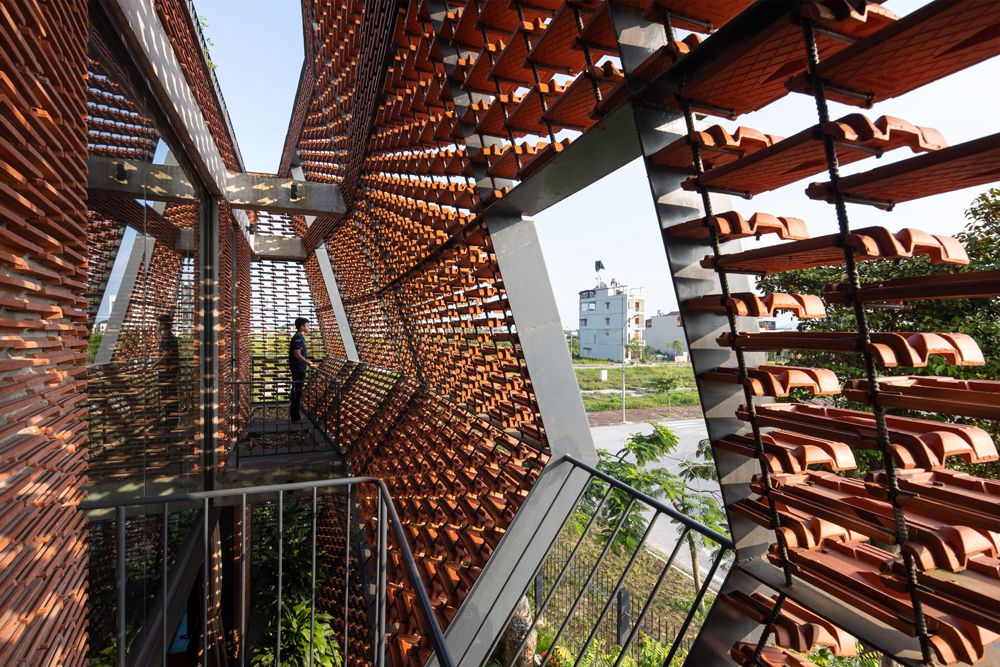

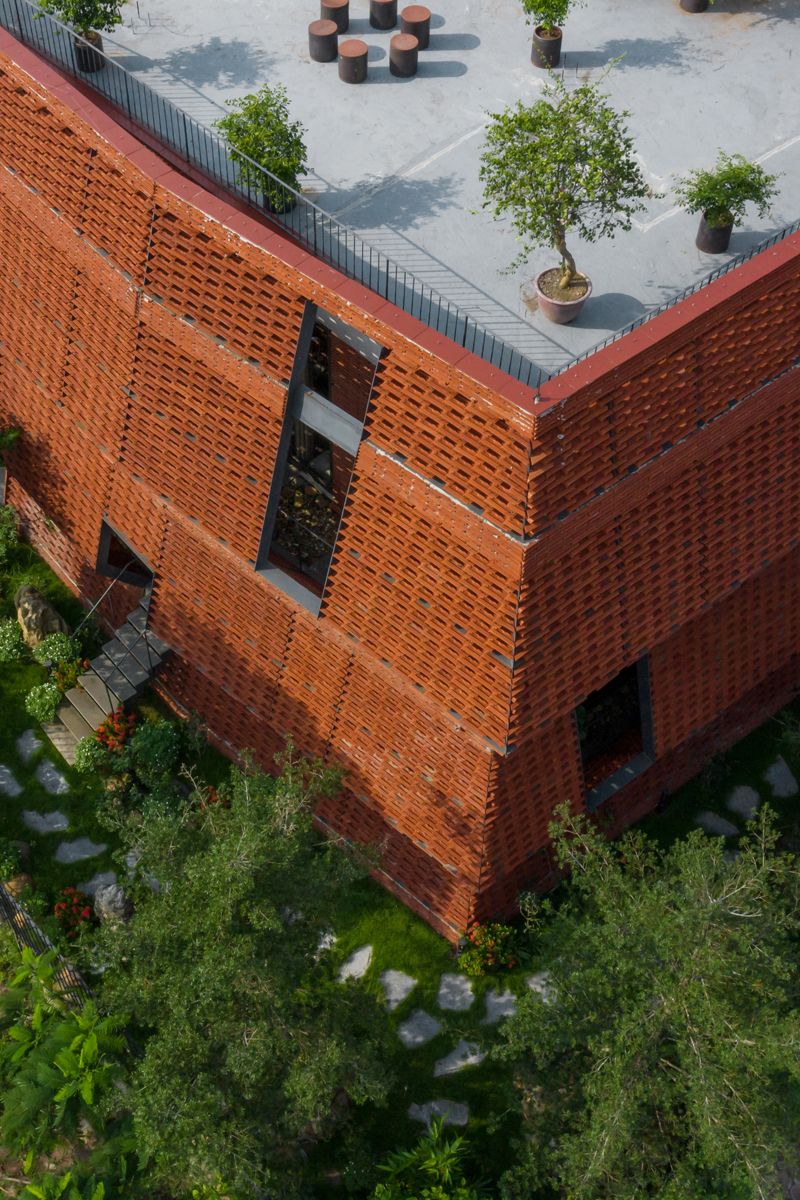

The outer shell is made up of many tiles suspended as if they were flying (provoking a thought of a stacked roof, and a sunshade, as found in a traditional house manner, ..); The middle layer is characterized with transitional green balconies at different heights, which brings about captivating views and helps regulate the microclimate for spaces for use inside.

长期以来，瓷砖已经成为越南人民熟悉和喜爱的材料，但是它被应用在这栋房屋上的方式不同寻常，可以透过视觉、触感和感知特性感受到其存在，从而在光线反射、风和植物气味的花朵图案空间中创造出不同但密集的体验 - 一个沉浸在自然中的建筑，实现了一个充满记忆的个性。

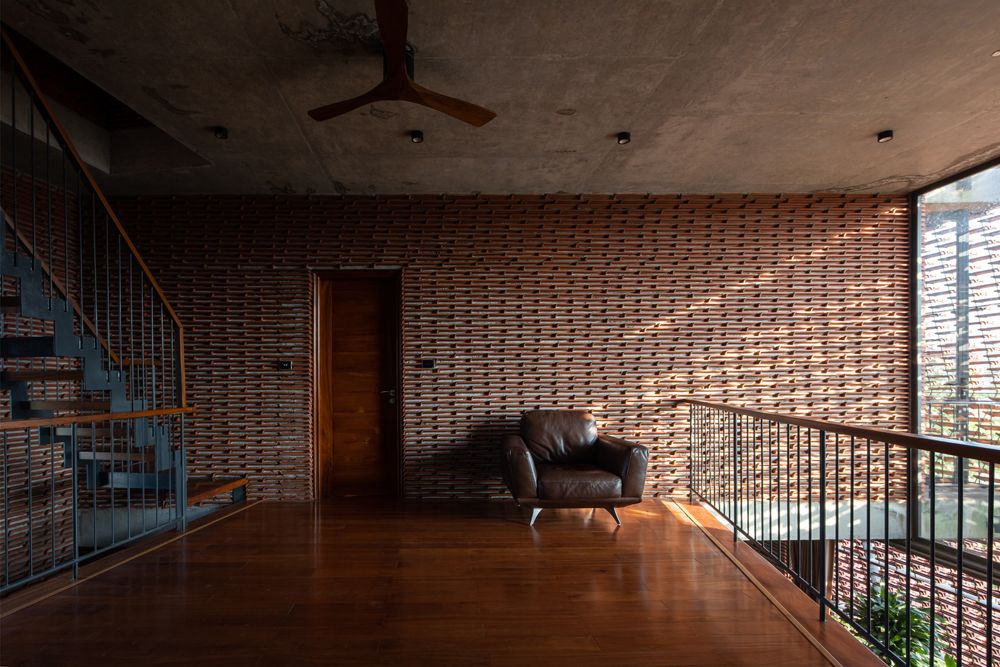

For a long time, tile has become a familiar and popular material with Vietnamese people, yet it is applied to this house in an unusual way to make its presence felt by seeing through, touching and sensing properties, thereby creating different but close experiences in the space of flower-like patterns from sunshine reflection,, wind and scent of plants - an Architecture immersed in nature realized by a full-of-memory personality

项目图纸

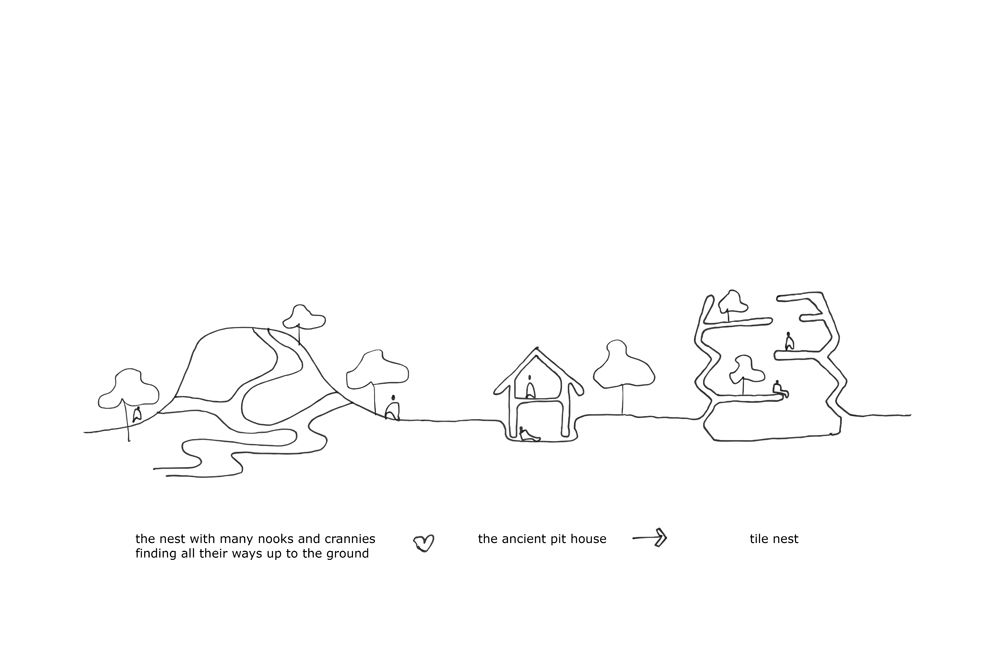

△设计概念

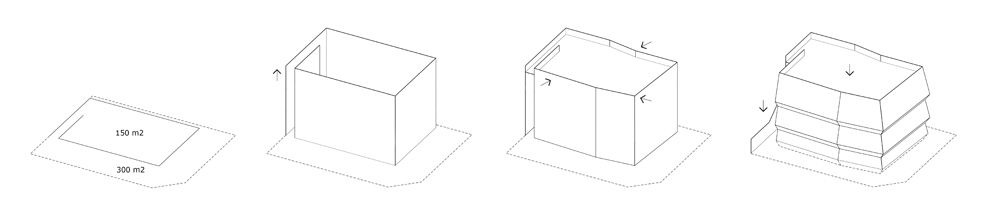

△体块生成

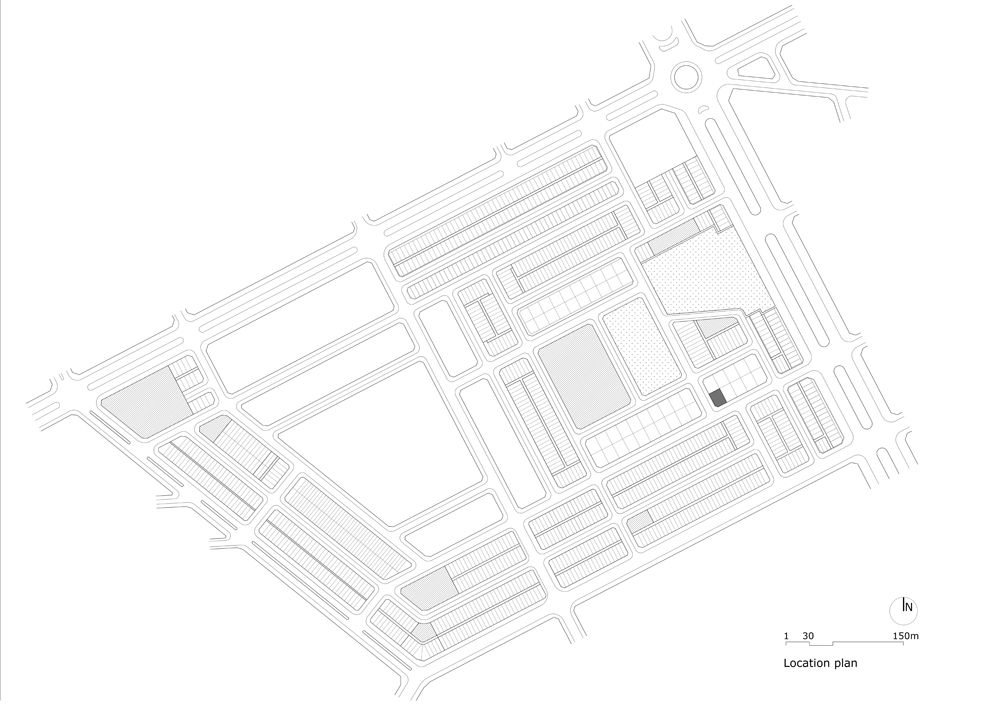

△总平面图

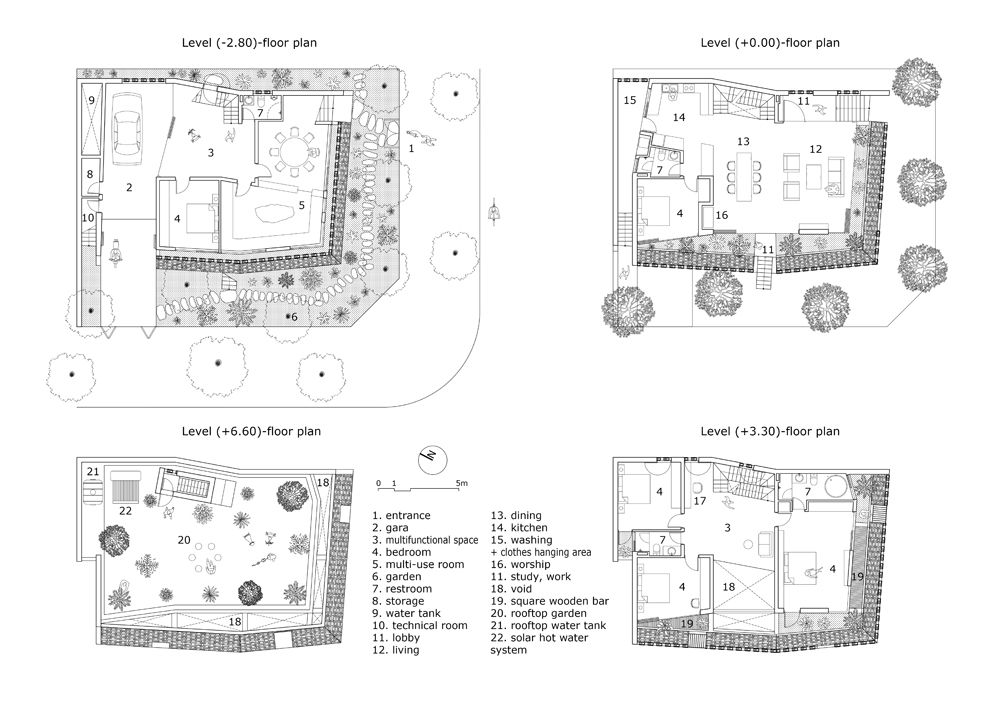

△平面图

△建筑立面与剖面图

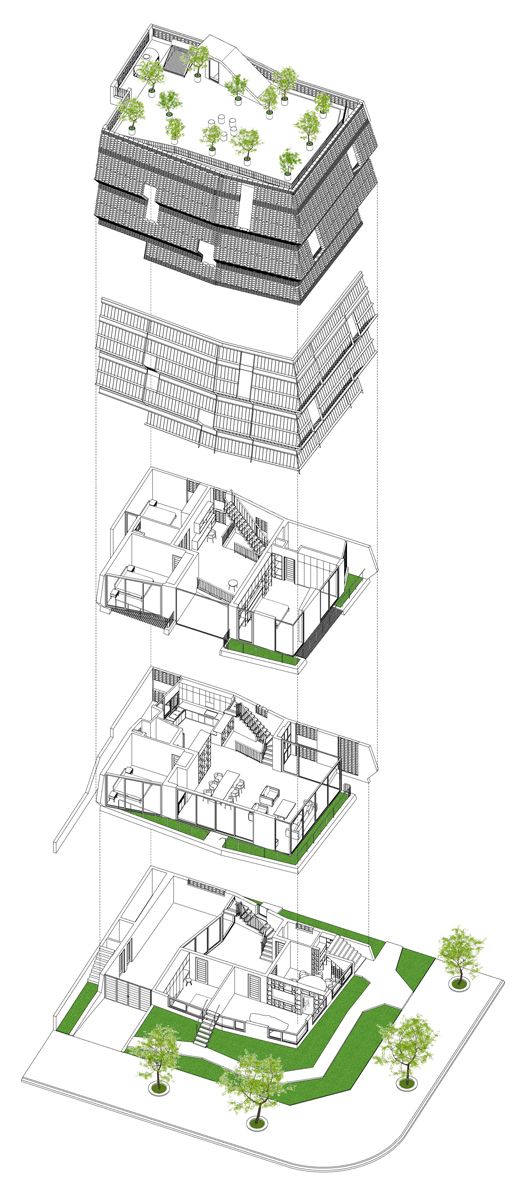

△轴测图

建筑设计：H&P Architects
项目地址：越南河南省府里市
设计团队： Doan Thanh Ha , Nguyen Hai Hue, Trinh Thanh Huyen, Luong Thi Ngoc Lan, Tran Van Duong, Ho Manh Cuong, Nguyen Van Thinh
土地面积： 300 m2
总建筑面积： 450 m2
完成日期： July 2021
主要材料：屋面瓦22 (Viglacera)，钢材，混凝土
摄影师： Le Minh Hoang
短片： https://youtu.be/jZ9OAG8U-jY

Architect: H&P Architects
Location: Phu Ly city, Ha Nam province, Vietnam
Team: Doan Thanh Ha , Nguyen Hai Hue, Trinh Thanh Huyen, Luong Thi Ngoc Lan, Tran Van Duong, Ho Manh Cuong, Nguyen Van Thinh
Land area: 300 m2
Total floor area: 450 m2
Completion date: July 2021
Main materials: Roof tiles 22 (Viglacera), steel, concrete
Photographer: Le Minh Hoang
Short film: https://youtu.be/jZ9OAG8U-jY
