[Y/N] Studio | Bradbury 工厂[Y/N] Studio | Bradbury 工厂

布拉德伯里工作室在吉列特广场，达尔斯顿，现在已经向新的和回归的租户重新开放了大门。新建筑包括翻新了 600 平方米的现有经济实惠工作空间，更换了十个小型零售单位，并在一个两层楼的扩建中提供了近 500 平方米的额外工作空间。布拉德伯里工作室是这个首都最独特和以社区为重点的公共空间发展故事的下一个步骤。

Bradbury Works in Gillett Square, Dalston, has now re-opened its doors to new and returning tenants. The new building includes the refurbishment of 600m2 of existing affordable workspace, the replacement of ten mini retail units, and the provision of almost 500m2 of extra workspace in a two-storey extension. Bradbury Works is the next step in the evolving story of one of the most unique and community focused public spaces in the capital.

该方案旨在保留现有建筑的最佳属性，包括其租户，同时提供额外的灵活空间以适应各种企业。面向广场，提供了新的10平方米零售单元，配备全玻璃可开启正面，并通过个性化的门保护隐私和安全性。当门打开时，个性化标识可为每个空间带来活力和吸引力。

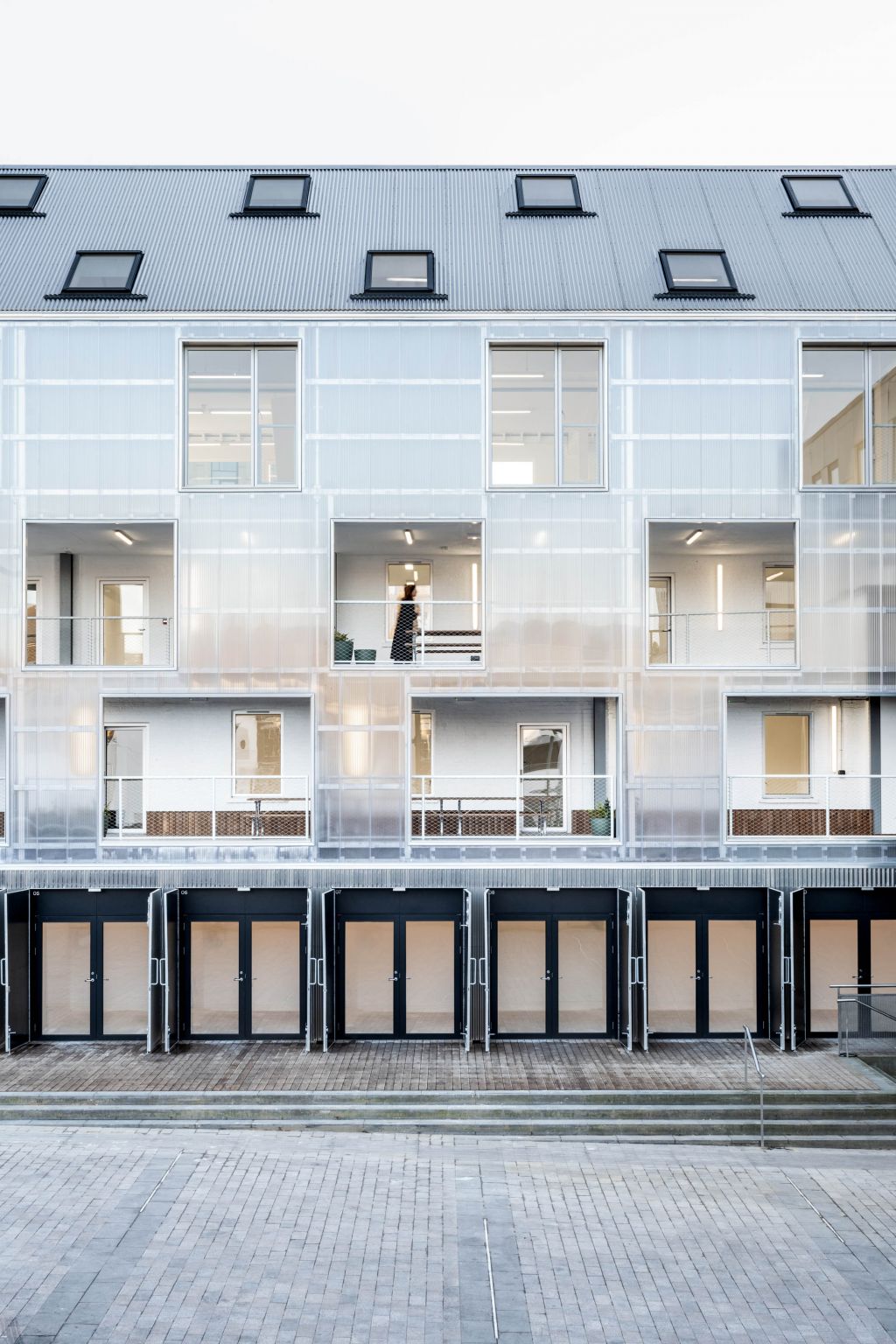

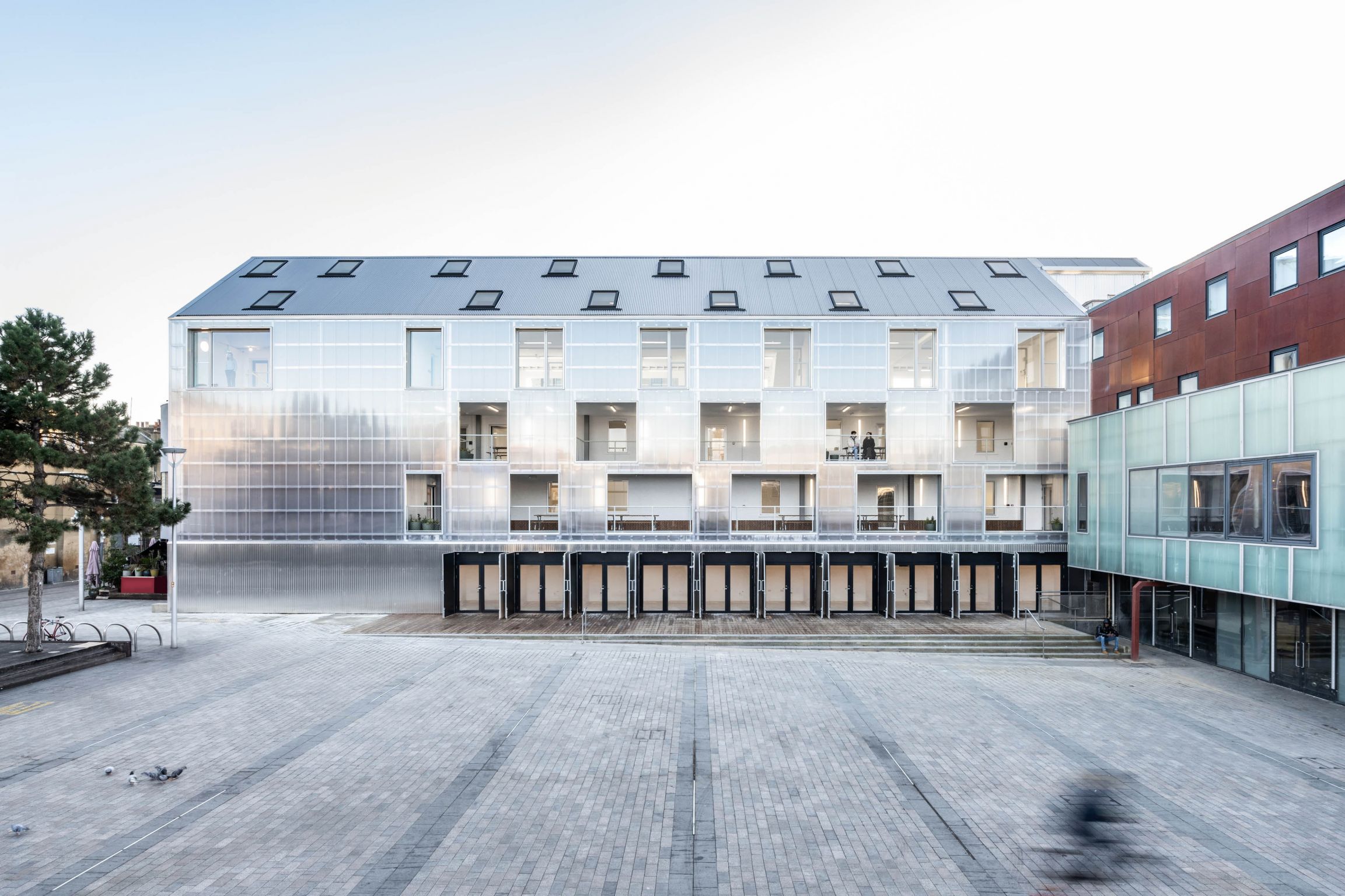

The scheme looks to retain the best attributes of the existing building including its tenants while providing additional flexible spaces to suit a variety of businesses. Facing into the square, new 10m2 retail pods are provided with fully openable glazed frontages which are further protected by profiled metal gates for security and privacy when closed but can transform the individual spaces with vibrant signage when open.

原有的维多利亚式排屋的砖石结构得以保留、翻新和翻修，同时保留了面向布拉德伯里街的现有商店、酒吧和餐厅，提供了10-36平方米的小型和中型工作空间单位。一个带有遮盖的双层外部露台空间提供了通往上层单位的通道。野餐桌、常绿蕨类植物和攀爬植物旨在鼓励租户在各个季节聚集在一起，并增加与广场互动。在第三层，带有私人夹层层的新工作空间可以通过朝南的外部甲板进入。

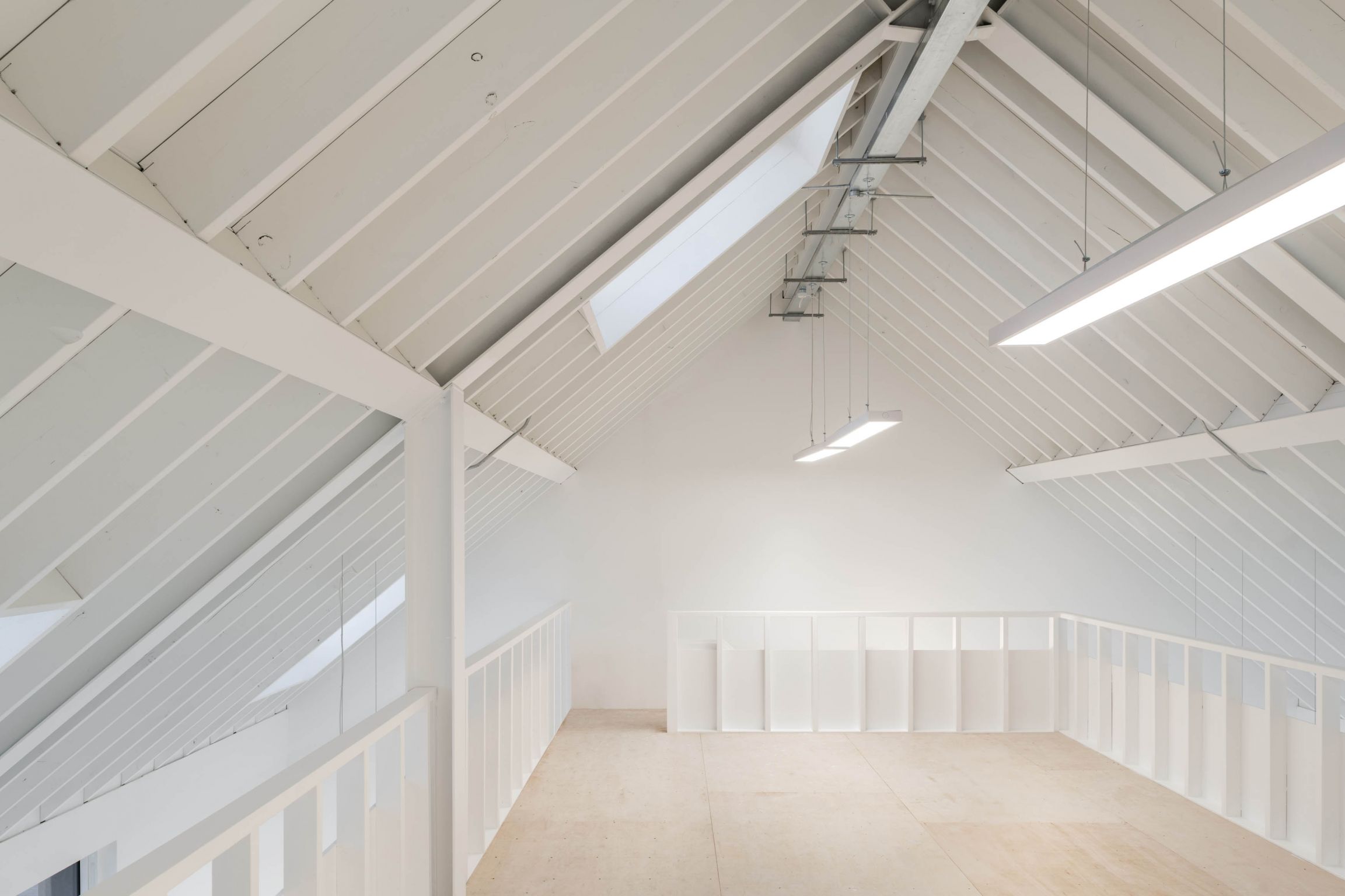

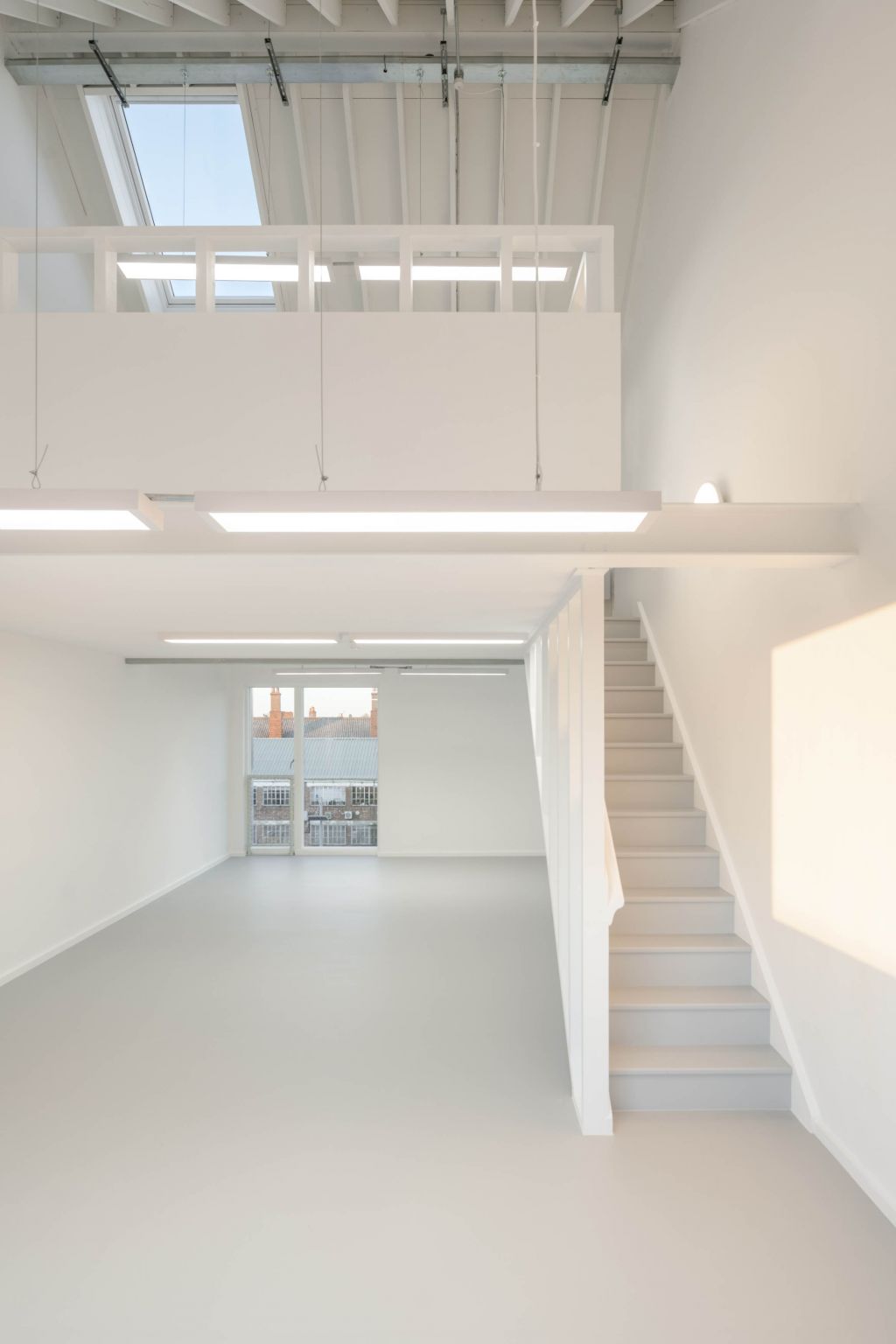

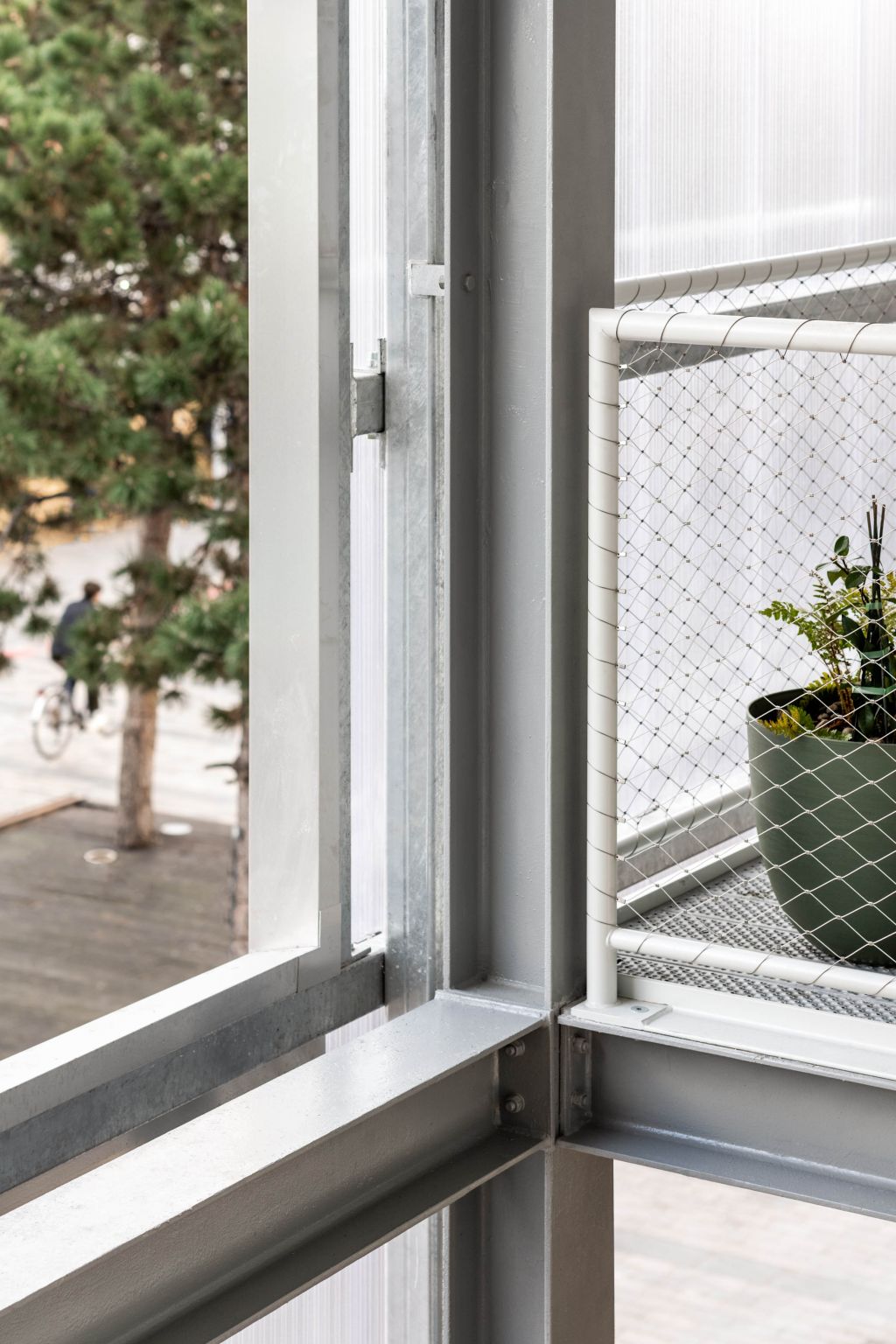

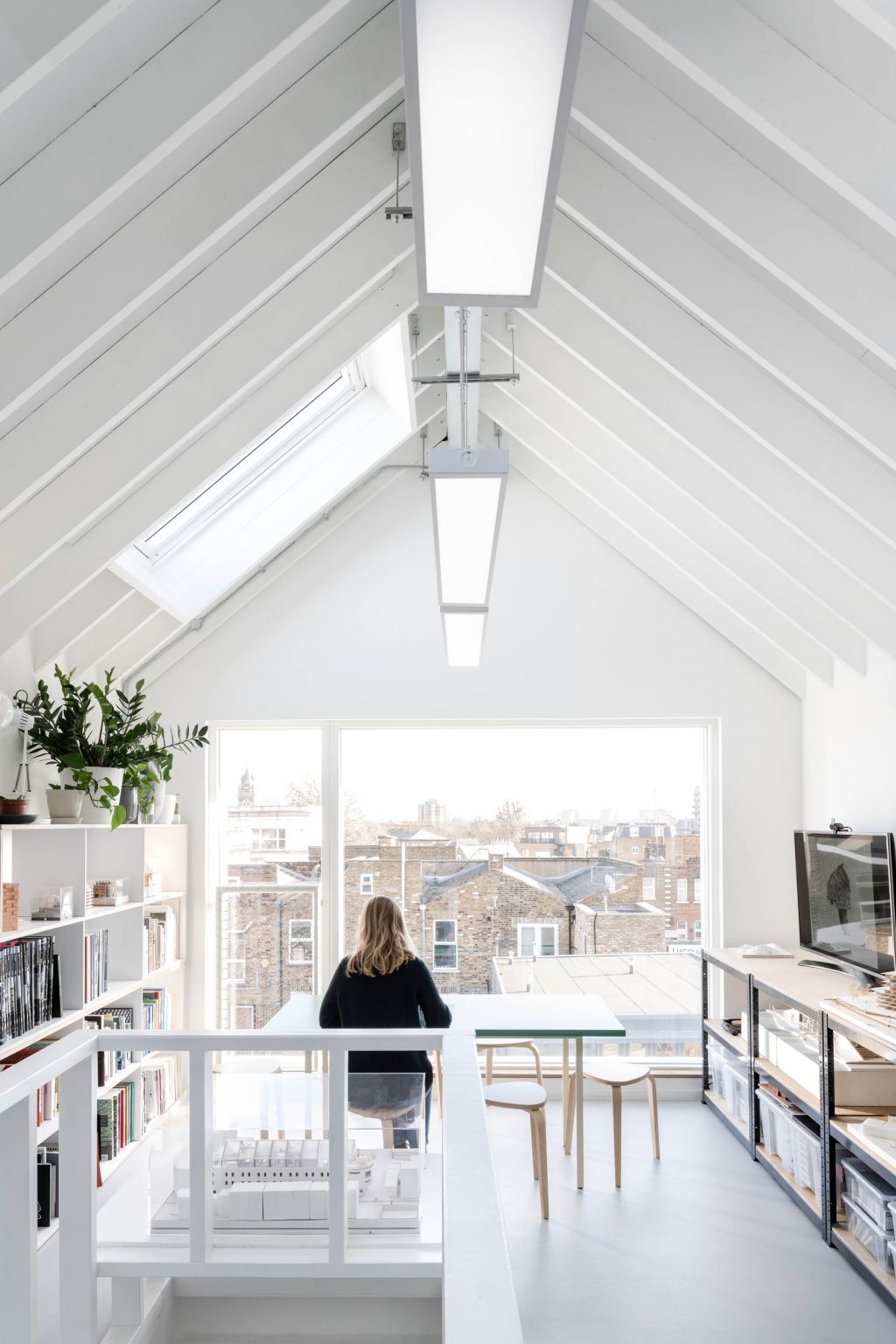

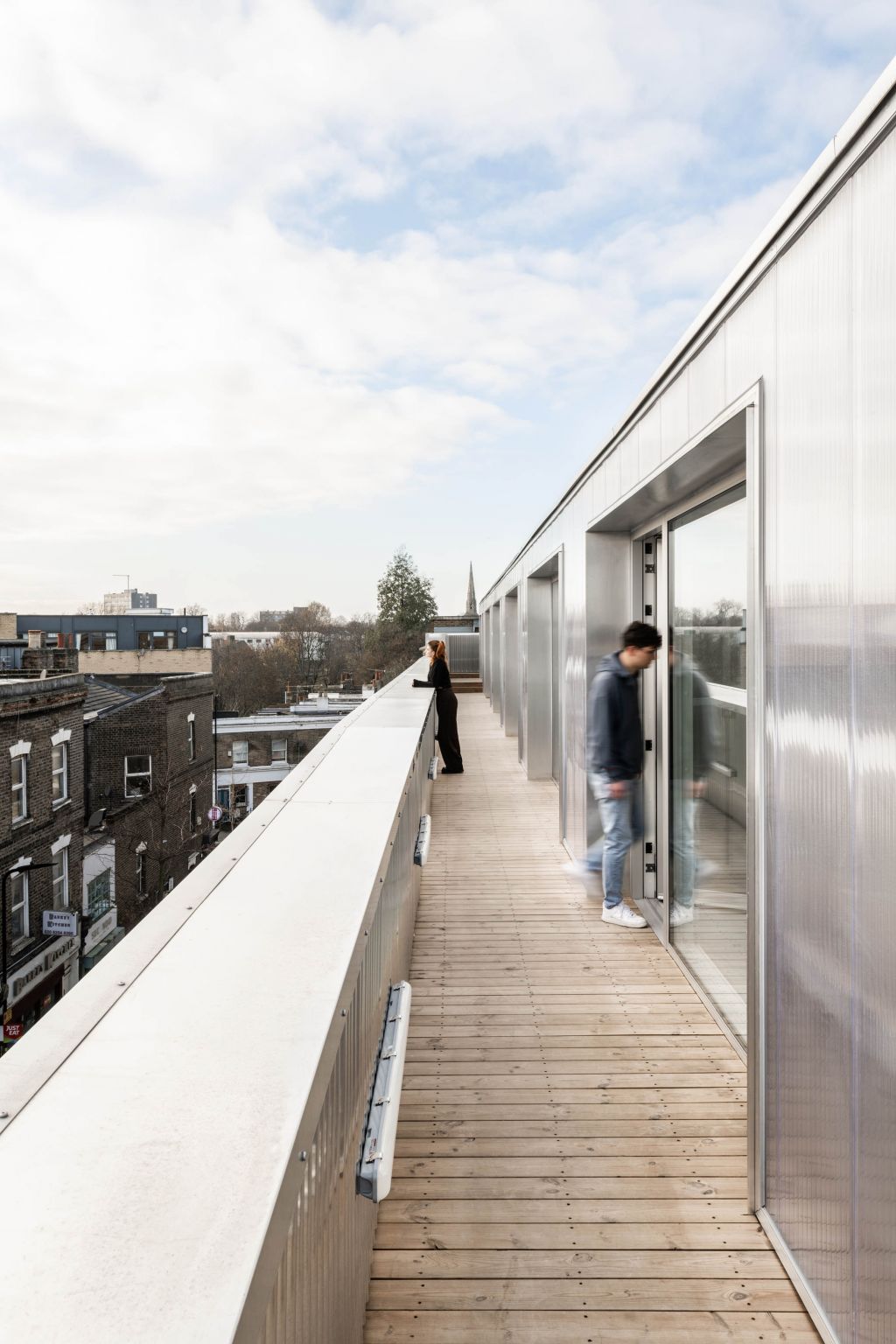

The original masonry structure of the existing Victorian terrace has been retained, refurbished, and renovated, providing small and medium 10-36m2 workspace units while preserving the existing shops, bars and restaurants facing onto Bradbury Street. A covered double height external terrace space provides access to the upper units. Picnic tables, evergreen ferns, and climbing plants intend to encourage tenants to come together in all seasons and increase interaction with the square. At third floor new workspaces with private mezzanine levels in the pitch are accessed by a south facing external deck.

新建筑的进入是通过保留并改进的现有入口及提供全新的全玻璃入口。新的品牌和指示标识由 [Y/N] 工作室设计。现有的楼梯间和入口使用青色、洋红色、黄色和黑色（关键色）进行重新涂漆，这些颜色指的是“CMYK”印刷色系，其中四种简单而对比鲜明的颜色组合可以用于创造任何艺术作品。这反映了该建筑成为各种文化和学科的熔炉，其总和超过各个部分的期望。在建筑的其他所有区域，采用了简单的颜色调色板，包括淡灰色地板和白色油漆墙壁，使租户可以根据自己的需求和个性定制他们的空间。

Access to the new building is via the existing entrance which has been retained and improved by providing a new fully glazed entrance. New branding and wayfinding signage was designed by [Y/N] Studio. The existing stairwell and entrance have been repainted with the colours Cyan, Magenta, Yellow and Key (black) referring to the ‘CMYK’ printing colour range where four simple and contrasting colours combined can be used to create any artwork. This mirrors the ambition for the building to become a melting pot of cultures and disciplines which are greater than the sum of their parts. In all other areas of the building, a simple colour palette of muted grey flooring and white painted walls allows tenants the agency to customise their space to suit their requirements and personalities.

最后，建筑被覆盖以均质的聚碳酸酯幕墙，并采用了轮廓加工的铝基和屋顶。轻盈和反光的外表营造出一个整体形态，但仔细观察可以发现材料的半透明性质使得白色烤漆砖墙和露台可以从外部看到。在幕墙背后，充足的光线进入了工作空间和休息区。在白天，幕墙反射着天空和外部环境的变化颜色，在夜晚发光，揭示内部活动。

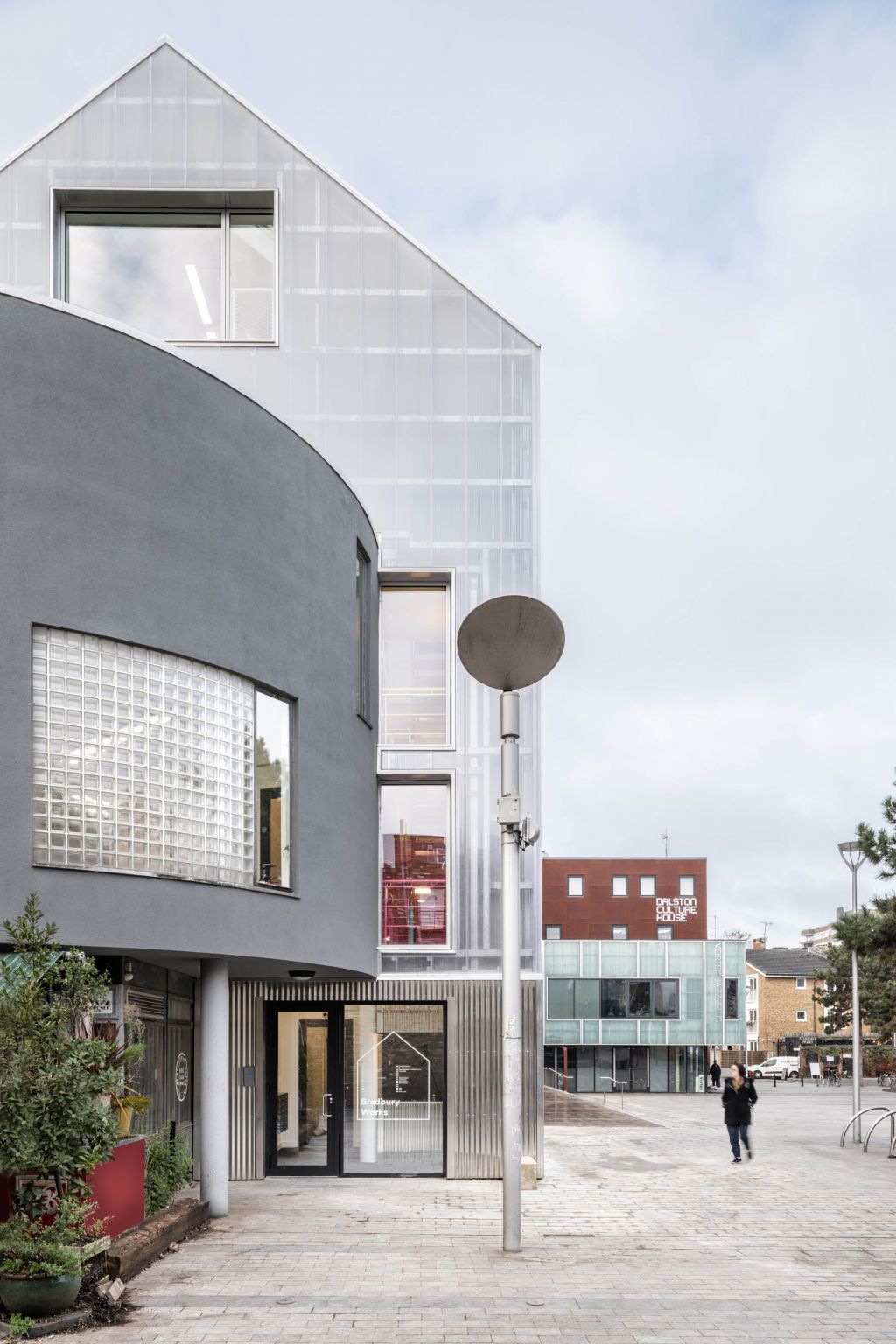

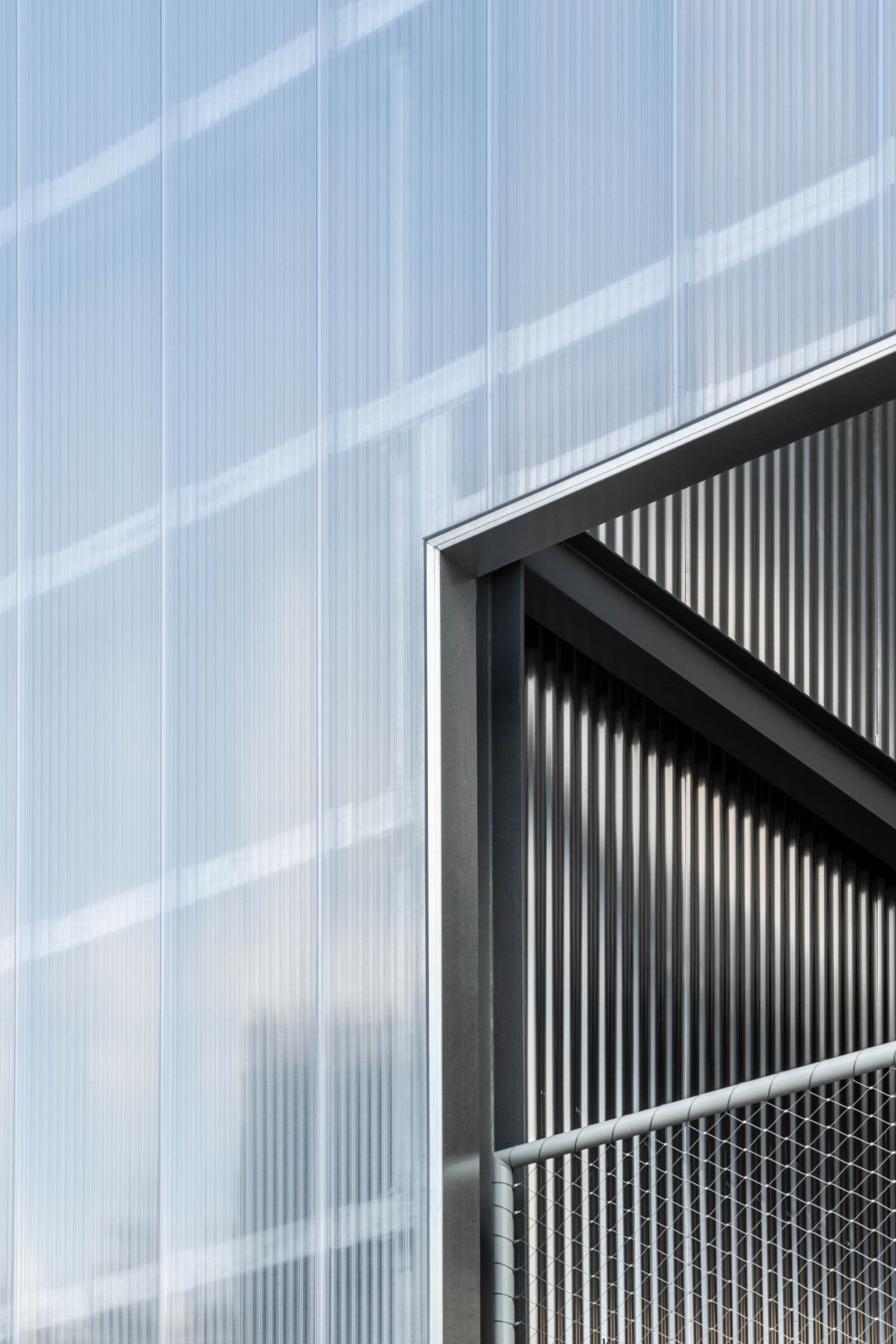

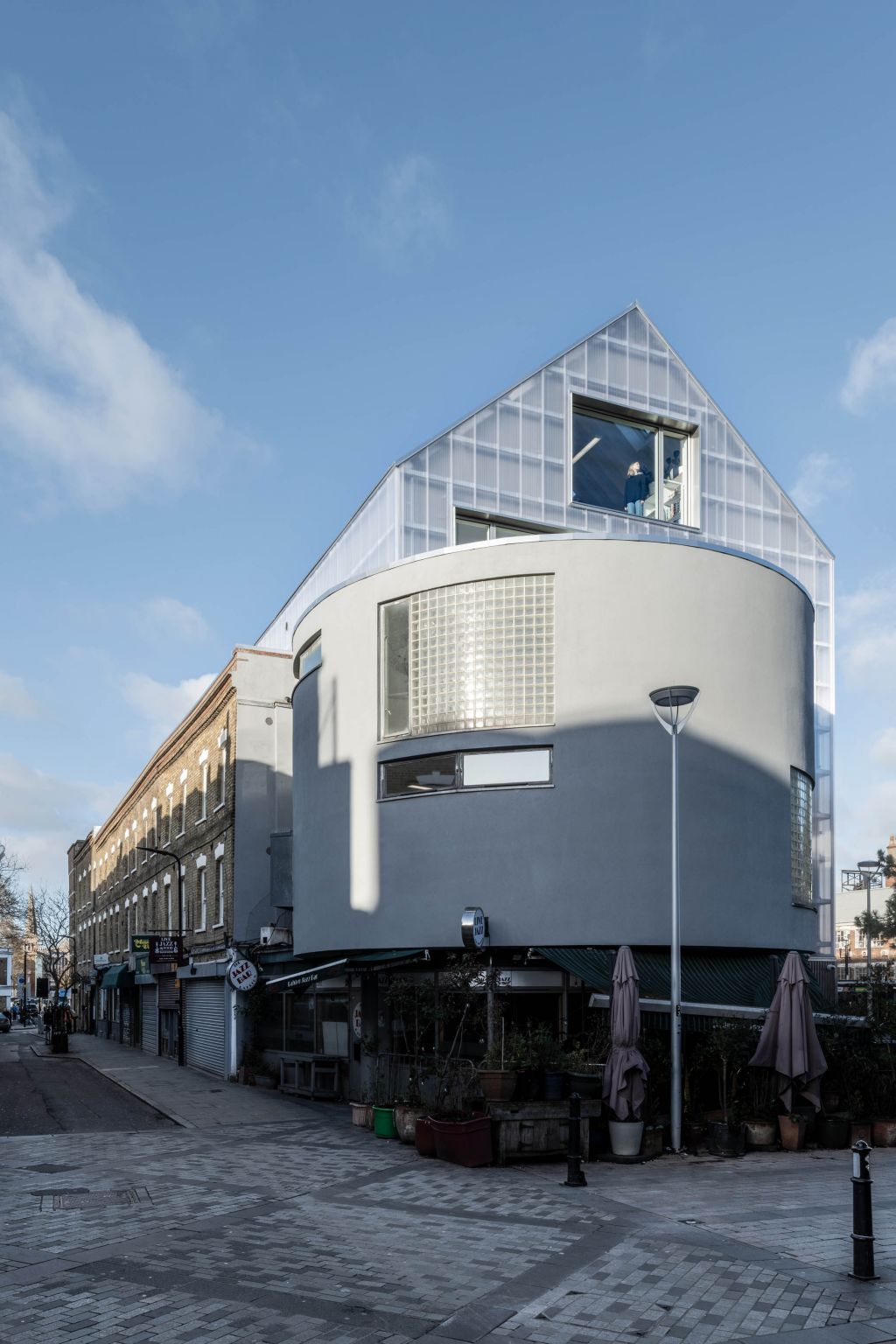

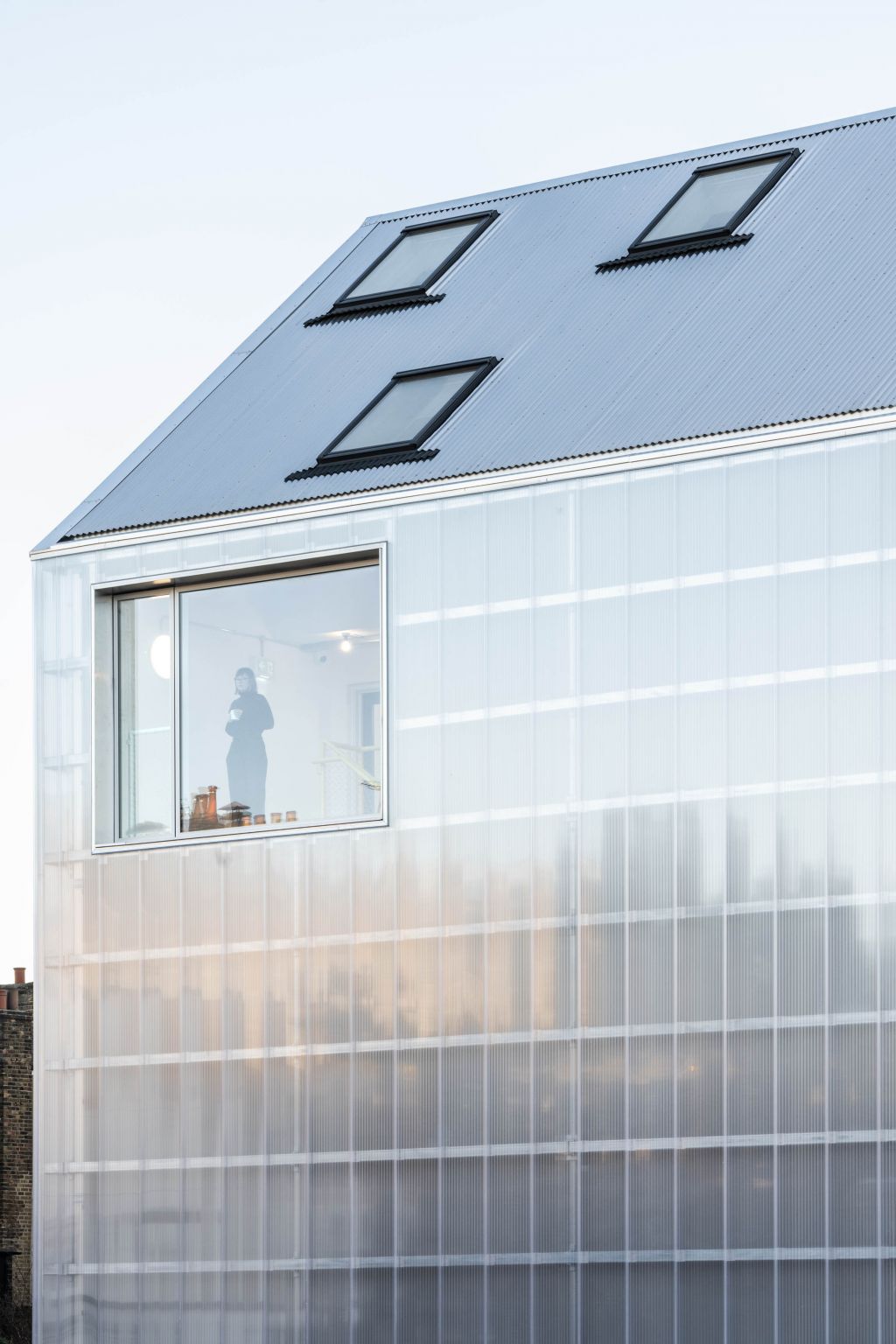

Finally, the building is wrapped in a homogenous polycarbonate façade and completed with a profiled mill finished aluminum base and roof. The lightweight and reflective skin creates the appearance of a singular form, however on closer inspection the translucent character of the material allows the white painted brick façade and the terrace to remain visible from outside. Behind, the façade allows for plenty of light to enter the workspaces and breakout spaces. During the daytime the cladding reflects the changing colours of the sky and external environment while glowing at night to reveal the internal activities.

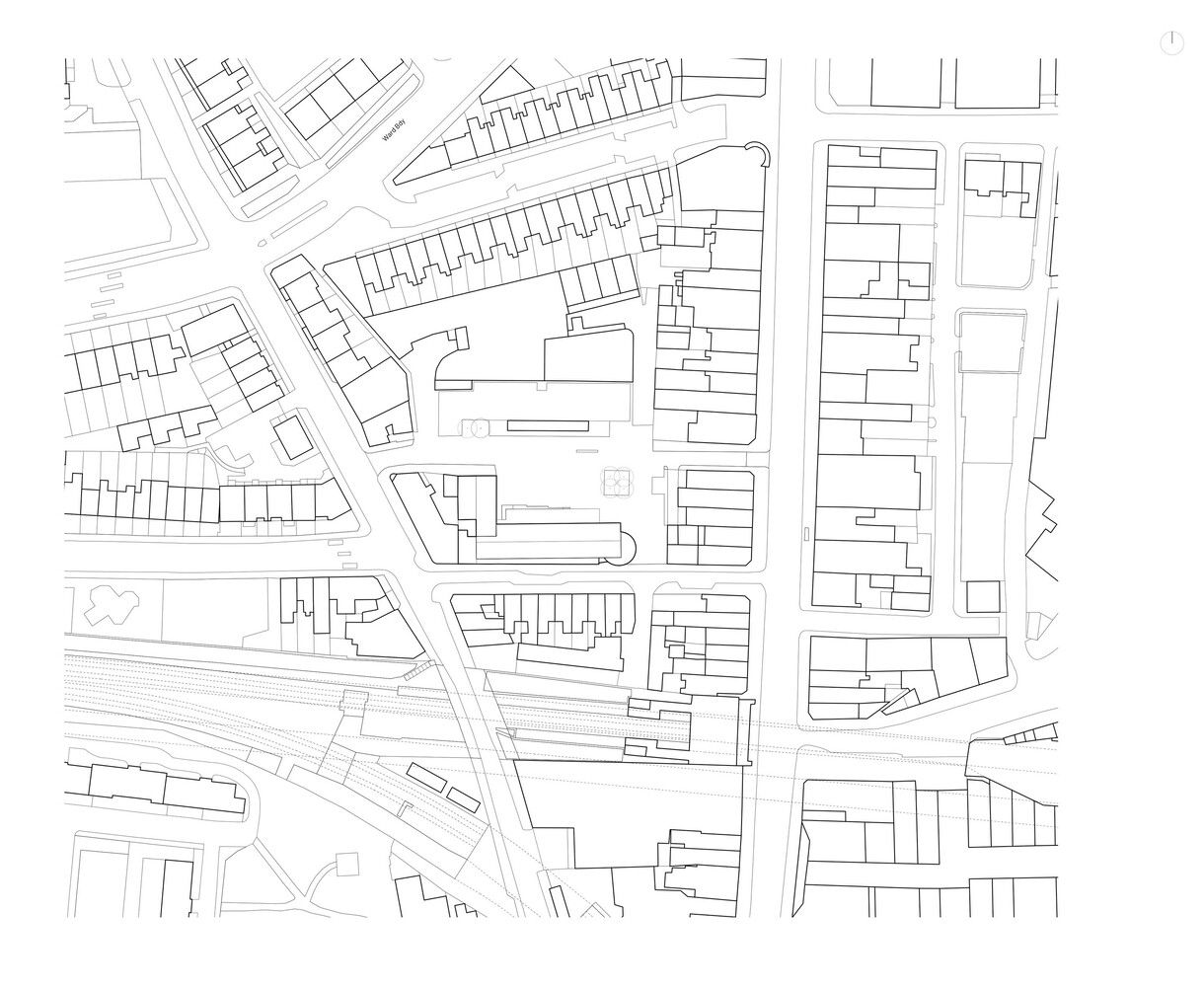

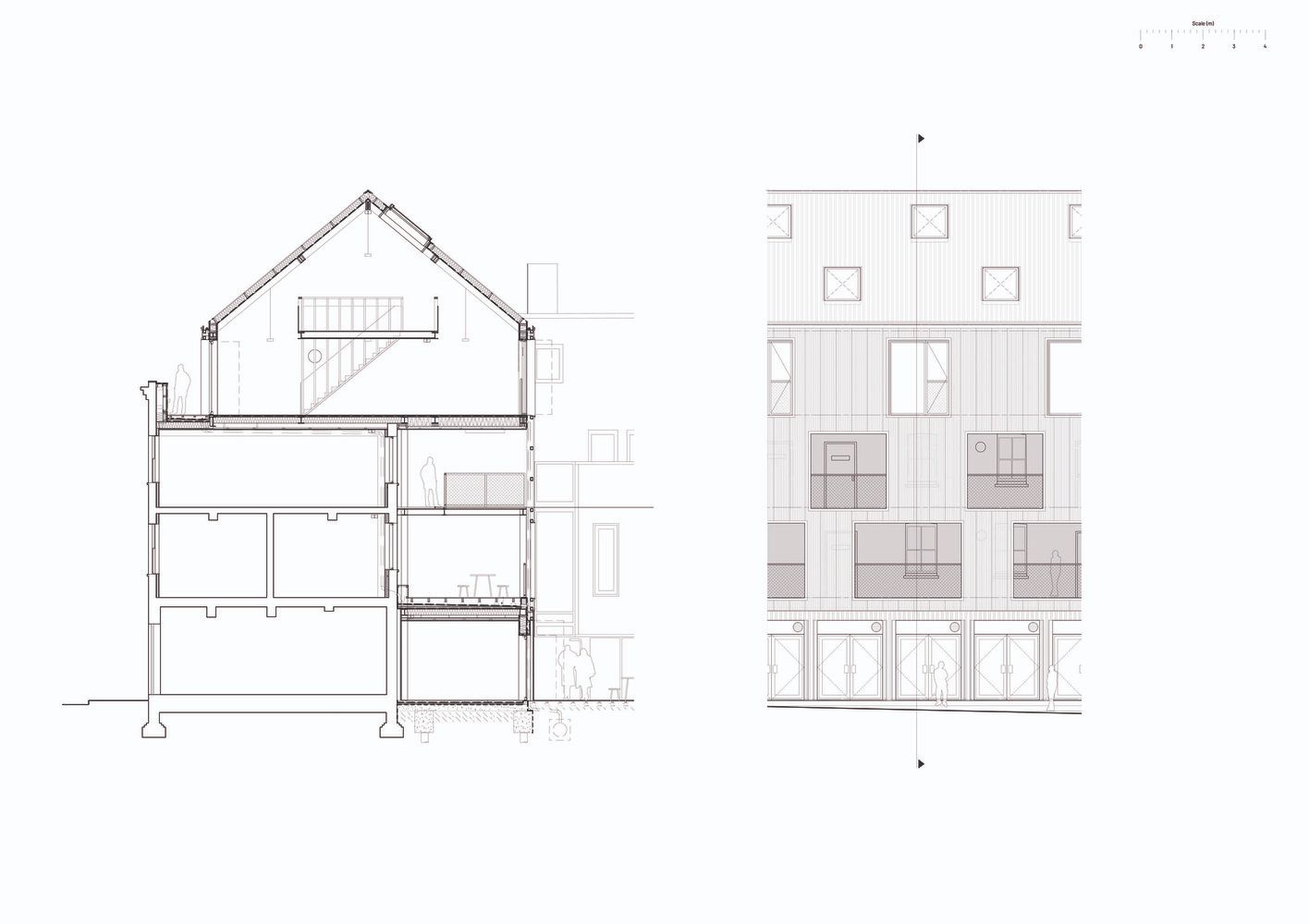

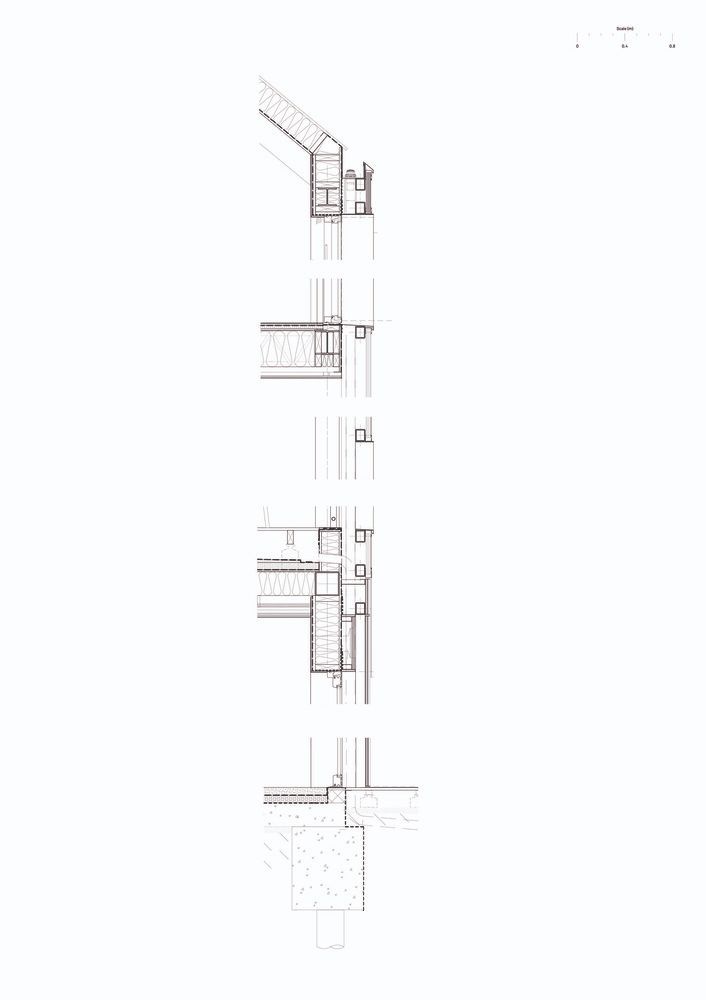

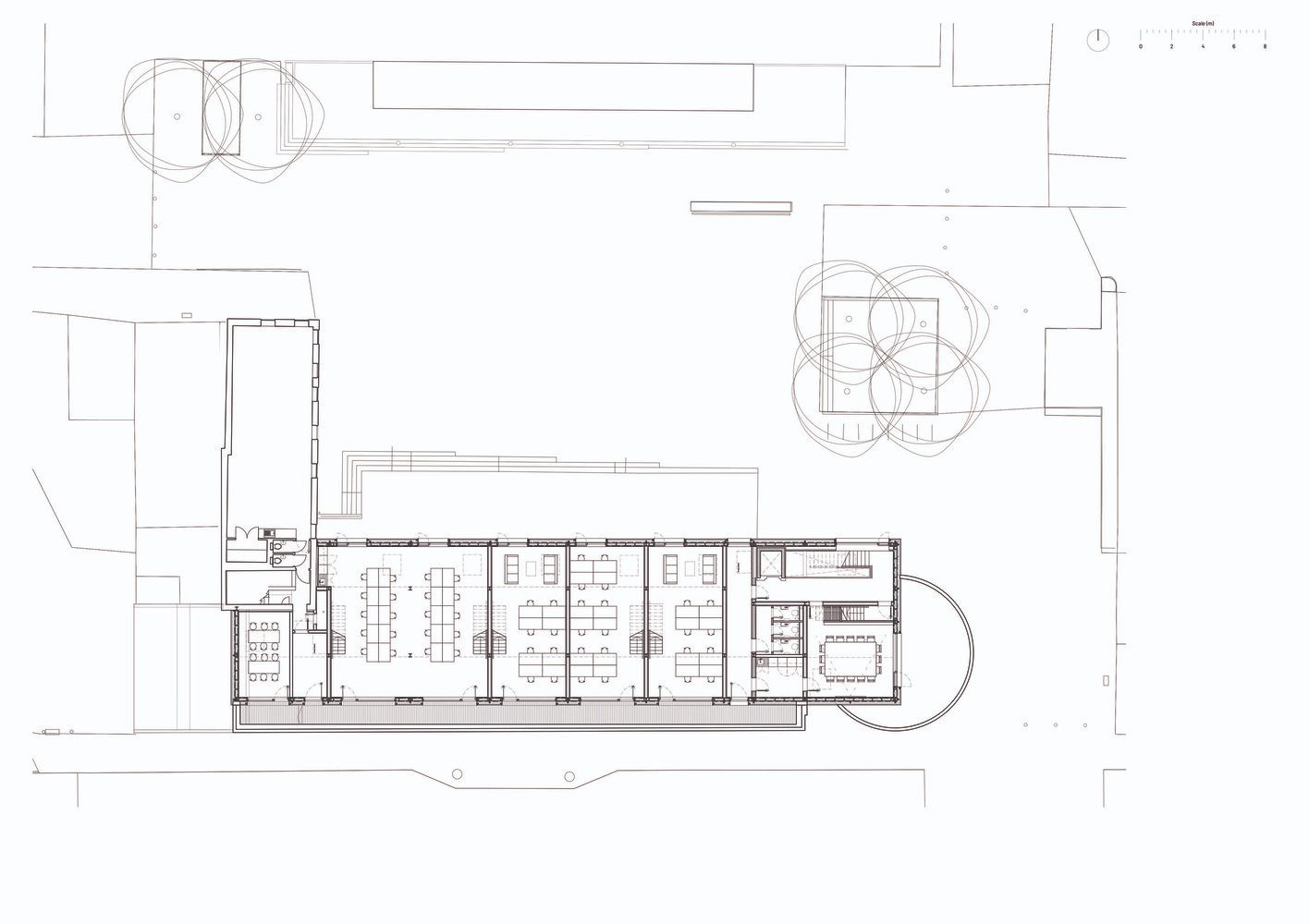

项目图纸

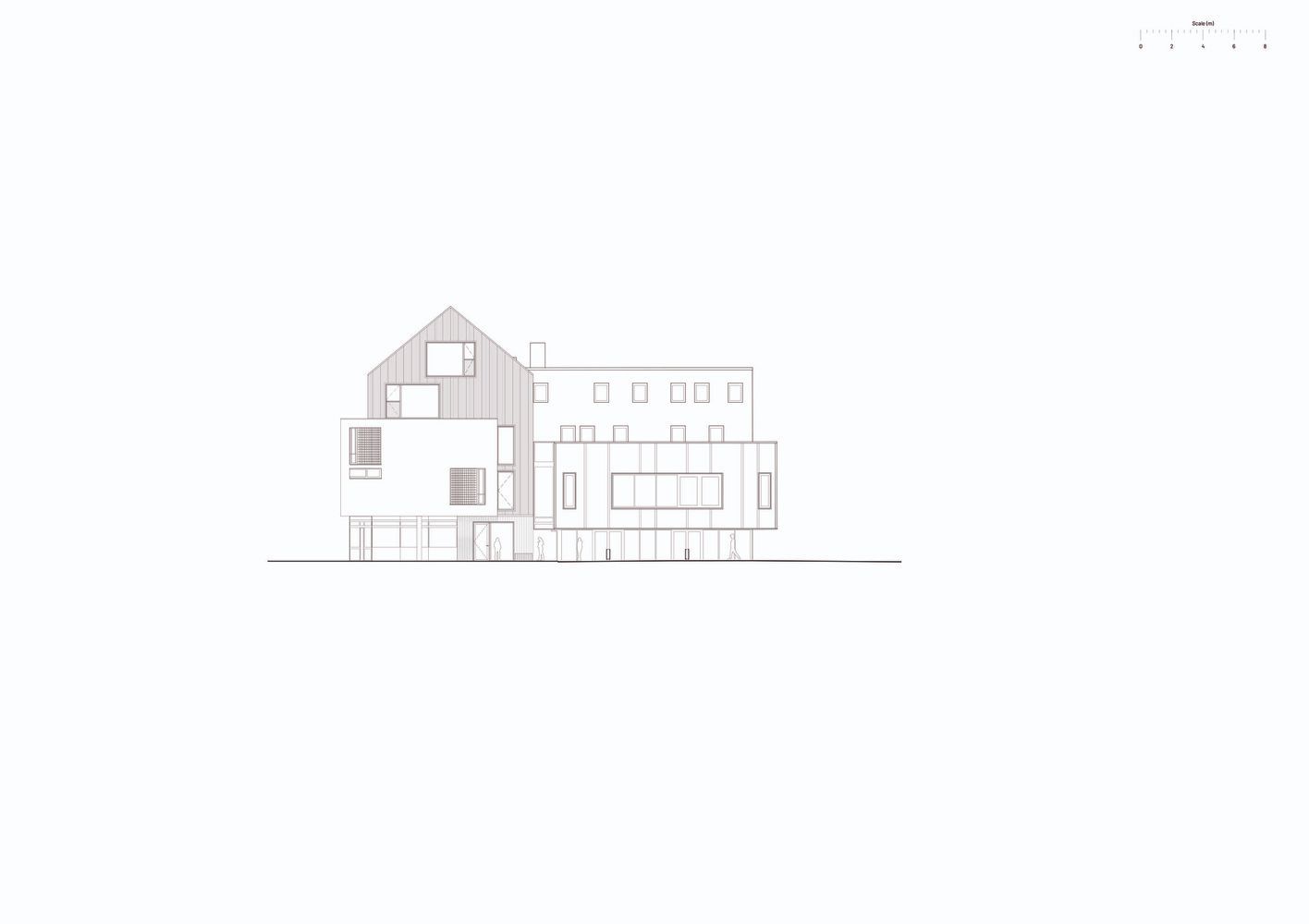

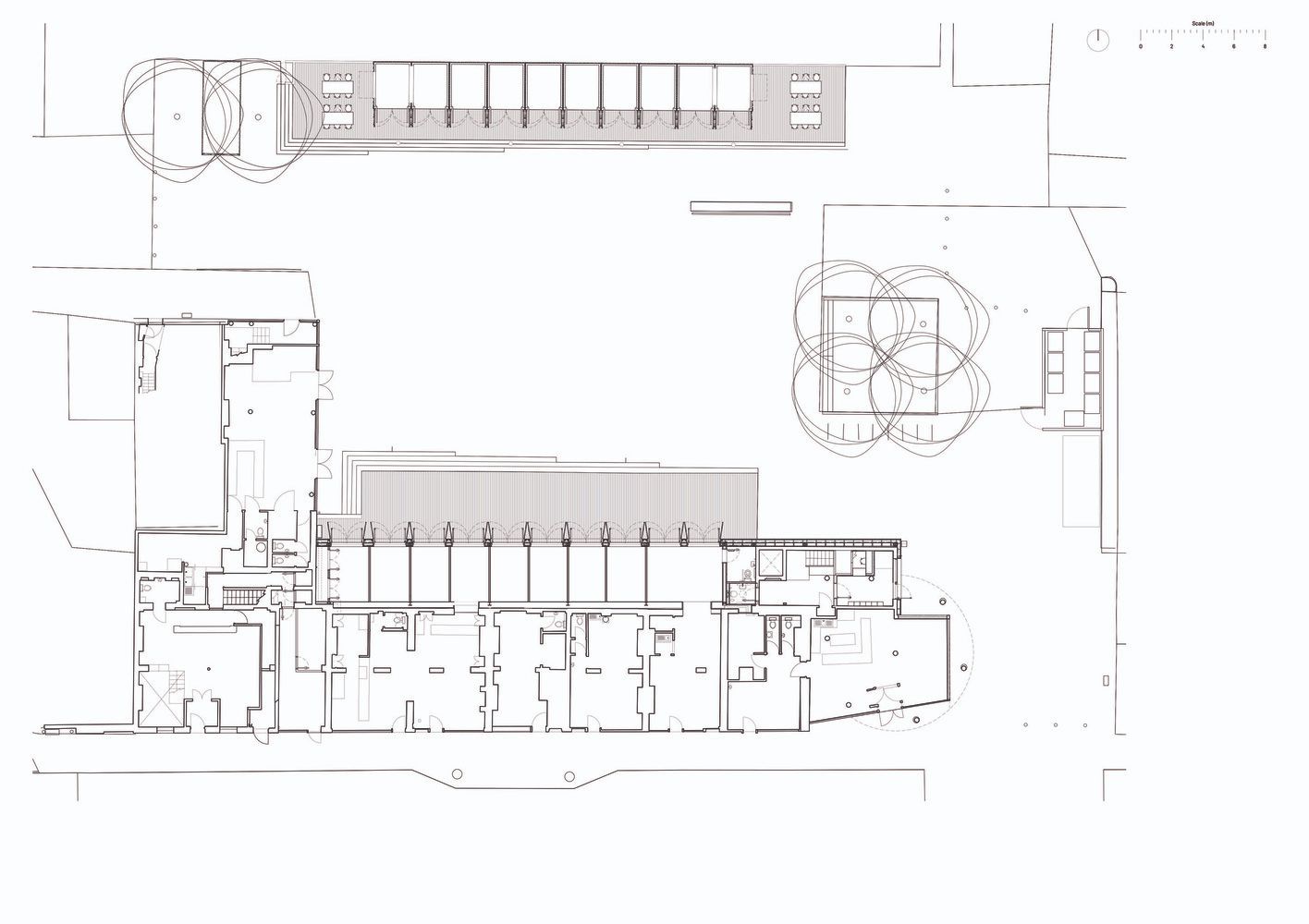

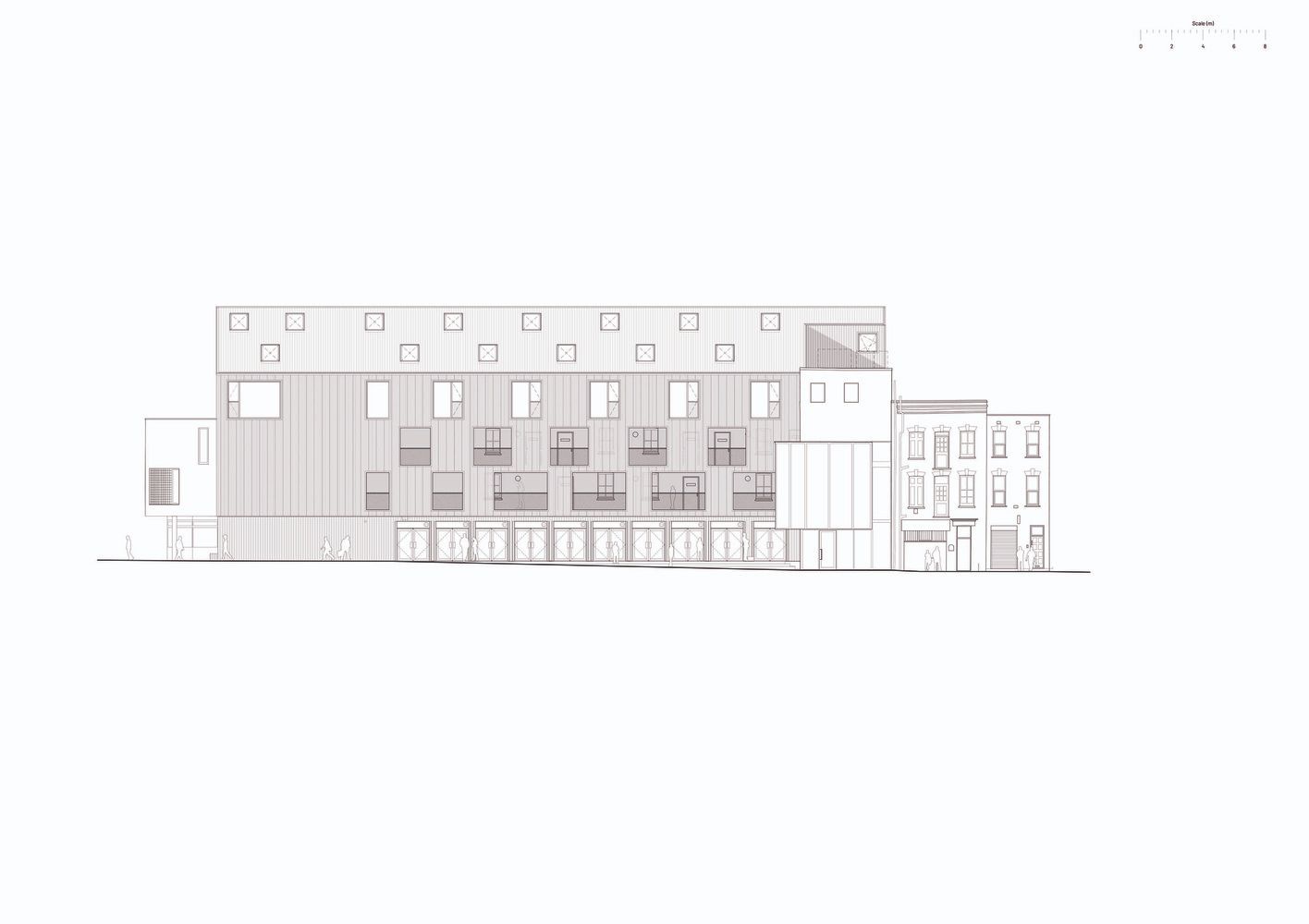

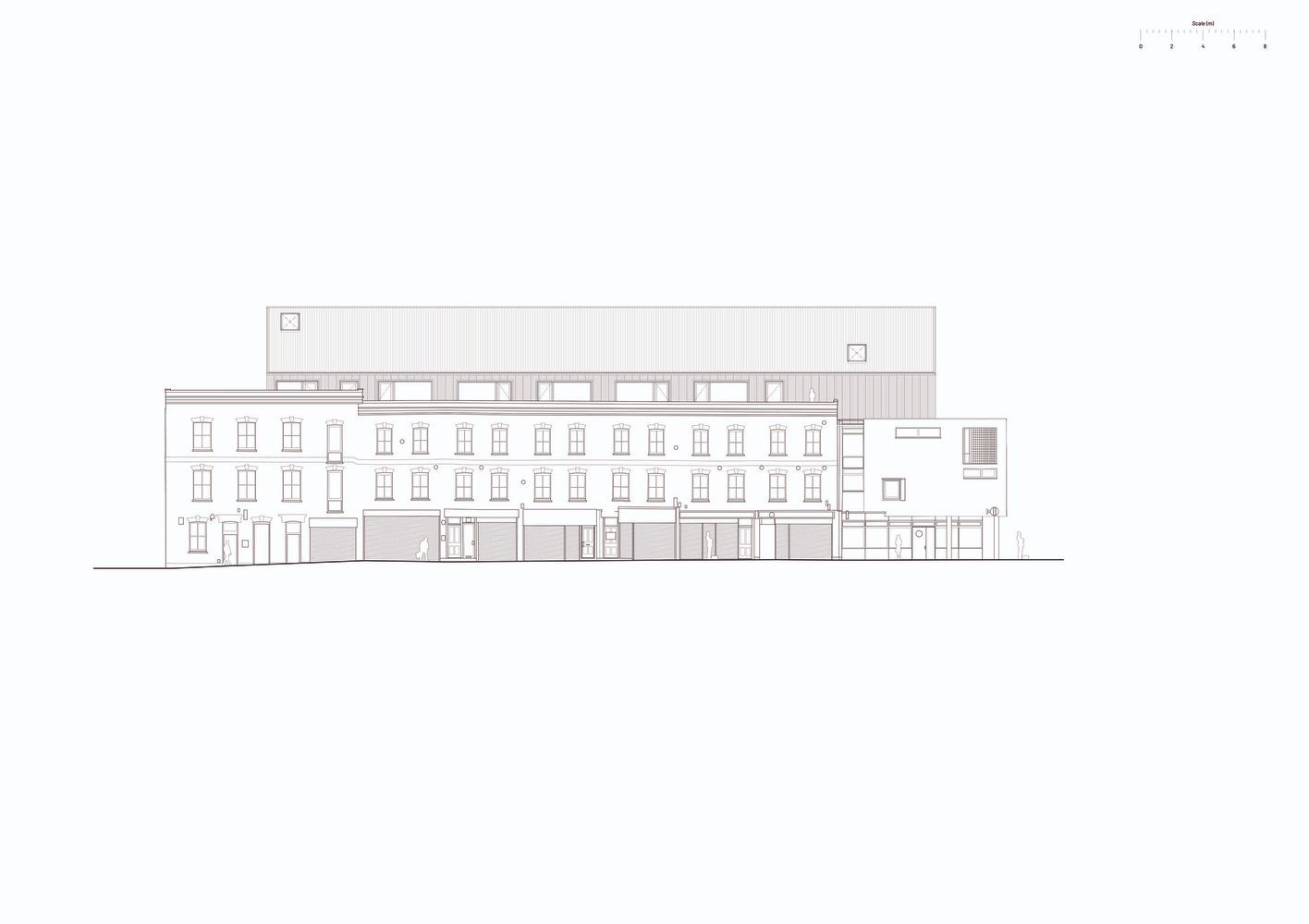

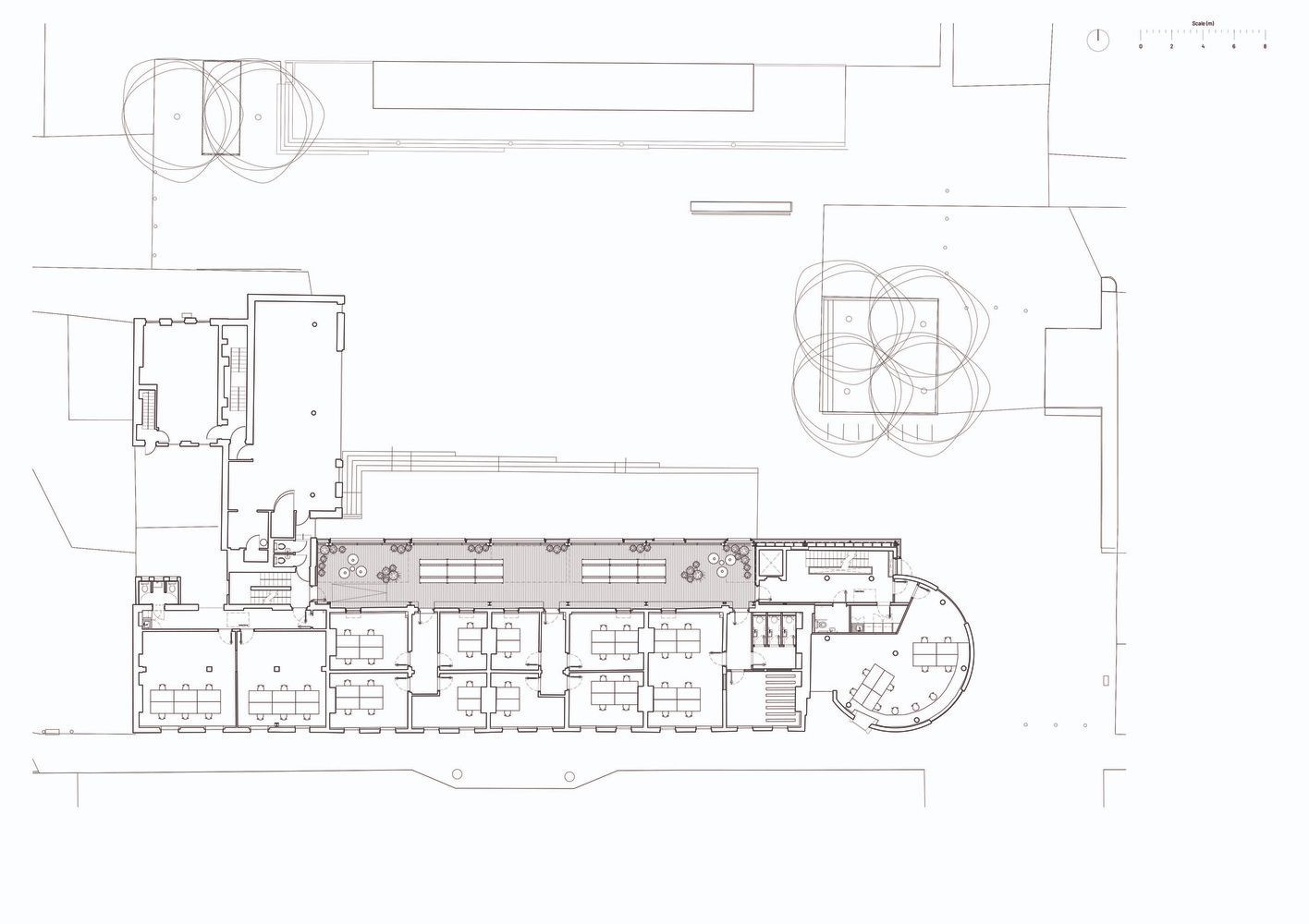

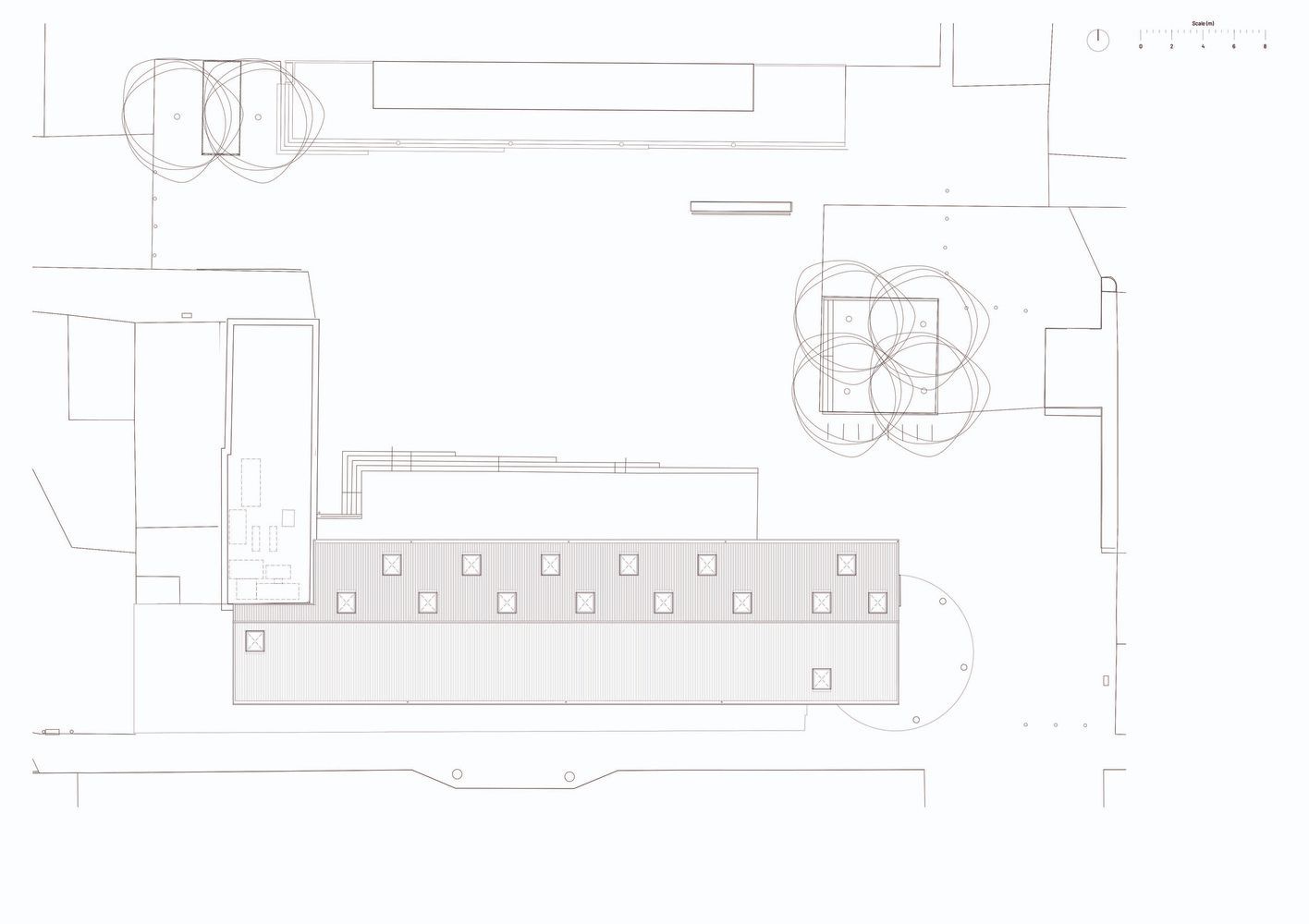

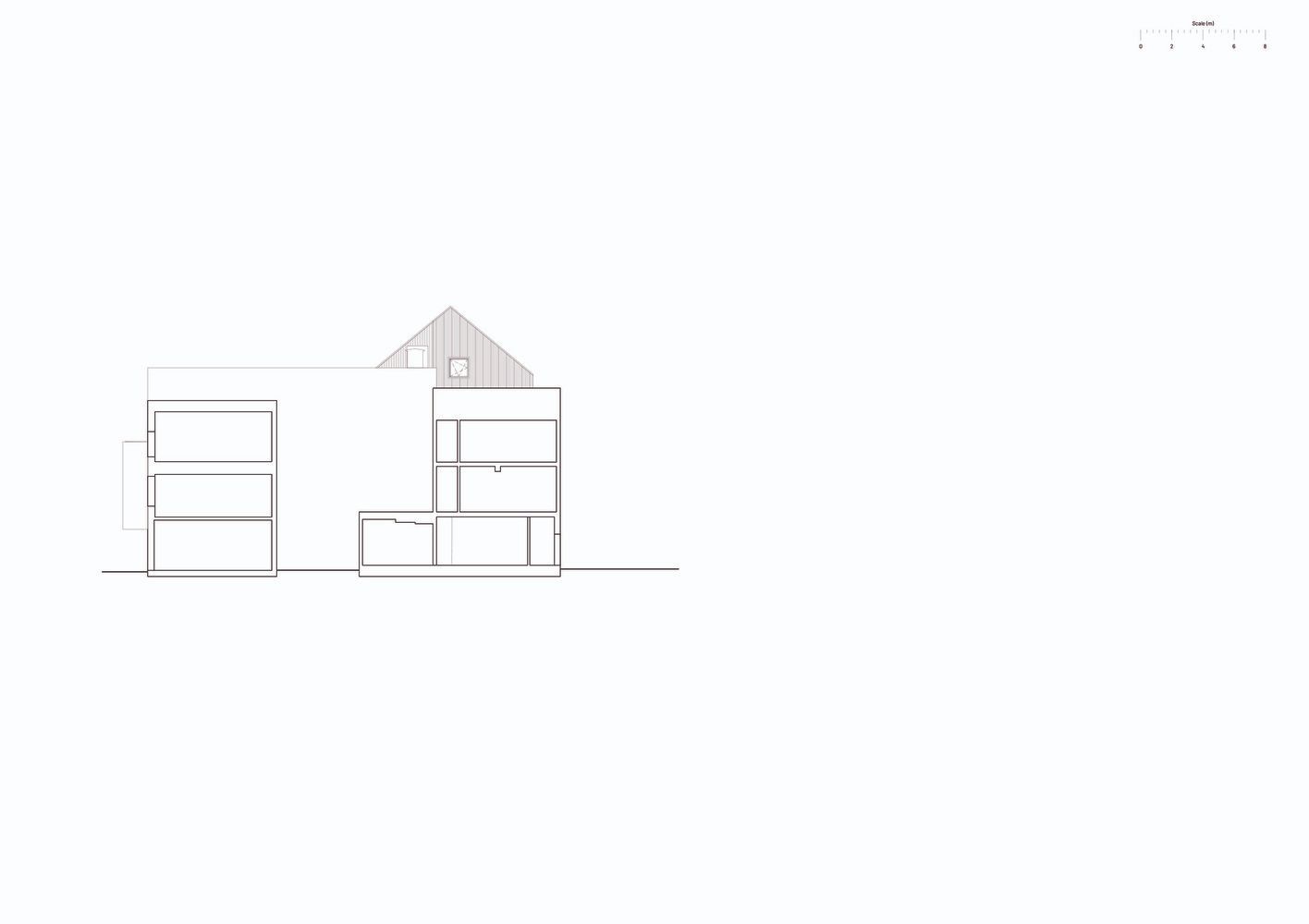

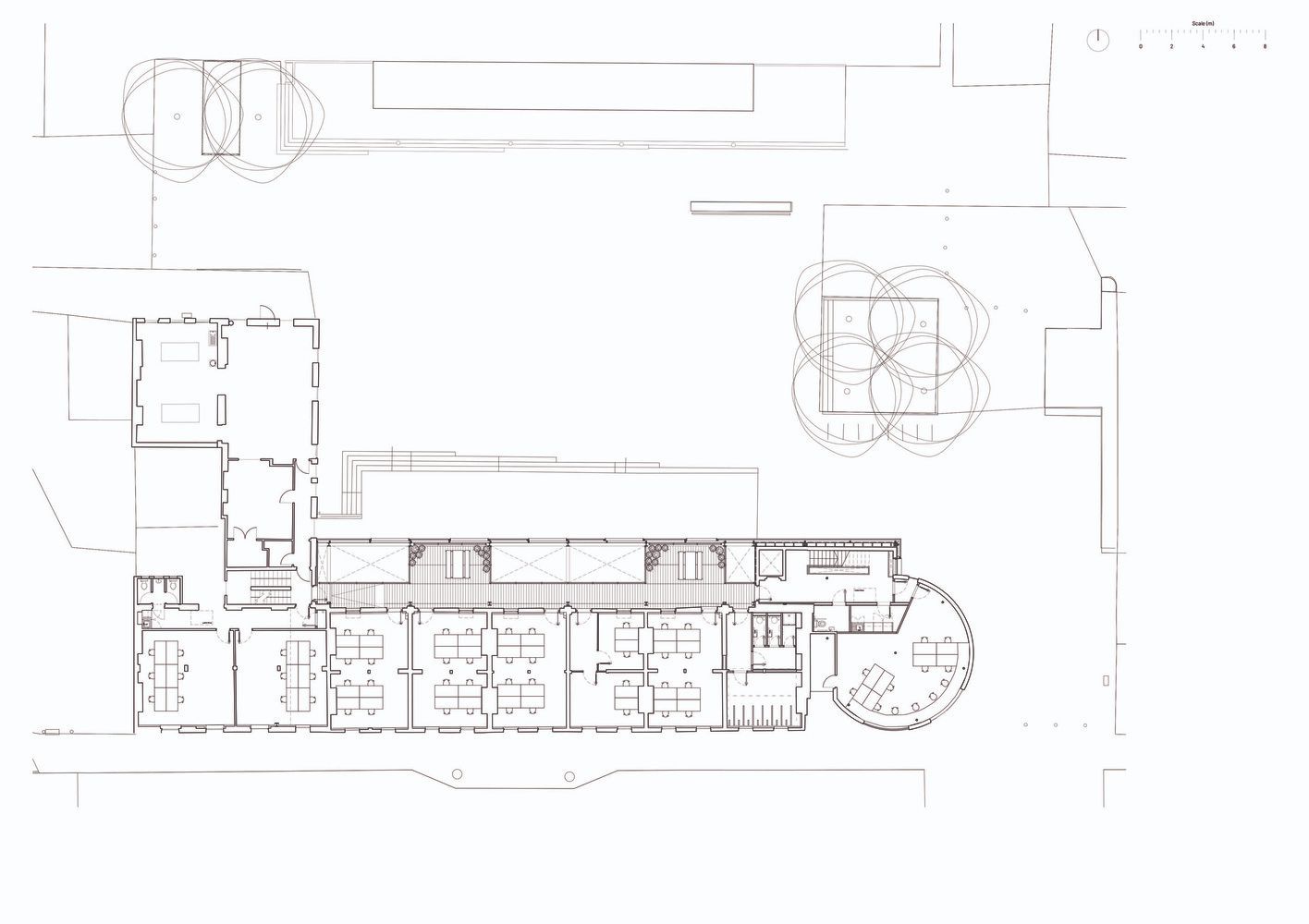

Drawings

项目信息

地点:伦敦达尔斯顿
类型:工作空间，商业，翻新
规模:1578平方米
客户:哈克尼合作发展有限公司
状态:完成
建筑师:[Y/N] Studio
总承包商:Vortex Interiors
项目管理:Helios项目管理
结构工程师: Engenuiti
M&E咨询公司:Thornley and Lumb
工料测量师:灯塔工程服务公司
规划顾问:JMS规划与发展
合作建筑师:Hawkins\Brown -仅在初始阶段。
室内设计/标识:[Y/N] Studio
遗产顾问:KM Heritage
日光与阳光:施罗德·贝格
监察测量师:Gerald Eve
其他资助:大伦敦当局(在伦敦地方企业伙伴关系下)，团结信托银行，哈克尼委员会。
摄影:French和Tye

Project Information

Location: Dalston, London
Type: Workspace, Commercial, Refurbishment
Size: 1578m2
Client: Hackney Co-operative Developments CIC
Status: Completed
Date: 2017 - 2022
Team:Architect: [Y/N] Studio
Main Contractor: Vortex Interiors
Project Management: Helios Project Management
Structural engineer: Engenuiti
M&E consultant: Thornley and Lumb
Quantity surveyor: Beacon Project Services
Planning Consultant: JMS Planning and Development
Collaborating Architect: Hawkins\Brown – initial stages only.
Interior Design / Signage: [Y/N] Studio
Heritage Consultant: KM Heritage
Daylight and Sunlight: Schroeders Begg
Monitoring Surveyor: Gerald Eve
